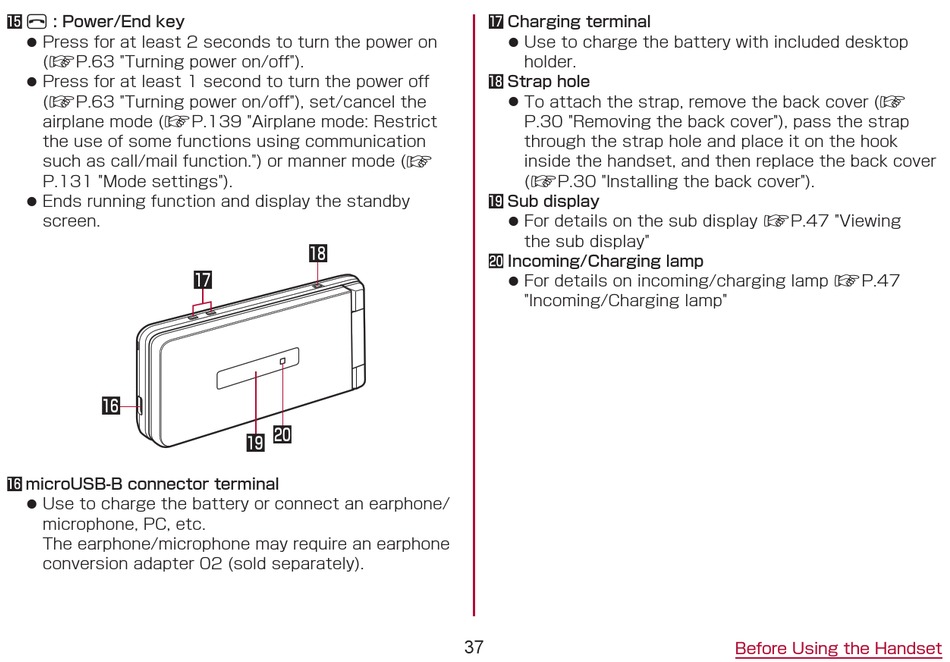

Docomo SH-03L Instruction Manual page 39

f H : Power/End key
z Press for at least 2 seconds to turn the power on
☞
( P. 63 "Turning power on/off").
z Press for at least 1 second to turn the power off
☞
( P. 63 "Turning power on/off"), set/cancel the
☞
airplane mode (
the use of some functions using communication
such as call/mail function.") or manner mode (
P. 131 "Mode settings").
z Ends running function and display the standby
screen.
g microUSB-B connector terminal
z Use to charge the battery or connect an earphone/
microphone, PC, etc.
The earphone/microphone may require an earphone
conversion adapter 02 (sold separately).
P. 139 "Airplane mode: Restrict
h Charging terminal
z Use to charge the battery with included desktop
holder.
i Strap hole
z To attach the strap, remove the back cover (
P. 30 "Removing the back cover"), pass the strap
through the strap hole and place it on the hook
☞
inside the handset, and then replace the back cover
☞
( P. 30 "Installing the back cover").
j Sub display
z For details on the sub display
the sub display"
k Incoming/Charging lamp
z For details on incoming/charging lamp
"Incoming/Charging lamp"
37
☞
☞
P. 47 "Viewing
☞
P. 47
Before Using the Handset
