Advantech WISE-710 Startup Manual

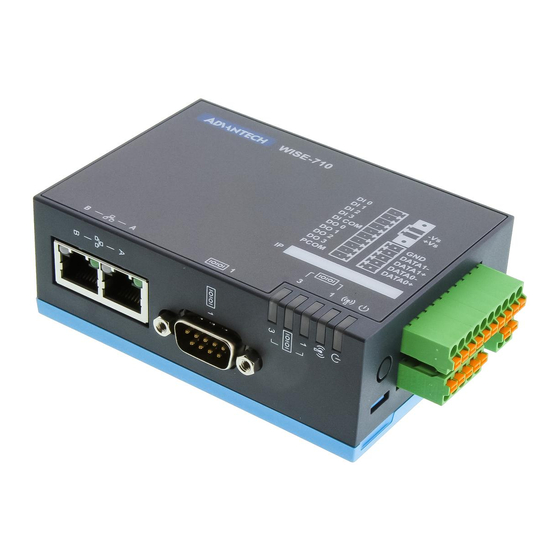

WISE-710 Industrial Protocol Gateway with Freescale i.MX6
DualLite CPU, Dual GbE, 3 x COM, 4 x DI/O, 1 x Micro USB,
and 1 x Micro SD Slot
Startup Manual
Packing List
Before installation, ensure that the following items are
included with the product:
• 1 x 2-pin terminal block
• 1 x 5-pin terminal block
• 1 x 10-pin terminal block
• 2 x mount kit holder
• 2 x mount kit latch
• 4 x mount kit screw
• 1 x grounding cable
• 1 x China RoHs label
• 1 x WISE-710 startup manual
• 1 x warranty card
If any of these items are missing or damaged, contact your
distributor or sales representative immediately.
Document/Software Support Guide
All relevant documentation and software are available on-
line for download at https://support.advantech.com/Support/
SearchResult.aspx?keyword=wise-710.
Documentation
• Datasheet
• Startup manual
• User manual
• Yocto
• Ubuntu
For more information about this or other Advantech
products, visit the Advantech website at
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and customer service, visit the
Advantech support website at
http://www.advantech.com/support
This manual is for WISE-710.
Part No. 2043E71000
This manual contains the following sections, which provide
information on how to conduct the intial device setup:
• DIN-Rail Installation
• Wall Mount Installation
• Wi-Fi Module and Antenna Installation
• Expansion Module Installation
DIN-Rail
1. Fasten the DIN rail bracket to the gateway using 2 screws
2. Install the mount latch
3. Use the DIN rail bracket to mount the gateway onto the DIN
rail
Edition 1
January 2019
Initial Setup
Installation
WISE-710 Startup Manual 1
