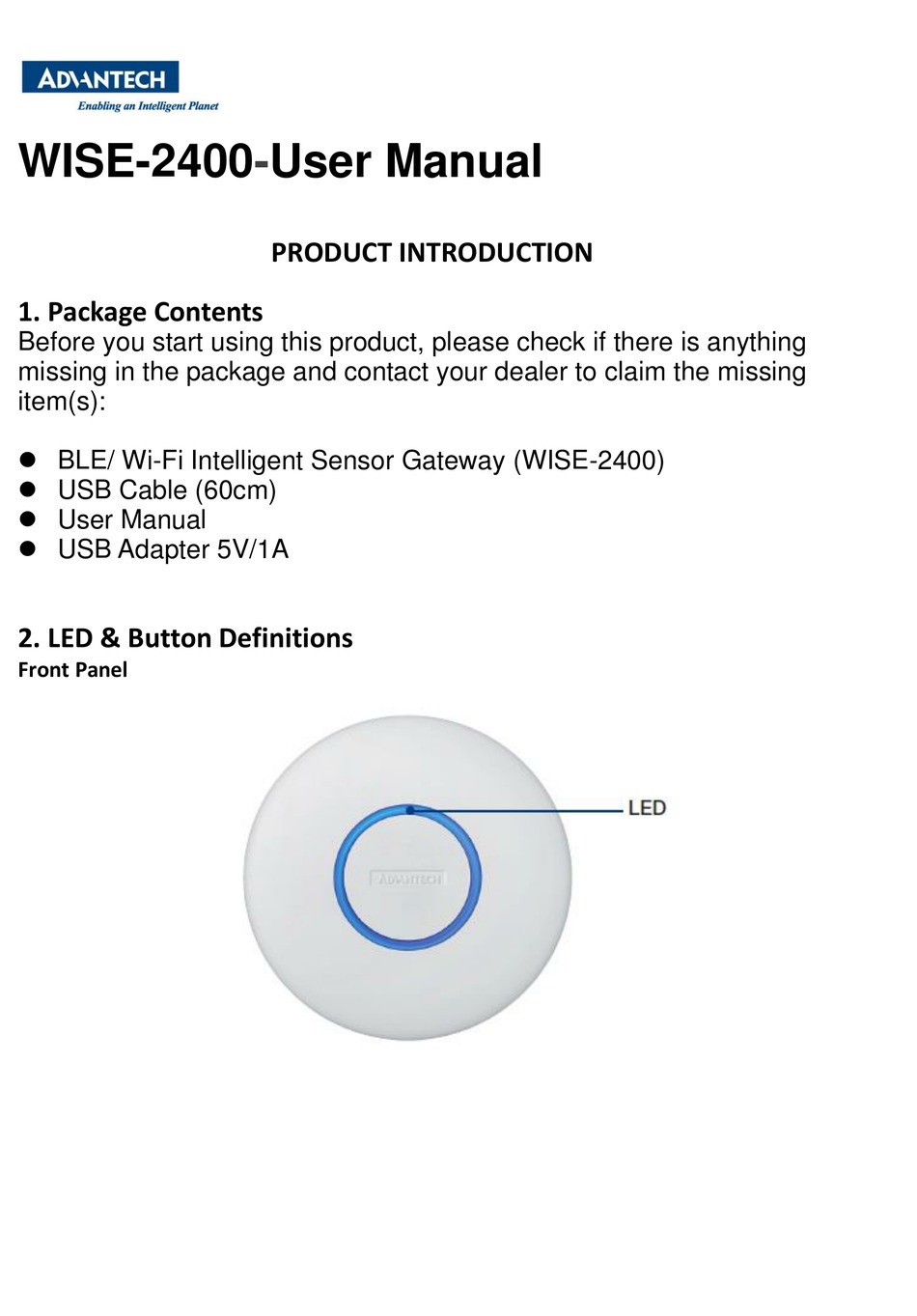

WISE-2400-User Manual

PRODUCT INTRODUCTION

1. Package Contents

Before you start using this product, please check if there is anything

missing in the package and contact your dealer to claim the missing

item(s):

 BLE/ Wi-Fi Intelligent Sensor Gateway (WISE-2400)

 USB Cable (60cm)

 User Manual

 USB Adapter 5V/1A

2. LED & Button Definitions

Front Panel

Need help?

Do you have a question about the WISE-2400 and is the answer not in the manual?

Page 1 Before you start using this product, please check if there is anything missing in the package and contact your dealer to claim the missing item(s):  BLE/ Wi-Fi Intelligent Sensor Gateway (WISE-2400)  USB Cable (60cm)  User Manual  USB Adapter 5V/1A 2.
Page 2: Hardware Installation
Micro USB Port USB Power connector 3. Hardware Installation Step 1: Connect the power adapter to the WISE-2400 Plug one end of the power adapter into a power outlet and connect the other end to the 5V interface of the device.
Page 3 Step 2: Fixed WISE-2400 with mounting kit Please follow below steps. to mount the WISE-2400.
Page 4: Getting Started
4. GETTING STARTED A. First 2400 setting Start to use WISE-2400, please follow below flowchart to do the setting.
Page 5 Config Note SSID WISE_AP 12345678 Security type RTLS Server config 192.168.2.58 port 4242 Factory default C. WISE-2400 connection Start the RTLS server with Wifi AP, then open WISE-2400 and WISE-2200B , WISE-2400 will be automatically registered to the RTLS server.
Page 6 Can check all the WISE-2200B status from RTLS server "DEVICE MANAGEMENT "function.
Page 7 Federal Communications Commission (FCC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
