Basic Characteristics Data
Model
Circuit method

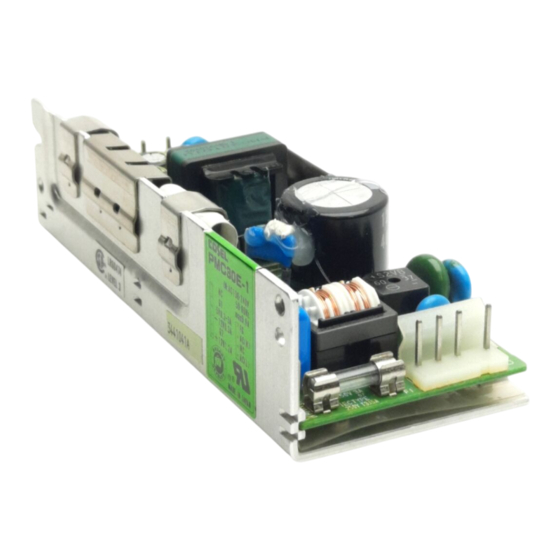

PMC15E
Flyback converter
PMC30E
Flyback converter
PMC50E
Flyback converter
PMC75E
Forward converter
PMC
PMC100E
Forward converter
*1
Please refer to Series/Parallel operation in the instruction manual.
*
The switching frequency of single ended flyback method changes according to input voltage and load factor.
*
The value of input current is at ACIN 100V and rated load.
PMC-12
Basic Characteristics Data
Switching
Input
frequency
current
[kHz]
[A]
50 - 300
0.4
50 - 300
0.8
70 - 380
1.4
200
1.8
200
2.4
Inrush
Rated
current
input fuse
protection
Material
250V 2A
Thermistor
CEM-3
250V 3A
Thermistor
CEM-1
250V 3A
Thermistor
CEM-1
250V 5A
Triac
CEM-1
250V 5A
Triac
FR-4
Series/Parallel
PCB/Pattern
operation availability
Single
Double
Series
operation
operation
sided
sided
* 1
Yes
* 1
Yes
* 1
Yes
* 1
Yes
* 1
Yes
Parallel
No
No
No
No
No

Advertisement

loading
Need help?

Need help?

Do you have a question about the PMC15E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cosel PMC15E

  • Page 1 Single Double Series Parallel input fuse protection Material [kHz] operation operation sided sided PMC15E Flyback converter 50 - 300 250V 2A Thermistor CEM-3 PMC30E Flyback converter 50 - 300 250V 3A Thermistor CEM-1 PMC50E Flyback converter 70 - 380...
  • Page 2 AC-DC Power Supplies Enclosed type Instruction Manual Terminal Block PMC-14 Function PMC-14 PMC-14 Input voltage range PMC-15 Inrush current limiting PMC-15 Overcurrent protection PMC-15 Overvoltage protection PMC-15 Output voltage adjustment range PMC-15 Isolation PMC-15 Minimum output current of +5V Series Operation and Parallel Operation PMC-16 Assembling and Installation Method PMC-16...
  • Page 3: Terminal Block

    Output voltage adjustable potentiometer(+5V) lPMC30E 2.1 Input voltage range PMC15E PMC30E The range is from AC85V to AC264V or DC110V to DC370V. AC input voltage must have a range from AC85V to AC264V for normal operation. If the wrong input is applied, the unit will not op- erate properly and/or may be damaged.
  • Page 4 1.5 minutes( ). Output voltage will be recovered after applying input voltage. PMC15E PMC30E PMC50E The recovery time depends on input voltage. The thermistor is used for protection from inrush current. When...
  • Page 5: Series Operation And Parallel Operation

    Instruction Manual AC-DC Power Supplies Enclosed type lPMC30E 3 Series Operation and Parallel Operation Series operation with V2 and V3 is available by connecting the outputs of the unit as shown below. Output current in series con- nection should be lower than the lowest output current of the unit. Series operation with other models is not possible.
  • Page 6 Instruction Manual AC-DC Power Supplies Enclosed type lPMC75E PMC100E (2)Derating curve (1)Mounting method (2)Derating curve PMC30E Inside [ ] (1)Mounting method is with case cover Convection Forced air (0.5m /min) A mounting 40 [35] 50 45 60 55 70 65 B mounting 35 30 45 40...
