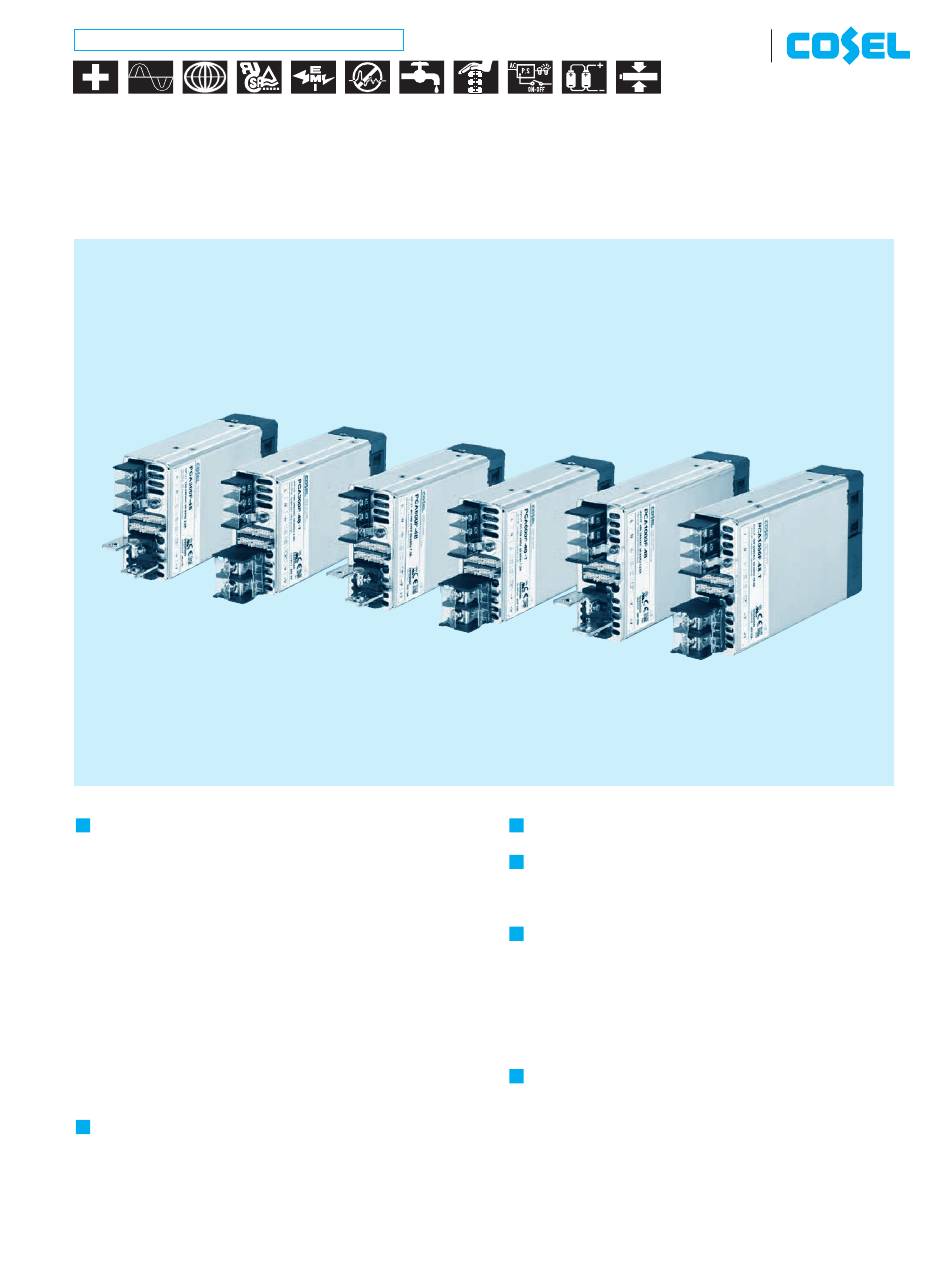

Cosel PCA Series Assembling And Installation Instructions

AC-DC Power Supplies Enclosed Type
Medical Power World wide Safety
electric Factor Approvals
equipment Correction
PCA-series
PCA300F
Feature
Low profile (41mm, 1.61 inch = meet to 1U height)
Universal input 85 - 264VAC
(Refer to "Derating", when using at 85 - 90VAC)
DC input 88 - 370VDC possible : Excluding PCA1000F
(Refer to "Derating", when using at 88 - 110VDC)
For medical electric equipment
(ANSI/AAMI ES60601-1, EN60601-1 3rd)
Medical Isolation Grade 2MOPP
With AUX output 12V 0.1A (Voltage variable range 5 - 12V)
Constant current regulation
Output voltage can be varied to near 0V (Refer to item 2.6)
With various alarms
Parallel Operation / N+1 Parallel Redundancy Operation possible
Monitoring function by communication and various setting
values can be changed (Refer to item 2.11)
Safety agency approval
- UL62368-1, C-UL (CSA62368-1), EN62368-1,
ANSI/AAMI ES60601-1, EN60601-1 3rd
EMI Inrush OCP OVP
current
limiting
PCA600F
July 16, 2020
Remote Parallel 1U
ON/OFF Operation
PCA1000F
Up to 5-year warranty
CE marking
Low Voltage Directive
RoHS Directive
EMI
- PCA300F, PCA600F
Complies with FCC-B, CISPR32-B, EN55011-B, EN55032-B,
VCCI-B
- PCA1000F
Complies with FCC-A, CISPR32-A, EN55011-A, EN55032-A,
VCCI-A
EMS Compliance
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11
(Refer to Instruction Manual)
: EN61204-3, EN61000-6-2
IEC60601-1-2 (2014), EN60601-1-2 (2015)
PCA-1
