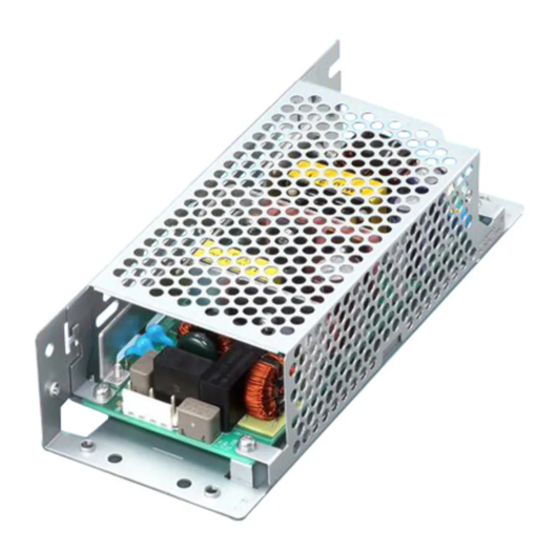

AC-DC Power Supplies Medical Type
1
Function
1.1
Input voltage range
1.2
Inrush current limiting
1.3
Overcurrent protection
1.4
Overvoltage protection
1.5
Thermal protection
1.6
Output voltage adjustment range
1.7
Output ripple and ripple noise
1.8
Isolation
1.9
Reducing standby power
2
2.1
Series Operation
2.2
Parallel Operation
3
Temperature Measurement Point
4
Life expectancy and warranty
5
Ground
6
Option and Others
6.1
Outline of options
6.2
Others
June 29, 2020
Instruction Manual
LMA-12
LMA-12
LMA-12
LMA-12
LMA-12
LMA-12
LMA-12
LMA-12
LMA-13
LMA-13
LMA-13
LMA-13
LMA-13
LMA-13
LMA-14
LMA-15
LMA-15
LMA-15
LMA-16
LMA-11
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cosel LMA Series
Summary of Contents for Cosel LMA Series
- Page 1 Instruction Manual AC-DC Power Supplies Medical Type Function LMA-12 Input voltage range LMA-12 Inrush current limiting LMA-12 Overcurrent protection LMA-12 Overvoltage protection LMA-12 Thermal protection LMA-12 Output voltage adjustment range LMA-12 Output ripple and ripple noise LMA-12 Isolation LMA-13 Reducing standby power LMA-13 Series Operation and Parallel Operation LMA-13...
- Page 2 Instruction Manual AC-DC Power Supplies Medical Type 1.4 Overvoltage protection 1 Function ¡ An overvoltage protection circuit is built-in. If the overvoltage pro- tection circuit is activated, shut down the input voltage, wait more than 3 minutes and turn on the AC input again to recover the out- 1.1 Input voltage range put voltage.
- Page 3 Instruction Manual AC-DC Power Supplies Medical Type ¡ Even a slight difference in output voltage can affect the balance between the values of I and I Please make sure that the value of I does not exceed the rated current of a power supply. [ the rated current value 3 Temperature Bad example...
- Page 4 Instruction Manual AC-DC Power Supplies Medical Type Table 3.2 Temperatures of Point A, Point B LMA150F-24-Y 4 Life expectancy and Mounting Cooling Max temperature Load factor Point A[C] Point B[C] Method Method warranty 75% < Io[100% 50% < Io[75% Convection 0%<Io[50% 75% <...
- Page 5 Instruction Manual AC-DC Power Supplies Medical Type ¿ -H Table 4.6 Warranty (LMA240F-24-Y) Warranty Mounting Cooling Average ambient Method Method temperature (year) Io[75% 75%<Io[100% Convection Ta = 50C or less 5years 5years : peak current Ta = 35C or less 5years 5years Convection...
- Page 6 Instruction Manual AC-DC Power Supplies Medical Type * P lease wire carefully. If you wire wrongly, the internal components ¿ -J1 of a unit may be damaged. -Option -J1 units,the Input and Output connector is VH ¡ Remote ON/OFF circuits (RC+ and RC-) are isolated from input, connectors(Mfr:J.S.T).
