Introduction
•
Contactor
•
Mains disconnect with contactor
•
Circuit breaker
Illustration 1.3 shows an example of a frequency converter
with an options cabinet. Table 1.2 lists the variants for the
frequency converters that include input options.
1754
[69.1]

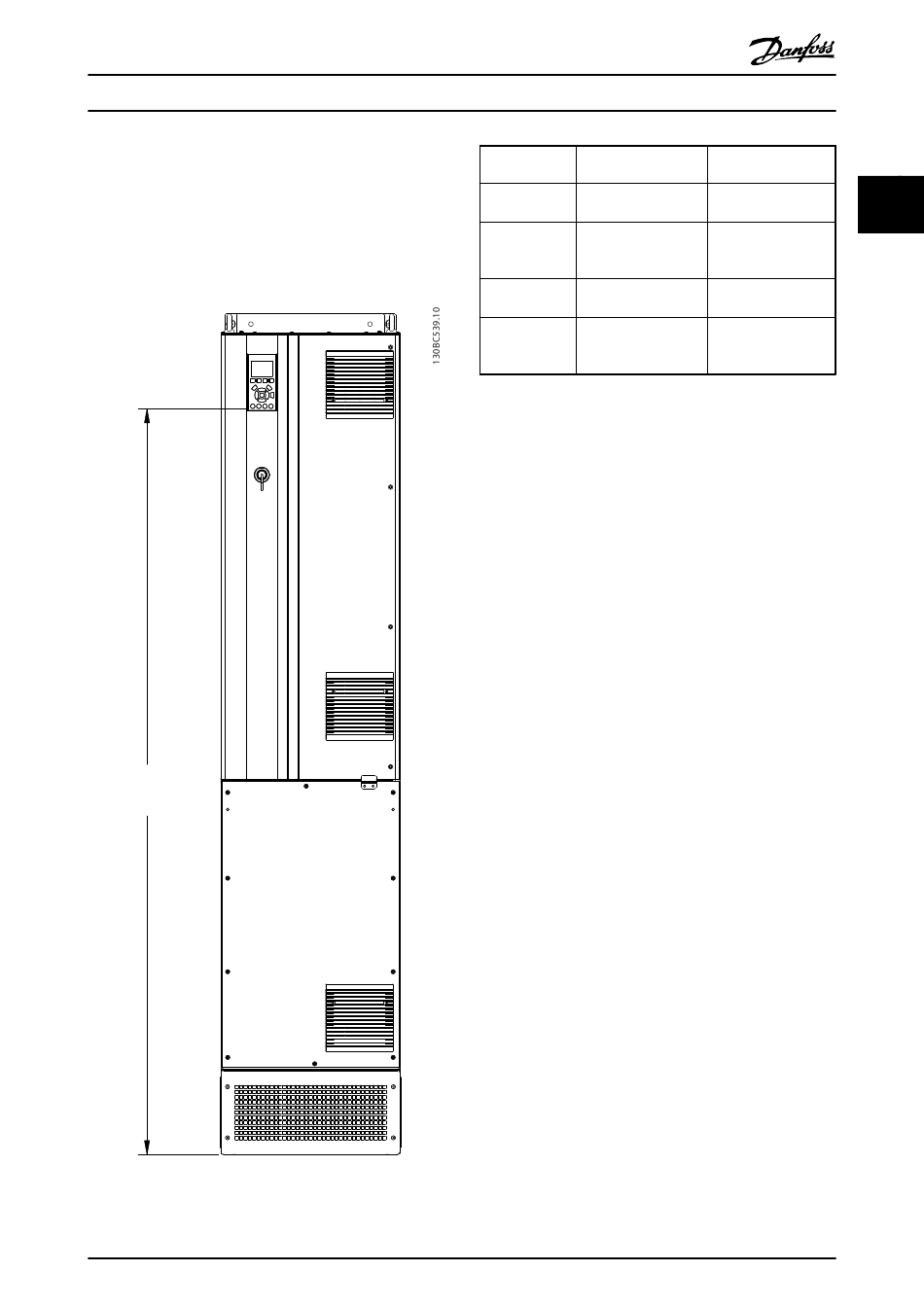

Illustration 1.3 D7h Enclosure
VLT ® AQUA Drive D-Frame
Operating Instructions
Options unit
designations
D5h
D6h
D7h
D8h
Table 1.2
The D7h and D8h frequency converters (D2h plus options
cabinet), include a 200 mm pedestal for floor mounting.
There is a safety latch on the front cover of the options
cabinet. If the frequency converter is supplied with a mains
disconnect or circuit breaker, the safety latch prevents the
cabinet door from being opened while the frequency
converter is energized. Before opening the door of the
frequency converter, the disconnect or circuit breaker must
be opened (to de-energize the frequency converter) and
the cover of the options cabinet must be removed.
For frequency converters purchased with a disconnect,
contactor or circuit breaker, the name plate label includes
a type code for a replacement that does not include the
option. If there is a problem with the frequency converter,
it is replaced independent of the options.
Refer to 2.7 Optional Equipment for more detailed
descriptions of the input options and other options that
may be added to the frequency converter.

1.2 Purpose of the Manual

This manual is intended to provide detailed information for
the installation and start up of the frequency converter.
2 Installation provides requirements for mechanical and
electrical installation, including input, motor, control and
serial communications wiring and control terminal
functions. 3 Start Up and Commissioning provides detailed
procedures for start up, basic operational programming,
and functional testing. The remaining chapters provide
supplementary details. These details include user interface,
detailed programming, application examples, start-up
troubleshooting, and specifications.
®
MG21A202 - VLT is a registered Danfoss trademark
Extension cabinets Possible options
D1h enclosure with Brake, Disconnect
short extension
D1h enclosure with tall Contactor, Contactor
extension with Disconnect,
Circuit Breaker
D2h enclosure with Brake, Disconnect
short extension
D2h enclosure with tall Contactor, Contactor
extension with Disconnect,
Circuit Breaker
1 1
