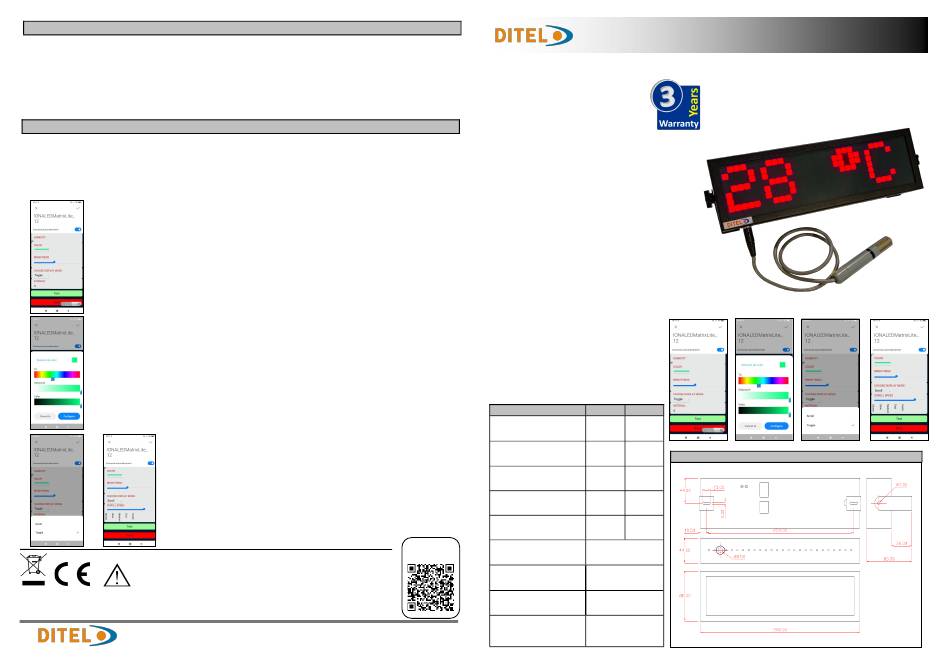

Ditel IOX121LTH Quick Installation Manual

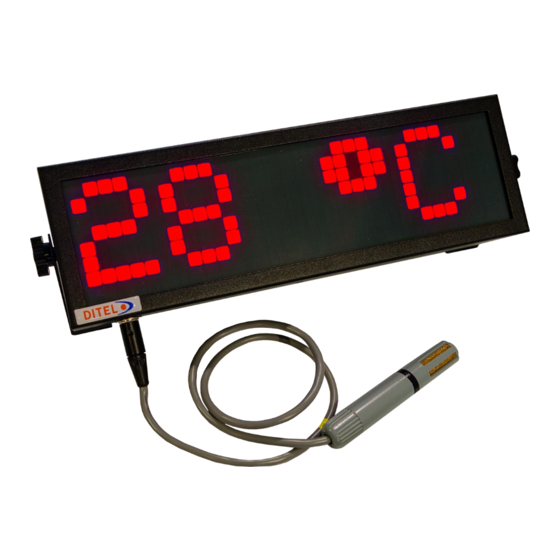

IOX121LTH : Provides a measurement of temperature and humidity for environmental control
with resolution of 0.1 ºC and 1% HR. Supplied with combined TEMP/HR probe with connector.
It allows the configuration via WIFI of the following parameters:
• DISPLAY LED COLOR
• DISPLAY BRIGHTNESS (by SOFTWARE and by rear buttons (up/down)
• PRESENTATION MODE: ALTERNATED / WITH HORIZONTAL SCROLL
 SEQUENCE TIME / SCROLL SPEED
GENERAL CONFIGURATION
Connect the supplied probe to the connector at the bottom of the device and power the indicator using the
cable with the plug that it incorporates.
The following message will be displayed on the display: UNCONFIGURED Vx.xL and a WIFI "access point"
will be created (password 12345678) that will allow "pairing" from any smartphone on the device's Wi-Fi.
It will be identified with: IONALEDMatrix Lite_XX where XX is a personalized number assigned by the devi-
ce itself. This connection will give us access to the Web Server that shows us the following screens:
MAIN SCREEN:
Allows access to configurable parameters.Once selected, press "TEST" to view them on the
device.
If they are correct, press "SAVE" to store them in memory, from this moment the WIFI con-
nection of the "access point" is canceled and the device is ready to work.
To modify any parameter, the "access point" must be opened again by pressing the two rear
buttons for a few seconds until the device indicates: UNCONFIGURED Vx.xL and repeat
the initial process.
COLOR SELECTION SCREEN:
Allows access to the color palette where you can choose the color applied to the display LEDs.
Exit using the symbol (x) and press "TEST" to view the result on the device
If you want to modify more parameters, do not press "SAVE" until you have configured all of
them, since pressing "SAVE" closes the "access point" that gives us access to the web server.
DISPLAY MODE SELECTION SCREEN:
Allows access to display mode, where you can choose between
• TOGGLED (alternated). When choosing TOGGLED, the cadence of the
change must also be indicated with a maximum of 30 s.
• SCROLL (scrolling). When choosing SCROLL, the scrolling speed of the
text must be chosen from the options that appear on the screen.
Once configured press "TEST" to check the device and then press "SAVE" to
save in memory and close the "access point"
Conformidad CE. Conformité CE. CE Conformity.
Para una información más completa, por favor consulte el manual de instrucciones en nuestra web
Pour plus d'informations veuillez consultez le manuel dans nôtre site web
For complete instructions please refer to the user manual in our website
Según la Directiva 2012/19/UE, no puede deshacerse de este aparato como un residuo urbano normal. Puede devolverlo, sin coste alguno, al lugar donde fue adquirido para que de esta forma proceder a su
tratamiento y reciclado controlados.
Selon la Directive 2012/19/UE, l'utilisateur ne pout se défaire de cet appareil comme d'un residu urbain courant. Vous pouvez le restituer, sans aucun coût, au lieu où il a eté acquis afin qu'il soit procédé à
son traitement et recyclage contrôlés.
According to 2012/19/EU Directive, You cannot dispose of it at the end of its lifetime as unsorted municipal waste. You can give it back, without any cost, to the place where it was adquired to proceed to its
controlled treatment and recycling
DISEÑOS Y TECNOLOGÍA, S.A.
Xarol, 6B P.I. Les Guixeres
08915 Badalona (Barcelona) - Spain
FEATURES
Tel. +34 933 394 758
Fax +34 934 903 145 Email: comercial@ditel.es
web: www.ditel.es
• CONFIGURACION VIA WIFI
CONFIGURATION PAR WIFI
WI-FI CONFIGURATION
• VISUALIZACIÓN PRECISA LED RGB
AFFICHAGE LED RGB PRÉCIS
ACCURATE RGB LED DISPLAY
• REGULACIÓN DE LUMINOSIDAD
RÉGLAGE DE LA LUMINOSITÉ
BRIGHTNESS SETTING
• PALETA COLORES PERSONALIZABLE
PALETTE DE COULEURS PERSONNALISABLE
CUSTOMIZABLE COLOR PALETTE
• OPCIONES DE DISPLAY ALTERNADO
OPTIONS D'AFFICHAGE ALTERNÉ
ALTERNATED DISPLAY OPTIONS
• VISUALIZACIÓN DE DESPLAZAMIENTO
AFFICHAGE À DÉFILEMENT
SCROLLING DISPLAY
• DETECCION AUSENCIA DE SONDA
DETECTION D'ABSENCE DE SONDE
PROBE ABSENCE DETECTION
IONA MATRIX
1 2
Rango de medida ( ) ( )
Plage de mesure
Measuring Range
Precisión ( 2 )
Précision
Accuracy
Repetibilidad
Répetibilité
Repeatability
Tiempo de respuesta
Temps de réponse
Response time
Deriva en el tiempo
Derive dans le temps
Drift in time
Dimensiones (sin soportes)
DOWNLOAD
Dimensions (sans supports)
USER MANUAL
Dimensions (without brackets)
Alimentación
Alimentation
Power Supply
Peso / Estanqueidad
Poids / Étanchéité
Weight / Sealed level
Altura digito/distancia visión
Hauteur des digits / distance de
lecture
Digit height / viewing distance
30728909 20230804
1
( ) Display Resolution: -20ºC to -10ºC and -9.9ºC to 60.0ºC
( 2 ) Only for non-condensing environment
IONA MATRIX 8*32 PIXEL LITE TEMP/HR
GUIA RÁPIDA DE INSTALACIÓN
GUIDE RAPIDE D'INSTALLATION
PANTALLAS WEB SERVER / ÉCRANS WEB SERVER / WEB SERVER DISPLAYS
ºC %HR
-20ºC/+60ºC 0-80 %
±0.3ºC ±2%
DIMENSIONES
±0.2ºC ±0.1%RH
<5s <5s
±0.1 <1%
ºC/year HR/year
280 x 88 x 48 mm
85-265 VAC 50/60Hz
50 W
1100 g / IP20
50 mm / 25 m
IOX121LTH
QUICK INSTALLATION GUIDE
DIMENSIONS DIMENSIONS
