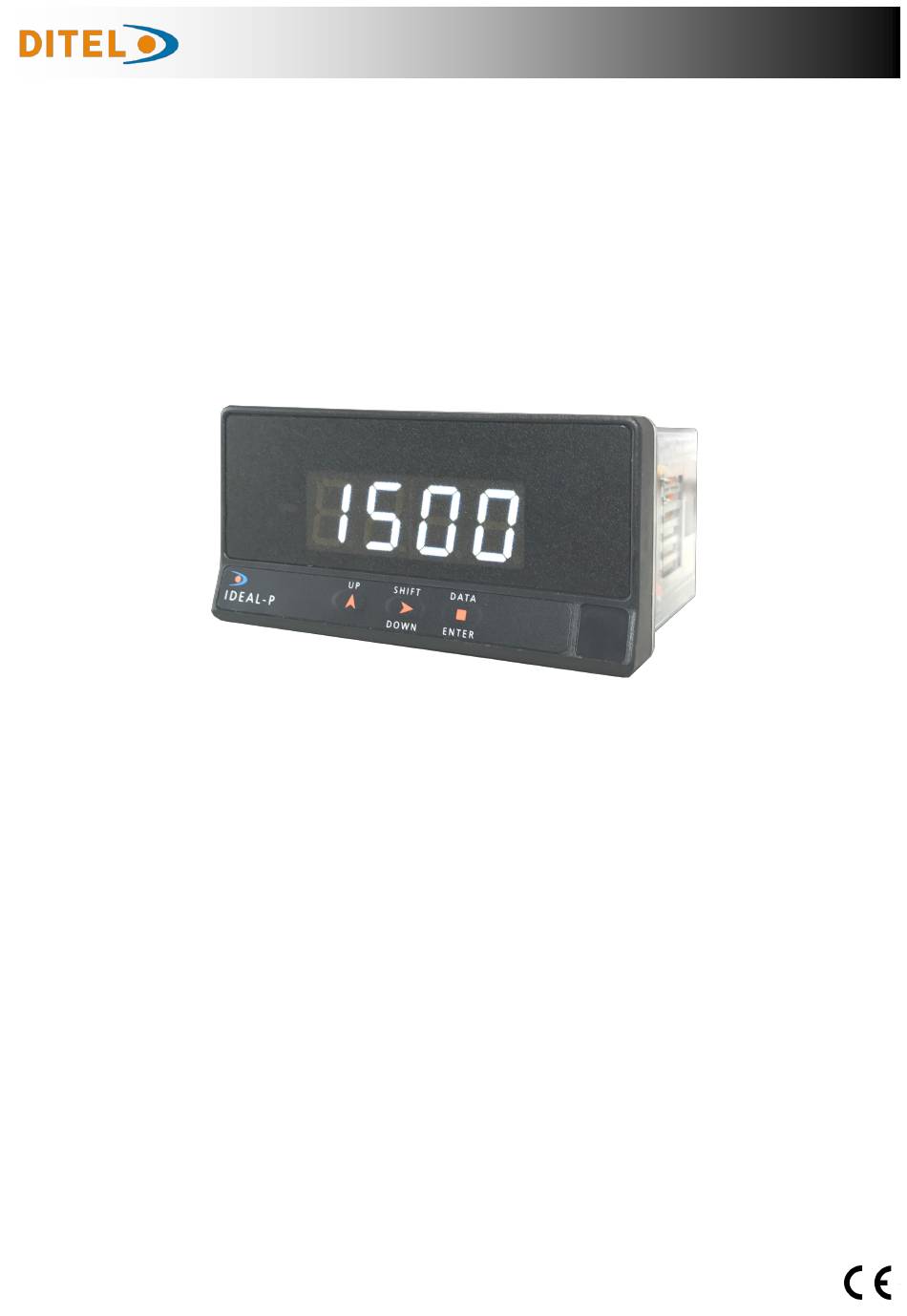

- Page 1 IDEAL-P USER MANUAL IDEAL-P UNIVERSAL DIGITAL INDICATOR FOR PROCESS AND TEMPERATURE INPUT SIGNAL KOSMOS SERIE www.ditel.es...
-
Page 2: Table Of Contents
IDEAL-P INDEX GENERAL INFORMATION Package contents ......................4 Recycling instructions ..................... 4 General safety considerations ..................4 Symbols identification ....................4 Maintenance ........................5 Warranty ........................5 Conformity declaration ....................6 Device description ......................7 Dimensions and mounting ....................7 Display and keyboard ..................... -
Page 3: Index
IDEAL-P INDEX RELAY OUTPUT Description ........................22 Description of the operating modes ................22 Mode of actuation HI, LO and HI/LO ................22 Timing ........................22 Asymmetric hysteresis ....................22 ANALOG OUTPUT Description ........................23 Description of the operating modes ................23 Setpoint generator ..................... -
Page 4: General Information
IDEAL-P GENERAL INFORMATION This manual does not constitute a contract or a commitment on the part of Diseños y Tecnología, S.A. All information contained in this document is subject to change without prior notice. MANUAL VALID FOR INSTRUMENTS WITH i2.00 SOFT VERSION OR HIGHER... -
Page 5: Maintenance
IDEAL-P Maintenance To guarantee instrument accuracy, it is recommended to check its compliance according to the technical specifications listed in this manual, performing calibrations regularly in accordance to operation criteria in each application. Instrument calibration and/or adjustment should be performed only by an accredited laboratory or directly by the manufacturer. -
Page 6: Conformity Declaration
IDEAL-P CE Conformity To obtain the declaration of conformity corresponding to this model enter our website www.ditel.es, where this document, the technical manual and other information of interest can be downloaded freely. KOSMOS SERIE www.ditel.es... -
Page 7: Device Description
IDEAL-P Device description The IDEAL-P model of the KOSMOS series is a universal digital indicator that allows the user to configurate the meter according the type of input used: PROCESS (V, mA) THERMOCOUPLE (J, K, T and N) Pt100 SENSOR... -
Page 8: Display And Keyboard
IDEAL-P Display y teclado There are two main function modes: RUN and PRO. PRO mode is when configuration menu is entered to programm indicator, whereas RUN is the normal mode in which display shows the reading according to configuration and input signal... -
Page 9: Connections
IDEAL-P Connections The instrument has 4 rear connectors CN1 to CN4 in its unique Rear connectors location. format. The connectors layout is shown in the figure. All the aerial terminals supplied for the connection are of CAGE CLAMP® type technology. -
Page 10: Process Input (Ma)
IDEAL-P 3 WIRES CONNECTION WITH EXCITATION SUPPLIED BY THE INDICATOR 3 WIRES CONNECTION WITH EXTERNAL EXCITATION INDICATOR TRANSDUCER INDICATOR TRANSDUCER 0-10V 0-10V 0-200V 0-200V +OUT -OUT +EXC. +OUT -OUT +EXC. COM. +EXC. COM. EXC. Process input signal wiring diagrams (mA) -
Page 11: Pt100 Sensor Input
IDEAL-P Connection for Pt100 probe (ºC and ºF) Pt100 PROBE INDICATOR Pt100 B Pt100 A Pt100 B Connection for thermocouple input J, K, T and N (ºC and ºF) INDICATOR J,K,T,N Relay output connection CAUTION: RELAY Read the recommendations and related data on pages 8 and 9. -
Page 12: Input Configuration
IDEAL-P INPUT CONFIGURATION Configuration menu When connecting instrument to Power supply, display test begins automatically to check the good function of LED’s and digits, once this test is finished, display shows internal software version and then the unit goes to RUN mode. -
Page 13: Process
IDEAL-P Process ProC The parameters to be configured in input process submenu are: INPUT TYPE: V DC: ±10V or ±200V (-tachometric dynamo-) A DC: ±20mA (single range, direct validation) 200U Temperature tEMP The parameters to be configured in input temperature submenu are:... -
Page 14: Display Configuration
IDEAL-P DISPLAY CONFIGURATION Display Programming The second menu corresponds to display configuration. This menu, in turn, consists of some submenus according to previously programmed input type: through frontal keys configuration (SCAL), through real input signal (TEACH) (tEAC), and reading stabilization filter (FiLt). -
Page 15: Process Input
IDEAL-P Process input When programmed input type is process, for both display scaling SCAL tEAC “SCAL” and “tEAC” methods, parameters to be sequentially introduced are identical. It only must be considered that in “SCAL” method, all values must be InP1 manually introduced through the three frontal keys whereas in “tEAC”... -
Page 16: Setpoints Configuration
IDEAL-P SETPOINT CONFIGURATION Setpoint configuration menu The third menu corresponds to the relay output. For more details operating modes, consult section corresponding to this output later in this manual. SEtP The parameters to configure are the following: ACTIVATION MODE: If the analog setpoint generator is enabled (see the... -
Page 17: Analog Output Configuration
IDEAL-P ANALOG OUTPUT CONFIGURATION Analog output configuration menu The fourth menu corresponds to the analog output. For more details on the operating modes, consult the section corresponding to this output later in this manual. The parameters to configure are the following:... -
Page 18: Available Keyboard Functions
IDEAL-P AVAILABLE KEYBOARD FUNCTIONS In addition to already known functions used to browse through the configuration menus and submenus, introduce and/or modify existing values and parameters, the instrument provides some more added functions. MAX/MIN and RESET functions This device detects and stores in memory maximum and minimum values reached by the input signal. This values are kept in memory although power supply is desconnected. -
Page 19: Return To Default Configuration
IDEAL-P Return to default configuration 8888 To access this menu from RUN mode, press ENTER key and while display shows “Pro” press again ENTER for at least 3 seconds. Display shows now “00” and ‘74’ code must be introduced through SHIFT and UP keys. -
Page 20: Configuration Lock-Out
IDEAL-P CONFIGURATION LOCK-OUT Lock-out menu In order to prevent accidental or indesirable modifications of instrument parameters, a selective or total configuration lock-out is available. By default the unit is delivered unlocked, giving access to all programming levels. Once in this menu, the first option will be to choose between lock-out level setting (“LiSt”) or security access code changing (“CHAn”) or display the software versión (VEr). - Page 21 IDEAL-P When the lock is activated (by selecting "yES") it is not possible to display the maximum and minimum values by means of the 'SHIFT' key, although internally the instrument continues detecting and memorizing the extreme values reached by the input signal.
- Page 22 RELAY OUTPUT Description The relay output allows the IDEAL-P unit to carry out control operations and treatment of limit values by means of an ON / OFF output that is already integrated in the indicator itself. In general, the alarm is activated when the display value reaches the Setpoint value programmed by the user (the indication on the display flashes).
- Page 23 ANALOG OUTPUT Description The built-in output allows the IDEAL-P unit to provide a range of analog signal of 4-20mA linearly proportional to the variation of the display defined by the user through the display configuration menu. It is an isolated output with respect to the input signal and the power supply.
- Page 24 IDEAL-P SPECIFICATIONS Technical specifications SPECIAL FUNCTIONS TEMPERATURE Return to factory settings. Pt100 measurement current ..........1mA Lock-out software programming Pt100 maximum wire resistance ......40 (balanced) Setpoint generator Pt100 linearization ........... IEC 60751 Pt100 coeficient ............0.00385 ACCURACY Thermocouple cold junction compensation range ... -10ºC÷60ºC Temperature coefficient.........
- Page 25 IDEAL-P FILTER Cutoff frequency (-3dB) ........7.3Hz to 0.2Hz Slope ..............-20dB/Dec. DIMENSIONS Dimensions ............ 96 x 48 x 60mm Panel cutout ............92 x 45mm Weight ................150g Case material ........UL 94 V-0 policarbonate ANALOG OUTPUT Range ................. 4-20mA Response time ...............
- Page 26 IDEAL-P NOTES: INSTRUMENT CONFIGURATION Use the following template for the annotation of configured parameters in your instrument for later consulting or data recovery. INPUT: TYPE: RANGE: DISPLAY: SCAL tEACH CONFIG. MODE: INPUT 1: DISPLAY 1: INPUT 2: DISPLAY 2: FILTER (0 ÷ 9):...
- Page 27 IDEAL-P DISEÑOS Y TECNOLOGÍA, S.A. Tel. +34 933 394 758 Xarol, 6B P.I. Les Guixeres Fax +34 934 903 145 08915 Badalona (Barcelona) - España. Email: dtl@ditel.es ; web: www.ditel.es KOSMOS SERIE www.ditel.es 30727598 14.09.2018...
