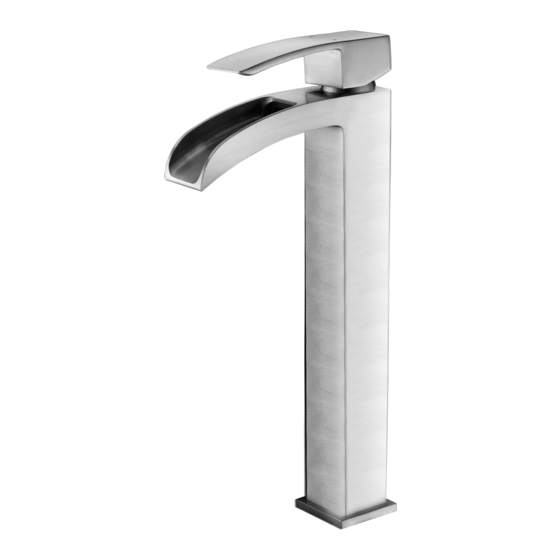

ANZZI SINGLE-HANDLE LAVATORY FAUCET
INSTALL & OPERATION MANUAL
V1.0
LEAD FREE
NSF/ANSI/CAN 61
DON'T WAIT!
REGISTER NOW!
Register your product within 90 days to ensure your product is
recognized as an
purchase and is
for warranty
coverage.
in the
registry card (Pg. 2) or register
at www.swcorp.com/register.
Advertisement
Related Manuals for Anzzi Key L-AZ097
Summary of Contents for Anzzi Key L-AZ097
- Page 1 ITEM: L-AZ097** ANZZI SINGLE-HANDLE LAVATORY FAUCET INSTALL & OPERATION MANUAL V1.0 LEAD FREE NSF/ANSI/CAN 61 DON’T WAIT! REGISTER NOW! Register your product within 90 days to ensure your product is recognized as an purchase and is for warranty coverage. in the registry card (Pg.
- Page 2 Have questions? Call us at 305-614-4070 or visit us at www.ANZZI.com...
- Page 3 Dimensions 5.61″ [142.5mm] 4.72″ [120mm] 1.42″ [35mm] You may need: PG.1...
-
Page 4: Parts List
Parts list PART NAME Index Screw Handle Trim cap Retainer O-ring Cartridge Flow restrict r e Body Base Shank Copper tube Connector Filter O-ring Washer Metal gasket Lock nut Screw Flexible hose Flow regulator O-ring PG.2... -
Page 5: Installation Instructions
Installation Instructions Loosen the locknut (18) and remove the washer (16) , Slide the O-ring (15) over inlet tubes and shank. Position metal gasket(17). the faucet and gasket on the sink. Option: If sink is uneven, use silicone under the gasket. Place washer (16),metal gasket (17) over the shank Connect the flexible hoses to the water supply valve under the sink. - Page 6 Checking and testing Turn on the faucet and check that the water is flowing freely and steadily. If the water flow is weak, turn off the faucet, disconnect the hoses from the faucet and check the filter. Use pliers or a sharp pin to remove the filters for cleaning.
- Page 7 Body 3. Install the pipe with the gasket inside. Gasket Outlet pipe Care and Maintenance Daily care and cleaning are required to keep the product shining and functional. ONLY USE Regular soap and warm water to wash the faucet. Then dry off with a soft cloth.
