ITEM: KF-AZ301**

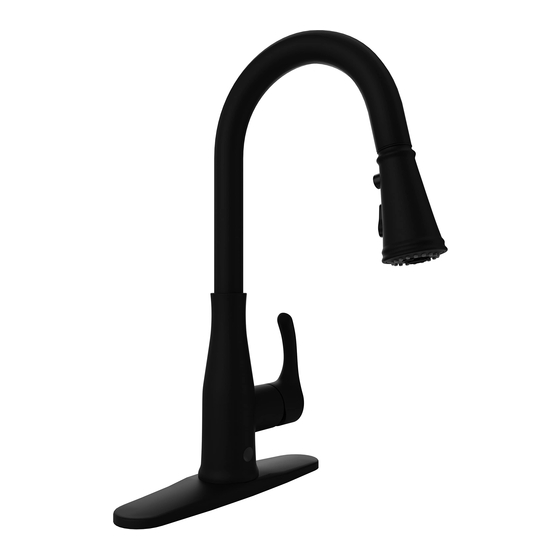

ANZZI SENSOR KITCHEN FAUCET
INSTALL & OPERATION MANUAL
V1.0
LEAD FREE
NSF/ANSI/CAN 61
DON'T WAIT!
REGISTER NOW!
Register your product within 90 days to ensure your product is
recognized as an
purchase and is
for warranty
coverage.
in the
registry card (Pg. 2) or register
at www.swcorp.com/register.
Advertisement
Related Manuals for Anzzi Sifo KF-AZ301 Series
Summary of Contents for Anzzi Sifo KF-AZ301 Series
- Page 1 ITEM: KF-AZ301** ANZZI SENSOR KITCHEN FAUCET INSTALL & OPERATION MANUAL V1.0 LEAD FREE NSF/ANSI/CAN 61 DON’T WAIT! REGISTER NOW! Register your product within 90 days to ensure your product is recognized as an purchase and is for warranty coverage. in the registry card (Pg.
- Page 2 Have questions? Call us at 305-614-4070 or visit us at www.ANZZI.com...
-
Page 3: Tools And Materials
PRODUCT SIZE CHART 3.97" [101mm] 8.26" [210mm] Ø1.18" [30mm] 3.13" [79.5mm] 2.55" [65mm] 10.6" [270mm] Ø1.25" [32mm] 9/16-24UNEF TOOLS AND MATERIALS Wrench Screwdriver Bucket Ø 1/4" Marker Pen (6mm) Drilll Drill bit PG.1... - Page 4 COMPONENTS Discription Part Qty. Screw [ 01 ] [ 02 ] Metal gasket [ 03 ] Rubber gasket [ 04 ] [ 05 ] Deck plate Washer [ 06 ] Faucet [ 07 ] [ 08 ] Bend [ 09 ] Sprayer Cartridge [ 10 ]...
-
Page 5: Installation
INSTALLATION STEP 1 : SINGLE HOLE THREE HOLES Single hole application: Install Faucet[07] and Rubber Washer[06] in hole on sink. Three holes application: Install Faucet[07] through Deck Plate[05] in hole on sink. Align the Deck Plate[05] to the grooves of Faucet[07] . - Page 6 INSTALLATION STEP 5 : screw 1. Place Control Box on wall and slide mounting slot onto mounting slot. 2. Secure Control Box to wall with screw through safety tab. safety tab outlet connection STEP 6 : 6.1 Connect the outlet hose (the shortest one) to the connecting end on top of the control box.
- Page 7 INSTALLATION STEP 8 : 8.1 Connect the cable of Faucet[07] to the cable of Control Box[16] with t matching direction. Secure the connection by turning the nut of the Control Box[16] cable. 8.2 Tie the cable to the outlet hose with a cable tie.
- Page 8 INSTALLATION STEP 11 : Attach and secure the Sprayer[09] onto the Hose[19] . STEP 12 : Turn on hot and cold water supplies and check all connections at arrows for leaks. Retighten if necessary, but do not overtighten. STEP 13: Open the handle and wave your hand over the sensor within 7cm distance to start the flow of water.
-
Page 9: Manual Operation
OPERATION SPRAYER FUNCTIONS. Button 1: Enhanced fan-shaped spray mode (Powerful spray, more convenient for washing dishes. Performance will be subject to water pressure, work at its best when water pressure above 30 psi. ) Button 2: Standard flow of aerator Button 3: Standard spray mode Note: 3-function Sprayer will return to position 2 automatically if left in position 1 or position... -
Page 10: Cleaning And Maintenance
CLEANING & MAINTENANCE 1. To preserve the finish on the metallic parts of your ANZZI faucet, apply non-abrasive wax, such as car wax. Any cleaners should be rinsed off immediately. 2. Clean the aerator regularly for calcium build up or any blockage that reducing water flow.
