USER'S GUIDE
Installation & Operation
Instructions

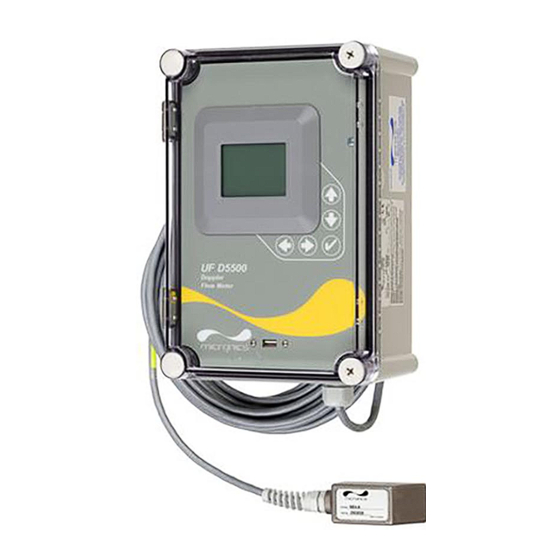

Doppler Flow Meter
Model UF D5500
Manual Series A.2.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UF D5500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Micronics UF D5500

Summary of Contents for Micronics UF D5500

  • Page 1 USER'S GUIDE Installation & Operation Instructions Doppler Flow Meter Model UF D5500 Manual Series A.2.1...
  • Page 2 Note: This page has been left blank intentionally.

  • Page 3: Table Of Contents

    UF D5500 Doppler Flow Meter INDEX CONNECTIONS ........................ 4 KEYPAD SYSTEM ......................6 CALIBRATION MENU ..................... 7 ICONS ..........................8 MESSAGE ICON ....................... 9 STATUS ..........................9 PASSWORD ........................10 MENU SELECTIONS ...................... 10 UNITS/MODE ........................11 CALIBRATION........................ 13 CALIBRATION (CONT.) ....................14 RELAY PARAMETERS ....................

  • Page 4: Connections

    Note: Use of instrumentation over 40°C ambient requires special field wiring. QUICK BENCH TEST: Connect Sensor as shown on next page, then Power. Test operation of the UF D5500 by holding the sensor in one hand and rubbing your thumb or fingers briskly across the face (plastic surface) of the sensor.
  • Page 5 UF D5500 Doppler Flow Meter CONNECTIONS SENSOR SERIAL COMMUNICATION OPTION RS-485 Output EXTRA RELAYS OPTION RLY3 RLY4 RLY5 RLY6 POWER INPUT – 4-20mA HEATER OPTION RLY2 RLY1 SENSOR Page 5...

  • Page 6: Keypad System

    UF D5500 Doppler Flow Meter KEYPAD SYSTEM The diagram on page 7 shows the UF D5500 menu system. Arrows show the four directions to leave a menu box. Pressing a corresponding keypad arrow will move to the next item in the direction shown.

  • Page 7: Calibration Menu

    UF D5500 Doppler Flow Meter CALIBRATION MENU - - Un i t s / Mo d e - - - - - - - -  Mo d e F l o w L i n e a r Vo l u me...

  • Page 8: Icons

    UF D5500 Doppler Flow Meter ICONS Page 8...

  • Page 9: Message Icon

    USG/ m 0.00 The main display shows the units selected from the Units/Mode menu, flow or velocity rate being measured, totalizer and relay states. The UF D5500 will start- up with this display. T o t 2 0 1 3 0 USG...

  • Page 10: Password

    UF D5500 Doppler Flow Meter 24 HR LOG Press  from the main display to view a formatted flow report from instruments with a built-in data logger. Press  to scroll down one day or repeatedly to scroll to a specific date. Up to 365 days can be stored. Newest date will overwrite the oldest.

  • Page 11: Units/Mode

    UF D5500 Doppler Flow Meter UNITS/MODE - - Un i t s / Mo d e - - - - - - - -  Mo d e F l o w L i n e a r , press the  and then the  or  to select Flow or Velocity. Flow...
  • Page 12 UF D5500 Doppler Flow Meter UNITS/MODE (cont.) - - Un i t s / Mo d e - - - - - - - -  Mo d e F l o w L i n e a r , press the and then the  or  to select the engineering units for...

  • Page 13: Calibration

    UF D5500 Doppler Flow Meter CALIBRATION - - Ca l i b r a t i o n - - - - - - -  Mo d e F l o w Press  or  to position curser at Calibration menu, and  to enter. Use  or...

  • Page 14: Calibration (Cont.)

    UF D5500 Doppler Flow Meter CALIBRATION (cont.) - - Ca l i b r a t i o n - - - - - - -  Mo d e F l o w Damping 2 0 mA 5 0 0 USG/ m...

  • Page 15: Relay Parameters

    UF D5500 Doppler Flow Meter RELAY PARAMETERS - - Re l a y Pa r a me t e r s - -  Re l a y F u n c t i o n F l o w Press ...

  • Page 16: Data Logging

    Choose .LG2 to download data in .lg2 format for viewing on De l e t e Micronics Logger software. Choose .CSV to download data in .csv format for import directly to Excel. This menu option can be changed at any time without adversely affecting existing data.
  • Page 17 UF D5500 Doppler Flow Meter RETRIEVING LOG FILE Plug a USB Flash Memory Drive (one is included with the UF D5500) into the USB output port on the Panel of the meter. The instrument display will show the data download icon until the log file is transferred to the memory card. The USB flash drive may be removed when the icon for download successful appears.

  • Page 18: Communication (Optional)

    UF D5500 Micronics provides DD files Files: for the Emerson 475 Communicator. The files are included in the USB drive provided with your UF D5500 meter. You may also request the files from Micronics by calling or emailing us at sales@micronicsltd.co.uk. Warning: The UF D5500 and associated DDs are pending certification from the Fieldcomm Group.
  • Page 19 UF D5500 Doppler Flow Meter COMMUNICATION (Optional) cont. Baud rate for the MODBUS communications. Press  or  to select, and ✓ to store the setting. Options: 4800, 9600, (Modbus) 19200, 38400, 57600, 76800, and 115200 (Default: 9600). Parity Error checking parity for the MODBUS communications.

  • Page 20: Special Functions

    UF D5500 Doppler Flow Meter SPECIAL FUNCTIONS - - Sp e c i a l F u n c t i o n s -  L a n g u a g e En g l i s h...
  • Page 21 This function should only be used when instructed Re s e t T o t a l i z e r by a Micronics representative to do so. The function Ne g . T o t a l s Re v . F l o w...
  • Page 22 UF D5500 Doppler Flow Meter SIMULATION - - Si mu l a t i o n - - - - - - - - T e s t Press  or  to position curser at Simulation, and  to enter. Use  or  to...

  • Page 23: Sensor Mounting

    UF D5500 Doppler Flow Meter SENSOR MOUNTING LOCATION The position of the sensor is one of the most important considerations for accurate flow measurement. The same location guidelines apply to Doppler as most other types of flow meters. VERTICAL OR HORIZONTAL PIPE - Vertical pipe runs generally provide evenly distributed flow.
  • Page 24 The objective of site preparation is to eliminate any discontinuity between the sensor and the pipe wall, which would prevent acoustical coupling. A PC4 Sensor Mounting Kit is supplied with each Micronics flow meter. It includes recommended coupling compound and a stainless steel mounting bracket with adjustable pipe straps.
  • Page 25 Over time temporary coupling compounds (e.g. Petroleum Gel) may gradually sag away from the sensor resulting in reduced signal strength and finally complete loss of signal. Warm temperatures, moisture and vibration will accelerate this process. Super Lube ® as supplied with the UF D5500 (and available from Micronics Limited) is recommended for semi-permanent installations.
  • Page 26 UF D5500 Doppler Flow Meter SENSOR MOUNTING/COUPLING RECOMMENDATIONS Page 26...

  • Page 27: Enclosure Installation

    UF D5500 Doppler Flow Meter ENCLOSURE INSTALLATION Locate the enclosure within 20 ft (6 m) of the sensor (500 ft -150 m optional). The enclosure can be wall mounted with the four mounting screws (included) or panel mounted with Option PM Panel Mount kit from Micronics Limited.

  • Page 28: Field Troubleshooting

    Ensure correct power input Ground connection (<1 ohm resistance). • Ensure 4-20mA Shield connected to Instrument Ground stud. • Cross talk between two or more UF D5500 flowmeters Refer to Synchronization instructions on same pipe • Variable Speed Drive interference Follow Drive manufacturers wiring and Grounding instructions •...
  • Page 29 UF D5500 Doppler Flow Meter Corrective Action: Possible Causes: METER READING ERRATIC • Sensor mounted too close to valve, pump or elbow Change sensor placement. Recommended 6-10 diameters from elbows, and 30 diameters from pumps, controlling valves, orifice plates, nozzles or open pipe discharge NO FLOW INDICATION •...
  • Page 30 UF D5500 Doppler Flow Meter Corrective Action: Possible Causes: • Sensor and GND wires reversed or not properly Check Sensor connections connected • Improper AC power input Ground Use direct connection with 12 AWG wire to nearest Ground pole (<1 ohm resistance).

  • Page 31: Common Questions And Answers

    COMMON QUESTIONS AND ANSWERS The pipe vibrates. Will it affect the flow meter? Common vibration frequencies are far lower than the sonic frequencies used by the Micronics flow meter, and will not normally affect accuracy or performance. However, applications where very weak Doppler signal is present (when sensitivity is adjusted to maximum and signal strength is low), accuracy may be affected by pipe vibration, or the flow meter may show readings under no-flow conditions.
  • Page 32 Does the UF D5500 require periodic recalibration? UF D5500 calibration does not drift over time. The solid state sensor has no moving parts to wear and affect calibration. The Doppler flow technique generates an ultrasonic signal proportional to the velocity of flow.

  • Page 33: Applications Hotline

    Instruments may be returned to Micronics for service or warranty repair. Obtain an RMA Number from Micronics - Before shipping a product to the factory please contact Micronics by telephone, fax or email to obtain an RMA number (Returned Merchandise Authorization). This ensures fast service and correct billing or credit.
  • Page 34 Micronics Limited warrants, to the original purchaser, its products to be free from defects in material and workmanship for a period of one year from date of invoice. Micronics will replace or repair, free of charge, any Micronics product if it has been proven to be defective within the warranty period.

  • Page 35: Options

    UF D5500 Doppler Flow Meter OPTIONS EXTRA SENSOR CABLE (OPTION DXC) Each Greyline flow meter includes 25 ft / 7.6m (or 50 ft / 15m or 100 ft / 30m optional) continuous shielded coaxial pair cable. Additional cable and Cable Junction Box (Option JB2X) may be ordered to extend cable up to 500 ft (152m) as required during installation.
  • Page 36 UF D5500 Doppler Flow Meter SENSOR CABLE JUNCTION BOX (OPTION JB2X) Optional Watertight steel NEMA4 Junction Boxes with terminal strips are available from Micronics Limited. Velocity Sensor QZ02L-B (Optional) Minimum Velocity: 0.1 ft/sec (0.03 m/sec) Maximum Velocity: 20 ft/sec (6.2 m/sec) Operating Temperature: 5 to 150°F (-15 to 65°C)
  • Page 37 Class II, Groups E,F,G Class III Intrinsic Safety Barriers may be ordered with the Micronics instrument and are supplied mounted in the Micronics instrument enclosure. Replacement barrier fuses (Part No. ISB- 011239) may be purchased separately. The instrument enclosure containing the 2ISB Intrinsic Safety Barriers must be installed in a non-hazardous location.
  • Page 38 UF D5500 Doppler Flow Meter GN SPEC ISB The intrinsic safety barrier assemblies installed in the DFM 6.1/ TTFM 6 .1 limit the voltage and current supplied to the transducers to the values listed under ‘Barrier Specifications’. To safely install a Greyline transducer...
  • Page 39 UF D5500 Doppler Flow Meter ENCLOSURE HEATER AND THERMOSTAT - Option TH Instruments can be factory-equipped with an Enclosure Heater and Thermostat or the module can be customer-installed. The Thermostat is factory set to turn ON at 40°F (4.5°C) and OFF at 60°F (15.5°C).
  • Page 40 Power Input card can be installed in the place of the 100-240VAC card in the field. QUICK BENCH TEST: Connect Sensor as shown below, then Power. Test operation of the UF D5500 by holding the sensor in one hand and rubbing your thumb or fingers briskly across the face (plastic surface) of the sensor.

  • Page 41: Modbus® Communication

    UF D5500 Doppler Flow Meter MODBUS® COMMUNICATION MODBUS® serial interface connections are made at the RS485 card’s terminal block if your UF D5500 was ordered with this card, or if one was added after installation. Card location: SENSOR SERIAL COMMUNICATION...
  • Page 42 UF D5500 Doppler Flow Meter Transceiver: 2-wire, half-duplex MODBUS Address (MAC address) range: 1-255 (Default: 001) BAUD rates: 4800, 9600, 19200, 38400, 57600, 76800 or 115200 (Default: 9600) Data Bits: Parity: None, Even, Odd (Default: Even) Stop Bits: 1, 2 (Default: 1)
  • Page 43 Over Read/ Comments Address Type Range Range Write Reset Volume Coil Read/ Turn coil ON (1) to reset total on UF D5500. Total Write Turn coil to OFF (0) once reset is complete. Register Description Register Data Over Read/ Comments...
  • Page 44 UF D5500 Doppler Flow Meter Register Description Register Format Type Comments Address Type 30113 Flow Rate - USG/day Input Register Floating Point Register (1 of 2) 30114 Flow Rate - USG/day Input Register Floating Point Register (2 of 2) 30115...
  • Page 45 UF D5500 Doppler Flow Meter Register Description Register Format Type Comments Address Type 30137 Flow Rate - m /min Input Register Floating Point Register (1 of 2) 30138 Flow Rate - m /min Input Register Floating Point Register (2 of 2)
  • Page 46 UF D5500 Doppler Flow Meter Register Description Register Format Type Comments Address Type 30161 Flow Rate - bbl/hr Input Register Floating Point Register (1 of 2) bbl = US Oil Barrel = 42 Gallons 30162 Flow Rate - bbl/hr Input Register...
  • Page 47 UF D5500 Doppler Flow Meter Register Description Register Format Type Comments Address Type 30183 Previous day Average Input Register Floating Point Register (1 of 2) Flow Rate - ft3/day 30184 Previous day Average Input Register Floating Point Register (2 of 2)
  • Page 48 UF D5500 Doppler Flow Meter Register Description Register Format Type Comments Address Type 30207 Previous day Average Input Register Floating Point Register (1 of 2) IG = Imperial Gallons Flow Rate - IG/min 30208 Previous day Average Input Register Floating Point Register (2 of 2)
  • Page 49 UF D5500 Doppler Flow Meter Register Description Register Format Type Comments Address Type 30303 Volume Total - Litres Input Register Floating Point Register (1 of 2) 30304 Volume Total - Litres Input Register Floating Point Register (2 of 2) 30305...
  • Page 50 UF D5500 Doppler Flow Meter Register Description Register Format Type Comments Address Type 30327 Previous day Volume Input Register Floating Point Register (1 of 2) IG = Imperial Gallons Total - IG 30328 Previous day Volume Input Register Floating Point Register (2 of 2)
  • Page 51 UF D5500 Doppler Flow Meter 30947 Velocity Units Input Register Index (0 to 1) 0 = Feet per Second 1 = Meter per Second 30948 Flow Units Input Register Index (0 to 31) 0 = US Gallons per Minute 1 = Litres per Second...

  • Page 52: Hart® Communication

    HART® (Highway Addressable Remote Transducer) connections are made on the 4-20mA output of the UF D5500. The UF D5500 must be equipped with the optional serial communication card for the Communication menu to appear, and for the HART option to be able to be selected in the Communication menu.
  • Page 53 1. Install Emerson Field Communicator Easy Upgrade Utility from Emerson website http://www3.emersonprocess.com/ams/fieldcommunicatorsupport/ 2. Run Field Communicator Easy Upgrade utility. 3. Locate the DD Files from the Micronics USB drive included with the UF D5500. a. 6109E3FD0101.hdd 4. Make sure your PC software is up to date by clicking Update PC.
  • Page 54 UF D5500 Doppler Flow Meter 5. Click on Utilities form the left menu pane. 6. Click on Import DDs from a local source. 7. A popup window is displayed as shown below. Navigate to the directory containing the DD files using the Browse button.
  • Page 55 UF D5500 Doppler Flow Meter 9. Under Connect Field Communicator, select the type of the connection your device utilizes. Then click Connect. 10. Select Field Communicator from list shown below. Page 55...
  • Page 56 UF D5500 Doppler Flow Meter 11. Once connected, click More Options. The System Software Tab Is now opened. Click the DDs tab. Page 56...
  • Page 57 UF D5500 Doppler Flow Meter 12. The newly uploaded DD from the Utilities: Import DDs from Local source. Select the DD file you wish to send to the Field communicator. If package is untested, slect Yes in the Check an untested package dialog box.
  • Page 58 UF D5500 Doppler Flow Meter 13. Click on the Transfer Button (Button with 3 arrows/Chevrons facing right). Wait until download complete dialog appears, then close out or continue with program as needed. Page 58...
  • Page 59 UF D5500 Doppler Flow Meter Device Descriptor Menu Structure Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Device Setup Process Variables PV% Range PV Loop Current Dynamic Variables Basic Setup PV Unit PV Xfer fnctn PV Damp...
  • Page 60 UF D5500 Doppler Flow Meter Page 60...
  • Page 61 UF D5500 Doppler Flow Meter Device Descriptor Menu Structure (Cont.) Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Flow Rate LSL Flow Rate USL Flow Rate Damp Velocity Sensor Velocity Velocity Unit Sensor Information Velocity Class...
  • Page 62 UF D5500 Doppler Flow Meter Page 62...
  • Page 63 UF D5500 Doppler Flow Meter Device Descriptor Menu Structure (Cont.) Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Num req preams Num resp preams Device Information Distributor Model Dev id Serial Number Relay Count Cfg chng count...
  • Page 64 UF D5500 Doppler Flow Meter Page 64...
  • Page 65 UF D5500 Doppler Flow Meter Device Descriptor Menu Structure (Cont.) Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Descriptor Message Date Final asmbly num Universal rev Fld dev rev Software rev Hardware rev Poll addr Loop current mode...
  • Page 66 UF D5500 Doppler Flow Meter Page 66...
  • Page 67 UF D5500 Doppler Flow Meter Device Descriptor Menu Structure (Cont.) Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Logger Options Log Status Logging Log Mode Percent Log Used PV Loop Current PV LVR PV URV Page 67...

  • Page 68: Specifications

    UF D5500 Doppler Flow Meter SPECIFICATIONS 7.4 / 1 88 mm " Flow Rate Range: ±0.1 to 40 ft/sec, (±0.03 to 6.46 / 1 64 mm " 5.1 2 / 1 30 mm " 12.2 m/sec) in most applications Pipe Size: Any pipe ID from ½...
  • Page 69 UF D5500 Doppler Flow Meter CONVERSION TABLE CONVERSION GUIDE FROM MULTIPLY BY US GALLONS CUBIC FEET 0.1337 US GALLONS IMPERIAL GALS 0.8327 US GALLONS LITRES 3.785 US GALLONS CUBIC METERS 0.003785 LITRES/SEC 15.85 LITRES CUBIC METERS 0.001 BARRELS US GALLONS...

  • Page 70: Pipe Charts

    UF D5500 Doppler Flow Meter PIPE CHARTS Ductile Ir on Pipe - Standard Classes Size OUTSIDE Clas s Class Class C lass C lass C lass C la ss C EMEN T LIN IN G IN CH D IA. **S TD...
  • Page 71 UF D5500 Doppler Flow Meter Stainless Steel, Hastelloy "C" & Titanium Pipe Pipe Pipe Scheule 5 S (a) Schedule 10 S (a) Schedule 40 S Schedule 80 S Size O.D. I.D. WALL I.D. WALL I.D. WALL I.D. WALL ½ .840 .710...
  • Page 72 UF D5500 Doppler Flow Meter Cast Iron Pipe - ASA Standard Pipe Pipe Class 50 Class 100 Class 150 Class 200 Class 250 Class 300 Class 350 Size O.D. WALL I.D. WALL I.D. WALL I.D. WALL I.D. WALL I.D. WALL I.D.
  • Page 73 UF D5500 Doppler Flow Meter Copper Tubing Pipe Copper & Brass Pipe Aluminum Size O.D. I.D. WALL O.D. I.D. WALL O.D. I.D. WALL O.D. I.D. WALL O.D. I.D. WALL 2" 2.125 1.959 0.083 2.125 1.985 0.070 2.125 2.009 0.058 2.375 2.062...
  • Page 74 UF D5500 Doppler Flow Meter C900/C905 PVC AWWA Water Distribution Pipe (Blue) DR14 DR18 DR-21 DR25 Pipe Size Wall Wall Wall Wall 4.80 0.343 4.114 0.267 4.266 0.192 4.416 6.90 0.493 5.914 0.383 6.134 0.276 6.348 9.05 0.646 7.758 0.503 8.044...
