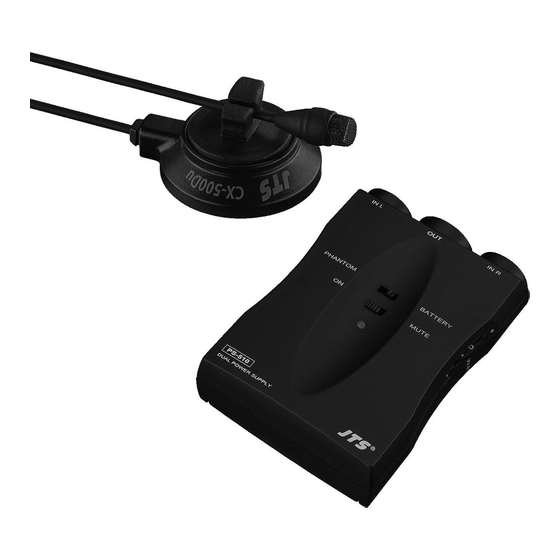

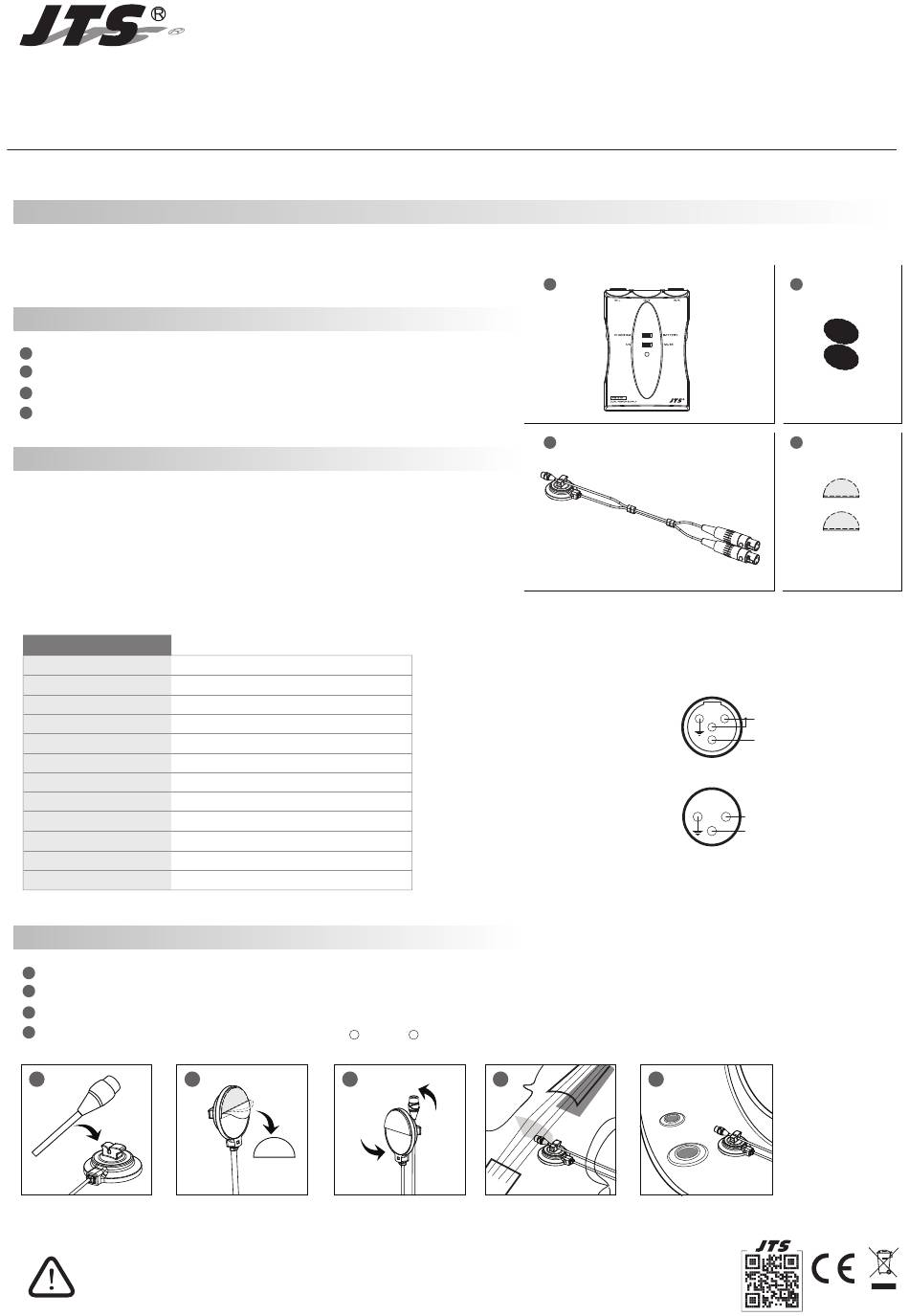

CX-500Du / PS-510M
Subminiature Condenser Instrument Microphone / Power supply with personal mix
Thank you for using JTS product. Make sure all parts in the package and read the instruction before using the CX-500Du microphone.
Caution
•Do not leave the devices in a high temperature or high humility place.
•Keep the devices away from fire and heat sources.
•Do not use sprays or fluids, which contain chemicals.

Parts Identification

PS-510M : 1 piece
1
CX-500Du Miniature microphone : 1 piece
2
Windscreen (reticular foam cover) : 2 pieces
3
Dual adhesive : 2 circles
4

Specification

The PS-510M is developed based on PS-500. The PS-510M provide
both 9V battery power and phantom power. It is built with earphone
output for musician to monitor a preferred mix of two microphone signals
before goes to P A.
The CX-500Du provides clean, detailed and natural sound quality with a
subminiature golden plated condenser capsule.
CX-500Du
Type
Frequency Response
Sensitivity (at 1,000Hz)
Impedance
Max.SPL for 1% THD
Signal-To-Noise Ratio
Output Connector
Power Supply
Current Consumption
Weight
Dimensions(mm)
Standard Accessory
Buckle up the Miniature Microphone with Microphone stable.
1
2
Tear up dual adhesive from the Microphone stable.
Adjust the Microphone to suitable position.
3
Stick the Microphone stable on the instrument
4
1
Please maintain the temperature in proper status it helps the Subminiature Condenser Instrument Microphone to
lengthen its life. Using the part and Power Supply made from JTS to ensure the unit quality and lifetime. Do not attempt
to employ non-standard Power Supply as you might damage the unit.
Omni-directional Condenser
20 ~ 20,000Hz
-58±3dB*(1.25mV)*0dB=1V/μbar
1.5kΩ
130dB
68dB
4P Mini XLR
1-5 VDC
≤0.05mA
6.5g (including cable)
Ø6mm*13mm(H)
MA-500
2
3
Input : 4P Mini XLR (Male)
Pin 1 : GND
Pin 2 : V+
Pin 3,4 : Audio signal
Output : 3P XLR (Male)
Pin 1 : GND
Pin 2,3 : Audio signal
(Phantom Power Supply)
String
Piano.
A
B
4A
1
M
2
MIC IN
1
2
OUTPUT
1
4B
Soundboard
Piano
String
3
4
3
MIC IN
4
V+
2
PIN2 OUT(+)
3
PIN3 OUT(−)
59010-503-03
