Hu Qin Microphone Set / Power Supply with Personal Mix
The CX-500HQ consists of two CX-500CI microphones and one PS-510M power mixer. This microphone set is designed to pick up
both sides of the Chinese folk instrument Hu Qin or other similar string instruments. It reproduces crystal clear strings and the warm
harmonic. The bundled PS-510M helps to find the best mix of two microphones.
Omni-directional Capsule
Smooth Frequency Response
Adjustable Holder
Terminated with 4 pin mini XLR for easy wireless application.

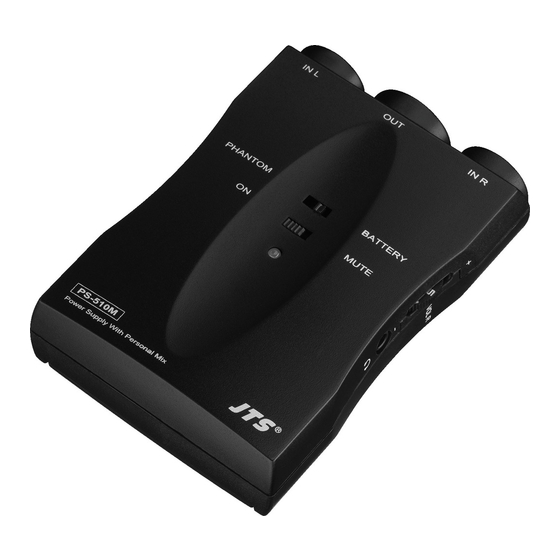

PS-510M is built with earphone output for musician to monitor a preferred mix of two microphone signals before goes to PA.
Cable MX2X-50 help the whole set goes wireless.
Contain
CX-500CI Condenser Microphone x2
1
PS-510M Power Supply x1
2
Windscreen x2
3
Velcro straps x2 (short: 45cm ; long: 65cm)
4
Cable: MX2X-50 x1
5
Specifications
CX-500HQ
Type
Omni-directional Condenser
Frequency Response
20~20,000 Hz
Sensitivity (at 1,000 Hz)
-58±3dB*(1.25mV)*0dB=1V/μbar
Impedance
1.5kΩ
Max.SPL for 1% T.H.D.
130dB
Signal-To-Noise Ratio
68dB
Output Connector
4P Mini XLR
Power Supply
1-5 VDC
Current Consumption
Ø 0.05mA
Weight
37.4 grams (including cable)
Dimensions (mm)
Ø 6.4mm * 22.7mm(L)
JTS CX-500HQ - Hu Qin Microphone Set Instruction
1
Put the strap velcro side facing
up and through the CX-500HQ
holder. Replace your own velcro
strap if you find the length is not
proper.
sticking side facing up
To extend the service life of CX-500CI condenser microphone, make sure the microphone is placed under appropriate
temperature and humidity environment.
Please use the JTS original microphone holder and related accessories to ensure the most effective sound quality. Any
non-JTS parts may cause damage to the product.
2
Place and fit the CX-500HQ holder at
the front end of the drum resonator. It is
recomeded the CX-500HQ holder with
strap to be aligned with the upper end
edge.
holder
+10
0
-10
20
100
200
500
1k
2k
Connect to mixer or wireless transmitter
Input: 4P Mini XLR (Male)
Pin 1: Ground
Pin 2: V+
Pin 3、4: Audio Signal
3
Place the CX-500CI microphones at both left and
right sides of the CX-500HQ holder.
We recommend CX-500CI microphone distance at
4
6cm near the membrane, while 8-10cm near the
open side of the drum resonator. However, the
actual distance depends on the user's preterene.
4
5
}
125Hz
250Hz
}
500Hz
5k
10k
20kHz
1000Hz
1
3
4
2
59010-525-02
2000Hz
}
4000Hz
8000Hz
16000Hz
MIC IN
V+
