Instructions – Parts List
Parts

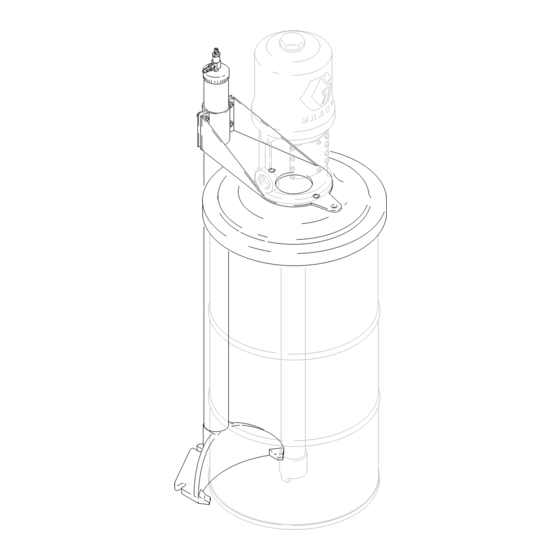

120 lb. EXPOSED DRUM SIZE
Air Operated Pump Elevator
100 psi (7 bar, .7 MPa) Maximum Working Pressure
60 lb (27 kg) Maximum Lift Weight
Model 204121, Series A
Bare elevator
Model 204124
Includes bare elevator, drum cover, and cover bracket
Read warnings and instructions.
See page 2 for table of contents.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Copyright 2002, Graco Inc. is registered to I.S. EN ISO 9001
306522 rev.E
06543
Advertisement
Related Manuals for Graco 204121
Summary of Contents for Graco 204121
- Page 1 Model 204124 Includes bare elevator, drum cover, and cover bracket Read warnings and instructions. See page 2 for table of contents. 06543 GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441 Copyright 2002, Graco Inc. is registered to I.S. EN ISO 9001...
- Page 2 D This equipment is for professional use only. D Read all instruction manuals, tags, and labels before operating the equipment. D Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor. D Do not alter or modify this equipment.
- Page 3 Installation Locating the Elevator (Fig. 1) 1. Provide sufficient clearance in front of the elevator to change drums. 2. The ceiling must be at least 6 ft. (1.8 m) high for the elevator to be fully raised. 3. Be sure the air supply lines to the pump and elevator and the fluid outlet line from the pump can be brought to the site.
- Page 4 Operation WARNING To reduce the risk of serious injury, including pinch- ing or amputating your fingers, or splashing fluid in the eyes or on the skin, always follow these pre- cautions when using the elevator. 1. Relieve the air and the fluid pressure in the pump before raising the pump to prevent unexpected cycling of the pump.
- Page 5 Maintenance Lubrication (Fig. 3) Every two or three weeks follow this procedure to keep the elevator operating smoothly. 1. Disconnect the elevator air line, relieve all air and fluid pressure in the pump and system. 2. With the elevator in the down position, unscrew the cap (112).
- Page 6 Ref No. 114, 203743 Elevator Cover and Bracket Restrictor Valve Assembly Includes items 1 and 2 Includes items 301 to 304 Ref No. 1, 204121 Ref No. 2, 204123 Elevator Drum Cover and Bracket Includes items 101 to 116 Includes items 201 to 207...
- Page 7 PACKING, o-ring 204123 DRUM COVER & BRACKET 160162 HOUSING, valve See separate parts list 160163 NEEDLE Ref No. 1, 204121 Ref No. 2, 204123 Elevator Drum Cover & Bracket Includes items 101 to 104 Includes items 201 to 207 Ref. Ref.
- Page 8 Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
