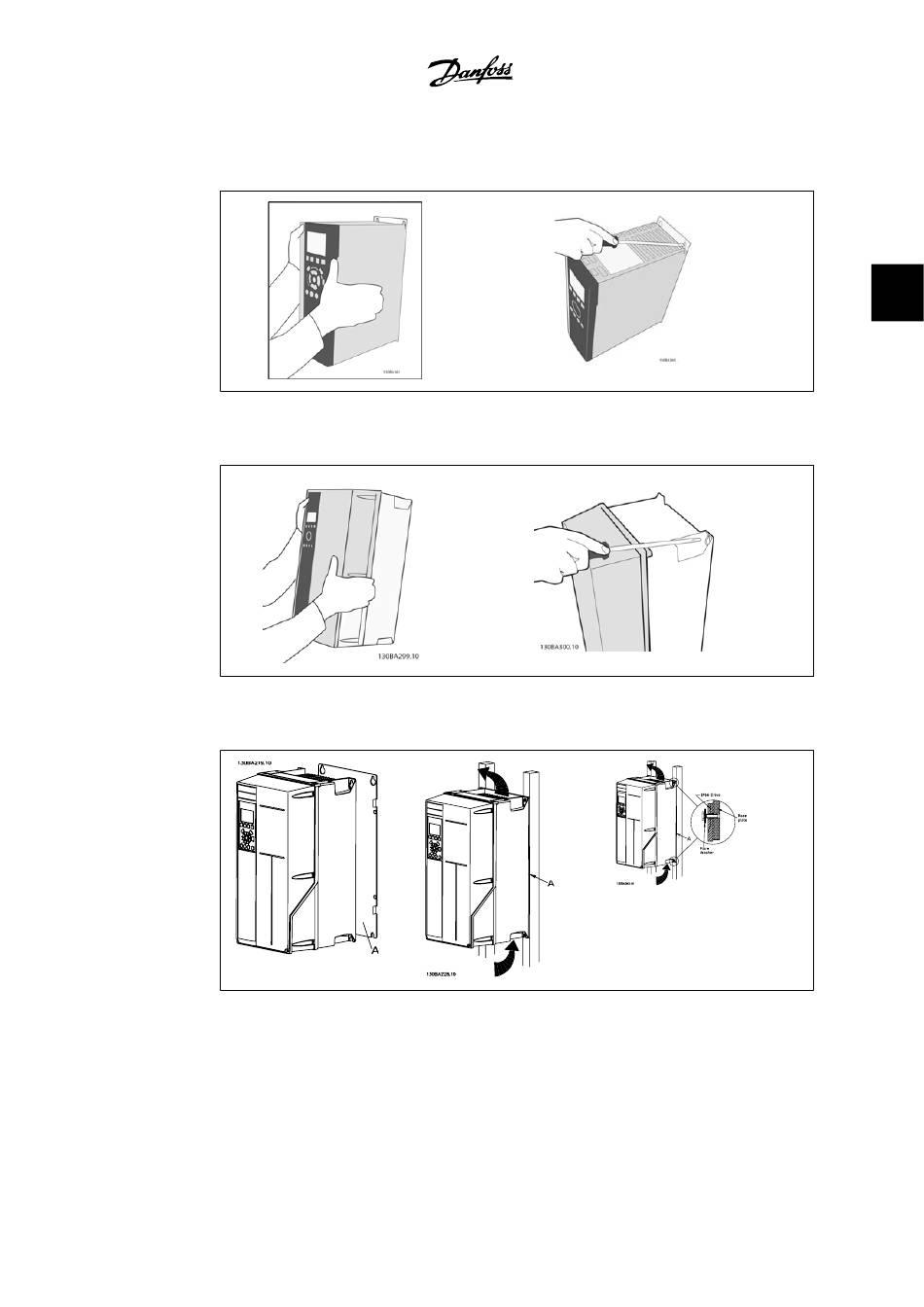

Mounting frame sizes A1, A2 and A3:

Mounting frame sizes A5, B1, B2, C1 and C2:

The back wall must always be solid for optimum cooling.

When mounting frame sizes A5, B1, B2, C1 and C2 on a non-solid back wall, the drive must be

provided with a back plate A due to insufficient cooling air over the heatsink.
