AVR32933: EVK1105AU Getting Started Guide
Features
• Powering up the board
• Preparing the board for audio playback
• Playing music
1 Introduction
The EVK1105AU is a reference design and development system for the
AT32UC3A0512AU, a 32-bit Atmel
Corporation.
From a hardware point of view, the EVK1105AU is identical to the EVK1105, so
you can refer to the EVK1105 for more information (schematics, BOM, etc.). The
only difference is that the main microcontroller is an AT32UC3A0512AU instead of
an AT32UC3A0512.
The AT32UC3A0512AU is an audio microcontroller that authorizes execution of
Atmel licensed Audio firmware IPs such as commercial MP3, AAC, WMA audio
decoders.
The kit is equipped with a rich set of memories and peripherals that make the
EVK1105AU a perfect audio platform. This guide shows the user how to get quickly
started with this kit.

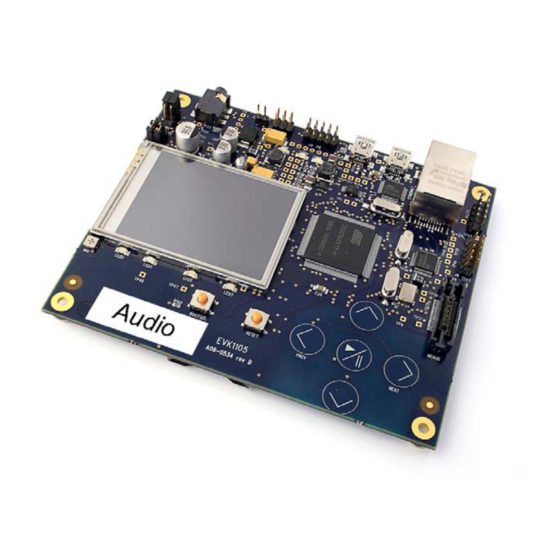

Figure 1-1 EVK1105AU board
Downloaded from
Elcodis.com
electronic components distributor
®
®
AVR
audio microcontroller from Atmel
32-bit Atmel
Microcontrollers
EVK1105AU
Getting Started
Guide
Rev. 32181A-AVR-11/11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVR32933 and is the answer not in the manual?

Questions and answers

Summary of Contents for Atmel AVR32933

  • Page 1 AT32UC3A0512. The AT32UC3A0512AU is an audio microcontroller that authorizes execution of Atmel licensed Audio firmware IPs such as commercial MP3, AAC, WMA audio decoders. The kit is equipped with a rich set of memories and peripherals that make the EVK1105AU a perfect audio platform.
  • Page 2 In order to play music from a mass-storage device it is enough to power the board from the USB VCP connector. Use the “Mini-B plug to std-A plug 1.5m USB2.0” cable that is included in the kit and connect it between the host and the board USB VCP connector. AVR32933 32181A-AVR-11/11 Downloaded from Elcodis.com...
  • Page 3 AVR32933 Figure 2-1 Possible power input interfaces on the EVK1105AU More information about the different power inputs is available in the hardware user’s guide. When the board is powered the green LED, marked with “PWR”, will light up and the default board firmware will start to run.
  • Page 4 Figure 3-1 Jumper settings on J6 for codec output to headphones Connect a headphone or speaker to the jack in order to listen to the music. AVR32933 32181A-AVR-11/11 Downloaded from Elcodis.com electronic components distributor...
  • Page 5 AVR32933 4 Browsing the disk and playing music After a mass-storage device has been connected to the USB-USER port the player enters the disk browsing view. To control the application the touch sensors can be used that are marked in the Figure 4-1.
  • Page 6 Press CENTER to change mode. Go back to the Play view with Slide-LEFT*. * Slide-LEFT consists of the following sequence: press CENTER, press LEFT, release CENTER, release LEFT. ** Slide-RIGHT consists of the following sequence: press CENTER, press RIGHT, release CENTER, release RIGHT. AVR32933 32181A-AVR-11/11 Downloaded from Elcodis.com electronic components distributor...
  • Page 7 AVR32933 5 References and further information ® EVK1105 hardware reference: This is included in the AVR Studio 5 and on the avrfreaks wiki page (http://www.avrfreaks.net). Support : audio@atmel.com 32181A-AVR-11/11 Downloaded from Elcodis.com electronic components distributor...
  • Page 8 Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN THE ATMEL...
