Ryobi RG-2600I Owner's Operating Manual

Ryobi RG-2600I Owner's Operating Manual

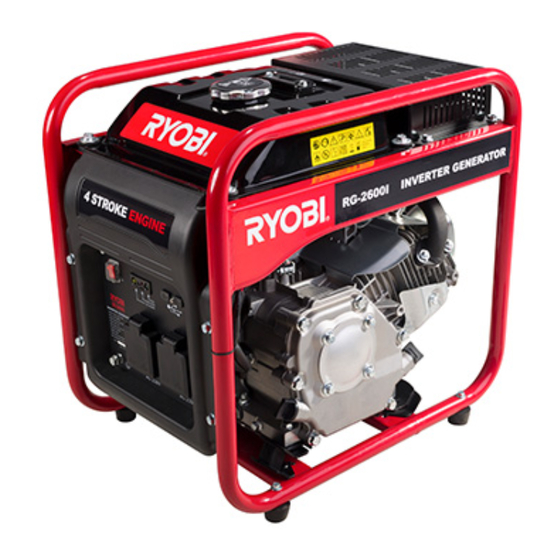

Inverter generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Engine type............................................. forced air single cylinder, 4 stroke 196cc
Engine speed...........................................................................................3600 r/min
Oil tank capacity............................................................................................. 600 ml
Fuel tank capacity............................................................................................... 5.0l
Spark plug........................................................................................................F6TC
Rated voltage.........................................................................................230V~50Hz
Rated output..................................................................................................2200W
Maximum output............................................................................................2600W
Rated current...................................................................................................9.56A
Phase......................................................................................................................1
Protection class/Performance class/Quality class.................................IP23M/G1/A
USB output............................................................................................ 5V, Max. 1A
Maximum temperature/altitude............................................................. 40ºC/1000m
Noise............................................................................................................. < 96dB
Nett weight....................................................................................................... 26 kg
THANK YOU FOR BUYING A RYOBI
Your new inverter generator has been engineered and manufactured to Ryobi's
high standard of dependability, ease of operation and operator safety. Properly
cared for, it will give you years of rugged, trouble free performance. If you use
your inverter generator properly and only for what it is intended, you will enjoy
years of safe, reliable service.
CAUTION: Carefully read through this entire owner's
KEEP THIS MANUAL FOR FUTURE REFERENCE
OWNER'S OPERATING MANUAL
INVERTER GENERATOR
MODEL RG-2600I
SPECIFICATIONS
INVERTER GENERATOR
manual, paying close attention to the general
safety rules and rules for safe operation,
before using.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RG-2600I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ryobi RG-2600I

Summary of Contents for Ryobi RG-2600I

  • Page 1 THANK YOU FOR BUYING A RYOBI INVERTER GENERATOR Your new inverter generator has been engineered and manufactured to Ryobi’s high standard of dependability, ease of operation and operator safety. Properly cared for, it will give you years of rugged, trouble free performance. If you use your inverter generator properly and only for what it is intended, you will enjoy years of safe, reliable service.

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS The purpose of safety rules is to attract your DANGER: CARBON MONOXIDE. attention to possible dangers. The safety symbols Using a generator indoors CAN KILL and the explanations with them, require your YOU IN MINUTES. careful attention and understanding. The safety Generator exhaust contains high levels of carbon warnings do not by themselves eliminate any monoxide (CO), a poisonous gas you cannot see...
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS Do not operate generator when you are tired or To prevent an electric shock, never operate the under the influence of drugs, alcohol, or machine in rain, snow or touch with wet hands. medication. Check the fuel system periodically for leaks. Seals The electrical output load must not exceed the and hoses should be checked for signs of maximum load stated on the rating plate.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS For power outages, permanently installed Inspect the unit before each use for loose stationary generators are better suited for providing fasteners, fuel leaks, etc. Replace damaged parts. back-up power to the home. Even a properly Use only recommended or equivalent replacement connected portable generator can become parts and accessories.

  • Page 5: Specific Safety Rules

    SPECIFIC SAFETY RULES WARNING: When this generator is used Check the ventilation hole inside the fuel tank cap to supply a building wiring system: the for debris. Do not block the vent. generator must be installed by a qualified Do not smoke when filling the generator with electrician and connected to a transfer switch as a unleaded fuel.
  • Page 6 DESCRIPTION 1. Fuel cap 6. Ground terminal 2. Fuel tank 7. Oil alert indicator (yellow) 3. USB sockets 8. Engine switch 4. AC socket (Right side) 9. Engine overload indicator (red) 5. AC socket (Left side) 10. Power indicator light (green)
  • Page 7 DESCRIPTION 11. Frame 14. Air filter cover 12. Fuel valve 15. Recoil starter grip 13. Air filter connection screw 16. Choke lever...

  • Page 8: Pre-Operation Check

    PRE-OPERATION CHECK CHECKING THE ENGINE OIL and do not use an oil/fuel mixture. Do not allow dirt WARNING. Running the generator with or water into the fuel tank. insufficient engine oil can cause serious engine damage. Engine oil should be replaced during regular maintenance or when the oil level is below the end of the dipstick.

  • Page 9: Understanding The Control Panel

    UNDERSTANDING THE CONTROL PANEL 1. Power indicator light (green) It indicates that level in the crankcase can fall below a safe the generator is producing electrical power at limit, the Oil Alert indicator light comes on and the receptacles. the Oil Alert system automatically will stop the engine (the engine switch will remain in the ON 2.

  • Page 10: Operation

    OPERATION STARTING THE GENERATOR CAUTION. Always check the oil level before starting the engine (see Page 8). Before starting the engine make sure that all the electrical loads are disconnected from the generator AC outlet socket. 1. Turn the fuel valve to the ON position (Fig.6) 2.

  • Page 11: Stopping The Generator

    OPERATION STOPPING THE GENERATOR WARNING. In case of emergency, the easiest way to stop the generator is to directly put engine switch to OFF position. Avoid doing so in non-emergency circumstances as it carries the risk of damaging the generator. 1.

  • Page 12: Checking/Cleaning The Air Filter

    MAINTENANCE CHECKING/CLEANING THE AIR FILTER For proper performance and long life, keep air filters clean. 1. Unscrew the air filter connection screw located at the bottom of the air filter cover. Remove the cover and set aside (Fig.13). 2. Remove the filter elements (Fig.14). 3.
  • Page 13 MAINTENANCE CLEANING THE EXHAUST PORT & MUFFLER 2. Position an approved fuel container under the Depending on the type of fuel used, the type and carburetor drain screw to catch fuel; loosen the amount of oil used, and/or your operating screw.

  • Page 14: Maintenance Chart

    STORAGE STORAGE TIME PRIOR TO STORING No special preparation is required. Less than 1 month Empty fuel from fuel tank. 1 to 2 months Empty fuel from fuel tank. 2 months to 1 year Drain fuel from carburetor. Clean fuel sediment cup. Empty fuel from fuel tank.

  • Page 15: Fault Chart

    FAULT CHART CONDITION PROBABLE CAUSE CORRECTIVE ACTION Fill sump with No oil/ Low oil level correct oil Loose spark plug Tighten plug Insufficient Loose cylinder Tighten bolt compression head bolt Damaged gasket Replace gasket FUEL SYSTEM PROBLEMS Insufficient pulling Pull rope sharply speed for starting rope Foreign matter in...
  • Page 16 FAULT CHART CONDITION PROBABLE CAUSE CORRECTIVE ACTION Tripped circuit breaker Reset Poor connection or faulty lead Check and repair Indicator light ON. No AC output Broken recepticle Faulty circuit breaker Check and repair Indicator light OFF. Generator problem No AC output Output power too Engine RPM set too No load speed set...
  • Page 17 SYMBOLS Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. SYMBOLS DESIGNATION/EXPLANATION Do not expose to rain or use in damp locations. To reduce the risk of injury, the user must read and understand the operator’s manual before using this product.
  • Page 18 Now that you have purchased your tool, should a need ever exist of repair or service, simply contact your nearest Ryobi Authorised Service Centre or other qualified service organistion. Be sure to provide all pertinent facts when you call or visit.
  • Page 19 NOTES...
