GBA Z 0697 2 E
Instructions for Use
Induction heat retaining unit
for built-in
Hold-Line with CNS-frame
BH/HO/IN 450 CNS
BH/HO/IN 900 CNS
BH/HO/IN 1350 CNS
BH/HO/IN 1800 CNS
Scholl Apparatebau GmbH & Co. KG
Zinhainer Weg 4
D–56470 Bad Marienberg / Germany
Phone
+0049 (0) 2661 – 9868-10
Fax
+0049 (0) 2661 – 9868-38 (Service)
Internet
www.scholl-gastro.de
E-mail
info@scholl-gastro.de
BA
Last revised 11-2020
Art. Nr. Z 0697
Art. Nr. Z 0698
Art. Nr. Z 0699
Art. Nr. Z 0700
Page 1 of 29
November 9, 2020
Rev. 2
Advertisement
Table of Contents
Related Manuals for Scholl BH/HO/IN 450 CNS
Summary of Contents for Scholl BH/HO/IN 450 CNS
- Page 1 Art. Nr. Z 0698 BH/HO/IN 1350 CNS Art. Nr. Z 0699 BH/HO/IN 1800 CNS Art. Nr. Z 0700 Scholl Apparatebau GmbH & Co. KG Zinhainer Weg 4 D–56470 Bad Marienberg / Germany Phone +0049 (0) 2661 – 9868-10 +0049 (0) 2661 – 9868-38 (Service) Internet www.scholl-gastro.de...
-
Page 2: Table Of Contents
Requirements of installation ......................9 Definition of interfaces ........................9 Installation clipping ........................10 3.4.1 Installation clipping model BH/HO/IN 450 CNS ................. 10 3.4.2 Installation clipping model BH/HO/IN 1800 CNS ............... 11 Generator RTCSmp HO/IN 1800 ....................12 Mounting variations ........................13 Cut-out Operation unit with potentiometer .................. - Page 3 GBA Z 0697 2 E Safety conscious work ........................18 Safety information for the operator/operating personnel ............18 Unauthorized reconstruction and use of spare parts ..............19 Improper operating methods ......................19 Pan detection ..........................19 Temperature regulation ......................... 19 Out of operation ............................
-
Page 4: Preface
REFACE Congratulations! In purchasing this new SCHOLL appliance you have chosen a product which meets highest technical stand- ards while providing outstanding convenience in practical use. This appliance has been designed with minimal energy consumption in mind. Used responsibly, it will serve you well in an ecologically sound manner. -
Page 5: General Remarks
GBA Z 0697 2 E ENERAL REMARKS These instructions for use contain information which is fundamentally important and must be taken into account during assembly, operation and maintenance. They must therefore be read very carefully before installation and operation by the responsible specialist staff and the operator(s). They must always be avail- able for consultation at the place of operation. -
Page 6: Purpose Of Induction Cookers
GBA Z 0697 2 E URPOSE OF INDUCTION COOKERS The induction heat retaining units „RTCS Install Hold-Line“ are especially made to keep food warm, as built- in units, installed in closed counters. The heat retaining process with this „RTCS Install Hold-Line“ unit is adjusted to induction Chafing Dish or to induction suitable pans (minimal bottom diameter is 20 cm). -
Page 7: Description Of Products

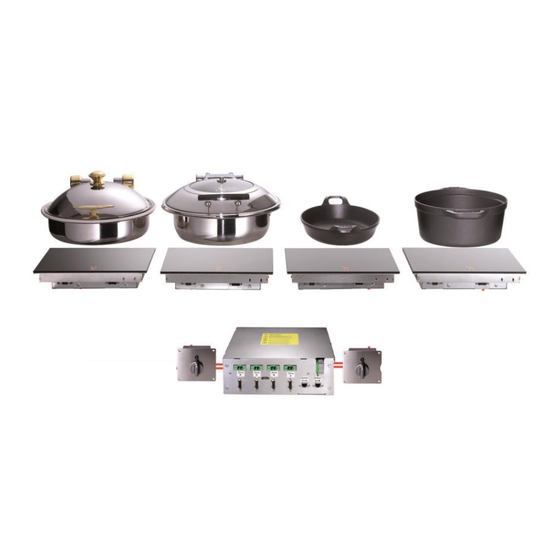

GBA Z 0697 2 E ESCRIPTION OF PRODUCTS COPE OF SUPPLY • Generator • 1-2 control units (1 heat retaining plate with 1 controller / 2-4 heat retaining plates 2 controller) • One to four heat retaining plates RODUCT There is one model with four connectivity options available. Built in a robust method of construction, they are compact and powerful with a revolutionary technology. -
Page 8: Technical Specifications
GBA Z 0697 2 E ECHNICAL SPECIFICATIONS Case of Heat reten- CNS-frame Cut-out for Type Ceran surface generator tion plate CNS-frame 303x312x135 322x322x4 322x322x75 390x390x24 BH/HO/IN 360x360 mm Heat retention temperature Type Voltage Power fields operation units BH/HO/IN 450 230V 0,45kW BH/HO/IN 900 230V... -
Page 9: Installation
GBA Z 0697 2 E NSTALLATION COPE OF DELIVERY The generator is delivered with one to four built-in heat retention plates including glass tops and CNS- frames and one to two operating units (with 1 heat retention plate 1 temperature operation unit – with 2 – 4 heat retention plates 2 temperature operation units). -
Page 10: Installation Clipping
• The operating staff has to make sure that installation, support and inspection is done by qualified personnel. NSTALLATION CLIPPING 3.4.1 I BH/HO/IN 450 CNS NSTALLATION CLIPPING MODEL Cut-out CNS-frame in top plate: 360 x 360 mm Advice for installation heat retention plate: As soon as the mounting devices according to the above-mentioned steps are finished, you may continue with installation. -
Page 11: Installation Clipping Model Bh/Ho/In 1800 Cns
GBA Z 0697 2 E 3.4.2 I BH/HO/IN 1800 CNS NSTALLATION CLIPPING MODEL Cut-out CNS-frame in top plate: 360 x 360 mm Advice for installation heat retention plate: As soon as the mounting devices according to the above-mentioned steps are finished, you may continue with installation. -
Page 12: Generator Rtcsmp Ho/In 1800
GBA Z 0697 2 E RTCS HO/IN 1800 ENERATOR Advice for installation generator: The rear case of the generator is equipped with two holes for the installation. Make sure that the height distance between fan and bottom and the laterial openings for air exit have a distance to obstacles of at least 40mm. -
Page 13: Mounting Variations
GBA Z 0697 2 E OUNTING VARIATIONS Page 13 of 29 November 9, 2020 Last revised 11-2020 Rev. 2... -
Page 14: Cut-Out Operation Unit With Potentiometer
GBA Z 0697 2 E PERATION UNIT WITH POTENTIOMETER Advice for installation operation unit: This unit is supplied completely with an operation unit. In order to fix this on a cover, take the clipping for the power switch into account. The operation control panel has to be fixed vertically on the installation panel. -
Page 15: Electrical Installation
GBA Z 0697 2 E LECTRICAL INSTALLATION If the voltage is wrong, the induction unit can be CAUTION damaged. The installation of the electricity must be fitted by approved installation contractors in accordance with specific national and local installation in conformity with all safety regulations. The warning signs and rating plates on the units must strictly be followed. -
Page 16: Operation Test
GBA Z 0697 2 E PERATION TEST The glass ceramic zone is warmed up from the heat CAUTION of the serving pan. To avoid injuries (burning) do not touch this area. Use exclusively the Induction-Chafing Dish suitable for the RTCSmp Install Hold-Line heat retention units or Pan that is suitable for induction unit, having a bottom diameter of at least 20 cm. -
Page 17: Operation
GBA Z 0697 2 E PERATION Heat retention process The heat retention unit is immediately ready for operation. The shining display indicates that energy is transferred to the bottom of the Chafing Dish or to the bottom of the Pan. The temperature rating is set by turning the control knob. -
Page 18: Safety Instructions
GBA Z 0697 2 E AFETY INSTRUCTIONS ISK IN THE EVENT OF NON OBSERVANCE OF THE SAFETY INFORMATION Danger for persons, for the environment and for the induction unit as well as claims for damages of any kind can result of non-observance of the safety information. Certain risks may be associated with non- observance of precautions, including: •... -
Page 19: Unauthorized Reconstruction And Use Of Spare Parts
GBA Z 0697 2 E • If the supply cord is damaged, it must be replaced by the manufacturer, the service agent or a simi- larly qualified person in order to avoid a hazard. NAUTHORIZED RECONSTRUCTION AND USE OF SPARE PARTS Reconstruction of the induction unit or changes to the induction unit is not allowed. -
Page 20: Out Of Operation
GBA Z 0697 2 E UT OF OPERATION If the induction unit is out of operation make sure that the control knob is in the OFF-position. If you do not use the unit for a long period (several days), unplug the unit. Make sure that no liquid can enter into the unit, do not clean the induction unit with a jet of water. -
Page 21: Fault Finding/Rectification
GBA Z 0697 2 E AULT FINDING ECTIFICATION The induction appliance must only be opened by authorized and trained service personnel. Do not open the unit, dangerous electric voltage CAUTION inside. Stop any actions if the heating area (ceran plate) is cracked or broken, the induction unit must be switched off and disconnected from the electric supply. -
Page 22: Fault Finding With Error Code
GBA Z 0697 2 E AULT FINDING WITH ERROR CODE Error-No. Description Troubleshoot Hardware overcurrent or Check the Chafing Dish or Pan coil is not connected material, Check wiring Software overcurrent Check the Chafing Dish or Pan material Heat sink overtemperature Check installation (Airflow) T >... -
Page 23: Fault Finding Without Error Code
GBA Z 0697 2 E AULT FINDING WITHOUT ERROR CODE Fault Possible cause Action to take No heating No mains supply Check the electrical supply 7- segment display is OFF (cable plugged onto the wall (dark) socket) Check preliminary fuses Control knob is in OFF-position ( ) Turn control knob ON (temperature 50-100°C) - Page 24 GBA Z 0697 2 E Fault Possible cause Action to take Heating cycle switches off and Overheated coil, Switch unit off, on within minutes, heating aera overheated remove Chafing Dish or cast iron (after a long operation time) pan and fill water into the pan, Empty cooking, no water in the pan let unit cool down The cooling-system (fan) starts to operate when the ambient temperature in the control area exceeds...
-
Page 25: Cleaning
GBA Z 0697 2 E LEANING List with common types of soiling and recommendations how to treat them: Type of soiling Treatment Slight soiling, no burned residues Wipe with a moist cloth (scotch), without cleaning agent Fatty spots Polychrom (sauces, soups, ...) ... -
Page 26: Support
GBA Z 0697 2 E UPPORT A good maintenance of the induction unit requires a regular cleaning, care and servicing. The operator has to ensure, that all components relevant for safety are in perfect working order at all times. The induction unit should be examined at least once a year by an authorized technician. Do not open the induction unit. -
Page 27: Waste Disposal Concept
GBA Z 0697 2 E ASTE DISPOSAL CONCEPT The symbol on the product or on its packaging indicates that this product may not be treated as household waste. It shall be handed over instead to the applicable collection point for the recycling of elec- trical and electronic equipment. -
Page 28: Warranty And Service
GBA Z 0697 2 E ARRANTY AND SERVICE 12.1 W ARRANTY CONDITIONS The manufacturer accepts no liability or warranty in the following cases: failure to observe notes and instructions given in the Instructions for Use; use of the product in a manner not conforming to its intended use; ... -
Page 29: Service Address
7:00 a.m. till 4:00 p.m. Fridays from 7:00 a.m. till 12:15 p.m. Outside these office hours please communicate your requests per e-mail or telefax. Scholl Apparatebau GmbH & Co. KG Zinhainer Weg 4 D-56470 Bad Marienberg / Germany Phone...
