Summary of Contents for Thermocet VERSA LV

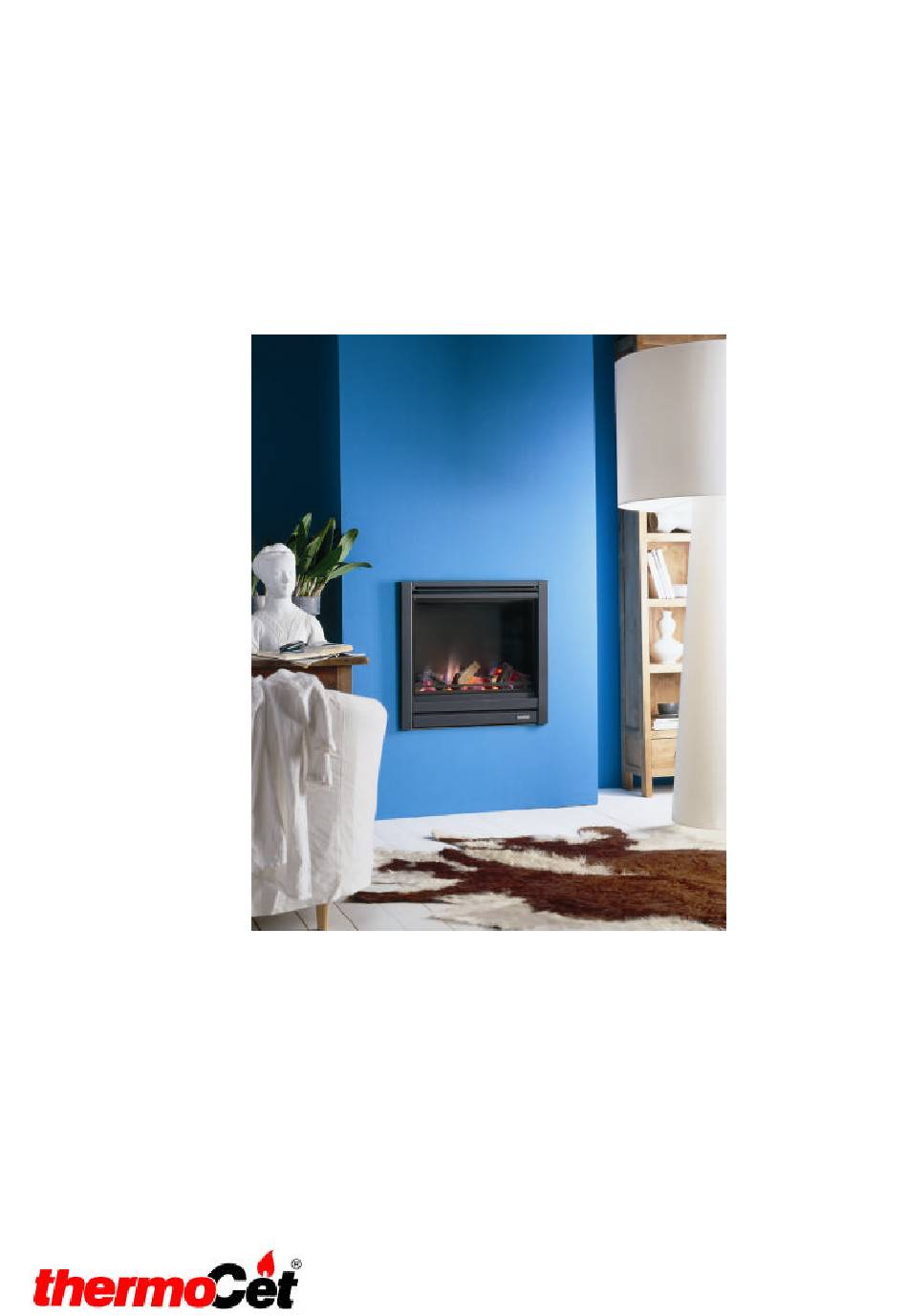

- Page 1 Page.1 OPERATION AND INSTALLATION MANUAL VERSA LV/HV...
-
Page 2: Table Of Contents
Page.2 CONTENTS 1. GENERAL Page 3 1.1 Delivery 1.2 Contents of packaging 1.3 First firing 1.4 Guarantee 2. OPERATING INSTRUCTIONS VERSA Page 3 2.1 Igniting 2.2 Operation of thermostat 2.3 Operation of glow-effect burner 2.4 Operation of fan 2.5 Switching off the fire 2.6 Maintenance 3. -
Page 3: General
Page.3 We wish you happy heating with the purchase of this ThermoCet recessed gas fireplace. Please read these instructions thoroughly before installing and using the fireplace. Keep these instructions care- fully. Always state model and serial number in the event of a breakdown. -
Page 4: Operation Of Thermostat
Page.4 Warning If the pilot light goes out, you must wait at least 5 minutes before lighting the appliance again. 2.2 Operation of thermostat The modulating thermostat ensures that the temperature selected with the thermostat knob (A) is precisely maintained. If you set the thermostat knob (A), the burner will start burning at full power first of all, but will then start to burn lower and find a stable setting. -
Page 5: Electrical Installation Instructions
(chimney) inspected by a registered installer. This safety device must not be rendered inoperative or al- tered, because the system will not function properly otherwise. Only original ThermoCet components must be used for replacement. This also applies to the fastening materials and wiring. -
Page 6: Installing The Fireplace
Page.6 Loosen 2 screws on the left-hand side to open the glass window. Open the glass window all the way to the right and then lift the window upwards out of the hinges (see page 9 figure 1). Remove decorative log set and burner. Dismantle burner unit. -
Page 7: Dismantling Of Burner Unit And Fan
Page.7 5. Positioning of ornamental log set (see page 11) Position the ornamental log set exactly as shown in the illustration. Place the holes in the back logs of the set over the pins in the bearing edge (back of combustion chamber) and subsequently lay the 2 rectangular logs on the burner. -
Page 8: Gas Specifications
0.13 0.289 0.13 0.289 Chimney Ø mm Code pilot light injection Gas connection 3/8” 3/8” 3/8” 3/8” 3/8” 3/8” Versa LV Type of gas Natural gas Natural gas Propane cat.I2E+ cat.I2L cat I3 P Position min. max. min. max. min. -
Page 9: Drawings Pages
Page.9... - Page 10 Page.10...
-
Page 11: Photographs Log Set
Page.11... - Page 12 Page.12...
-
Page 13: Important Tips
Page.13 Important tips for heating with gas-fired or wood-fired stoves and fireplaces. Prevent discolouration of walls and ceilings! There are always dust particles in the air in every living space, even if it is regularly vacuumed! These particles are clearly vis i- ble in rays of sunlight and they will not bother you as long as the concentration of particles in the air remains low. -
Page 14: Guarantee Conditions
This is also the date of inception of the guarantee. The guarantee lapses if changes have been made to the appliance without the advance knowledge and written permission of Helex / Thermocet, and when an appliance has been shipped without sound packaging and transport protection.
