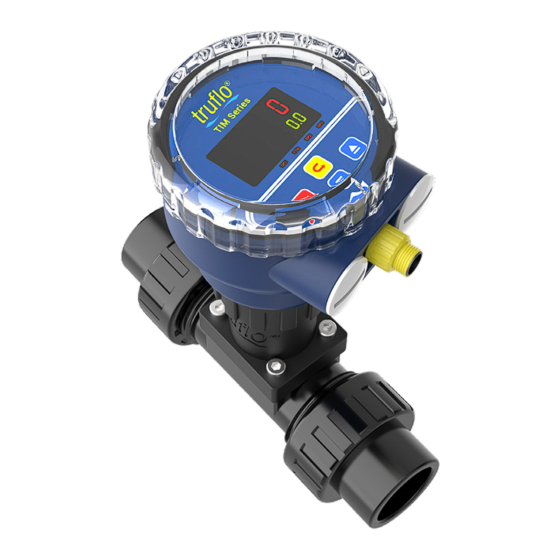

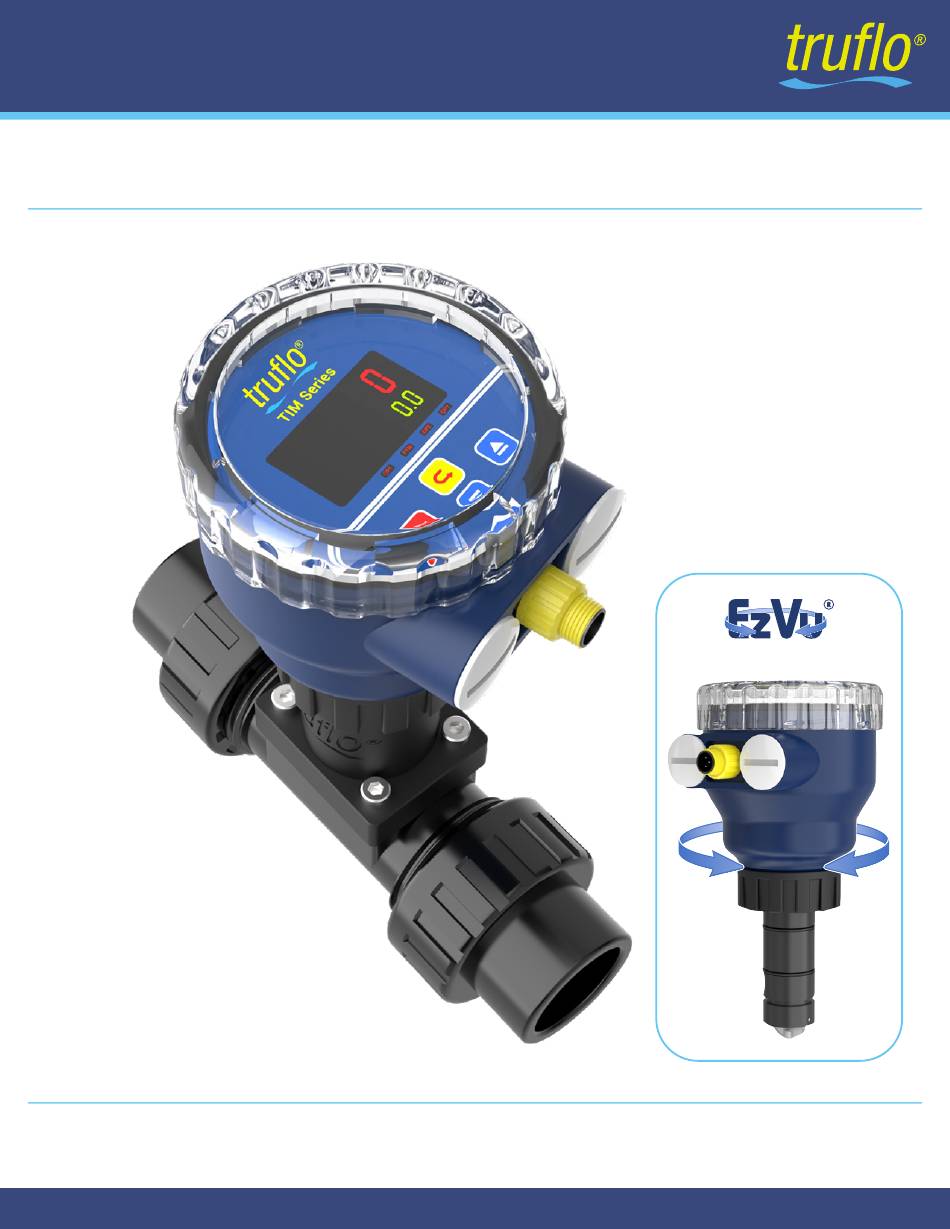

- Page 1 TIM Series Multi-Function Paddle Wheel Flow Meter Quick Start Manual Rotates 330° Read the user's manual carefully before starting to use the unit. Producer reserves the right to implement changes without prior notice. 23-0089...
-
Page 2: Safety Information
Highlights additional information or detailed procedure. potentially void product warranty. Personal Protective Equipment (PPE) Always utilize the most appropriate PPE during installation and service of Truflo products. Pressurized System Warning Sensor may be under pressure. Take caution to vent system WARNING prior to installation or removal. - Page 3 TIM Series Multi-Function Paddle Wheel Flow Meter Industry’s Most Accurate & Reliable Paddle Wheel Flow Meters The TI Series insertion plastic paddle wheel flow meter has been engineered to provide long-term accurate flow measurement in tough industrial applications. The paddle wheel assembly consists of a engineered Tefzel paddle and micro-polished zirconium ceramic rotor ®...
-
Page 4: Installation
TIM Series Multi-Function Paddle Wheel Flow Meter Installation Retention Cap TIB Series TIB Series Very Important Locating Pin ■ Lubricate O-rings with a viscous lubricant, compatible with the materials of construction. Ensure O-rings ■ Using an alternating twisting motion, carefully lower the sensor into the are well fitting. -
Page 5: Installation Positions
TIM Series Multi-Function Paddle Wheel Flow Meter Correct Sensor Position Setup TI Series flow meters measure liquid media only. There should be no air bubbles and the pipe must always remain full. To ensure accurate flow measurement, the placement of the flow meters needs to adhere to specific parameters. -
Page 6: Terminal Connections
TIM Series Multi-Function Paddle Wheel Flow Meter Cable Grip Connection M12 Connection (no Internal wiring required) Terminal Connections Terminal Description Terminal Description Color + 10-30VDC + 10-30 VDC Brown OUT 2 (NPN) Totalizer Pulse Output NPN White - VDC - VDC... - Page 7 TIM Series Multi-Function Paddle Wheel Flow Meter Programming Select/Save/Continue Move selection left Change digit value STEPS DISPLAY OPERATION Press and Hold ▶ Home Screen �� 3 Sec . Factory Default: Lk = 10 Pasword ▶ Otherwise meter will enter Lockout Mode*...
- Page 8 TIM Series Multi-Function Paddle Wheel Flow Meter Programming Relay Output STEPS DISPLAY OPERATION Press and Hold ▶ Home Screen �� 3 Sec . Con = n: OP2 Manual Reset; OP2 Output ▶ Con = c: time (1=10 Secs) Auto Reset Using Timer Pulse Control (Frequency) time (Secs) Auto Reset Using Timer i.e.
- Page 9 TIM Series Multi-Function Paddle Wheel Flow Meter Rotor Pin | Paddle Replacement Line up pin with hole GENTLY tap Tap until pin is 50% out Small Pin Pin Hole Pull out Pull out Insert new paddle in flow meter Paddle...
- Page 10 TIM Series Multi-Function Paddle Wheel Flow Meter Warranty, Returns and Limitations Warranty Icon Process Controls Ltd warrants to the original purchaser of its products that such products will be free from defects in material and workmanship under normal use and service in accordance with instructions furnished by Icon Process Controls Ltd for a period of one year from the date of sale of such products.
