Summary of Contents for truflo TIP Series

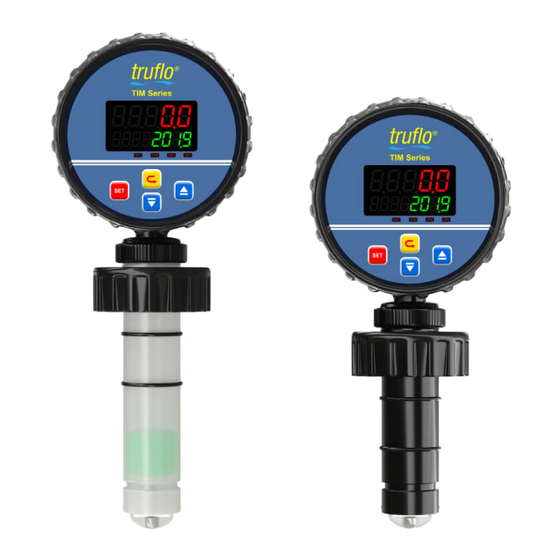

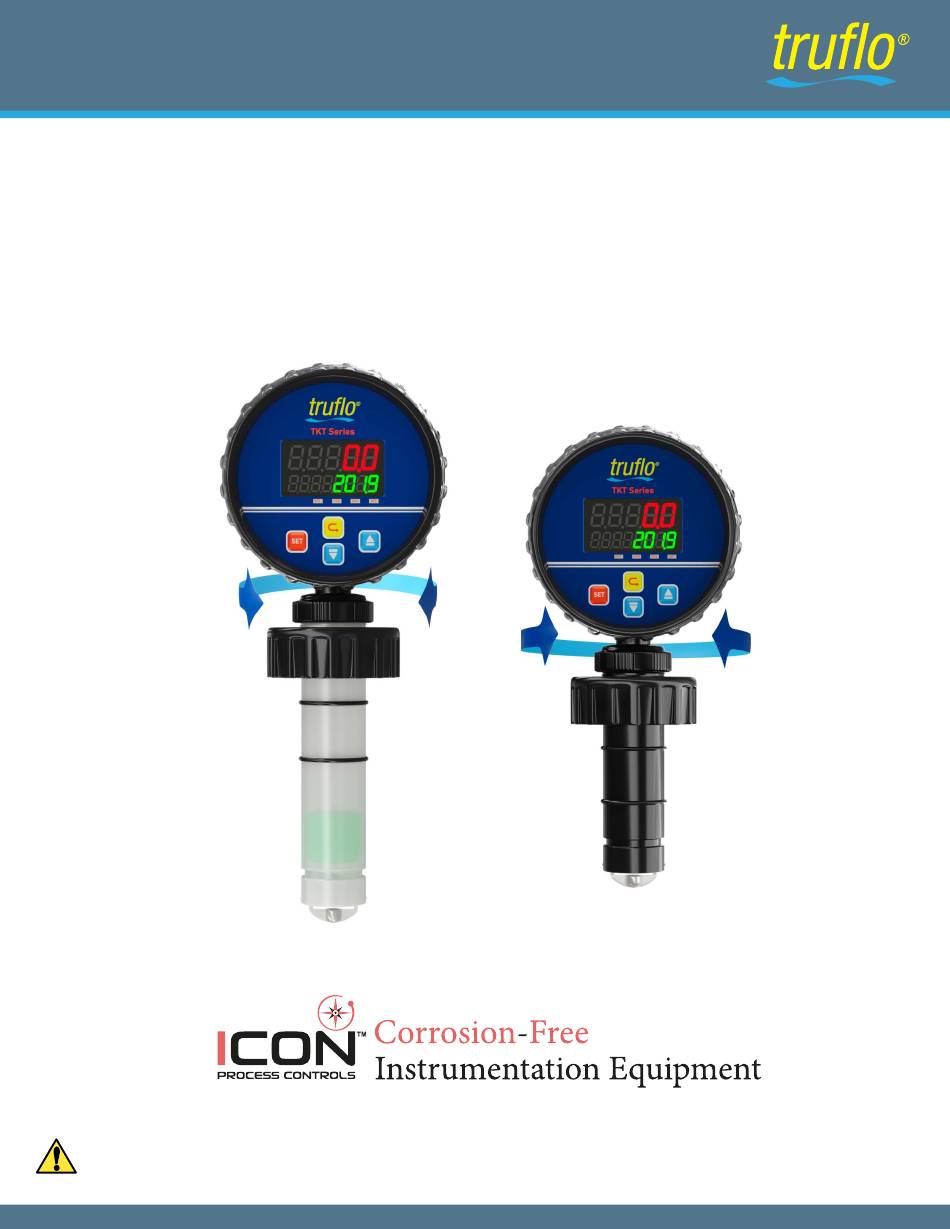

- Page 1 TIM SERIES Multi-Function Paddle Wheel Flow Meter TIP | TIM SERIES INSTRUCTION MANUAL Read the User's Manual Carefully. Manufacturer Reserves the Right to Implement Changes Without Prior Notice.
-
Page 3: Safety Information
Personal Protective Equipment (PPE) Always utilize the most appropriate PPE during installation and service of Truflo products. Pressurized System Warning WARNING! Sensor may be under pressure, take caution to vent system prior to installation or removal. Failure to do so may result in equipment damage and/or serious injury. -
Page 4: Installation
TIM SERIES Multi-Function Paddle Wheel Flow Meter Installation Very Important TIB Series Lubricate O-rings with a Viscous Lubricant Compatible Screw Down Retention Cap Positioning Tab with the Materials of Construction. Ensure O-Rings are well Greased Using an Alternating | Twisting Motion Carefully Lower Lubricate (Grease) the Sensor into the Fitting. -
Page 5: Installation Positions
TIM SERIES Multi-Function Paddle Wheel Flow Meter Correct Sensor Positioning TI Series Flow Meters measure liquids only. No air bubbles should be present and the pipe must always be full. The sensors are not effective in laminar or transitional flow applications. Minimum Reynolds number required is 4500. For Velocity accurate flow measurement there must be a developed turbulent velocity Flow... - Page 6 TIM SERIES 36.5 Ø84.0 + 10-30VDC Brown White Out 2 (NPN) TKT Series Black Out 1 (NPN) 4-20mA- Grey 4-20mA+ Orange Blue - VDC TIP SERIES + 10-30VDC Brown White Out 2 (NPN) Black Out 1 (NPN) Blue - VDC...
- Page 7 TIM SERIES Multi-Function Paddle Wheel Flow Meter to Increase Value to Decrease Value Press Press to Save Value to Change Digit Press Press Programming DC Power Only STEPS DISPLAY OPERATION Step-1 Home Screen Home Screen 3 Secs Press Step-2 Factory Default: Lock = 10 Lock Out Feature Press **NOTE: If Lock # is Changed from the # 10 the Meter will be in Lockout Mode.
-
Page 8: Relay Mode
TIM SERIES Multi-Function Paddle Wheel Flow Meter Programming NPN Pulse Outputs STEPS DISPLAY OPERATION Step-1 Home Screen Home Screen Press 3 Secs Con = n : Manual Reset; Program (NPN) Pulse Con = c : time (1=10 Secs) Auto Reset Using Timer Step-2 Output (OP2) Totalizer time (Secs) Auto Reset Using Timer i.e 5 = Pulse On (5 Secs) - Page 9 TIM SERIES Multi-Function Paddle Wheel Flow Meter Rotor Pin | Paddle Replacement Procedure GENTLY tap pin with Tap until Rotor is 50% out Line up Pin with Rotor Hole Mallet or Hammer Small Pin Rotor Hole Pull out Rotor Pin Insert New Paddle Paddle in...
-
Page 10: Min | Max | Flow Rates
Form and Flow Meter. must be returned to Icon Process Controls directly or to the authorized distributor. Product returned without a RGA number and Service Form will not be warranty replaced or repaired. Truflo Flow Meters are warranted out of box but not against any damage, due to Process or Misapplication Failures e.g. High Temperature,... - Page 11 TIM SERIES Multi-Function Paddle Wheel Flow Meter TI Series Products • Industry's Highest Accuracy: ±0.50% • PVC | PP | PVDF • Retrofits into Signet® Fittings • Size Range - ½" - 24" • Low Pressure Drop • Password Protected Security •...
- Page 12 FLOW + PRESSURE + LEVEL + TEMP for more information visit www for more information visit www.iconprocon.com .iconprocon.com...
