truflo TKB Series Installation Manual
Battery operated flow meter
Hide thumbs
Also See for TKB Series:
- Quick start manual (8 pages) ,
- Quick start manual (12 pages) ,
- Quick start manual (12 pages)
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for truflo TKB Series
Summary of Contents for truflo TKB Series

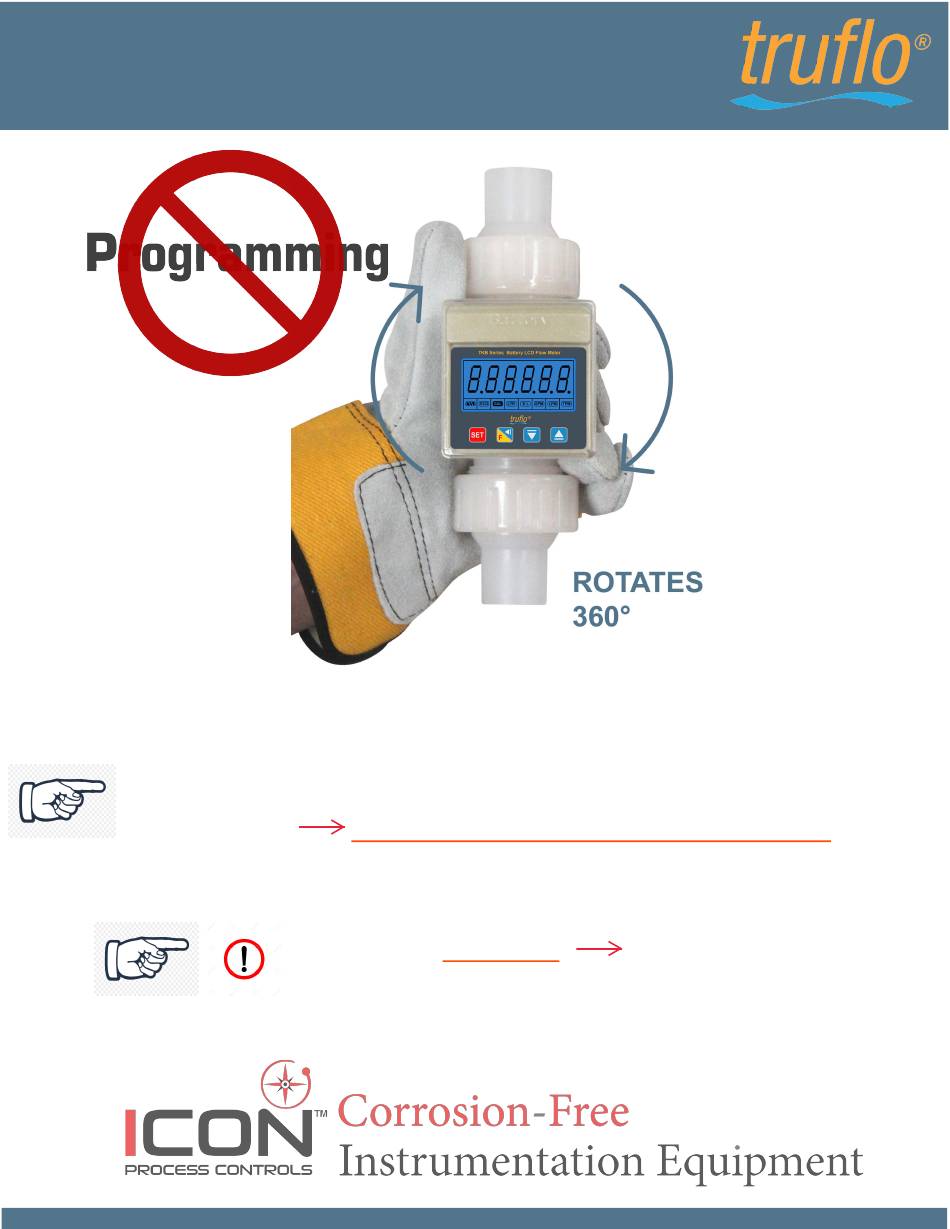

- Page 1 TKB SERIES INSTALLATION MANUAL TKB SERIES BATTERY OPERATED FLOW METER The TKB Series Paddle Wheel Flow Meter has been Factory Programmed No K-Factor Programming Required Important To Ensure Full Pipe Please Follow the Installation Instructions on (pg 5)
-
Page 2: Model Selection
RoHS Instruction Manual Compliant TKB Series Battery Operated LCD Flow Meter Features 1. Energy Saving 'ECO' Mode Option 2. Units of Measurement 2-1. Flow Rate Range 0.0~999.9 2-2. Totalizer Range 0~99,999,999 3. Totalizer Reset Protection 4. Four Directions for Installation-90 Degrees 5. -
Page 3: Specification
Specification TKB Series Battery Operated LCD Flow Meter Product Model TKB- Flow Total (Totalizer) Range = 0~999999 | Programmable Unit = Gallon | Liter | KL Flow Rate Range = 0.0~999.9 | Programmable Units = GPM | LPM | TPM 3.0 VDC... -
Page 4: Battery Replacement
Battery Replacement Remove Cover Press Procedure to Rotate Display 360°... - Page 5 Programming Units come Factory Preprogrammed No K-Factor Programming is Required Status / Display Range Description Battery Installed | LCD Display On Flow Rate Display r = Flow Rate | Default Setting 0~999999 Flashing Flow Total Press Press to Scroll Between &...
- Page 6 Display the Current Value of Flow Totalizer : Range 0~99,999,999 key for 3 seconds to show current value of the 7th ~ 8th digits 3-1. Please press the key the current value of the 1st ~ 6th digits will be displayed 3-2.
-
Page 7: Installation Positions
Installation Positions CORRECT INCORRECT CORRECT INCORRECT CORRECT INCORRECT CORRECT INCORRECT Please Ensure the PIPE FULL with the fluid under normal operation. Min 10x Pipe Diameters Upstream Pipe Diameters Downstream. TKR Series can be installed in a Horizontal or Vertical direction. A Plastic Basket Strainer, Bag Filter or Y Strainer Filtering Device upstream to Avoid the Paddle Wheel from being damaged by the solids or fibers - max 10% Particle Size - Not to Exceed .5mm Cross Section or Length.
