TKS | TKP | TKM

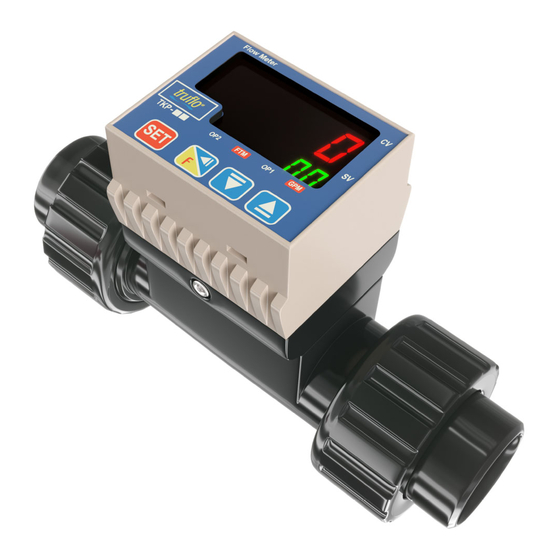

Multi-Function Paddle Wheel Flow Meter
TK SERIES MANUAL
Flow Rate & Totalizer
Password Security Protected
Zirconium Ceramic | Rotor | Bearings
Display Rotates 360 Degrees
Bright LED Display
Read carefully the instructions published in this manual before the first use of the sensor. Keep the manual
at a safe place. The manufacturer reserves the right to implement changes without prior notice
Find Quality Products Online at:
ROTATOR
SERIES MANUAL
GlobalTestSupply
www.
Programming
© Icon Process Controls Ltd. All Rights Reserved
.com
sales@GlobalTestSupply.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for truflo TK Series
Summary of Contents for truflo TK Series
- Page 1 TKS | TKP | TKM ROTATOR SERIES MANUAL Multi-Function Paddle Wheel Flow Meter TK SERIES MANUAL Flow Rate & Totalizer Password Security Protected Zirconium Ceramic | Rotor | Bearings Display Rotates 360 Degrees Bright LED Display Programming Read carefully the instructions published in this manual before the first use of the sensor. Keep the manual at a safe place.
-
Page 2: Table Of Contents
ROTATOR SERIES MANUAL Multi-Function Paddle Wheel Flow Meter TABLE OF CONTENTS 1. Product Description 2. Parts TK Series 3. Product Selection 4. Specifications 5. Procedure to Rotate Display 6. Programming Models TKP | TKM 6.1 Programming NPN Pulse Output Models TKP | TKM Only 6.2 Programming NPN Pulse Control Function Models TKP | TKM Only... -
Page 3: Parts Tk Series
ROTATOR SERIES MANUAL Multi-Function Paddle Wheel Flow Meter 2. Parts TK Series 1. Flow Controller 2. Power Supply 3. Hall Sensor 4. Paddle Wheel 5. Body (PVC, PP, PVDF) 6. Tefzel Paddle 7. Rotor Pin 8. Bearing 3. Product Selection 4. -
Page 4: Procedure To Rotate Display
ROTATOR SERIES MANUAL Multi-Function Paddle Wheel Flow Meter 5. Procedure to Rotate Display Flow Meter & Transmitter Flow Meter & Transmitter Using an allen key loosen the 2 screws located on either side of the display Pull the screws | Do Not Remove Lift the Display Tighten the Allen screws | Snug Tight Rotate Display - 90 Degrees... -
Page 5: Programming Npn Pulse Output Models Tkp | Tkm Only
ROTATOR SERIES MANUAL Multi-Function Paddle Wheel Flow Meter 6.1 Programming NPN Pulse Output Models TKP TKM Only Steps Only Necessary If NPN Pulse Output is Required DISPLAY OPERATION STEPS Step-1 TKP | TKM Series CV Display Reads 0 Flow Meter & Transmitter Only SV Display Reads 0 Home Screen... -
Page 6: Mode Of Npn Pulse Output Tkp | Tkm Models
ROTATOR SERIES MANUAL Multi-Function Paddle Wheel Flow Meter 6.3 Mode of NPN Pulse Output TKP | TKM Models 6.4 K-Factors for TK ALT NO. DESCRIPTION Size ½" ALt = 0 CV > SV ON: CV < SV - HyS ¾" ALt = 1 CV <... -
Page 7: Programming Tks Model Only Program Relay Set Point And Relay Delay (Prevents Relay Chatter)
ROTATOR SERIES MANUAL Multi-Function Paddle Wheel Flow Meter 6.6 Programming TKS Model Only Program Relay Set Point and Relay Delay (Prevents Relay Chatter) STEPS DISPLAY OPERATION Step-1 Flow Meter Home Screen Power On Flow Meter - 24VDC 24V DC POWER ONLY Home Screen 000.0 (Defaut) Press (HOLD) -
Page 8: Standard Pipe Size
ROTATOR SERIES MANUAL Multi-Function Paddle Wheel Flow Meter 7. Standard Pipe Size ANSI (ID) (Inches) Flow Rate (LPM) / USGPM DIN (ID) Pipe Size (O.D.) (mm) Sch (40) Sch (80) 0.3m/s min. 10m/s max. DN15 (½") 0.62 0.55 Ø20 3.5 | 1.0 120 | 32 DN20 (3/4") 0.82... -
Page 9: Tks Npn (Flow Rate + Relay + Pulse) Diagram
ROTATOR SERIES MANUAL Multi-Function Paddle Wheel Flow Meter 9.3 TKS - NPN (Flow Rate + Relay + Pulse) Diagram Brown Brown 10 - 30 VDC (+) White Black Load Flow Blue 0V (-) Grey Meter Grey Output 1 AMP Flow Rate Pulse Circuit Black 1 Amp... -
Page 10: Installation Positions
Multi-Function Paddle Wheel Flow Meter Please make sure the pipe is filled with the fluid under normal operation. TK Series can be installed in a horizontal or vertical direction. Please ensure enough length of straight pipe to avoid turbulence that can effect readings.
