Summary of Contents for truflo TKS Series

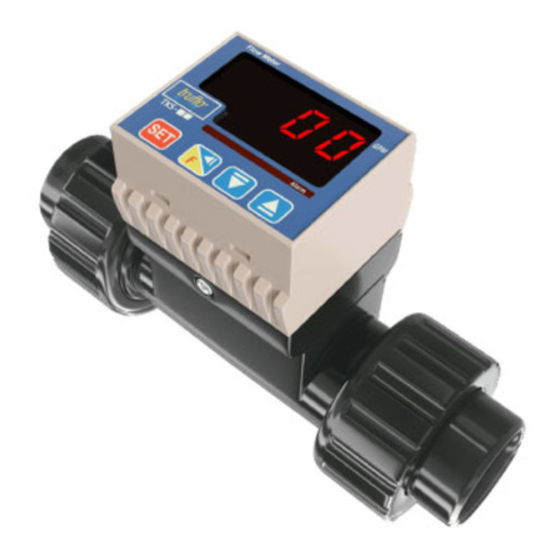

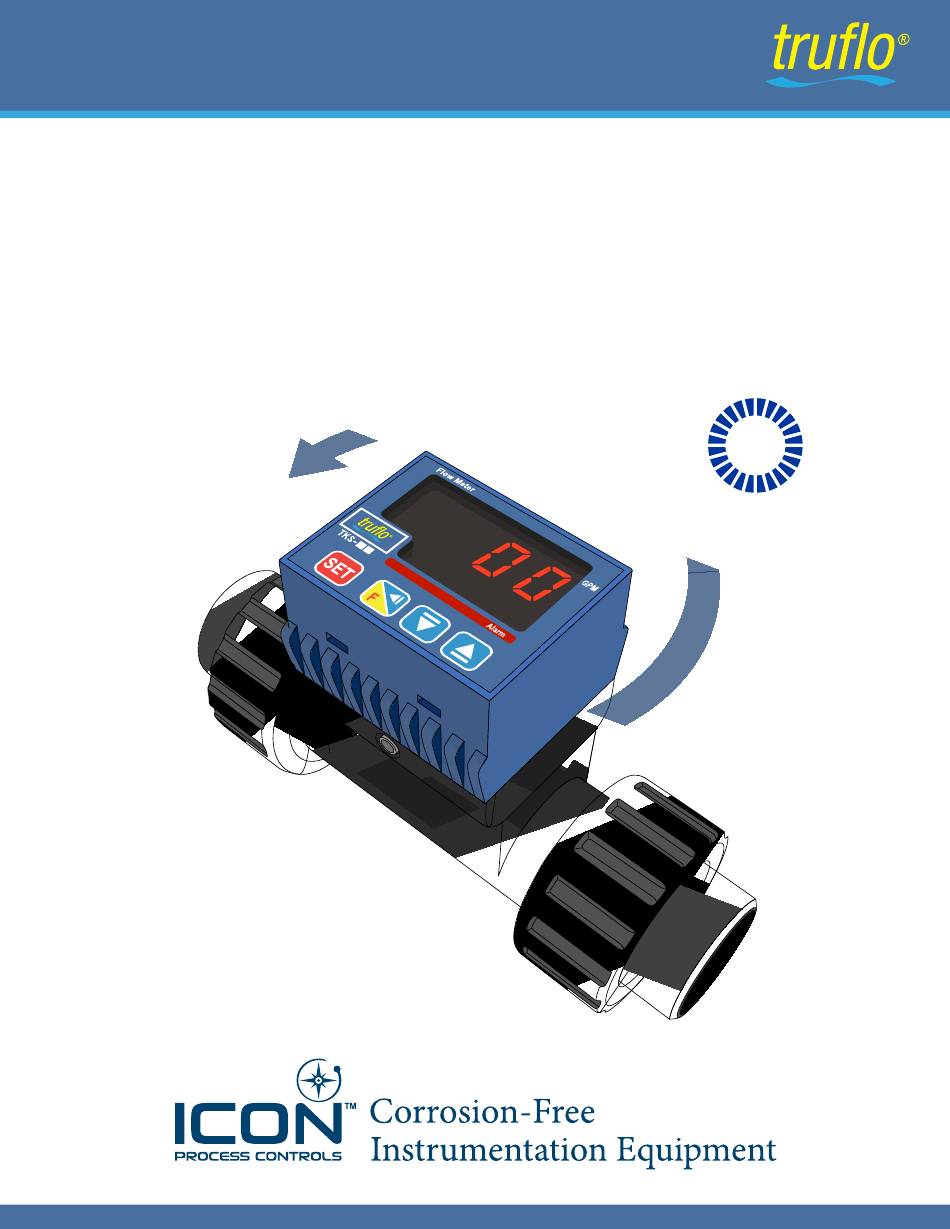

- Page 1 TKS SERIES (Quick Start) In-Line Paddle Wheel Flow Meter TKS SERIES Paddle Wheel Flow Meter Quick Start Operating Manual 360° www.iconprocon.com | sales@iconprocon.com | 905.469.9283...
-
Page 2: Table Of Contents
TKS SERIES (Quick Start) In-Line Paddle Wheel Flow Meter Table of Contents Safety Information Technical Specifications Exploded View General Terms Wiring Diagram Programming TKS Model Programming Relay Relay Settings K-Factors for TK Flow Rates Pressure vs. Temperature Psi H O | Non-Shock... -
Page 3: Safety Information
Failure to do so may result in equipment damage and/or serious injury Personal Protective Equipmet (PPE) Always utilize the most appropriate PPE during installation and service of Truflo products. Please Ensure Full Pipe TK Series can be installed in a horizontal or vertical direction. Please ensure enough length of straight pipe to avoid turbulence that can effect readings. -
Page 4: Technical Specifications
TKS SERIES (Quick Start) In-Line Paddle Wheel Flow Meter Technical Specifications General Operating Range 0.3 to 33 ft/s 0.1 to 10 m/s Pipe Size Range ½ to 4" DN15 to DN100 Linearity ±0.5% of F.S @ 25°C | 77°F Repeatability ±0.5% of F.S @ 25°C | 77°F... -
Page 5: Exploded View
TKS SERIES (Quick Start) In-Line Paddle Wheel Flow Meter Exploded View 1. Polycarbonate Cover 2. Flow Controller 3. Hall Pickup Sensor 4. Redesigned Rotor Assembly 5. Body | PVC | PP | PVDF * 6. Re-inforced Inserts 7. Shearpro Contoured Rotor 8. -
Page 6: Programming Tks Model
(Quick Start) In-Line Paddle Wheel Flow Meter Programming TKS Model STEPS DISPLAY OPERATION 24V DC POWER ONLY Step-1 Icon Process Controls TKS Series Only Home Screen Power Up Flow Meter with Alarm VDC Power 000.0 Press Key 3 sec (HOLD) (Together) -
Page 7: Relay Settings
TKS SERIES (Quick Start) In-Line Paddle Wheel Flow Meter Relay Settings ALT NO. DESCRIPTION ALt = 0 CV > SV Relay ON : CV < SV - d Relay OFF ALt = 1 CV < SV Relay ON : CV > SV + d Relay OFF SV + d >... -
Page 8: Procedure To Rotate Display
TKS SERIES (Quick Start) In-Line Paddle Wheel Flow Meter Procedure to Rotate Display Flow Meter & Transmitter Flow Meter & Transmitter Using an allen key loosen the 2 screws located on either side of the display Pull the screws | Do Not Remove... -
Page 9: Installation Positions
TKS SERIES (Quick Start) In-Line Paddle Wheel Flow Meter Installation Positions CORRECT INCORRECT CORRECT INCORRECT CORRECT INCORRECT CORRECT INCORRECT Please Ensure Full Pipe TK Series can be installed in a horizontal or vertical direction. Please ensure enough length of straight pipe to avoid turbulence that can effect readings. -
Page 10: Warranty, Returns And Limitations
TKS SERIES (Quick Start) In-Line Paddle Wheel Flow Meter Warranty, Returns and Limitations Warranty Icon Process Controls Ltd warrants to the original purchaser of its products that such products will be free from defects in material and workmanship under normal use and service in accordance with instructions furnished by Icon Process Controls Ltd for a period of one years from the date of sale of such products.
