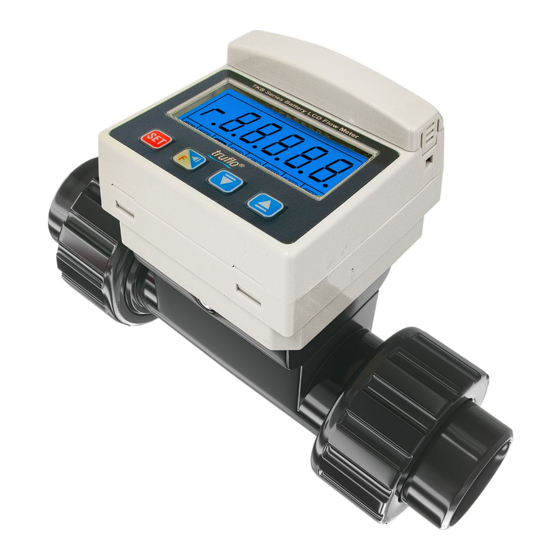

Battery operated paddle wheel flow meter
Hide thumbs Also See for TKB Series:
Table of Contents

Advertisement

Quick Links

Download this manual
TKB SERIES
Battery Operated
Paddle Wheel Flow Meter
QUICK START MANUAL
TKB SERIES BATTERY OPERATED FLOW METER
The TKB Series Paddle Wheel Flow Meter has been Factory
Programmed
Read the User's Manual Carefully before Starting to Use the Unit.
Manufacturer reserves the right to implement changes without prior notice.
No K-Factor Programming Required
Programming

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TKB Series and is the answer not in the manual?

Questions and answers

Related Manuals for truflo TKB Series

Summary of Contents for truflo TKB Series

  • Page 1 Paddle Wheel Flow Meter QUICK START MANUAL TKB SERIES BATTERY OPERATED FLOW METER Programming The TKB Series Paddle Wheel Flow Meter has been Factory No K-Factor Programming Required Programmed Read the User's Manual Carefully before Starting to Use the Unit.
  • Page 2 ** Plastic Versions Only *** Viton is Standard 2. General Data Specification Description Product TKB Series Battery Operated LCD Flow Meter TKB- Model Flow total meter Range = 0~999999 ; Unit = Gallon or Liter or Ton (KL) Selectable Flow rate meter Range = 0.0~999.9 ;...
  • Page 3 5. Zirconium Ceramic Shaft + Bearings 6. Body | PVC | PP | PVDF * 4. DIMENSIONS H O R I Z O N TA L TKB Series Battery LCD Flow Meter TKB Series Battery LCD Flow Meter 67.0 TKB Series Battery LCD Flow Meter Pipe Size 1/2"...
  • Page 4 TKB SERIES Battery Operated Paddle Wheel Flow Meter 5. Programming SETUP SELECTION DESCRIPTION Step-1 Battery Installed | LCD Display On Flow Rate or Display 0~999999 r = Flow Rate | Default Setting Flow Total Flashing Press to Scroll Between Press 0.1~9999.9...
  • Page 5 Low Voltage (Pilot BAT & Display flashing) 9. Displaying Flow Rate | Flow Totalizer r indicates Default Flow Rate Mode TKB Series Battery LCD Flow Meter Press and Hold Set for 3 Sec to Change from Flow Rate to Press & Hold for 3 Sec...

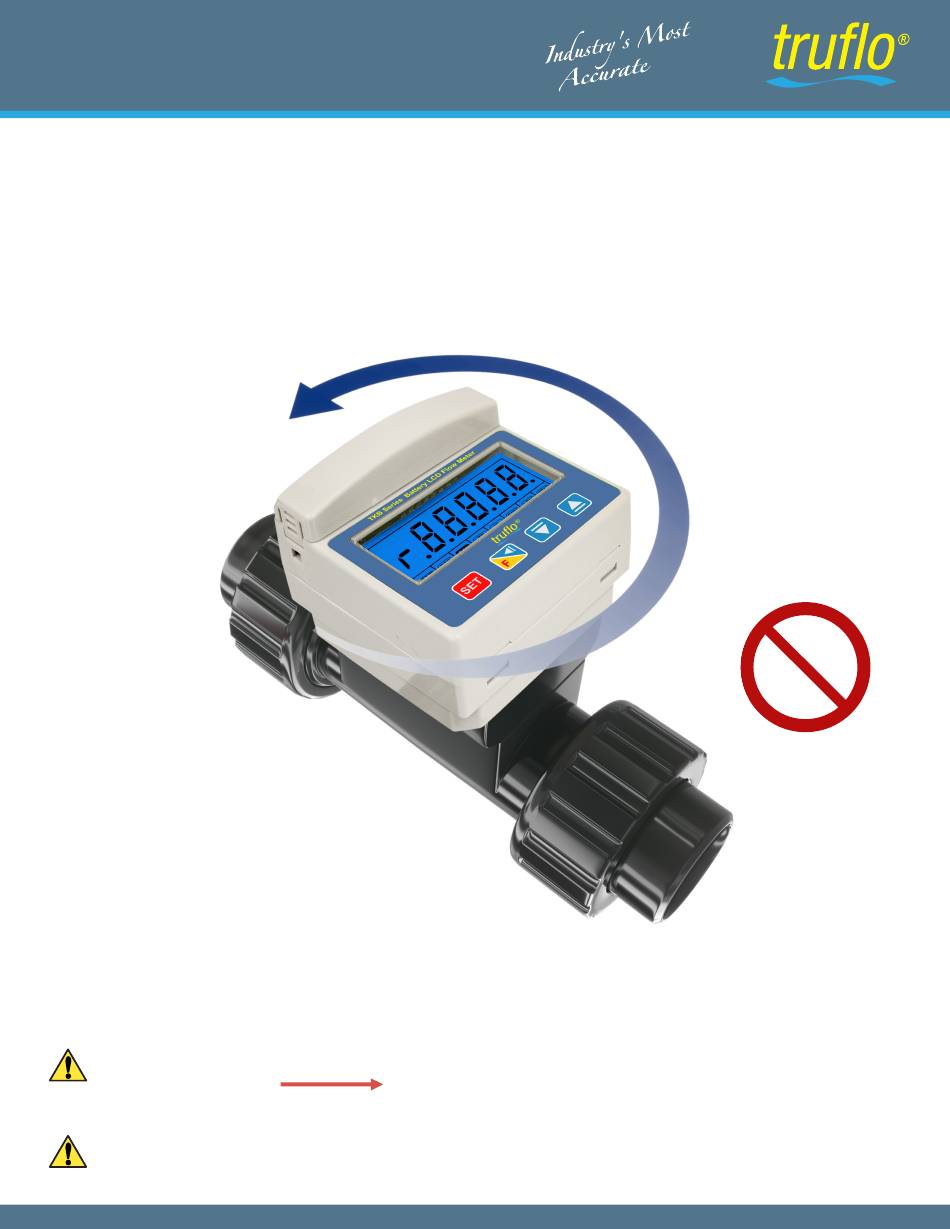

  • Page 6 Ensure (+ -) orientation is Both Sides Battery Cover correct Cover TKB Series Battery LCD Flow Meter TKB Series Battery LCD Flow Meter TKB Series Battery LCD Flow Meter 11. Procedure to Rotate Display Use an Allen key and loosen...
  • Page 7 Pipe Diameters Upstream Pipe Diameters Downstream. TKB Series can be installed in a Horizontal or Vertical direction. A Plastic Basket Strainer, Bag Filter or Y Strainer Filtering Device upstream to Avoid the Paddle Wheel from being damaged by the solids or fibers - max 10% Particle Size - Not to Exceed .5mm Cross Section or Length.
