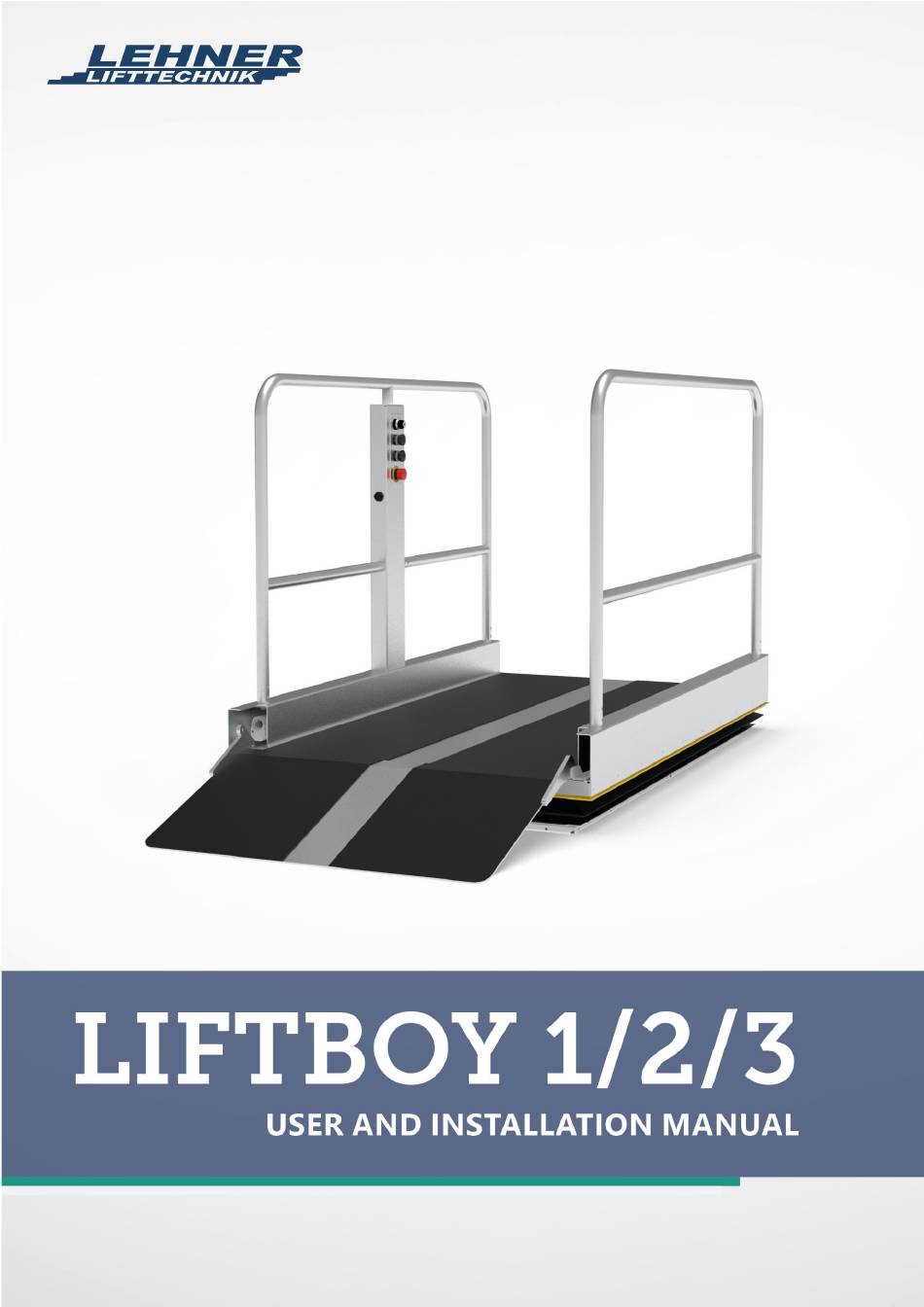

- Page 2 Installation manual "Liftboy 1-3" Issue: July 2023 Version 07/23 Lehner Lifttechnik GmbH Salling 8 4724 Neukirchen am Walde Austria Tel: +43 7278 3514 15 E-mail: office@lehnerlifttechnik.at Web: www.lehner-lifttechnik.at Take a look at the installation video of the Liftboy 1/2/3...
-
Page 3: Table Of Contents
Assembly of the plant ..........................11 Dismantling and disposal ........................13 Operating elements ............................14 The Transformer ............................14 Controls on the platform ........................14 Call stations at the stops (optional) ....................15 Liftboy 1-3 | User & Installation Manual Version 07/2023... - Page 4 Duties of the platform lift operator ......................25 Requirements for the maintenance company ..................26 Assembly and maintenance records ......................27 Appendices - 2 wiring diagrams: Liftboy 1 & 2 and Liftboy 3 ............. 29 Liftboy 1-3 | User & Installation Manual Version 07/2023...
-
Page 5: Introduction
INTRODUCTION We would like to congratulate you on your purchase of a platform lift from Lehner Lifttechnik GmbH and welcome you to our large circle of satisfied customers. For more than 30 years, our lifts have been known as reliable means of transport, which are characterised by individual adaptation to structural conditions. -
Page 6: Attention - Safety First
In case of non-observance, there is immediate increased danger, whereby personal injury or damage to property may occur. All pictures, photos and drawings used in this manual are symbolic only and may Image differ from reality. Photo Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 2... -
Page 7: Platform Lift Operator
When the unit is taken out of service for cleaning, maintenance, or repair work, it must be protected against unintentional movement. The key switches on the call stations must be switched off and the keys removed. Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 3... -
Page 8: Intended Use
Do not disable any safety device by making mechanical or electrical changes to the ▪ installation. Without the written consent of Lehner Lifttechnik, all types of adjustments and/or modifications to the system are prohibited. Liftboy 1-3 | User and Installation Manual... -
Page 9: Use Of The Platform Lift
Also, keep the keys in a safe place and do not give them to unauthorised persons. Do not leave the keys on the vehicle or at the call points when the lift is not in use. Liftboy 1-3 | User and Installation Manual Version 07/2023... -
Page 10: Technical Equipment
The lift can be operated from 2 remote controls in the stops (if available) and from the control on the platform. Schematic representation Manual control on Weather resistant Half-height side the spiral cable non-slip surface barriers Mechanical ramp Safety curtain Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 6... -
Page 11: Optional Versions
Control pillar for platform operation buttons • High lateral barriers • Transport wheels • Example 1: With electric ramp and control pillar Example 2: Side access & revolving door Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 7... -
Page 12: Technical Specifications
RAL 7035 / 9007 RAL 7035 / 9007 In some situations, it is necessary to make a special adjustment to the platform lift, which may change the above specifications. Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 8... -
Page 13: Safety Devices
The Liftboy platform lift is equipped with an emergency stop button. If you need to stop the platform in an emergency, press the red button and the lift stops. Unlocking is done by pressing it again or turning it clockwise. Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 9... -
Page 14: Installation And Commissioning
5 INSTALLATION AND COMMISSIONING The system may only be set up and commissioned by a competent partner company of Lehner Lifttechnik GmbH. When setting up the lift, it must be ensured that no impacts or vibrations from neighbouring machines have an effect on the system. This could affect the electronics or the precision mechanics of the lift. -
Page 15: Transport Of The Site
Never lift the platform by the top. This could damage the platform mechanism! Reach around the bottom! 5.3 Assembly of the plant Now mount the ramp and attach the ramp motor to the ramp. Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 11... - Page 16 Attach the cover flaps to the side barriers and the rubber strip to the underside of the ramp. Connect the hand cassette and the transformer to the platform lift. Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 12...
-
Page 17: Dismantling And Disposal
Now the Liftboy is completely assembled. If you have any problems or questions, contact your Lehner Lifttechnik partner or customer service immediately. Installation work on the entire system may only be carried out by the manufacturer or its authorised partner companies. -
Page 18: Operating Elements
The hand cassette is only used to drive the platform and to open and close the access ramp. Alternatively, or additionally, the operating elements can also be attached to a control pillar. Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 14... -
Page 19: Call Stations At The Stops (Optional)
Green flashing Radio transmitter has been successfully registered with the receiver Orange flashing Radio connection interrupted Red flashing The battery of the radio transmitter is weak and should be replaced. Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 15... -
Page 20: Operating The Platform
Automatic revolving door (optional with Liftboy 3) When the platform has entered the landing, the revolving door opens automatically. Please note that you are not in the door's turning range while it is opening. Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 16... -
Page 21: Driving With The Platform
The automatic revolving door closes again automatically after an opening time set during installation. Please ensure that you are not in the door's turning range when it is closing! In the user video of the Liftboy 1/2/3 we show you the correct use of your lift. -
Page 22: Troubleshooting
"LE xxxxx". This number is the quickest way to identify your lift and provide you with efficient information. Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 18... -
Page 23: Error Table
Replace the switch or have it open the landing completely or the reset by the service company. door zone switch and/or limit Check whether the contact switch is defective. bar is activated. Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 19... -
Page 24: Liberation Of A Passenger
Emergency release Door lock After opening, the manual revolving door should be locked again. After freeing a passenger, always call the service department! The system must be checked. Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 20... -
Page 25: Control And Maintenance
Avoid wetness, especially with the operating elements (no splashing water)! ▪ Further maintenance work may only be carried out by employees of the manufacturer or its ▪ authorised partner companies! Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 21... -
Page 26: Maintenance / Inspection
Emergency stop switch on the platform ▪ Up and down buttons on the landing control ▪ Up and down operation on the spiral cable ▪ Landing control key switch ▪ Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 22... -
Page 27: Hinged Doors (Optional)
11.3.2 Spare parts Only original spare parts from Lehner Lifttechnik may be used, as this is the only way to guarantee safety and functionality. If other products are used, the declaration of conformity loses its validity. Liftboy 1-3 | User and Installation Manual... -
Page 28: Ce Declaration Of Conformity
This declaration becomes invalid if the machine is modified or altered or if the provisions of the "Liftboy 1-3 - User & Installation Manual" are not observed. Lehner ChristianNeukirchen am Walde, Managing Director 07.08.2023 Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 24... -
Page 29: Duties Of The Platform Lift Operator
Irregularities during operation or emergency situations must be reported immediately to the maintenance company. In addition, the maintenance company must be informed of all changes to the building and the system that could affect operation. Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 25... -
Page 30: Requirements For The Maintenance Company
The maintenance company must have appropriate and sufficient insurance cover. ▪ The maintenance company must record every intervention that occurred due to a fault. ▪ Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 26... -
Page 31: Assembly And Maintenance Records
Assembled by: __________________________________________________________ Date: __________________________________________________________________ This is the maintenance record sheet for your platform lift. This form is filled out by your maintenance specialist during a service. Date Details Name Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 27... - Page 32 Date Details Name Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 28...
-
Page 33: Appendices - 2 Wiring Diagrams: Liftboy 1 & 2 And Liftboy 3
Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 29 16 APPENDICES - 2 WIRING DIAGRAMS: LIFTBOY 1 & 2 AND LIFTBOY 3... - Page 34 Liftboy 1-3 | User and Installation Manual Version 07/2023 Page 30...
