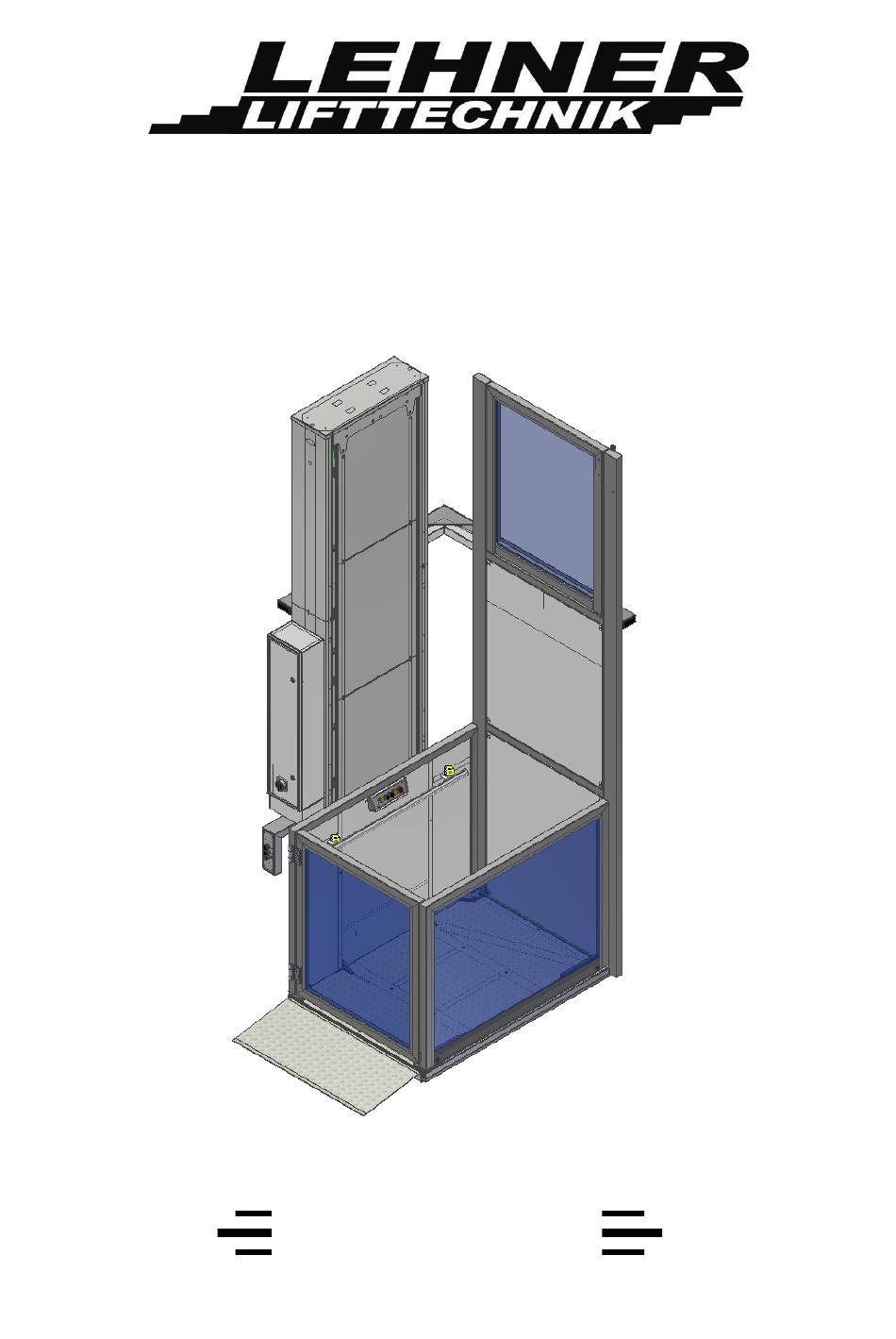

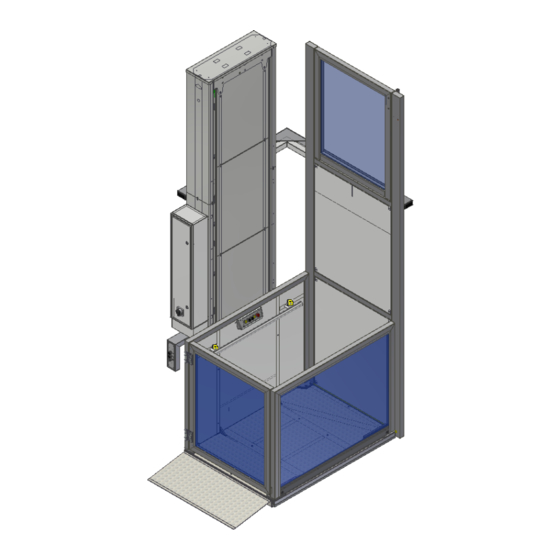

- Page 1 Installation Manual ALPIN Z300 V e r t i c a l p l a t f o r m l i f t...
-
Page 2: Key Parts
Alpin Z300 Installation manual KEY PARTS: The unit is delivered preassembled in 4 main parts: Lift mast (column) It is the fundamental and the largest piece of the equipment, consistent of the traction unit and the main electric and control switches. - Page 3 Alpin Z300 Installation manual Connection beam The connection beam serves to connect the lift mast with the sidewall and the whole structure with the building. Weight of connection beam is approximately 22 kg. VERY IMPORTANT: The connection beam has to be fixed to the upper landing (structure of...
- Page 4 Alpin Z300 Installation manual Installation with a crane: Fix the 2 attached hooks on the top of the main tower after you have removed the cover from the tower. Each hook will be fix with 3 bolts. Tight the bolts good. After that you can fix the strap on the hooks and move the tower to the installation postion.
- Page 5 Alpin Z300 Installation manual On site requirements for installation: As preliminary work, a concrete foundation for anchoring the bottom plate has to be created. Please see below dimensions for solid foundation. It is always necessary to provide drainage of rain water from the platform area.
-
Page 6: Installation Procedure
Alpin Z300 Installation manual Installation procedure: Step 1: Transport mast to installation site. Depending on the length and weight of the mast a forklift or a cable pull will be necessary to erect the lift mast. Step 2: Connect the connection beam to the upper level at the correct height (according to installation drawing)! Step 3: Erect the tower in the correct place and fix it to the connection beam. - Page 7 Alpin Z300 Installation manual Step 4: Connect the upper landing gate to the connection beam. Make sure that mast and upper landing gate frame are adjusted vertically and are fixed securely to the connection beam. Step 5: Fix the mast and the upper landing gate frame to the floor. Drill the holes with diameter of 12 mm for installation of anchor bolts - 6pcs (eg foot GVZ EXA 10/90 - M10, L = 165m).
- Page 8 Alpin Z300 Installation manual Step 7: Engaging the platform into the drive unit tower Approach the platform to the drive tower. If possible use a jack lift to put the platform at a convenient working height. Take off the front cover of the platform.
- Page 9 Alpin Z300 Installation manual Drive the carriage down so that the fixing holes for the roller appear under the fixing plate hook Fixing holes in carriage Fix the left and right rollers again to the carriage. Add rollers again...
- Page 10 Alpin Z300 Installation manual Step 8: Remove the transport screw on the top of the main tower (marked in a red circle in the picture) and mount instead the deliverd air vent screw. This must not be forgotten!!! Standard screw...
- Page 11 Alpin Z300 Installation manual Adjusting the upper and the lower landing switches: Before putting the platform into operation, it may be necessary to adjust the levels of the lower and upper stops. At the factory the platform is set to stop the lower height of 75 mm. The level of the upper station is set to the maximum stroke of the platform as per installation drawing.
- Page 12 Alpin Z300 Installation manual Switches in the upper tower: Upper door zone switch Motor hand wheel safety switch The removable emergency hand wheel connection must always point to the upper stop to ensure safe access and manipulation. Lehner Lifftechnik GmbH...
- Page 13 Alpin Z300 Installation manual Install the remaining panels and covers: Top tower cover Sidewall covers Platform cover Cable covers Tower covers Lehner Lifftechnik GmbH...
- Page 14 Alpin Z300 Installation manual Adjustement of gate and look: Before beginning of operation of lift, the gate and look should be adjusted. Normaly the setting is done from the factory, but sometimes it changes during transport and installation. Fine adjustment can be done by the small bolt in the middle of the circle. After correct adjustment fix the circle with the 2 small screws.
- Page 15 Alpin Z300 Installation manual Example of a standard model Alpin Z300 (lifting height 2700mm): Lehner Lifftechnik GmbH...
