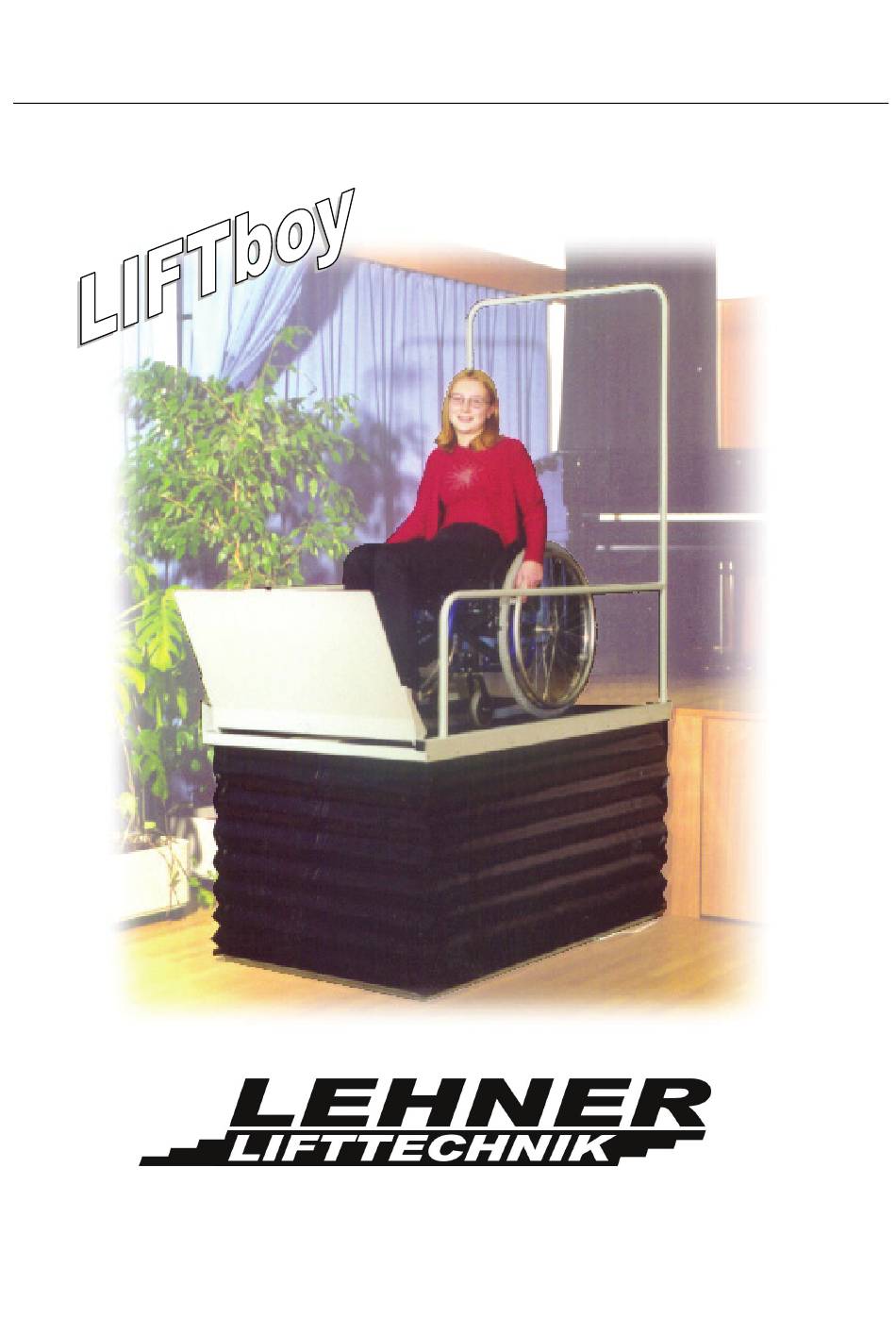

- Page 1 User Manual A – 4724 Neukirchen/W, Salling 8 Tel: 07278/3514-15, Fax: 07278/3514-12 Email: office.lehner@gmx.at Mobil: 0664/3526190 Web: www.lehner-lifttechnik.at...
-
Page 2: Table Of Contents
Tabel of contents 1. In general..................2 1.1. Producer ...................2 1.2. Utilisation ...................2 1.3. Important / Warnings..............3 1.4. Unpacking and preparation ............3 1.5. Assembly before starting up ............4 1.6. Assembly - disassembly / fitting..........5 2. Describtion of Operation ............5 1.1 Label ...................5 1.2 Safety function................6 3. -
Page 3: In General
1. In general Producer 1.1. Fa. Lehner Lifttechnik G.m.b.H. A – 4724 Neulirchen am Walde, Salling 8 Tel: +43.7278.3514-15, Fax: +43.7278.3514-12 Mobil: 0664/3526190, E-mail: office.lehner@gmx.at www.lehner-lifttechnik.at 1.2. Utilisation Utilisation The platform is produced for the utilisation inside and outside. The platform can be used at temperatures of -20 up to + 40°... -
Page 4: Important / Warnings
1.3. Important / Warnings Please read the whole manual, before the platform is operated The installation of the platform is only allowed by Lehner Lifttechnik or a qualified staff recommended by Lehner Lifttechnik. The maximum load capacity of 180 kg must not be exceeded. -
Page 5: Assembly Before Starting Up
1.5. Assembly before starting up Safety curb 1 rail actuator The assembly screws are pre-assembled on the upper board. They will be screwed off. The safety curb / the rail will be mounted on the upper board. The screws will be tightened. Fixing of the access ramp on the platform 1. -
Page 6: Assembly - Disassembly / Fitting
1.6. Assembly - disassembly / fitting The disassembly of the platform and the fitting of the accessories are only allowed to be carried out by the company Lehner Lifttechnik or an approved qualified person. The assembly has to be made according to the assembly manual. -
Page 7: Safety Function
Operation – electric The manual operation can be mounted at the platform by the user of the platform. Op- eration buttons and the symbols are easy to understand. Up (Auf)- function, from the bottom level 1. When the platform is on the bottom level and the access ramp is on the same level, the wheelchair user can drive on the platform. - Page 8 5. The safety curtains on the other side have to be lifted and have to be assembled on the upper board of the platform. The safety curtains have to be pressed on the hook- and-loop fastener. 6. The broomstick can be removed now. 7.
-
Page 9: Demontage & Transport
It is possible to deconstruct the platfform for the transport and the keeping, platform, band, ramp. 3.2 Packing during the transport The company Lehner Lifttechnik recommends to transport the platform in the original packing. 4. Attendance and keeping 4.1 Cleaning The lifting platform can be cleaned with a sponge or a brush and soap water. -
Page 10: Fuses
The durability is based to the conventional use, a regular cleaning as well as attendance and an annual assessment of specialized staff or the company Lehner Lifttechnik GmbH. Spare-part lists and drawings can be requested at the producer or the trader. -
Page 11: Error Search
Remove impurities on the securtiy band. Control the security band if there are other obstacles. 6. Is the connector connection between the electric power supply and the platform made? Put the connector on. Call the company Lehner Lifttechnik, if you can not solve the above mentioned defects. -
Page 12: Technical Data
6. Technical data Platform Typ 1 maximum height of stroke.................. 600 mm load capacity ......................180 kg lifting speed .......................10 mm/s minimum height (headroom)................110 mm weight........................52,5 kg electric power supply ........24 V through transformer on 230 V grid Inside dimension (length) ................1170 mm Inside dimension (breadth) ................
