OMEGA-F
Installation Manual
Lehner Lifttechnik GmbH
Austria – 4724 Neukirchen am Walde, Salling 8
Tel: +43 7278 3514
Email: office@lehnerlifttechnik.at

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OMEGA-F and is the answer not in the manual?

Questions and answers

Related Manuals for Lehner Lifttechnik OMEGA-F

Summary of Contents for Lehner Lifttechnik OMEGA-F

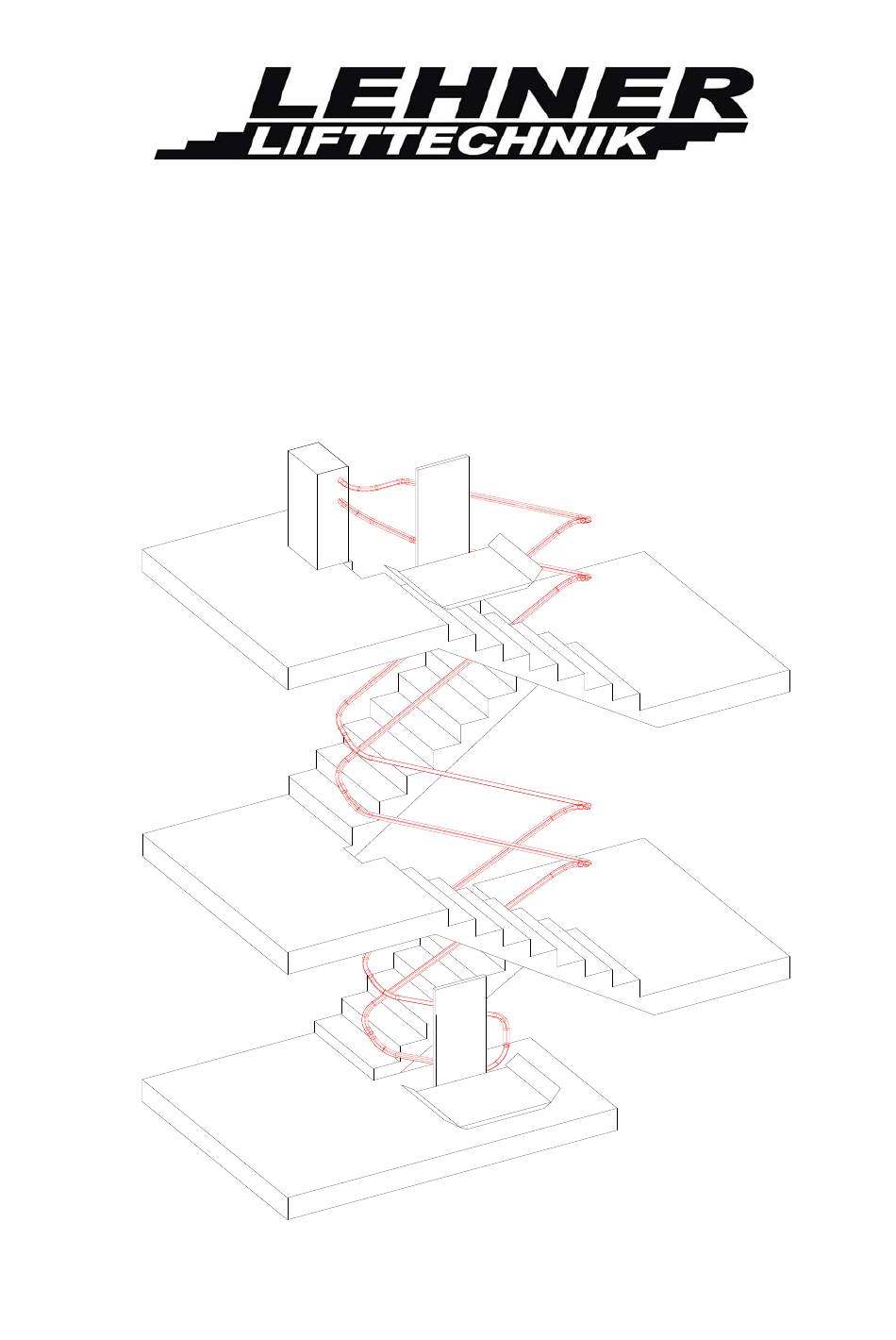

  • Page 1 OMEGA-F Installation Manual Lehner Lifttechnik GmbH Austria – 4724 Neukirchen am Walde, Salling 8 Tel: +43 7278 3514 Email: office@lehnerlifttechnik.at...

  • Page 2: Table Of Contents

    Edition February Installation Manual OMEGA 2020 CONTENTS OBSERVE THE FOLLOWING POINTS BEFORE INSTALLATION! ........4   STEP 1. – INSTALLATION OF THE GUIDE RAILS .............. 5   STEP 2. INSTALLATION OF THE DRIVE BOX ..............7   STEP 3. INSTALLATION OF THE TENSION AND SUPPORT ROPE SYSTEM ....7  ...
  • Page 3 Edition February Installation Manual OMEGA 2020 PLATFORM CONTROL ....................... 44   Platform control board overview ...................... 45   Switch positions in the platform ......................45   CONFIGURATION OF THE REMOTE RADIO CONTROLS ..........50   ADJUSTMENTS ON THE PLATFORM MECHANICS ............51  ...

  • Page 4: Observe The Following Points Before Installation

    Edition February Installation Manual OMEGA 2020 Observe the following points before installation! Installation teams must have a general knowledge in  basic mechanical engineering and providing adequate fixation of the rails and pillars  reading and understanding circuit diagrams and wiring schematics. In order to save time and energy, it is wise to be properly prepared before installing the OMEGA-platform lift.

  • Page 5: Step 1. - Installation Of The Guide Rails

    Edition February Installation Manual OMEGA 2020 Step 1. – Installation of the guide rails  The rail can either be fixed directly to the wall or to free standing pillars that are fixed either to the steps, the side of the staircase or the ground floor. Generally the following important measures are given to start the installation at the lower landing: W –...
  • Page 6 Edition February Installation Manual OMEGA 2020  Drill the mounting holes, starting at the bottom with Pillar A and working up the system. In concrete, use a 10 mm diameter masonry bit. Otherwise use a dowel and drill a 12 mm hole!. When mounting in wood, use a standard 6 mm wood drill.

  • Page 7: Step 2. Installation Of The Drive Box

    Edition February Installation Manual OMEGA 2020 Step 2. Installation of the drive box When the tube system is anchored in place you can mount the drive box on the upper rail end. Dismantle the cover as shown on the pictures below. It is important to add washer and spring washer to the fixing screws, otherwise the screws will hit the drive gear tooth wheel in the back of the drive unit.

  • Page 8: Step 3. Installation Of The Tension And Support Rope System

    Edition February Installation Manual OMEGA 2020 Step 3. Installation of the tension and support rope system  Dismantle the mains filter form the drive wheel cover and also the complete drive wheel cover from the drive wheel  Remove the over speed governor tube section at the bottom of the system and put the complete rope on the bottom close to the upper motor and make sure it does not get dirty.

  • Page 9: Installing The Tension Rope

    Edition February Installation Manual OMEGA 2020 Installing the tension rope  Start feeding the tension rope into the upper tube of the guide rail. Put as much tension rope in the tube until the cable sticks out around 500mm on the lower rail end of the upper tube.
  • Page 10 Edition February Installation Manual OMEGA 2020  Pull back the tension rope inside the upper tube so that it stops where you want to put the platform onto the rail. The fixing bracket must be a minimum of 810mm above ground floor level.
  • Page 11 Edition February Installation Manual OMEGA 2020  Please note that there is only 1 spring installed between the tension rope and the current collector! There is not spring between the collector and the support rope!!! Fixing bracket Spring Current collector Omega platform lift page 11 of 52...

  • Page 12: Installing The Support Rope

    Edition February Installation Manual OMEGA 2020 Installing the support rope  Feed the support rope into the lower tube and make sure the tension rope engages well into the motor drive wheel. Make sure you put some cover on the lower floor so the support rope does not get dirty when it gets out on the lower tube end.
  • Page 13 Edition February Installation Manual OMEGA 2020  Loosen this spring – move the safety nut to the end of the screw. After tensioning the cable put the safety nut back into its original position. Move nut  Now you need to define the right length of the support rope. Approach the over speed governor tube to the lower rail end to measure necessary support rope element length.
  • Page 14 Edition February Installation Manual OMEGA 2020  It is important that there are not too many support elements on the support rope as then it is not possible to tension the cable. A gap between the last support element and the fixing bracket of the support rope is ideal. This gap depends on the length of the rail and number of curves and is later reduced when the rope is tensioned! Below a table that shows approximate gap length based on rail length.
  • Page 15 Edition February Installation Manual OMEGA 2020 Detailed diagram of the rope fixing assembly to the platform sidewall Please note that there is only 1 spring installed between the tension rope and the current collector! There is not spring between the collector and the support rope!!! Fixing bracket Support rope...

  • Page 16: Step 4. Installation Of The Platform Onto The Rail/Rope System

    Edition February Installation Manual OMEGA 2020 Step 4. Installation of the platform onto the rail/rope system When the rope system is securely in place, begin mounting the carriage. Complete the following steps:  Bring the carriage to the bottom of the tube system and unwrap it.

  • Page 17: Step 5. Tightening And Connection The Ropes

    Edition February Installation Manual OMEGA 2020 Step 5. Tightening and connection the ropes Note: Make sure you reinstalled the cover of the drive box before tightening the rope! 2. Add metal parts without tightening! 1. Put in the plastic isolation parts around rope 3.

  • Page 18: Step 6: Electrical Connections

    Edition February Installation Manual OMEGA 2020 Step 6: Electrical connections  Connection the tension rope and the rail from the current collector, and the support rope to the platform control board as described on the previous page.  Connect the tension rope wire from the drive unit control board to the current donator on the drive wheel and also connect the earth and the tube wire to the rail next to the...

  • Page 19: Step 7. Mounting The Mechanical Stop Station Assembly

    Edition February Installation Manual OMEGA 2020 Step 7. Mounting the mechanical stop station assembly Levers for unblocking of the barrier arms at the upper and lower control cam Landing stop switches Bypass switch S16 and lever  Adjust the position of the control cam in reference to the limit switch device on the rail.
  • Page 20 Edition February Installation Manual OMEGA 2020  The bypass switch S 16 makes an electrical bridge on the barrier arms Ultimate limit switch safety switches S14 and S15 and therefore allows that the lift remains in function although the barrier arms are mechanically unblocked electrical safety...

  • Page 21: Step 8: Adjustment Of The Loading Ramps

    Edition February Installation Manual OMEGA 2020 Step 8: Adjustment of the loading ramps Be sure the control cams on the railway and all limit switches are adjusted before looking for the ramps. Adjust the ramps to achieve a 45 ° angle between the platform and ramp when the barrier is in horizontal position.

  • Page 22: Step 9: Programming The Unit

    Edition February Installation Manual OMEGA 2020 Step 9: Programming the unit The menu can be used for parameterization, maintenance and fault finding. There are 2 forms of the menu, the extended and the standard menu. The extended menu is used for programming and adjustments during installation.
  • Page 23 Edition February Installation Manual OMEGA 2020 Explanation of the menu To enter the menu, both the up and the down directional button on the handset need to be pressed for more than 5 seconds. The display then shows always 2 menu items. The upper item in the display is always the active one.
  • Page 24 Edition February Installation Manual OMEGA 2020 Operation time This shows how many minutes the unit was running since the last reset of operation time. Menu item Parameter Meaning Description Show op-time Operation time is shown Reset op-time Operation time is deleted Attention: This should only be done by a qualified installer/maintenance company.
  • Page 25 Edition February Installation Manual OMEGA 2020 Motor configuration The drive unit control board supports 3 different ways to control the motor. The type of control has to be defined in the menu. The standard control used is type 3 with an inverter. In this case the frequencies for the different driving speeds can be defined in this menu.
  • Page 26 Edition February Installation Manual OMEGA 2020 Menu item Parameter Meaning Description Impulse ON/OFF Impulse ON In order to use different speeds along the driveway the impulse control must be activated in the menu. Two impulse generators are connected to the drive unit control. Impulse OFF ON means the drive way is measured and the impulses...
  • Page 27 Edition February Installation Manual OMEGA 2020 Options Menu item Parameter Meaning Description Opening Special folding If this is ON the security circuit on behaviour modus the drive unit will be checked. If this is open the unit also will not fold. Standard folding modus Auto-close...

  • Page 28: Programming The Drive Speeds - Teach-In Mode

    Edition February Installation Manual OMEGA 2020 Programming the drive speeds - Teach-in mode To start the teach drive the platform has to be in the lower landing station. Now the menu point „Teach-in start“ can be activated and the LCD display will show the following: Number of the counted point at beginning of teach-in mode is always 2...
  • Page 29 Edition February Installation Manual OMEGA 2020 If a point was actually saved it can be seen on the display. There the actual saved point number and position count should be shown. The figure below shows the point 3, which actually is the first point to be saved when driving out of the lower landing station. If an intermediate landing station is saved then after the confirmation with the alarm button a M will be shown beside the point number –...
  • Page 30 Edition February Installation Manual OMEGA 2020 In case of such an error the teach-in process cannot be continued. It is necessary to drive down to the lower landing station and start the whole process again by activating the teach- in start item in the main menu! If on the display a failure code can be seen please check in the error code list for what the problem can be.

  • Page 31: Error List And Explanation

    Edition February Installation Manual OMEGA 2020 Error list and explanation If during the operation of the lift an error is occurring, it will be displayed as an error code on the 7 segment display on the control boards as well as on the LCD display. In the following table all error codes are listed.
  • Page 32 Edition February Installation Manual OMEGA 2020 Outside the valid 5 (5) Only slow ride The error occurs when the number of range pulses reaches an invalid value (e.g., less than 0). This can happen if you push the lower limit switch anywhere on the track and then continue downwards again.
  • Page 33 Edition February Installation Manual OMEGA 2020 Motor 13 (d) Ride to the next The thermal contact in the drive temperature stop position motor has tripped or the fire alarm contact has tripped (optional). Fire alarm contact (optional) An approach from the stop position is no longer possible as long as the signal is present.
  • Page 34 Edition February Installation Manual OMEGA 2020 Contactor 20 (5.) Ride to the next The contacts of the ride contactors feedback stop position (K50, K51) or the safety relay KSK have not dropped off after completion of a ride. Approach from the stop position is no longer possible unless the correct signal (depending on the setting in contactor feedback) is present.
  • Page 35 Edition February Installation Manual OMEGA 2020 Communication 114 (-) The communication of the with EEPROM microcontroller with the EEPROM platform located on the platform board has failed, or memory location in EEPROM could not be written correctly. WDTO occurred 116 (-) Ride is Contact manufacturer! Platform...
  • Page 36 Edition February Installation Manual OMEGA 2020 Problem (issue reason) Description Safety circuit A. The ride is prevented by an interrupted safety circuit switch on the drive. For example: Emergency stop of a wired outer (s. circuit d) cassette, emergency handwheel switch, emergency limit switch or external door contact Safety circuit S.

  • Page 37: Final Checks

    Edition February Installation Manual OMEGA 2020 Final checks After the installation, adjustment and programming is completed and the lift display shows no errors during testing of all lift functions please check again the following. Make the following checks before handing over the unit to the client: Check all fastenings of the rail to the wall/pillars and pillars to the steps Check connections of rail parts for strength and proper alignment Check proper fastening of the motor box...

  • Page 38: Emergency Operation

    Edition February Installation Manual OMEGA 2020 Emergency operation This operation mode is only to be used by trained people such as installers and service men. This emergency operation allows the platform to be used even if safety circuits are cut and emergency switches are inactive.

  • Page 39: Explanation Of The Electrical Concept

    Edition February Installation Manual OMEGA 2020 Explanation of the electrical concept The New Omega F system is based on the Powerline technology. Powerline communication (PLC) carries data on a conductor that is also used simultaneously for AC electric power transmission. In the case of the Omega the tension cable is used as mechanical pulling force, AC power transmission to the platform as well as a conductor for the Powerline communication.

  • Page 40: Drive Unit

    Edition February Installation Manual OMEGA 2020 Drive unit The drive unit is located at the upper end of the rail. Its main components are: 1. Motor and gearbox 2. Drive unit control board 3. Frequency inverter 4. Main contactor control board The following illustration shows a schematic overview of the main communication components of the drive unit.
  • Page 41 Edition February Installation Manual OMEGA 2020 Overview of drive unit control Safety circuit OKAY LED 4 External controls LEDs (Off when safety circuit is LED is on when one of cut) the 4 inputs is active Status LED zur Powerline Übertragung Powerline circuit board 7 segment status display...
  • Page 42 Edition February Installation Manual OMEGA 2020 Hard wired Emergency stop external controls - in landing station - optional optional Modulator contact Impulse donator 1 and 2, common and power supply Hand wheel switch Motor thermostat relay Reserve safety circuit - bridged Optional potential free contact for error output –...

  • Page 43: Buttons And Jumpers

    Edition February Installation Manual OMEGA 2020 Buttons and Jumpers On the drive unit control board different buttons and jumpers are located that control different functions as listed below: Button S1 This button has 2 different functions depending on type of operation modus: 1.

  • Page 44: Main Contactor Control Board (Mccb)

    Edition February Installation Manual OMEGA 2020 Main contactor control board (MCCB) The main contactor control board, located in the drive box, is used for the control of a single or 3 phase inverter up to 2,2kW. With the 2 main contactors K50 and K51 both the inverter, as well as the motor brake are controlled.

  • Page 45: Platform Control Board Overview

    Edition February Installation Manual OMEGA 2020 Platform control board overview Button S2 to teach radio Powerline board Button S1 for extended menu Status LED Powerline Transmission R37 to adjust contrast on LCD display 7-Segment stauts display LED is on, if security circuit is closed Button S3 to display SPI...
  • Page 46 Edition February Installation Manual OMEGA 2020 Key switch Drive up Drive down Stop button Barrier blocking left – switch S14 Barrier blocking right – switch S15 By-pass switch S16 Reserve safety circuit - bridged Overload switch Output for visual signal – 200mA Modulator Current collector connections for Right barrier control switch S11R...
  • Page 47 Edition February Installation Manual OMEGA 2020 Powerline Board Status display LD204 Power LD17 SS Schlüsselschalter Drive up Drive down LD201 TX ON LD19 S7x Stop LD202 LD20 S14 Barrier left LD203 LD21 S15 Barrier right LD205 RESET LD31 Safety circuit closed LD37 Ultimate stop switch LD34...

  • Page 48: Switch Positions In The Platform

    Edition February Installation Manual OMEGA 2020 Switch positions in the platform The following figure shows the switch positions and the corresponding LEDs of the platform, depending on the position of the platform floor and the barrier. Omega platform lift page 48 of 52...
  • Page 49 Edition February Installation Manual OMEGA 2020 Switches, buttons and jumpers on the platform control board Switch S1 With this switch can be chosen between the standard and the extended menu. See page for details. Standard Menu Extended Menu Button S2 With this button the radio receiver can be programmed.

  • Page 50: Configuration Of The Remote Radio Controls

    Edition February Installation Manual OMEGA 2020 Configuration of the remote radio controls 2 different systems are offered for the Omega system. The used system has to be defined in the menu and there 2 different ways to programme the remote radio senders. Version Schmidiger: To programme the remotes the button S2 on the platform control board where the receiver is connected to has to be pressed until the LED on the receiver start to blink.

  • Page 51: Adjustments On The Platform Mechanics

    Edition February Installation Manual OMEGA 2020 Adjustments on the platform mechanics Overview of the platform mechanics Switch for lateral contact bar Lateral contact bar Barrier arm linkage Ramp activation Unblocking of barrier arms Actuator slider Switch for lateral contact bar Hook for barrier Central platform arms opening...

  • Page 52: Adjustment Of The Platform Inclination

    Edition February Installation Manual OMEGA 2020 Adjustment of the platform inclination To adjust the platform horizontally, change the adjustment screws as shown in the picture. Check in loaded condition! Counter the adjusting screw with the counter nut after successful adjustment. Caution: Check if both adjusting screws are supporting the platform! After changing the platform inclination please check...

  • Page 53: Dismantle The Platform Floor

    Edition February Installation Manual OMEGA 2020 Dismantle the platform floor  Dismantle the ball bearing connection between sliding mechanism and platform  Disconnect platform rod connection for sidewall  Dismantle safety under-pan of the platform  Disconnect spring inside platform floor. You might need to manually compress the spring in order to uninstall the connection.
