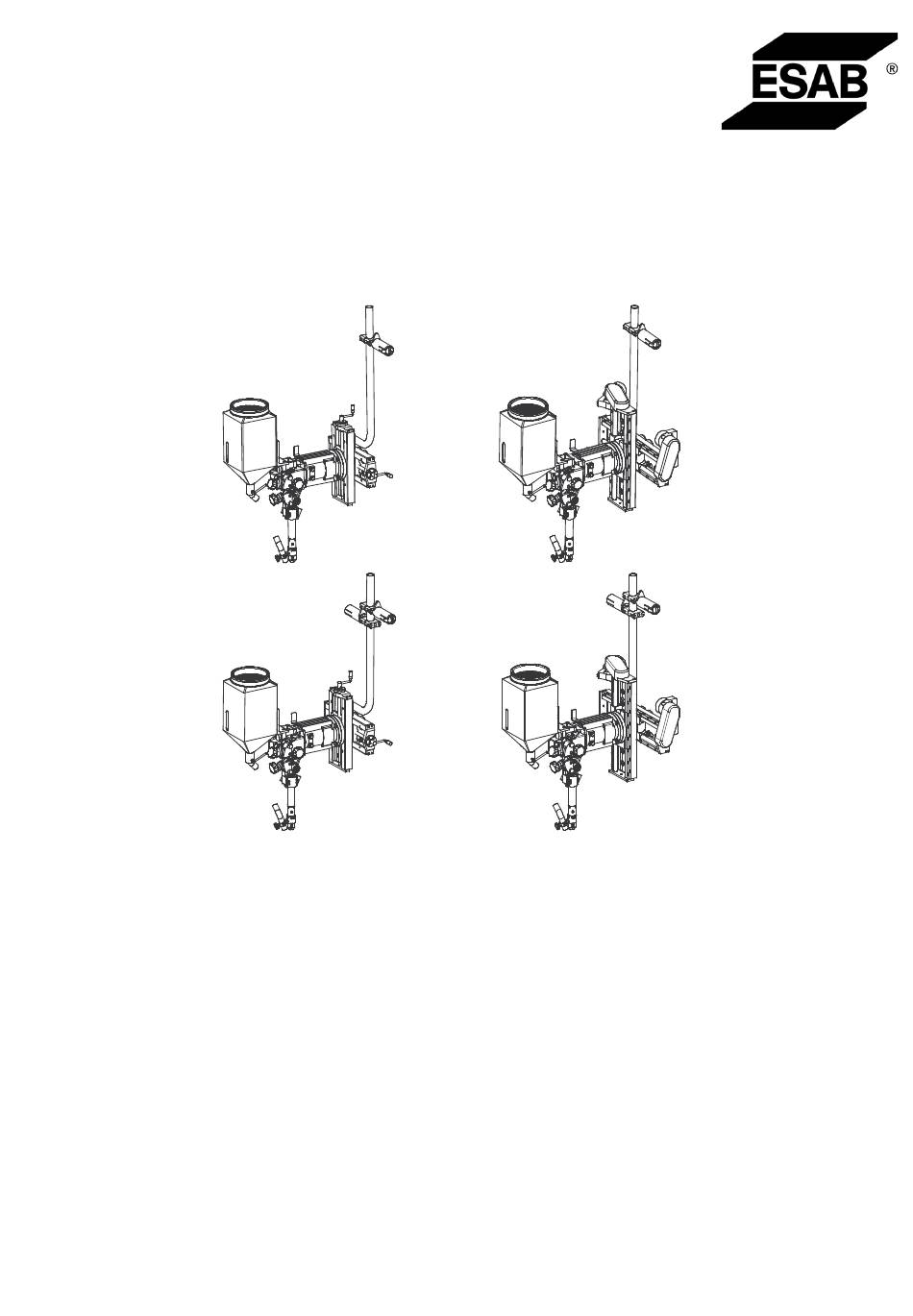

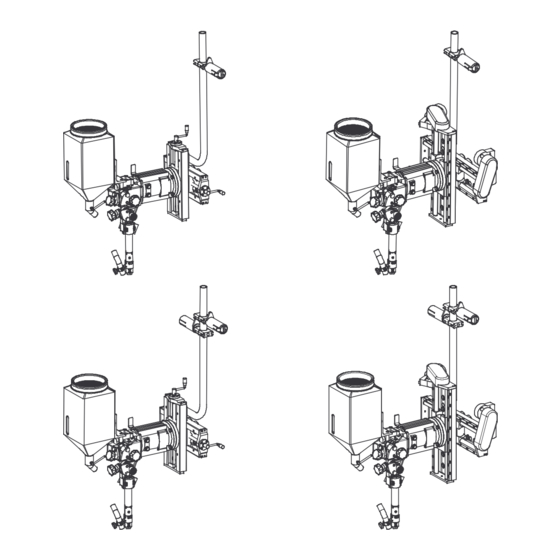

  • Page 1 A6 Welding heads A6SF F1 / A6SF F1 Twin Instruction manual 0449 275 260 2009-11-09 Valid for serial no. 916-xxx-xxxx...
  • Page 2 ENGLISH ..........Rights reserved to alter specifications without notice.

  • Page 4: Table Of Contents

    ENGLISH 1 SAFETY ............2 INTRODUCTION .

  • Page 5: Safety

    SAFETY Users of ESAB welding equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety pre- cautions. Safety precautions must meet the requirements that apply to this type of welding equipment.
  • Page 6 WARNING, RISK OF CRUSHING! Do not use safety gloves when replacing wire, feed rollers and wire bobbins. - 6 - SafeArcS GB...
  • Page 7 WARNING ARC WELDING AND CUTTING CAN BE INJURIOUS TO YOURSELF AND OTHERS. TAKE PRECAUTIONS WHEN WELDING. ASK FOR YOUR EMPLOYER'S SAFETY PRACTICES WHICH SHOULD BE BASED ON MANU- FACTURER'S HAZARD DATA. ELECTRIC SHOCK - Can kill Install and earth the welding unit in accordance with applicable standards. Do not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.

  • Page 8: Introduction

    General All the welding heads included in this instruction manual are designed for SAW welding of butt and fillet joints. They are intended for use in combination with PEK and ESAB's welding power source LAF or TAF. Welding Method Submerged Arc Welding (SAW) Submerged arc Light Duty.

  • Page 9: Technical Data

    Technical Data A6SF F1 / A6SF F1 Twin Rated load 100% 1500 A Wire dimensions: solid single wire 3,0-6,0 mm flux-cored wire 3,0-4,0 mm twin wire 2x2,0-3,0mm Wire feed speed 0,2-4,0 m/min Brake drum braking torque 1,5 Nm Max weight, wire 2x30 kg Flux hopper capacity (Not to be filled with preheated flux) 10 l...

  • Page 10: Main Components A6Sf F1

    Main Components A6SF F1 Wire feed unit Contact tube Flux hopper Slide kit, manual Motor with gear (A6 VEC) Flux tube Slide kit, motorised Carrier for wire drum Flux nozzle Main Components A6SF F1 Twin Wire feed unit Connector (Twin)

  • Page 11: Description Of Main Components

    2.7.4 Motor with Gear (A6 VEC) The motor is used for feeding the welding wire. For more information regarding the A6 VEC see instruction manual 0443 393 xxx. 2.7.5 Carrier for Wire Drum The carrier is provided with a brake hub on which one the wire drum is to be fitted.

  • Page 12: Installation

    Make sure the bolts do not touch the bottom of the insulator, which has a thread depth of 14 mm. 3.2.2 A6 Slide For mounting/ dismounting of A6 Slide, see instruction manual 0443 394 xxx. This safety sign is placed on the cover of the vertical slide. - 12 - hfa7i1ea...

  • Page 13: Adjusting The Brake Hub

    3.2.3 Wire reel (Accessories) The wire reel (1) is mounted on the brake hub (2). Check that the carrier (3) is pointing upwards. NOTE! The maximum angle for the wire reel is 25 . At extreme angles, wear will occur on the brake hub locking mechanism and the wire reel will slide off the brake hub.

  • Page 14: Connections

    PEK is to be connected by a qualified person. See instruction manual 0460 948 xxx, 0460 949 xxx, 0459 839 036. For the connection of A6 GMH, see instruction manual 0460 671 xxx. For the connection of A6 PAV, see instruction manual 0460 670 xxx.

  • Page 15: Operation

    OPERATION General WARNING: Have you read and understood the safety information ? You must not operate the machine before then ! General safety regulations for the handling of the equipment can be found on page 5. Read through before you start using the equipment! Return cable Before welding start, check that the return cable is connected.

  • Page 16: Loading The Welding Wire

    Loading the Welding Wire 1. Mount the wire drum according to the instructions on page 13. 2. Check that feed roller (1) and contact jaw or contact tip (3) are of the correct dimension for the selected wire size. 3. For A6SF F1 Twin: Feed the wire through the wire guide (8).

  • Page 17: Changing The Feed Roller

    Changing the Feed Roller Single wire Release the knobs (3) and (4). Release the hand wheel (2). Change the feed roller (1). The rollers are marked with their respective wire sizes. Twin Wire (Twin-arc) Change the feed roller (1) with twin grooves in the same way as for single wire. NOTE! The pressure roller (5) must also be changed.

  • Page 18: Contact Equipment For Submerged Arc Welding

    Contact Equipment for Submerged Arc Welding 4.4.1 For Single Wire 3,0 - 6,0 mm Use automatic welding machine A6SF F1 where the following units units are included: Wire feed unit (1) Connector D35 (2) Contact jaw (3) Ensure that good contact is achieved between the contact jaws and the wire.

  • Page 19: Refilling With Flux Powder

    Refilling with Flux Powder 1. Close the flux valve (1) on the flux hopper. 2. Remove the cyclone on the flux recovery unit, if fitted. 3. Fill with flux powder. NOTE! The flux powder must be dry. 4. Position the flux tube so that it does not become kinked.

  • Page 20: Maintenance

    MAINTENANCE General Note: All warranty undertakings given by the supplier cease to apply if the customer attempts to rectify any faults on the machine during the warranty period. NB! Before doing any kind of maintenance work, make sure the mains is disconnected.

  • Page 21: Fault Tracing

    FAULT TRACING General Equipment Instruction manual for PEK, 0460 948 xxx, 0460 949 xxx, 0459 839 036. Check that the power supply is connected for the correct mains supply that all three phases are supplying the correct voltage (phase sequence is not important) that welding cables and connections are not damaged that the controls are correctly set that the mains supply is disconnected before starting repairs...

  • Page 22: Accessories

    0147 333 001 ORDERING OF SPARE PARTS Spare parts are ordered through your nearest ESAB representative, see back cover. When ordering spare parts, please state machine type and number as well as desig- nation and spare part number as shown in the spare parts list on page 25.

  • Page 23: Dimension Drawing

    DIMENSION DRAWING A6 SF with motorised slides - 23 -...
  • Page 24 A6 SF with manual slides - 24 -...

  • Page 25: Spare Parts List

    A6 SF F1 SAW, Twin (156:1), manual slide, PEK 0449 271 901 Welding head A6 SF F1 SAW, Twin (156:1), motorised slide, PEK and A6 PAV 0449 271 902 Welding head A6 SF F1 SAW, Twin (156:1), motorised slide, PEK and A6 GMH...
  • Page 26 Item Ordering no. Denomination Notes 0449270900 Welding head with PEK A6SF F1, SAW (156:1) 0449250880 Wire feed unit (right mounted) 156:1 0449252881 Slide travel kit, manual 210mm 0449255881 Bobbin holder complete 0146967880 Brake hub 0449253902 Cable set l=5m 0460907881 Motor cable 0461239884 Arc welding cable 0460504880...
  • Page 27 Brake hub 0449253902 Cable set l=5m 0460907881 Motor cable 0461239884 Arc welding cable 0460504880 Control box PEK, See separate manual 0460697880 Joint tracking unit A6 PAV, See separate manual 0461215880 Cable set 26:5 0417310888 Motor cable - 27 - &&'()
  • Page 28 Brake hub 0449253902 Cable set l=5m 0460907881 Motor cable 0461239884 Arc welding cable 0460504880 Control box PEK, See separate manual 0460884880 Joint tracking system A6 GMH, See separate manual 0461215880 Cable set 26:5 0417310888 Motor cable - 28 - &&'()
  • Page 29 Item Ordering no. Denomination Notes 0449270903 Welding head with PEK A6SF F1, SAW (156:1) 0449250880 Wire feed unit (right mounted) 156:1 0449251884 Slide travel kit, motorised 300mm 0449255880 Bobbin holder complete 0146967880 Brake hub 0449253902 Cable set l=5m 0460907881 Motor cable 0461239884 Arc welding cable 0460504880...
  • Page 30 156:1 0449251885 Slide travel kit, motorised 300mm 0449253902 Cable set 0460907881 Motor cable 0461239884 Arc welding cable 0460504880 Control box PEK, See separate manual 0460697880 Joint tracking unit A6 PAV, See separate manual 0461215880 Cable set - 30 - &&'()
  • Page 31 0449251885 Slide travel kit, motorised 300 mm 0449253902 Cable set 0460907881 Motor cable 0461239884 Arc welding cable 0460504880 Control box PEK, See separate manual 0460884880 Joint tracking unit A6 GMH, See separate manual 0461215880 Cable set - 31 - &&'()
  • Page 32 Item Ordering no. Denomination Notes 0449270906 Welding head with PEK A6SF F1, SAW (156:1) 0449250882 Wire feed unit 156:1 0449251885 Slide travel kit, motorised 300 mm 0449253902 Cable set 0460907881 Motor cable 0461239884 Arc welding cable 0460504880 Control box PEK, See separate manual - 32 - &&'()
  • Page 33 Item Ordering no. Denomination Notes 0449270910 Welding head with PEK A6SF F1, SAW (74:1) 0449250890 Wire feed unit (right mounted) 74:1 0449252881 Slide travel kit, manual 210mm 0449255881 Bobbin holder complete 0146967880 Brake hub 0449253902 Cable set l=5m 0460907881 Motor cable 0461239884 Arc welding cable 0460504880...
  • Page 34 Brake hub 0449253902 Cable set l=5m 0460907881 Motor cable 0461239884 Arc welding cable 0460504880 Control box PEK, See separate manual 0460697880 Joint tracking unit A6 PAV, See separate manual 0461215880 Cable set 26:5 0417310888 Motor cable - 34 - &&'()
  • Page 35 Brake hub 0449253902 Cable set l=5 m 0460907881 Motor cable 0461239884 Arc welding cable 0460504880 Control box PEK, See separate manual 0460884880 Joint tracking system A6 GMH, See separate manual 0416215880 Cable set 26:5 0417310888 Motor cable - 35 - &&'()
  • Page 36 Item Ordering no. Denomination Notes 0449270913 Welding head with PEK A6SF F1, SAW (74:1) 0449250890 Wire feed unit (right mounted) 74:1 0449251884 Slide travel kit, motorised 300 mm 0449255880 Bobbin holder complete 0146967880 Brake hub 0449253902 Cable set l=5 m 0460907881 Motor cable 0461239884...
  • Page 37 74:1 0449251885 Slide travel kit, motorised 300mm 0449253902 Cable set 0460907881 Motor cable 0461239884 Arc welding cable 0460504880 Control box PEK, See separate manual 0460697880 Joint tracking system A6 PAV, See separate manual 0461215880 Cable set - 37 - &&'()
  • Page 38 74:1 0449251885 Slide travel kit, motorised 300mm 0449253902 Cable set 0460907881 Motor cable 0461239884 Arc welding cable 0460504880 Control box PEK, See separate manual 0460884880 Joint tracking system A6 GMH, See separate manual 0461215880 Cable set - 38 - &&'()
  • Page 39 Item Ordering no. Denomination Notes 0449270916 Welding head with PEK A6SF F1, SAW (74:1) 0449250892 Wire feed unit (right mounted) 74:1 0449251885 Slide travel kit, motorised 300mm 0449253902 Cable set 0460907881 Motor cable 0461239884 Arc welding cable 0460504880 Control box PEK, See separate manual - 39 - &&'()
  • Page 40 Item Ordering no. Denomination Notes 0449271900 Welding head with PEK A6SF F1 Twin, SAW (156:1) 0449250881 Wire feed unit, Twin (right mounted) 156:1 0449252881 Slide travel kit, manual 210mm 0449255881 Bobbin holder complete 0146967880 Brake hub 0449253902 Cable set l=5m 0460907881 Motor cable 0461239884...
  • Page 41 Brake hub 0449253902 Cable set l=5m 0460907881 Motor cable 0461239884 Arc welding cable 0460504880 Control box PEK, See separate manual 0460697880 Joint tracking unit A6 PAV See separate manual 0461215880 Cable set 26:5 0417310888 Motor cable - 41 - &&'()
  • Page 42 Brake hub 0449253902 Cable set l=5m 0460907881 Motor cable 0461239884 Arc welding cable 0460504880 Control box PEK, See separate manual 0460884880 Joint tracking system A6 GMH, See separate manual 0461215880 Cable set 26:5 0417310888 Motor cable - 42 - &&'()
  • Page 43 Item Ordering no. Denomination Notes 0449271903 Welding head with PEK A6SF F1 Twin, SAW (156:1) 0449250881 Wire feed unit, Twin (right mounted) 156:1 0449251884 Slide travel kit, motorised 300 mm 0449255880 Bobbin holder complete 0146967880 Brake hub 0449253902 Cable set l = 5m 0460907881 Motor cable...
  • Page 44 300mm 0449253902 Cable set l= 5m 0460907881 Motor cable 0461239884 Arc welding cable 0460504880 Control box PEK, see separate manual 0460697880 Joint tracking unit A6 PAV, see separate manual 0461215880 Cable set 26:5 0417310888 Motor cable - 44 - &&'()
  • Page 45 Brake hub 0449253902 Cable set l=5m 0460907881 Motor cable 0461239884 Arc welding cable 0460504880 Control box PEK, See separate manual 0460884880 Joint tracking system A6 GMH, See separate manual 0461215880 Cable set 26:5 0417310888 Motor cable - 45 - &&'()
  • Page 46 Item Ordering no. Denomination Notes 0449271906 Welding head with PEK A6SF F1 Twin, SAW (156:1) 0449250881 Wire feed unit, Twin (right mounted) 156:1 0449251884 Slide travel kit, motorised 300mm 0449255880 Bobbin holder complete 0146967880 Brake hub 0449253902 Cable set l=5m 0460907881 Motor cable 0461239884...
  • Page 47 Item Ordering no. Denomination Notes 0449271910 Welding head with PEK A6SF F1 Twin, SAW (74:1) 0449250891 Wire feed unit, Twin (right mounted) 74:1 0449252881 Slide travel kit, manual 210mm 0449255881 Bobbin holder complete 0146967880 Brake hub 0449253902 Cable set l=5m 0460907881 Motor cable 0461239884...
  • Page 48 Brake hub 0449253902 Cable set l=5m 0460907881 Motor cable 0461239884 Arc welding cable 0460504880 Control box PEK, See separate manual 0460697880 Joint tracking unit A6 PAV, See separate manual 0461215880 Cable set 26:5 0417310888 Motor cable - 48 - &&'()
  • Page 49 Brake hub 0449253902 Cable set l=5m 0460907881 Motor cable 0461239884 Arc welding cable 0460504880 Control box PEK, See separate manual 0460884880 Joint tracking system A6 GMH, See separate manual 0461215880 Cable set 26:5 0417310888 Motor cable - 49 - &&'()
  • Page 50 Item Ordering no. Denomination Notes 0449271913 Welding head with PEK A6SF F1 Twin, SAW (74:1) 0449250891 Wire feed unit, Twin (right mounted) 74:1 0449251884 Slide travel kit, motorised 300mm 0449255880 Bobbin holder complete 0146967880 Brake hub 0449253902 Cable set l=5m 0460907881 Motor cable 0461239884...
  • Page 51 300mm 0449253902 Cable set l= 5m 0460907881 Motor cable 0461239884 Arc welding cable 0460504880 Control box PEK, see separate manual 0460697880 Joint tracking unit A6 PAV, see separate manual 0461215880 cable set 26:5 0417310888 Motor cable - 51 - &&'()
  • Page 52 Slide travel kit, motorised 300mm 0449253902 Cable set l=5m 0460907881 Motor cable 0461239884 Arc welding cable 0460504880 Control box PEK, See separate manual 0460884880 Joint tracking system A6 GMH, See separate manual 0461215880 Cable set 26:5 0417310888 Motor cable - 52 - &&'()
  • Page 53 Item Ordering no. Denomination Notes 0449271916 Welding head with PEK A6SF F1 Twin, SAW (74:1) 0449250893 Wire feed unit, Twin 74:1 0449251885 Slide travel kit, motorised 300mm 0449253902 Cable set l=5m 0460907881 Motor cable 0461239884 Arc welding cable 0460504880 Control box PEK, See separate manual 0443383001 Flux hose...
  • Page 54 Item Ordering no. Denomination Notes 0449250880 Wire feed unit (Right mounted) SAW (156:1), Single 0145063906 Motor with gear A6 VEC (156:1), see separate manual 0147639880 Wire straightener (right mounted) 0218810183 Insulated hand wheel 0334290882 Contact equipment D35/ L275 0148487880 Bracket for flux hopper...
  • Page 55 Item Ordering no. Denomination Notes 0449250881 Wire feed unit (Right mounted) SAW (156:1), Twin 0145063906 Motor with gear A6 VEC (156:1), see separate manual 0147639887 Wire straightener (right mounted) D35, Twin 0218810183 Insulated hand wheel 0334290882 Contact equipment D35/ L275...
  • Page 56 Item Ordering no. Denomination Notes 0449250882 Wire feed unit SAW (156:1) CaB 0145063906 Motor with gear A6 VEC (156:1), see separate manual 0147639880 Wire straightener (right mounted) 0218810183 Insulated hand wheel 0334290884 Contact equipment single wire D35/l400 0148487881 Bracket for flux hopper...
  • Page 57 Item Ordering no. Denomination Notes 0449250883 Wire feed unit SAW (156:1) CaB 0145063906 Motor with gear A6 VEC (156:1), see separate manual 0147639880 Wire straightener (right mounted) 0218810183 Insulated hand wheel 0334290884 Contact equipment single wire D35/l400 0148487881 Bracket for flux hopper...
  • Page 58 Item Ordering no. Denomination Notes 0449250890 Wire feed unit (Right mounted) SAW (74:1), Single 0145063907 Motor with gear A6 VEC (74:1), see separate manual 0147639880 Wire straightener (right mounted) 0218810183 Insulated hand wheel 0334290882 Contact equipment D35/ L275 0148487880 Bracket for flux hopper...
  • Page 59 Item Ordering no. Denomination Notes 0449250891 Wire feed unit (Right mounted) SAW (74:1), Twin 0145063907 Motor with gear A6 VEC (74:1), see separate manual 0147639891 Wire straightener (right mounted) D35, Twin 0218810183 Insulated hand wheel 0334290882 Contact equipment D35/ L275...
  • Page 60 Item Ordering no. Denomination Notes 0449250892 Wire feed unit (Right mounted) SAW (74:1), Single 0145063907 Motor with gear A6 VEC (74:1), see separate manual 0147639880 Wire straightener (right mounted) 0218810183 Insulated hand wheel 0334290884 Contact equipment D35/ L275 0148487881 Bracket for flux hopper...
  • Page 61 Ordering no. Denomination Notes 0449250893 Wire feed unit SAW TWIN (74:1) CaB 0145063907 Motor with gear A6 VEC (74:1), see separate manual 0147639891 Wire straightener (right mounted) D35 twin (74:1) 0218810183 Insulated hand wheel 0334290884 Contact equipment D35/L400 A6 with contact bars...
  • Page 62 Item Ordering no. Denomination Notes 0147639880 Wire straightener(right mounted) 0156449001 Clamp 0215503601 Insulating sleeve 0156530001 Clamp half 0212900001 Spacer screw 0215201209 Sealing, O-ring D11.3x2.4 0218400801 Pressure roller arm 0218810181 Handwheel, insulated 0218810182 Handwheel, insulated 0332408001 Stub shaft 0153148880 Pressure roller 0415498001 Pressure roller, upper 0212902601...
  • Page 63 Item Ordering no. Denomination Notes 0147639887 Wire Wire straightener(right mounted) A6 D35 TWIN 0156449001 Clamp 0215503601 Insulating sleeve 0156530001 Clamp half 0212900001 Spacer screw 0215201209 O-ring 11,3x2,4 0218400801 Pressure roller arm 0218810181 Handwheel 0218810182 Handwheel 0332408001 Stub shaft 0218524580 Pressure roller twin...
  • Page 64 Item Ordering no. Denomination Notes 0147639891 Wire straightener(right mounted) A6 D35 TWIN (74:1) 0156449001 Clamp 0215503601 Insulating sleeve 0156530001 Clamp half 0212900001 Spacer screw 0215201209 Sealing, O-ring D11,3x2,4 0218400801 Pressure roller arm 0218810181 Handwheel, insulated 0218524580 Pressure roller twin 0415498001...
  • Page 65 Item Orderingno. Denomination Remarks 0334290882 Contact equipment single wire 0417959881 Contact jaw tube L=275 0153299880 Flux nozzle complete - 65 - ++&('...
  • Page 66 Item Orderingno. Denomination Remarks 0334290884 Contact equipment single wire 0417959882 Contact jaw tube L=400 0265900880 Contact jaw ø 3, L=58mm 0265900882 Contact jaw ø 4, L=58mm 0265900883 Contact jaw ø 5, L=58mm 0265900884 Contact jaw ø 6 0218510298 Feed roller ø...
  • Page 67 Item Ordering no. Denomination Notes 0417959881 Contact jaw tube L = 275 mm 0443372001 Fitting bolt 0219504307 Cup spring d20/10.2, T=1.1 0417979001 Ring 0443344881 Contact tube L = 275 mm 0417959882 Contact jaw tube L = 400 mm 0443372001 Fitting bolt 0219504307 Cup spring d20/10.2, T=1.1...
  • Page 68 Item Ordering no. Denomination Notes 0153299880 Flux nozzle complete 0153290002 Holder for flux pipe 0153296001 Flux pipe, bent 0153425001 Wheel - 68 - #+(''...
  • Page 69 Item Ordering no. Denomination Notes 0147649881 Flux Hopper 0154007001 Flux hopper 0148837001 Window (a6 flux hopper) 0147645001 Mounting 0153347880 Flux valve 0215201232 Sealing, O-ring 69,2x5,7 0020301780 Flux strainer 0443383002 Flux hose L=500 - 69 - &)*&'...
  • Page 70 Item Ordering no. Denomination Notes 0147649882 Flux Hopper 0154007002 Flux hopper 0147645001 Mounting 0153347880 Flux valve 0020301780 Flux strainer 0443383002 Flux hose L=500 - 70 - &)*&'...
  • Page 71 Item Ordering no. Denomination Notes 0153347880 Flux valve 0153348001 Outlet 0153349001 Shaft 0211102938 Roll pin d 3x20 - 71 - #++&)
  • Page 72 Item Ordering no. Denomination Notes 0145787880 Fine wire straightener for twin wire 0145788001 Case 0145789001 Roller 0145790001 Roller 0145791001 Searing bushing 0190240103 Bearing bushing D12/10 0145793001 Runner 0145794001 Knob 0145795001 Link 0151287001 Hose - 72 - &#) )
  • Page 73 Item Ordering no. Denomination Notes 0334278881 Guide tube insert for fine wire 0218518201 Clamp 0415032001 Guide tube L=358 mm - 73 - ++&()
  • Page 74 Item Ordering no. Denomination Notes 0449251884 Slide travel kit motorised 300 mm 0334333884 Motorised slide li = 300 0449251999 Common parts motorised slide 0449251885 Slide travel kit motorised 300 mm 0334333884 Motorised slide li = 300 0449251999 Common parts motorised slide 0449251999 Common parts motorised slide 0334171001...
  • Page 75 Item Ordering no. Denomination Notes 0449252881 Slide travel kit, manual 210 mm 0154465881 Slide manual L=210 0334171001 Plate 0334170001 Clamping ring 0334172001 Gear bracket 0278300180 Insulator 2000 V - 75 - &&'(#(...
  • Page 76 Item Orderingno. Denomination Remarks 0154465881 Slide, manually operated 0154464002 Slide frame 0154463880 Carriage with slide rails 0190509485 Stop screw M10x10 0154458001 End piece 0211102957 Roll pin D5x20 0154461002 Lead screw 0190531201 Ball bearing SKF 3201 0154456001 Lock nut 0154457001 Ball bearing cap 0334537001 Handle crank 0211102938...
  • Page 77 Item Ordering no. Denomination Notes 0449255880 Bobbin holder complete 0334318880 Bobbin holder straight 0146967880 Brake hub Item Ordering no. Denomination Notes 0449255881 Bobbin holder complete 0443510880 Bobbin holder bent 0146967880 Brake hub - 77 - &&'(##...
  • Page 78 ESAB subsidiaries and representative offices Europe NORWAY Asia/Pacific Representative offices AS ESAB AUSTRIA BULGARIA CHINA Larvik ESAB Ges.m.b.H ESAB Representative Office Shanghai ESAB A/P Tel: +47 33 12 10 00 Vienna-Liesing Sofia Shanghai Fax: +47 33 11 52 03 Tel: +43 1 888 25 11...
