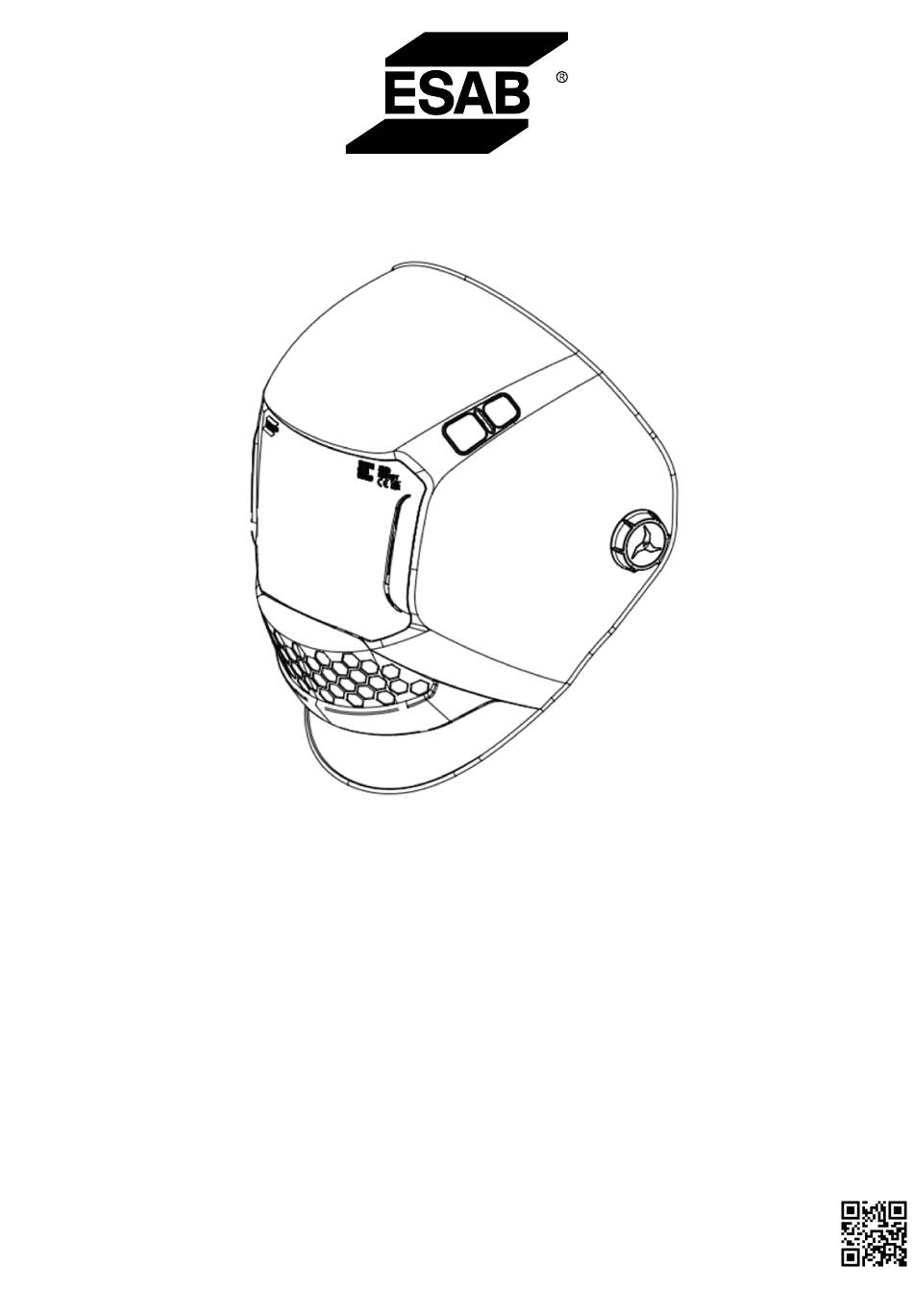

- Page 1 Savage A-50LUX Auto Darkening Welding Helmet Instruction manual and Spare parts list PLEASE READ AND UNDERSTAND ALL INSTRUCTION BEFORE USE. RETAIN THIS MANUAL FOR FUTURE REFERENCE. Complete User Manual at: Manual Number: 0448309 Revision Date: 2024-01-11 Revision Number: A Language: English UK...
-
Page 2: Table Of Contents
Replacing the front cover lens ................. Replacing the inside cover lens .............. Replacing the Auto-Darkening Filter (ADF) ................ Replacing the LED work light battery ............Cleaning the auto-darkening welding helmet ........................ TROUBLESHOOTING ............................SPARE PARTS 0448309 - 2 - © ESAB AB 2024... -
Page 3: Safety
The helmet will not protect against severe impact hazards. • The helmet will not protect against explosive devices or corrosive liquids. • Should the helmet not darken upon striking an arc, stop welding immediately and contact ESAB. • Do not immerse the filter in water. •... -
Page 4: Safety Precautions
Bystanders should also wear goggles over safety glasses. FIRES AND EXPLOSIONS Heat from flames and arcs can start fires. Hot slag or sparks can also cause fires and explosions. Therefore: 0448309 - 4 - © ESAB AB 2024... - Page 5 Connect the work cable to the workpiece as close as possible to the area being welded. e) Keep welding power source and cables as far away from your body as possible. 0448309 - 5 - © ESAB AB 2024...
- Page 6 4. To prevent accidental starting of equipment during service, disconnect negative (-) battery cable from battery. 5. Keep hands, hair, loose clothing and tools away from moving parts. 6. Reinstall panels or covers and close doors when service is finished and before starting engine. 0448309 - 6 - © ESAB AB 2024...
-
Page 7: California Proposition 65 Warning
Welding or cutting equipment produces fumes or gases which contain chemicals known in the State of California to cause birth defects and, in some cases, cancer. (California Health & Safety Code Section 25249.5 et seq.) 0448309 - 7 - © ESAB AB 2024... - Page 8 This product can expose you to chemicals including lead, which are known to the state of California to cause cancer and birth defects or other reproductive harm. Wash hands after use. For more information, go to www.P65Warnings.ca.gov. 0448309 - 8 - © ESAB AB 2024...
-
Page 9: Introduction

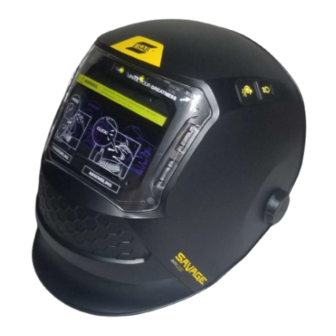

2 INTRODUCTION INTRODUCTION The Savage A-50LUX is an auto-darkening welding helmet intended for use in most welding processes including: oxy fuel cutting; plasma cutting; gringding; GMAW (MIG/MAG); GTAW (TIG); PAW-plasma arc welding; SMAW/MMA (stick) processes. ESAB has an assortment of welding accessories and personal protection equipment for purchase. -
Page 10: Technical Data
Less than 60 — arc welding 3-5 (2.5–4) 60-160 5-8 (4–6.4) 160-250 More than 8 (6.4) 250-550 Gas metal arc Less than 60 — welding and flux 60-160 Cored arc 160-250 welding 250-500 0448309 - 10 - © ESAB AB 2024... - Page 11 (spectrum) operation. These values apply where the actual arc is seen. Experience has shown that lighter filters may be used when the arc is hidden by the workpiece. Data from ANSI Z49.1-2005 0448309 - 11 - © ESAB AB 2024...
-
Page 12: Installation
3) Slide back the cover after the battery is installed. 4) Insert the screw and tighten. Installing the magnifying lens 1) Slide the magnifying lens down into the magnifier frame on the backside of the Auto-Darkeing Filter (ADF). 0448309 - 12 - © ESAB AB 2024... -
Page 13: Adjusting The Fit Of The Helmet
1) Locate the tilt adjustment on the right side of the helmet. 2) Loosen the right headgear tension knob and adjust the lever forward or back to the desired position (2). 3) Retighten the right headgear tension knob. 0448309 - 13 - © ESAB AB 2024... -
Page 14: Operation
Auto-Darkeing Filter (ADF) control panel. This will switch the shade mode between shade bank 5-8, shade bank 9-13, or grind. 2) Select the shade range between shade bank 5-8 or shade bank 9-13. 0448309 - 14 - © ESAB AB 2024... -
Page 15: Selecting Sensitivity
Cut mode allows the Auto-Darkeing Filter (ADF) to remain activated at shade 5. The ADF will not return to a light state while this mode is active. Press and hold for two seconds. 0448309 - 15 - © ESAB AB 2024... -
Page 16: Turning The Led Work Light On/Off
The LED work light automatically turns off during welding activity or when the ambient light is high. Press the button again to turn the LED work light off. 0448309 - 16 - © ESAB AB 2024... -
Page 17: Maintenance
Use only ESAB original spare and wear parts. NOTE! Regular maintenance is important for safe and reliable operation. ESAB recommends a use period of five years. The duration of use depends on various factors such as use, cleaning, storage and maintenance. Before each use: •... -
Page 18: Replacing The Auto-Darkening Filter (Adf)
2) Open the battery compartment and replace with a fresh AA alkaline battery. Cleaning the auto-darkening welding helmet NOTE! Do not use strong cleaning solutions. 1) Clean the helmet by wiping with a soft, dry cloth. 2) Clean the cartridge surfaces regularly. 0448309 - 18 - © ESAB AB 2024... -
Page 19: Troubleshooting
Ensure the protective film has been removed outer cover lens from the outer cover lens before first use. Welding helmet Headgear is not properly Readjust the headgear. slips adjusted Headgear is damaged Replace the headgear. 0448309 - 19 - © ESAB AB 2024... -
Page 20: Spare Parts
Savage A50LUX Inside Cover Lens (104 x 64mm) 0700600867 Savage A50LUX Halo Headgear Assembly (Including sweatbands) 0700600869 Savage A50LUX Front Sweat Band (forehead) with ESAB Logo 0700500961 Savage A50LUX Magnifying Glass +1.0 Diopter 0700500962 Savage A50LUX Magnifying Glass +1.5 Diopter 0700500963 Savage A50LUX Magnifying Glass +2.0 Diopter... - Page 21 APPENDIX 0448309 - 21 - © ESAB AB 2024...
- Page 22 ESAB AB ESAB Corporation ESAB Holdings Ltd Lindholmsallén 9 2800 Airport Road 322 High Holborn Box 8004 Denton, TX 76207 WC1V 7PB 402 77 Gothenburg London, Great Britain Sweden Phone +1 800 378 8123 Phone +44 (0) 1992 768515 Phone +46 (0) 31 50 90 00 For contact information visit http://esab.com...
