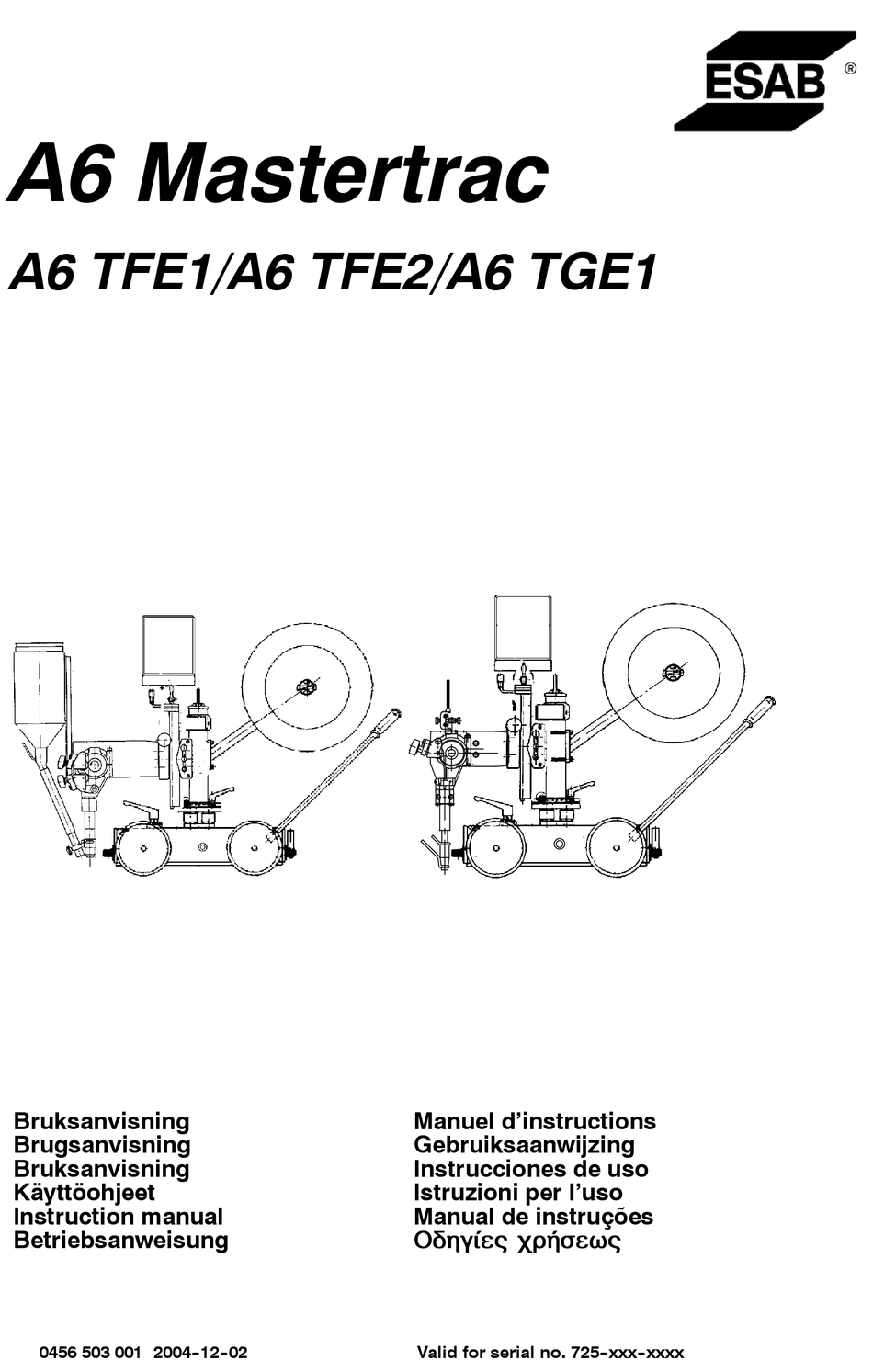

  • Page 1 A6 Mastertrac A6 TFE1/A6 TFE2/A6 TGE1 101103105107109111102021110025108024042106023061104022041100020040060001 Bruksanvisning Manuel d’instructions Brugsanvisning Gebruiksaanwijzing Bruksanvisning Instrucciones de uso Käyttöohjeet Istruzioni per l’uso Instruction manual Manual de instruções Betriebsanweisung Ïäçãßåò ÷ñÞóåùò 0456 503 001 2004- -12- -02 Valid for serial no. 725- -xxx- -xxxx...
  • Page 2 SVENSKA ..........DANSK .
  • Page 3 FÖRSÄKRAN OM ÖVERENSSTÄMMELSE Esab Welding Equipment AB, 695 81 Laxå, Sweden, försäkrar under eget ansvar att svetsautomat A6 TFE1/TFE2/TGE1 från serienummer 725 är i överensstämmelse med standard EN 60292 enligt villkoren i direktiv 89/392/EEG med tillägg. -------------------------------------------------------------------------------------------------------------------------------------- OVERENSSTEMMELSEERKLÆRING Esab Welding Equipment AB, 695 81 Laxå, Sweden garanterer under eget ansvar, at svejseautomat A6 TFE1/TFE2/TGE1 fra serienummer 725 er i overensstemmelse med standard EN 60292 ifølge betingelserne i direktiv 89/392/EEC med tillægg.
  • Page 4 -------------------------------------------------------------------------------------------------------------------------------------- DECLARAÇÃO DE CONFORMIDADE Esab Welding Equipment AB, 695 81 Laxå Sweden, certifica, sob a sua própria res- ponsabilidade que, a equipamento automático para soldadura A6 TFE1/TFE2/TGE1 desde número de série 725 está em conformidade com a norma EN 60292, segun- do os requisitos constantes na directiva 89/392/EEC e com o suplemento.

  • Page 5: Table Of Contents

    ENGLISH 1 SAFETY ............2 INTRODUCTION .

  • Page 6: Safety

    SAFETY Users of ESAB welding equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of welding equipment. The following recommen- dations should be observed in addition to the standard regulations that apply to the workplace.
  • Page 7 WARNING ARC WELDING AND CUTTING CAN BE INJURIOUS TO YOURSELF AND OTHERS. TAKE PRECAU- TIONS WHEN WELDING. ASK FOR YOUR EMPLOYER’S SAFETY PRACTICES WHICH SHOULD BE BASED ON MANUFACTURERS’ HAZARD DATA. ELECTRIC SHOCK - - Can kill Install and earth the welding unit in accordance with applicable standards. Do not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.

  • Page 8: Introduction

    MIG/MAG welding of butt and fillet welds. All other uses are prohibited. The automatic welding machines are used in conjunction with ESABÕs control box A2--A6 Process Controller (PEH). The supply voltage to the control box and to the welding machine motors is provided by ESAB’s welding power sources LAF and TAF.

  • Page 9: Welding Method

    Each contact tip has a maximum rated load of 1500 A. MIG/MAG welding For MIG/MAG welding, an A6 Mastertrac A6 TGE1 is used, which has a maximum rated load of 600 A. The welding head is water cooled, with the cooling water supplied by hoses from connections intended for the purpose.

  • Page 10: Equipment

    Equipment Included in a complete welding head are a feed motor (A6 VEC) to feed in the wire and contact equipment which supplies current to the wire and provides a good contact. Contact equipment is available in several different versions. A6 TF is used for submerged--arc welding.
  • Page 11 Example of the A6 SFE1C, which can be mounted on an A6 Mastertrac 1. Straightener. 2. Contact equipment, which consists of a contact tip, connector and flux tube. 3. Slide (motor driven). 4. Motor and gearbox (A6 VEC). 5. Flux hopper (1 l). For connection instructions for submerged--arc and MIG/MAG welding, see page 80.

  • Page 12: Installation

    INSTALLATION General The installation must be executed by a professional. WARNING Rotating parts can cause injury, take great care. Connections 3.2.1 General Connection of the control box A2--A6 Process Controller (PEH) to the automatic welding machine is carried out prior to delivery. For further information, see instruction manual for the A2--A6 Process Controller (PEH).
  • Page 13 3.2.3 Gas Metal Arc Welding (MIG/MAG) Connect the control cable (7) between the welding power source (8) and the control box A2--A6 Process Controller (PEH) (2). Connect the return cable (11) between the welding power source (8) and the work piece (9). Connect the welding cable (10) between the welding power source (8) and the automatic welding machine (1).

  • Page 14: Operation

    OPERATION General General safety regulations for the handling of the equipment can be found on page 74. Read through before you start using the equipment! Select wire type and flux powder or shielding gas so that the weld material is as close as possible to the analysis of the base metal.
  • Page 15 MIG/MAG Check that the feed roller (1) and contact jaw or contact tip (3) are of the correct dimension for the selected wire size. Pull the end of the wire through the straightener (2). For a wire diameter greater than 2 mm; straighten out 0.5 m of wire and feed it by hand down through the straightener.
  • Page 16 Changing the feed roller Single wire Release the knobs (3) and (4). Release the hand wheel (2). Change the feed roller (1). They are marked with their respective wire sizes. Twin wire (Twin- -arc) Change the feed roller (1) with twin grooves in the same way as for single wire.
  • Page 17 For single wire 3.0 - - 6.0 mm. Heavy duty (D35) Use the straightener (3), connector (1) D35 with contact jaws (2). Assemble one contact jaw with the M5 bolts provided, in the fixed contact tip (a). Assemble the other contact jaw in the free half of the two--piece connector (b) under the bolt (8) and tighten down hard to ensure that a good contact is achieved between the contact jaws and the wire.
  • Page 18 For twin wires 2 x 1.2 - - 2.0 mm, Light Twin (D35) (Accessories) Use the straightener (3), connector (1) D35 with twin adapter (9) and 2 contact tips (2) (M6 threads) and separate fine wire straightener (4) with two guide tubes (6). For twin wires < 1.6 mm, a guide spiral, inserted into each guide tube, is used.

  • Page 19: Refilling With Flux Powder (Submerged--Arc Welding)

    For single wire < 1.6 mm (D35) Use the straightener (3), connector (1) D35 with contact tip (2) (M12 thread), fine wire straightener (4) with guide tube (6) and guide spiral, which is inserted in the guide tube (6). Assemble the clamp (7) with guide tube (6) in the M12 hole on the standard straightener (3).

  • Page 20: Maintenance

    MAINTENANCE General Before doing any kind of maintenance work, make sure the mains is disconnected. For the maintenance of the A2--A6 Process Controller (PEH), see the instruction manual. Daily Clean flux and dirt off moving parts of the welding machine. Check that the contact tip and all electrical cables are connected.

  • Page 21: Troubleshooting

    Use cables with a larger cross--section or use parallel cables. ORDERING OF SPARE PARTS Spare parts are ordered through your nearest ESAB representative, see back cover. When ordering spare parts, please state machine type and number as well as desig- nation and spare part number as shown in the spare parts list on page 215.
