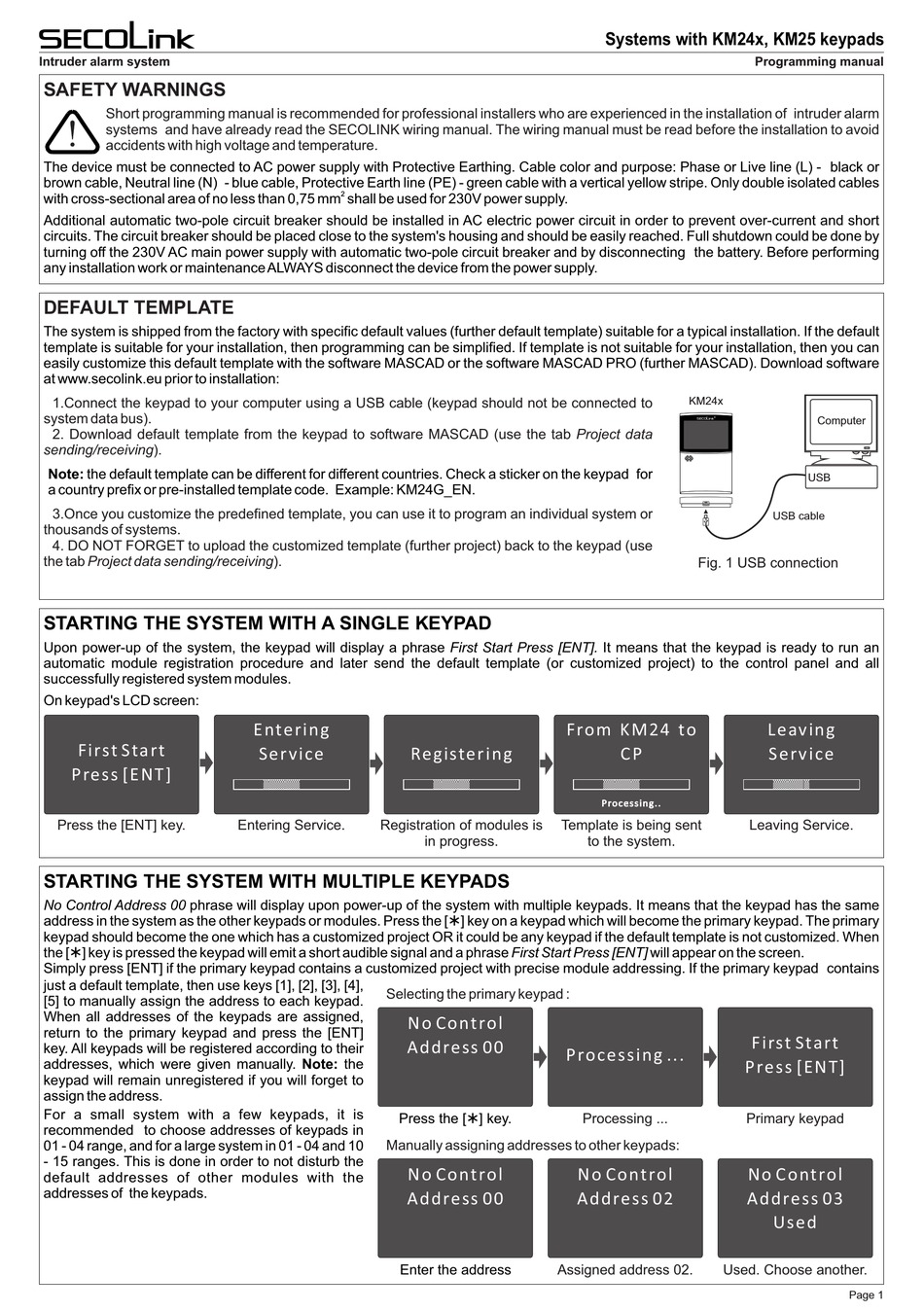

SECOLink KM25 Programming Manual

Intruder alarm system
SAFETY WARNINGS
Short programming manual is recommended for professional installers who are experienced in the installation of intruder alarm
systems and have already read the SECOLINK wiring manual. The wiring manual must be read before the installation to avoid
accidents with high voltage and temperature.
The device must be connected to AC power supply with Protective Earthing. Cable color and purpose: Phase or Live line (L) - black or
brown cable, Neutral line (N) - blue cable, Protective Earth line (PE) - green cable with a vertical yellow stripe. Only double isolated cables
with cross-sectional area of no less than 0,75 mm shall be used for 230V power supply.
Additional automatic two-pole circuit breaker should be installed in AC electric power circuit in order to prevent over-current and short
circuits. The circuit breaker should be placed close to the system's housing and should be easily reached. Full shutdown could be done by
turning off the 230V AC main power supply with automatic two-pole circuit breaker and by disconnecting the battery. Before performing
any installation work or maintenance ALWAYS disconnect the device from the power supply.
DEFAULT TEMPLATE
The system is shipped from the factory with specific default values (further default template) suitable for a typical installation. If the default
template is suitable for your installation, then programming can be simplified. If template is not suitable for your installation, then you can
easily customize this default template with the software MASCAD or the software MASCAD PRO (further MASCAD). Download software
at www.secolink.eu prior to installation:
1.Connect the keypad to your computer using a USB cable (keypad should not be connected to
system data bus).
2. Download default template from the keypad to software MASCAD (use the tab Project data
sending/receiving).
Note: the default template can be different for different countries. Check a sticker on the keypad for
a country prefix or pre-installed template code. Example: KM24G_EN.
3.Once you customize the predefined template, you can use it to program an individual system or
thousands of systems.
4. DO NOT FORGET to upload the customized template (further project) back to the keypad (use
the tab Project data sending/receiving).
STARTING THE SYSTEM WITH A SINGLE KEYPAD
Upon power-up of the system, the keypad will display a phrase First Start Press [ENT]. It means that the keypad is ready to run an
automatic module registration procedure and later send the default template (or customized project) to the control panel and all
successfully registered system modules.
On keypad's LCD screen:
First Start
Press [ENT]
Press the [ENT] key.
STARTING THE SYSTEM WITH MULTIPLE KEYPADS
No Control Address 00 phrase will display upon power-up of the system with multiple keypads. It means that the keypad has the same
address in the system as the other keypads or modules. Press the [Ü] key on a keypad which will become the primary keypad. The primary
keypad should become the one which has a customized project OR it could be any keypad if the default template is not customized. When
the [Ü] key is pressed the keypad will emit a short audible signal and a phrase First Start Press [ENT] will appear on the screen.
Simply press [ENT] if the primary keypad contains a customized project with precise module addressing. If the primary keypad contains
just a default template, then use keys [1], [2], [3], [4],
[5] to manually assign the address to each keypad.
When all addresses of the keypads are assigned,
return to the primary keypad and press the [ENT]
key. All keypads will be registered according to their
addresses, which were given manually. Note: the
keypad will remain unregistered if you will forget to
assign the address.
For a small system with a few keypads, it is
recommended to choose addresses of keypads in
01 - 04 range, and for a large system in 01 - 04 and 10
- 15 ranges. This is done in order to not disturb the
default addresses of other modules with the
addresses of the keypads.
2
Entering
Service Registering
Entering Service. Registration of modules is
Selecting the primary keypad :
No Control
Address 00
Press the [Ü] key.
Manually assigning addresses to other keypads:
No Control
Address 00
Enter the address
From KM24 to
Template is being sent
in progress. to the system.
Processing ...
Processing ...
No Control
Address 02
Assigned address 02.
Systems with KM24x, KM25 keypads
Programming manual
KM24x
USB cable
Fig. 1 USB connection
Leaving
CP Service
Processing..
Leaving Service.
First Start
Press [ENT]
Primary keypad
No Control
Address 03
Used
Used. Choose another.
MASC
Computer
USB
