SECOLink KM24 Short User Manual

Intruder alarm system

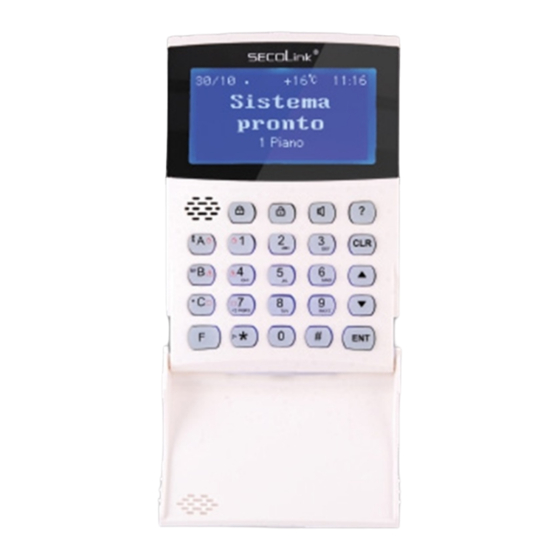

SECOLINK KM24, KM24A are new concept keypads. The large graphic display with help texts on it and a keys with backlight
simplify understanding of alarm system. User has possibility to customize main screen information, to change contrast and
backlight intensity of LCD and illumination of keypad keys. By following blinking keys (prompts) user can easy operate the
system without any commands to remember. Arming, disarming and bypassing of zones are so easy it can be done intuitively.

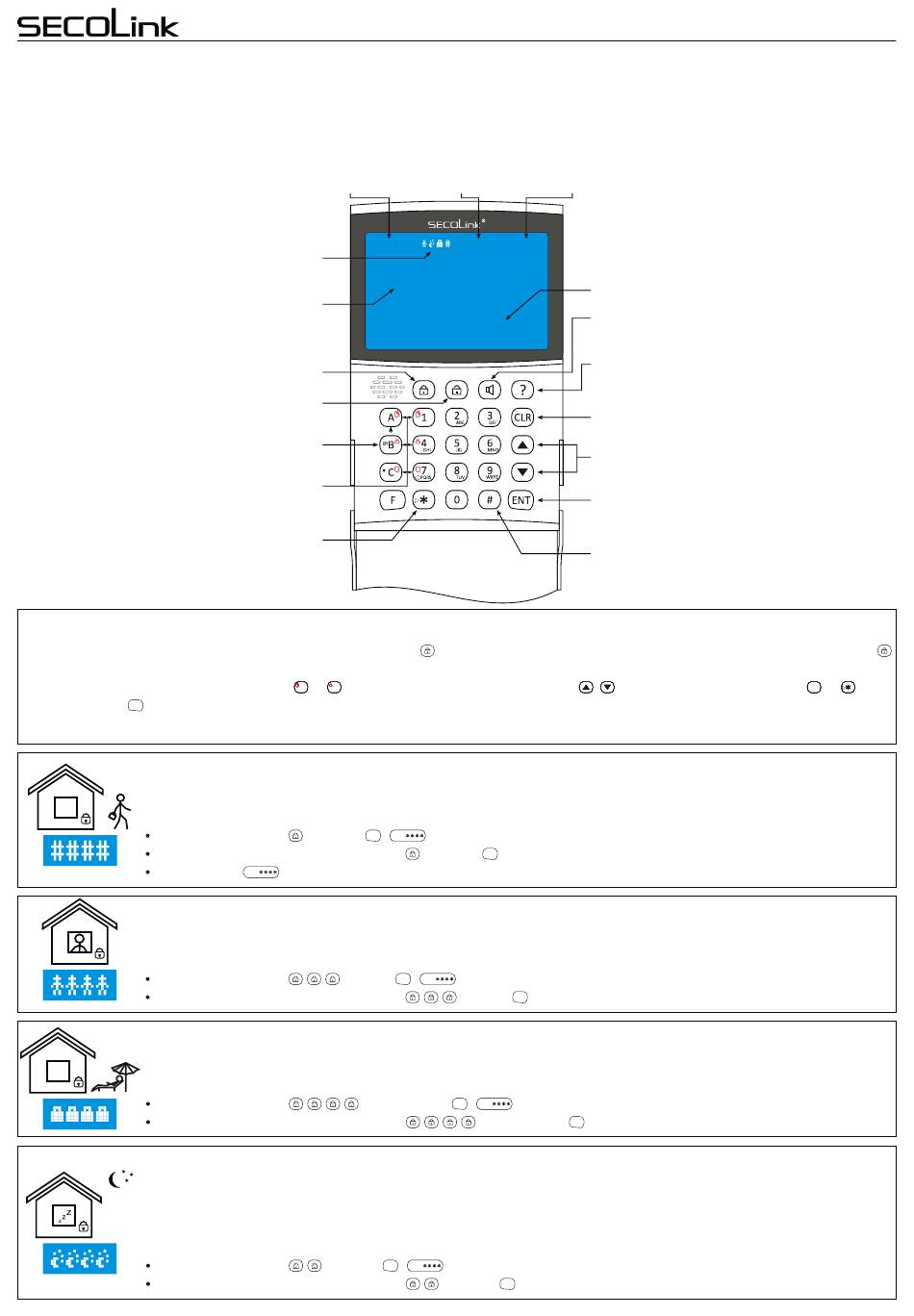

The main display view and and the main keypad functions are listed on the figure below.
Partition status field
System status field
Partition review, also marking of the all
partitions or selecting of other system
elements
Ways of arming
The system can be armed by two ways: with special key
key, user has a possibility to arm all or selected partitions. For partial arming it's necessary to mark the partitions, which will be
armed (mark the partitions by pressing
and press the key for decision confirmation). When arming is activated by entering PIN code, all partitions which are
ENT
controlled by user will be armed in "Away" mode.
Arming mode "Away"
This arming mode is used when you want to protect a premise, when nobody will be staying inside. After
arming, all zones will be protected. After using the door will be entry delay time for disarming. Arming:
for EU countries –
for non EU countries is available
PIN code:
Arming mode "Stay"
This arming mode is used to protect a house, when we are staying at home (inside) and are waiting, that
somebody can come in. Interior zones aren't protected. After opening the door will be entry delay. Arming:
for EU countries –
for non EU countries is available
Arming mode "Vacation"
This arming mode is used when we are leaving the premise for a long period (e.g. vacations). After arming,
all zones will be protected, entry delay is off, alarm will sound upon opening door. Arming :
for EU countries –
for non EU countries is available
Arming mode "Night"
This arming mode is used when you want to arm the system with the person staying inside of the premise.
The interior zones are left disarmed, if anyone opens door, won't be the entry delay and the alarm will sound.
This arming mode is effective, when the door and windows are secured by the opening sensors or there are
installed glass break detectors. Arming:
for EU countries –
for non EU countries is available
Date field Temperature field
Arming
Disarming
Zone bypass
Emergency keys
... keys or select the partitions using ,
4 4 4 4
1 1 1 1 ! ! ! !
GHI GHI GHI GHI
, [Away]
ENT
.
PIN:
, [Stay]
, [Vacations]
, [Night]
Time field
10-26 +25°C 01:44
READY TO ARM READY TO ARM
1st Floor
2nd Floor
Garage
or by entering PIN code. When arming is activated with the
, .
PIN:
, [Away] .
ENT
, .
ENT PIN:
, [Stay] .
ENT
, .
ENT PIN:
, [Vacations]
, .
ENT PIN:
, [Night] .
ENT
KM24, KM24A keypad KM24, KM24A keypad
Zones, partitions
Sound settings
System information
Return to upper menu level, alarm/
trouble review and clear
Navigation keys
Entering selected menu item, value
entry, selection confirmation
Zone review, also marking of the
partitions or other system elements
keys and mark by pressing
.
ENT
Short user manual
or keys
# # # #
1
