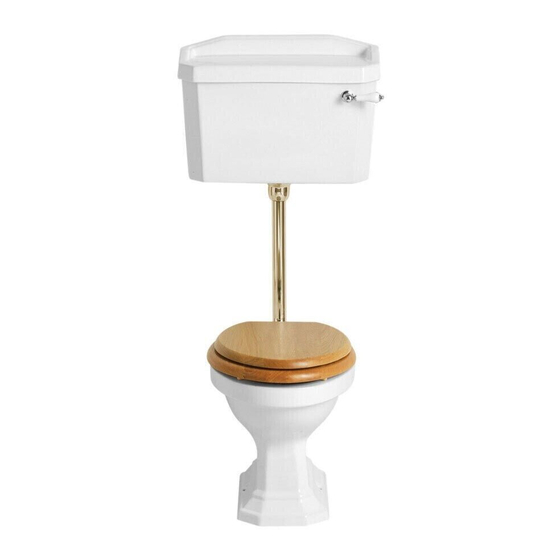

Granley low-level cistern fittings

Advertisement

Quick Links

AFTERCARE INSTRUCTIONS

Your fitting has a high quality finish and should be treated with care to
preserve the visible surfaces.
All surface finishes will wear if not cleaned correctly, the only safe way to clean
your product, is to wipe with a soft damp cloth. Stains can be removed using
washing up liquid. All bath cleaning powders and liquids can damage the
surface of your fitting even the non-scratch cleaners.

GUARANTEE

All products are manufactured to the highest standards and a 10-year
guarantee covers any defect in manufacture.
CONTACT DETAILS
If you require further assistance please contact Heritage Sales and
Technical Enquiries:
Sales:
0844 701 8501
Technical:
0844 701 8503
Email:
technical@heritagebathrooms.com
Website: www.heritagebathrooms.com
Heritage Bathrooms
Unit 6 Albert Road
St Philips Central
Bristol
BS2 0XJ
(HFI CC00/CC01)
(Rev D1)
Granley
Low-Level Cistern Fittings
PGRW01L
Fitting Instructions
& Contents List
Before starting any installation project please consider:
Prior to drilling into walls, check there are no hidden electrical
wires, cables or water supply pipes with the aid of an electronic
detector. If you use power tools do not forget:
SAFETY
NOTE
- Wear eye protection
- Unplug equipment after use
Please keep these instructions for future reference and request of
replacement part
