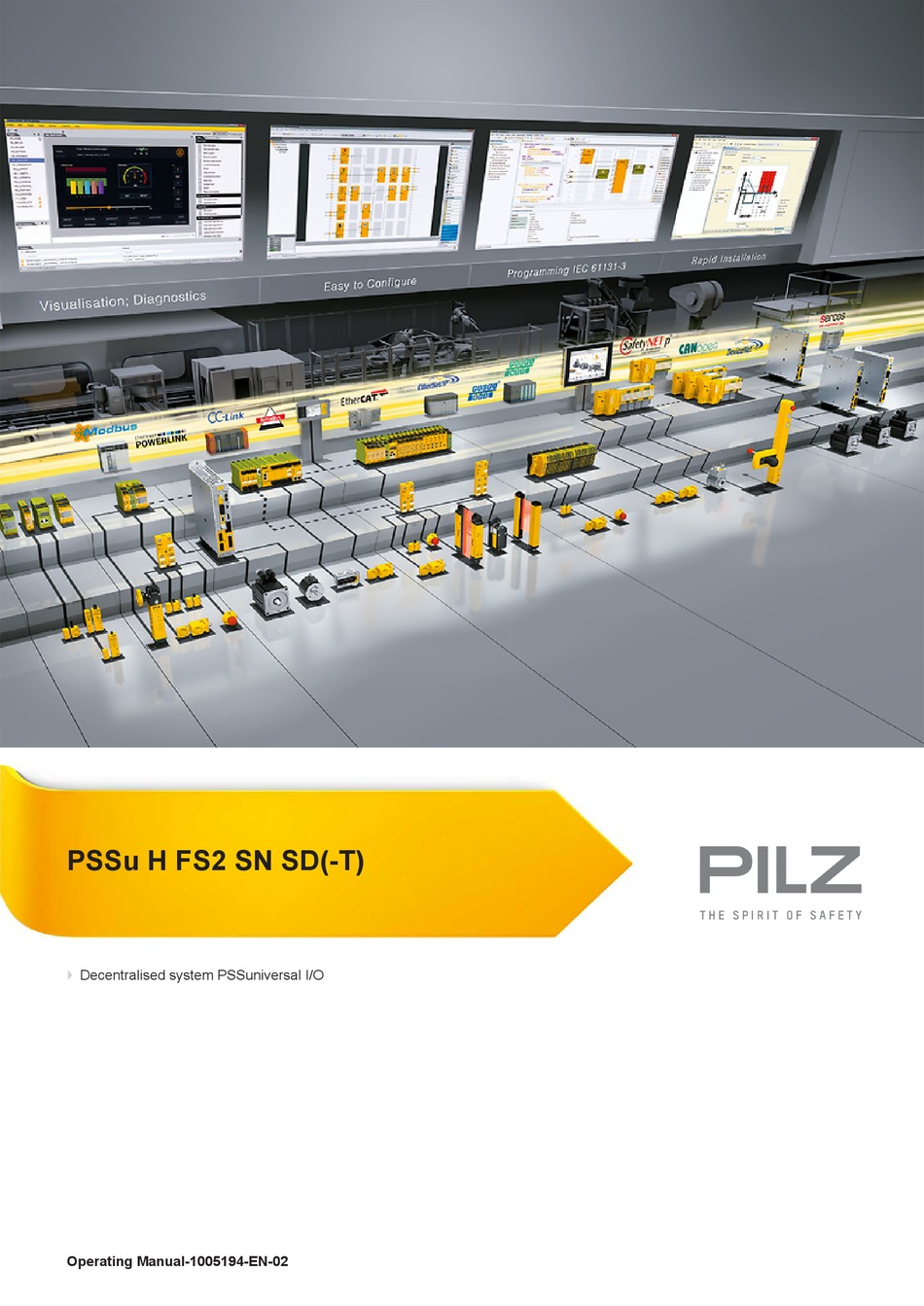

- Page 1 PSSu H FS2 SN SD(-T) Decentralised system PSSuniversal I/O Operating Manual-1005194-EN-02...
- Page 2 Preface This document is the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
General wiring guidelines ......................Terminal configuration ......................Connecting the module......................Operation ..........................Messages ..........................Display elements ........................8.2.1 MBUS ............................8.2.2 CARD..........................8.2.3 DIAG ............................8.2.4 ST SNp ............................. 8.2.5 FS SNp ............................. Operating Manual PSSu H FS2 SN SD(-T) 1005194-EN-02... - Page 4 Contents 8.2.6 5V, 24V ............................. 8.2.7 X3: LNK, X3: TRF, X4: LNK, X4: TRF ..................Technical details ........................Safety characteristic data ......................Order reference ........................10.1 Product ............................. 10.2 Accessories ..........................Operating Manual PSSu H FS2 SN SD(-T) 1005194-EN-02...
-
Page 5: Introduction
CAUTION! This refers to a hazard that can lead to a less serious or minor injury plus material damage, and also provides information on preventive measures that can be taken. Operating Manual PSSu H FS2 SN SD(-T) 1005194-EN-02... - Page 6 It also highlights areas within the text that are of particular import- ance. INFORMATION This gives advice on applications and provides information on special fea- tures. Operating Manual PSSu H FS2 SN SD(-T) 1005194-EN-02...
-
Page 7: Overview
– Module supply is buffered for 20 ms if the supply voltage is interrupted – Plug-in connection terminals (either spring-loaded terminal or screw terminal) Status LEDs T-type: PSSu H FS2 SN SD-T: For increased environmental requirements Front view PSSu H FS2 SN SD... - Page 8 Overview The labelling strip contains the following information: Order number Serial number Hardware version 2D code: Product information MAC address 2D code: MAC address Operating Manual PSSu H FS2 SN SD(-T) 1005194-EN-02...
-
Page 9: Safety
The module is suitable for use in safety and non-safety-related applications with SafetyNET p. The modules PSSu H FS2 SN SD and PSSu H FS2 SN SD-T may be used as a safety components in accordance with the Lifts Directive 95/16/EC in accordance with the require- ments of EN 81-1/2:1998+A3:2009, EN 81-20:2015, EN 81-50:2015, EN 81-22:2014 and... -
Page 10: Warranty And Liability
In safety-related applications, please comply with the mission time T in the safety-related characteristic data. When decommissioning, please comply with local regulations regarding the disposal of electronic devices (e.g. Electrical and Electronic Equipment Act). Operating Manual PSSu H FS2 SN SD(-T) | 10 1005194-EN-02... -
Page 11: Function Description
When the supply voltage is fed in separately, the module supply and periphery supply are galvanically isolated. If galvanic isolation is not required, a common power supply may be used for the periphery supply and module supply. Operating Manual PSSu H FS2 SN SD(-T) | 11 1005194-EN-02... -
Page 12: Current Load Capacity
However, the "24 V" LED will light and a message will be entered in the dia- gnostic list. Please refer to the derating diagrams. PSSu H FS2 SN SD: Derating diagram for periphery supply: Temperature T dependent on load current I T (°C) -
Page 13: Integrated Protection Mechanisms
PSSu H FS2 SN SD(-T): Derating diagram for periphery supply: Permitted ambient temper- ature T dependent on load current I T [°C] I [A] PSSu H FS2 SN SD(-T): Derating diagram for infeed for module supply: Permitted ambient temperature T dependent on load current I T [°C] I [A]... -
Page 14: Safetynet P
PSSu system without control functionality Electronic modules and/or compact modules must be added to the head module I/Os are controlled via SafetyNET p by means of a control system (e.g. PSSu PLC) Operating Manual PSSu H FS2 SN SD(-T) | 14 1005194-EN-02... -
Page 15: Sd Card
The warm reset and the transfer of the naming data and/or device project are described in the "PSS 4000 System Description". This is also where the general effects on the PSSu system are described in detail. Operating Manual PSSu H FS2 SN SD(-T) | 15 1005194-EN-02... -
Page 16: Installation
Push the head module back as far as it will go [2]. Make sure that the locking mechanisms [3] are pushed downwards, connecting the mod- ule firmly to the mounting rail. Operating Manual PSSu H FS2 SN SD(-T) | 16 1005194-EN-02... - Page 17 Installation Schematic representation: Operating Manual PSSu H FS2 SN SD(-T) | 17 1005194-EN-02...
-
Page 18: Interface Assignment
Assignment of the interfaces on head modules with an RJ45 female connector SafetyNET p Assignment Shield RJ45 female connector 1: TD+ 2: TD- 3: RD+ 4: n.c. 5: n.c. 6: RD- 7: n.c. 8: n.c. n.c. = not connected Operating Manual PSSu H FS2 SN SD(-T) | 18 1005194-EN-02... -
Page 19: Wiring
"Technical Details". Use copper wiring. Terminal configuration Module supply Terminal configuration 4-pin female con- +24 V infeed for module nector supply 0 V infeed for module supply Operating Manual PSSu H FS2 SN SD(-T) | 19 1005194-EN-02... -
Page 20: Connecting The Module
0 V DC +24 V DC 10 A 0 V DC Connect to the 0 V supply and earth at a single point Infeed for Infeed for Module Supply Periphery Supply Operating Manual PSSu H FS2 SN SD(-T) | 20 1005194-EN-02... - Page 21 Common power supply for module supply and periphery supply: Infeed for Module Supply 10 A Infeed for Periphery Supply Connect to the 0 V supply and earth at exactly this point Operating Manual PSSu H FS2 SN SD(-T) | 21 1005194-EN-02...
-
Page 22: Operation
OPC Server and PSS 4000 Diag Control. Display elements The head module contains a number of status LEDs, which provide information on the status of various system sections. LEDs on the PSSu H FS2 SN SD: MBUS SD CARD DIAG... -
Page 23: Mbus
Unable to locate at least one module (e.g. a module has been removed during operation, actual/ registered hardware does not match) Operating state "FS module bus in a STOP condition with error: Major FS error" Operating Manual PSSu H FS2 SN SD(-T) | 23 1005194-EN-02... -
Page 24: Sd Card
No device project on the SD card Green-red Naming data and device project on the PSSu system and SD card do not match orange Device identification activated by user Operating Manual PSSu H FS2 SN SD(-T) | 24 1005194-EN-02... -
Page 25: Diag
(see diagnostic list). orange A message of at least "Warning" severity is present for the device (see diagnostic list). Red - green Start of "deliberate operator action" (function of reset button) Operating Manual PSSu H FS2 SN SD(-T) | 25 1005194-EN-02... -
Page 26: St Snp
Operating state "ST SafetyNET p RTFN in RUN condition without error" Operating state "ST SafetyNET p RTFN in RUN condition with minor error" Operating state "ST SafetyNET p RTFN in STOP condition with error: Major FS+ST error" Operating Manual PSSu H FS2 SN SD(-T) | 26 1005194-EN-02... -
Page 27: Fs Snp
Operating state "FS SafetyNET p RTFN in STOP condition with error: Major FS error" Operating state "FS SafetyNET p RTFN in STOP condition with error: Major FS+ST error Operating Manual PSSu H FS2 SN SD(-T) | 27 1005194-EN-02... -
Page 28: 5V, 24V
The "24 V" LED shows the status of the periphery supply. Colour Status Meaning - - - No supply voltage for periphery supply or supply voltage is faulty Green Periphery supply is available on the module bus Operating Manual PSSu H FS2 SN SD(-T) | 28 1005194-EN-02... -
Page 29: X3: Lnk, X3: Trf, X4: Lnk, X4: Trf
Network connection is error-free The designation "LNK" stands for "LINK". X3: TRF, X4: TRF Colour Status Meaning No data traffic Yellow Data traffic is error-free The designation "TRF" stands for "TRAFFIC". Operating Manual PSSu H FS2 SN SD(-T) | 29 1005194-EN-02... -
Page 30: Technical Details
Periphery supply Voltage 24 V 24 V Kind Voltage tolerance -30 %/+25 % -30 %/+25 % Max. continuous current that the external power supply must provide 10 A 10 A Operating Manual PSSu H FS2 SN SD(-T) | 30 1005194-EN-02... - Page 31 93 % r. h. at 40 °C Condensation during operation Not permitted Short-term Max. operating height above sea level 2000 m 5000 m EN 61131-2 (Zone B) EN 61131-2 (Zone B) Operating Manual PSSu H FS2 SN SD(-T) | 31 1005194-EN-02...
- Page 32 Functional insulation Functional insulation Rated surge voltage 2500 V 2500 V Mechanical data 312087 314087 Material Bottom Connection type Spring-loaded terminal, screw Spring-loaded terminal, screw terminal terminal Mounting type plug-in plug-in Operating Manual PSSu H FS2 SN SD(-T) | 32 1005194-EN-02...
-
Page 33: Safety Characteristic Data
A safety function's SIL/PL values are not identical to the SIL/PL values of the units that are used and may be different. We recommend that you use the PAScal software tool to calculate the safety function's SIL/PL values. Operating Manual PSSu H FS2 SN SD(-T) | 33 1005194-EN-02... -
Page 34: Order Reference
380 070 Terminals Product type Features Order no. PSSu A Con 1/4 S 2 x screw terminals 313 110 PSSu A Con 2/8 C 2 x spring-loaded terminals 313 111 Operating Manual PSSu H FS2 SN SD(-T) | 34 1005194-EN-02... - Page 35 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
