Operating Manual
Translation of the Original Operating Manual
ULTRA.Guard™

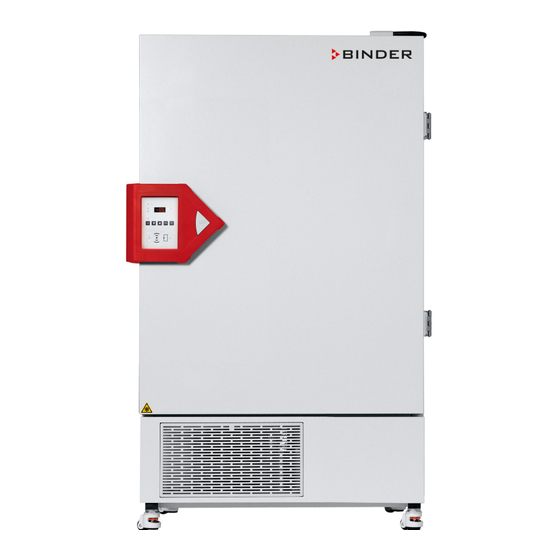

Ultra Low Temperature Freezers UF V (E3)
with RD4 Controller
Model
Model version
UF V
UF V 500
UFV500-230V
UF V 700
UFV700-230V
UF V-UL
UF V 500-UL
UFV500UL-120V
UF V 500-UL
UFV500UL-240V
UF V 700-UL
UFV700UL-120V
UF V 700-UL
UFV700UL-240V
UF V with water cooling
UF V 500
UFV500-230V-H2O
UF V 700
UFV700-230V-H2O
BINDER GmbH
Address: Post office box 102, 78502 Tuttlingen, Germany Phone: +49 7462 2005 0
Fax: +49 7462 2005 100 Internet: http://www.binder-world.com
E-mail: info@binder-world.com Service Hotline: +49 7462 2005 555
Service Fax: +49 7462 2005 93 555 Service E-Mail: service@binder-world.com
Service Hotline USA: +1 866 885 9794 or +1 631 224 4340 x3
Service Hotline Asia Pacific: +852 390 705 04 or +852 390 705 03
Service Hotline Russia and CIS: +7 495 988 15 16
Version 03/2019
Art. No.
9020-0347, 9120-0347
9020-0348, 9120-0348
9020-0351, 9120-0351
9020-0353, 9120-0353
9020-0352, 9120-0352
9020-0354, 9120-0354
9020-0349, 9120-0349
9020-0350, 9120-0350
Voltage
230 V
230 V
120 V
208-240 V
120 V
208-240 V
230 V
230 V
Art. No. 7001-0374
