Operating Manual
Translation of the Original Operating Manual

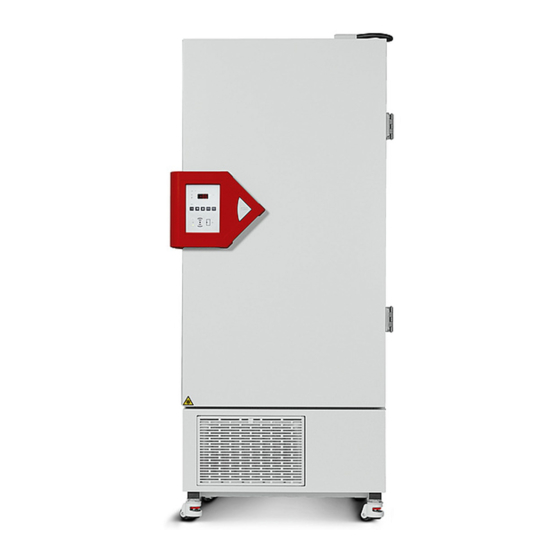

ULTRA.Guard™
Ultra Low Temperature Freezers UF V
with RP1 Controller
UF V with RFID
Model
Art. No.
UF V 500 (E2)
9020-0232, 9120-0232
UF V 500 (E2.1)
9020-0236, 9120-0236
UF V 500 (E2.1)
9020-0213, 9120-0213
UF V 700 (E2.1)
9020-0233, 9120-0233
UF V 700 (E2.1)
9020-0237, 9120-0237
UF V UL with Advanced Voltage Booster and Data Logger
Model
Art. No.
UF V 500-UL (E2.1)
9020-0235, 9120-0235
UF V 500-UL (E2.1)
9020-0222, 9120-0222
UF V 500-UL (E2.1)
9020-0234, 9120-0234
UF V 500-UL (E2.1)
9020-0220, 9120-0220
UF V 700-UL (E2.1)
9020-0239, 9120-0239
UF V 700-UL (E2.1)
9020-0218, 9120-0218
UF V 700-UL (E2.1)
9020-0238, 9120-0238
UF V 700-UL (E2.1)
9020-0216, 9120-0216
BINDER GmbH
Address
Tel.
Fax
Internet
E-mail
Service Hotline
Service Fax
Service E-Mail
Service Hotline USA
Service Hotline Asia Pacific
Service Hotline Russia and CIS
Issue 03/2013
Door hinges
right
right
left
right
left
Door hinges
right
left
right
left
right
left
right
left
Post office box 102
D-78502 Tuttlingen
+49 7462 2005 0
+49 7462 2005 100
http://www.binder-world.com
info@binder-world.com
+49 7462 2005 555
+49 7462 2005 93 555
service@binder-world.com
+1 866 885 9794 or +1 631 224 4340 x3
+852 39070500 or +852 39070503
+7 495 98815 17
Voltage
230 V
230 V
230 V
230 V
230 V
Voltage
115 V
115 V
208-240 V
208-240 V
115 V
115 V
208-240 V
208-240 V
Art. No. 7001-0083
