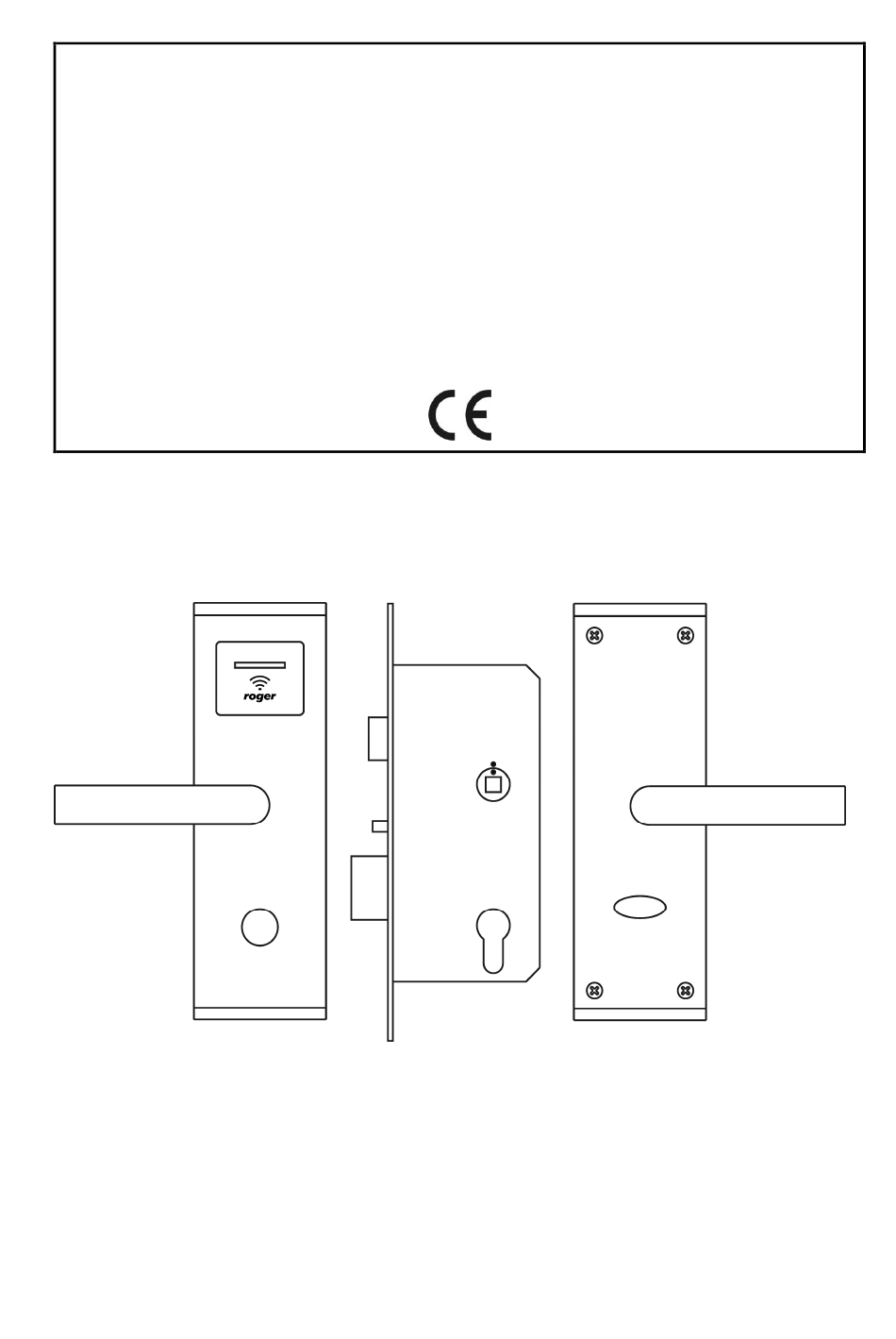

- Page 1 Roger Access Control System RWL-1-SL Standalone Door Lock Operating Manual Firmware version: 1.1 Document version: Rev. A...
-

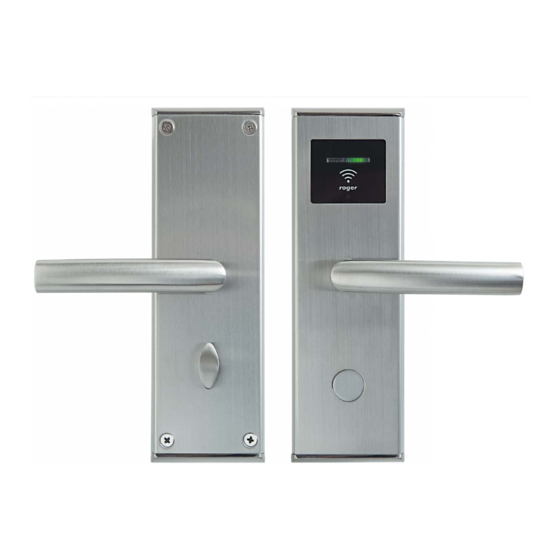

Page 2: Design And Application
The RWL-1-SL is equipped with knob switch position detector. The lock is supplied with 4 pcs of AA batteries. Low battery level can be signalled locally. The batteries enable two year operation for average 10 card readings per day. -
Page 3: Mechanical Construction
(D) are used to connect the electronic module with mortise lock and wires with smaller plug (E) are used to connect the module with battery pack. Two isolated wires (F) are not used in RWL-1-SL. Fig. 3. External part of RWL-1-SL... - Page 4 Fig. 4. Electronic module inside external escutcheon Internal part of RWL-1-SL The internal part of RWL-1-SL consists of escutcheon with handle and it is dedicated to installation at the exit from controlled room. The escutcheon is equipped with knob switch (H) and detector to monitor its status using cable with connector (I).
-
Page 5: Functional Description
The size of cylinder depends on door thickness and it must be selected in such way that it would not protrude by more than 12mm over door surface. The door cylinder 26/10 is included with RWL-1-SL lock and it can be used in door with 38mm to 55mm thickness. -
Page 6: Proximity Cards
MIFARE card. Card number The card number which RWL-1-SL lock reads from the card and returns to the access controller is called RCN ( Returned Card Number ). In general, the RCN can be composed of two sections: ·... -
Page 7: Led Indicators
Power supply RWL-1-SL lock is supplied from 4 pcs of AA batteries. In case of average 10 operations daily the alkaline batteries enable 2 year functioning. Low battery level is signalled locally by orange LED SYSTEM pulsing and acoustic signal generated prior to entering standby mode. - Page 8 RWL-1-SL Operating Manual.doc 2021-12-20 limit). When lock operates with 100 user limit, programming steps related to the Backup cards shall be skipped. Note: It is possible to program new ADD and DEL programming cards during memory reset procedure. User adding A.
- Page 9 Backup cards . When the option is set to [1]: Yes then lock operates with 50 users limit. Note: It is recommended to backup RWL-1-SL settings, save them to file and protect against loss and access of unauthorized persons.
- Page 10 Read users list from device Send to device Save users list to device RWL-1-SL configuration parameters in RogerVDM The table below includes RWL-1-SL configuration parameters which can be modified using RogerVDM software within low level configuration of device (tab: Configuration ). Parameter Function...
- Page 11 The parameter Application ID (AID) is located in card’s MAD sector and it specifies the sector where programmable card number (PCN) is stored if the Sector type (see above) is configured as MAD. Default value: 5156 (Roger AID). Block ID The parameter specifies the block number where programmable card number (PCN) is stored in a particular sector of card’s...
-
Page 12: Memory Reset
RWL-1-SL Operating Manual.doc 2021-12-20 time lock switches into Office mode . If the lock is in the Office mode then with the single use of a card with Office mode authorisation lock terminates Office mode . Memory reset Memory reset erases all programmed card and restores factory configuration settings. After reset the locks operates with 50 users list and reads card serial number (CSN). -
Page 13: Ordering Information
Weight of the equipment is specified in the document. Contact: Roger sp. z o.o. sp.k. 82-400 Sztum Gościszewo 59 Tel.: +48 55 272 0132 Fax: +48 55 272 0133 Tech.
