Electronic Code Lock
SL2000H v1.0
Document version: Rev. C
Roger Sp.j.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL2000H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Roger SL2000H

Summary of Contents for Roger SL2000H

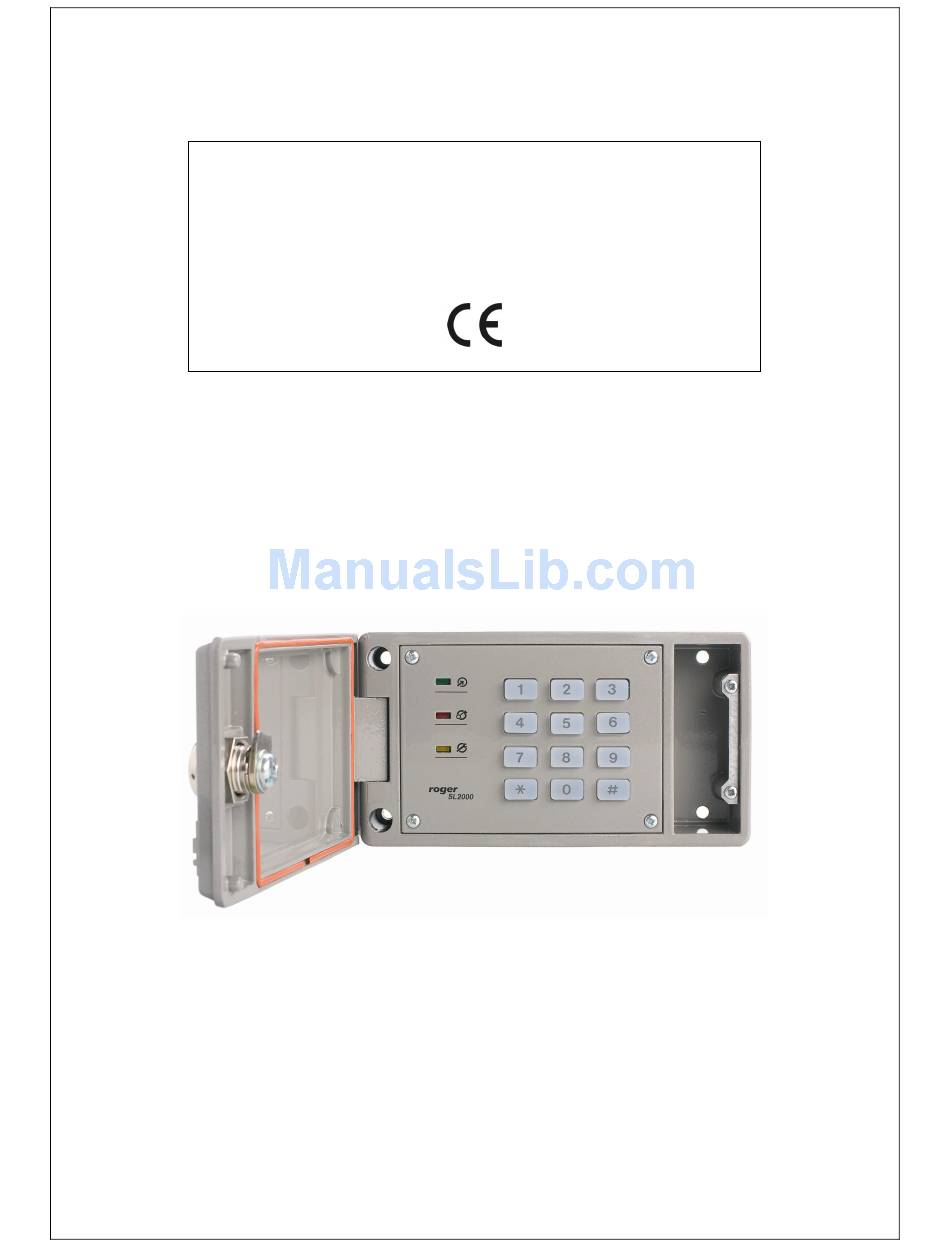

  • Page 1 Electronic Code Lock SL2000H v1.0 Document version: Rev. C Roger Sp.j.

  • Page 2: Functional Description

     Introduction The SL2000H electronic code lock is dedicated to operate as a stand-alone door access control unit. It is equipped with one relay output, two transistor outputs and three inputs. All codes and parameters programmed to device are stored in nonvolatile memory.
  • Page 3 Security Lock SL2000H v1.0 EN Rev.C.doc 2011-11-16 Door Lock Mode (Momentary) This mode is dedicated to control some device or state which requires momentary type of control signal, usually it is used to control a door locking device (e.g. door strike or magnetic lock).

  • Page 4: Special Options

    Security Lock SL2000H v1.0 EN Rev.C.doc 2011-11-16 Door Alarm The Door Alarm will occur when:  door has been opened without entering of a valid USER code  door has been opened without pressing of the Exit Button  door has not been closed within designated time defined by the C5C6 configuration...
  • Page 5 Security Lock SL2000H v1.0 EN Rev.C.doc 2011-11-16 Arming and Disarming In normal operation the SL2000 may work either in the Armed or Disarmed mode. The actual status of the lock is presented on a dual color LED STATUS which lights up in red when lock is Armed and green when Disarmed.
  • Page 6 Security Lock SL2000H v1.0 EN Rev.C.doc 2011-11-16 [*][Old INSTALLER Code][#][New INSTALLER Code] [#] This command erases the current INSTALLER code and program a new one. If command is successfully accomplished the unit generates three series of two beeps (** ** **) [*] [Old MASTER Code] [#][Old MASTER Code] [#] This command erases the current MASTER code and program a new one.
  • Page 7 Security Lock SL2000H v1.0 EN Rev.C.doc 2011-11-16 C3C4: Specifies the time for which Door Lock output will be activated. It can be programmed from 02 to 99s (default: 04). C5C6: Specifies the time within door must be closed otherwise Door Alarm will occur.

  • Page 8: Default Settings

    All USER codes no 02 -55 are blank (they doesn’t exist). Installation  The SL2000H code lock should be mounted near the supervised door on a vertical piece of supporting structure.  The SL2000H can be installed either indoor or outdoor location.
  • Page 9 Security Lock SL2000H v1.0 EN Rev.C.doc 2011-11-16 Page 9 of 11...

  • Page 10: Connection Assignments

    Security Lock SL2000H v1.0 EN Rev.C.doc 2011-11-16 Connection assignments Label Description +12V Supply input plus Supply input minus TMP A Tamper contact A, NC max. 50mA/24V DC/AC TMP B Tamper contact B, NC max. 50mA/24V DC/AC Exit Button input, NO type Door Contact input, NO type, 1.5A/24V DC/AC...
  • Page 11 Security Lock SL2000H v1.0 EN Rev.C.doc 2011-11-16 The symbol of a crossed-through waste bin on wheels means that the product must be disposed of at a separate collection point. This also applies to the product and all accessories marked with this symbol. Products labeled as such must not be disposed of with normal household waste, but should be taken to a collection point for recycling electrical and electronic equipment.
