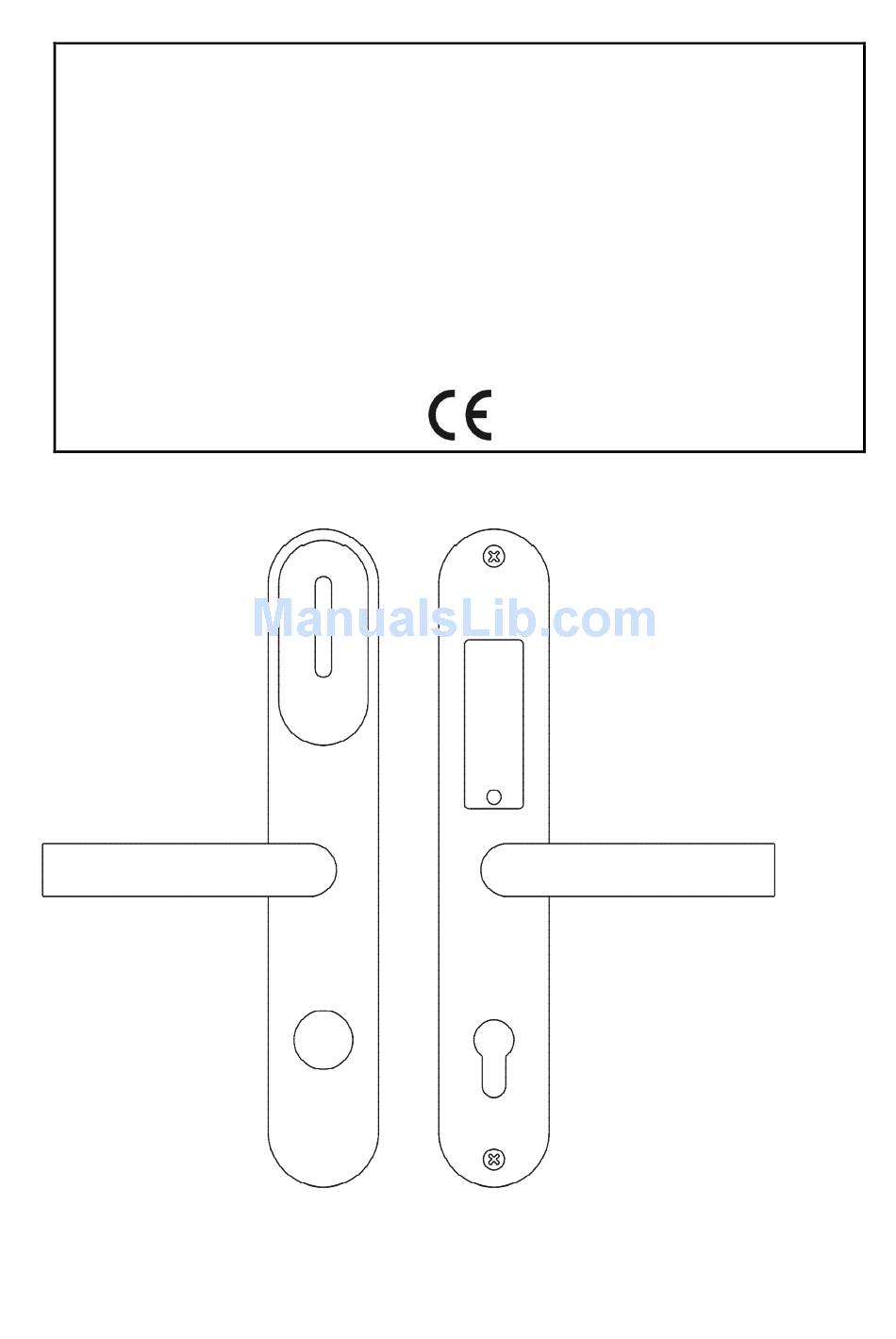

- Page 1 Roger Access Control System RWL-2 Wireless Lock Operating Manual Firmware version: 1.0 Document version: Rev. C...
-
Page 2: Design And Application
For the time when connection to access controller is lost RWL-2 automatically switches to Offline mode . The RWL-2 lock consists of two escutcheons with handles. Card reader is installed in the external escutcheon while the battery pack is installed in the internal one. The internal handle is permanently coupled with latch and door can be always open without use of electronics. -
Page 3: Mechanical Construction
Mechanical construction External part of RWL-2 The external part of RWL-2 consists of escutcheon with handle and it is dedicated to installation at the entry to controlled room. The escutcheon includes card reader (A) and hole for door cylinder which can be used for emergency door opening with mechanical key. - Page 4 Fig. 4. Electronic module inside entry escutcheon Internal part of RWL-2 The internal part of RWL-2 consists of escutcheon with handle and it is dedicated to installation at the exit from controlled room. The internal escutcheon includes battery pack. In order to replace batteries remove hex screw and battery cover.
-
Page 5: Functional Description
Card Number ) stored in the encrypted memory of the MIFARE card. Card number The card number which RWL-2 lock reads from the card and returns to the access controller is called RCN ( Returned Card Number ). In general, the RCN can be composed of two sections: ·... -
Page 6: Online Mode
RWL-2 Operating Manual.doc 2018-06-29 operate with 50 users. This mode is also used in case of restoring lock’s default settings. Switching to 100 users mode can be done by means of RogerVDM software. The Backup cards are dedicated to installations where lock is programmed manually. Thanks to the Backup card it is possible to remove selectively Main card from the lock’s memory even thou it is not... -
Page 7: Led Indicators
Online mode Power supply RWL-2 lock is supplied from 4 pcs of AAA batteries. In case of average 10 operations daily the alkaline batteries enable 1 year functioning. Low battery level is reported to VISO management software and additionally it is signalled locally by orange LED SYSTEM pulsing and acoustic signal generated prior to entering standby mode. - Page 8 RWL-2 Operating Manual.doc 2018-06-29 Factory cards Label Name Authorization ADD programming card New card adding to the lock DEL programming card Card deleting from the lock Configuration recovery from the lock In some circumstances it might be required to recover the configuration settings from the lock. Such operation can be done by means of RogerVDM software.
- Page 9 Backup cards . When the option is set to [1]: Yes then lock operates with 50 users limit. Note: It is recommended to backup RWL-2 settings, save them to file and protect against loss and access of unauthorized persons.
- Page 10 Note: The jumper can be left on MEM pins. If so the lock can be later configured remotely using wireless method. Fig. 6. Connection of lock to the RUD-1 interface RogerVDM commands The table below includes commands which are available in RogerVDM software for RWL-2 lock. Command/button Description Tab: Configuration...
- Page 11 Default value: No. Online mode Wireless settings Device MAC address Factory set RWL-2 lock identification number. Hub MAC address The identification number of the wireless hub (e.g. RWH-1) to which lock may connect. Radio channels Radio channels enabled to be used by lock.
- Page 12 Any text to be displayed in VISO management software in order to facilitate object identification. DEV object represents the whole device (wireless lock). Default value: RWL-2. DEADBOLT comment Any text to be displayed in VISO management software in order to facilitate object identification.
- Page 13 The parameter Application ID (AID) is located in card’s MAD sector and it specifies the sector where programmable card number (PCN) is stored if the Sector type (see above) is configured as MAD. Default value: 5156 (Roger AID). Block ID The parameter specifies the block number where programmable card number (PCN) is stored in a particular sector of card’s...
- Page 14 The parameter Application ID (AID) is located in card’s MAD sector and it specifies the sector where programmable card number (PCN) is stored if the Sector type (see above) is configured as MAD. Default value: 5156 (Roger AID). Block ID The parameter specifies the block number where programmable card number (PCN) is stored in a particular sector of card’s...
-
Page 15: Memory Reset
RWL-2 Operating Manual.doc 2018-06-29 (MSB) of programmable card number (PCN). Default value: 0. Last byte position (LBP) The parameter specifies the position of the least significant byte (LSB) of programmable card number (PCN). Default value: 7. Sector ID The parameter specifies sector number in card’s memory where programmable card number (PCN) is stored. -
Page 16: Lock Installation
RWL-2 Operating Manual.doc 2018-06-29 Note: If device will be used in Online Mode , additionally read the DEL card five times. NSTALLATION The lock is designed for installation in door with 38 to 75mm thickness and with 72mm handle spacing. Prior to installation make sure that door cylinder is long enough. -
Page 17: Ordering Information
Weight of the equipment is specified in the document. Contact: Roger sp. z o.o. sp.k. 82-400 Sztum Gościszewo 59 Tel.: +48 55 272 0132 Fax: +48 55 272 0133 Tech.
