- Page 1 Roger Access Control System RWL-2-SL Standalone Door Lock Operating Manual Firmware version: 1.1 Document version: Rev. A...
-
Page 2: Design And Application
2021-12-20 ESIGN AND APPLICATION RWL-2-SL lock enables read-in access control based on MIFARE proximity cards - based on the card numbers stored in its memory, the lock decides autonomously if the access can be granted. The RWL-2-SL lock consists of two escutcheons with handles. Card reader is installed in the external escutcheon while the battery pack is installed in the internal one. -
Page 3: Mechanical Construction

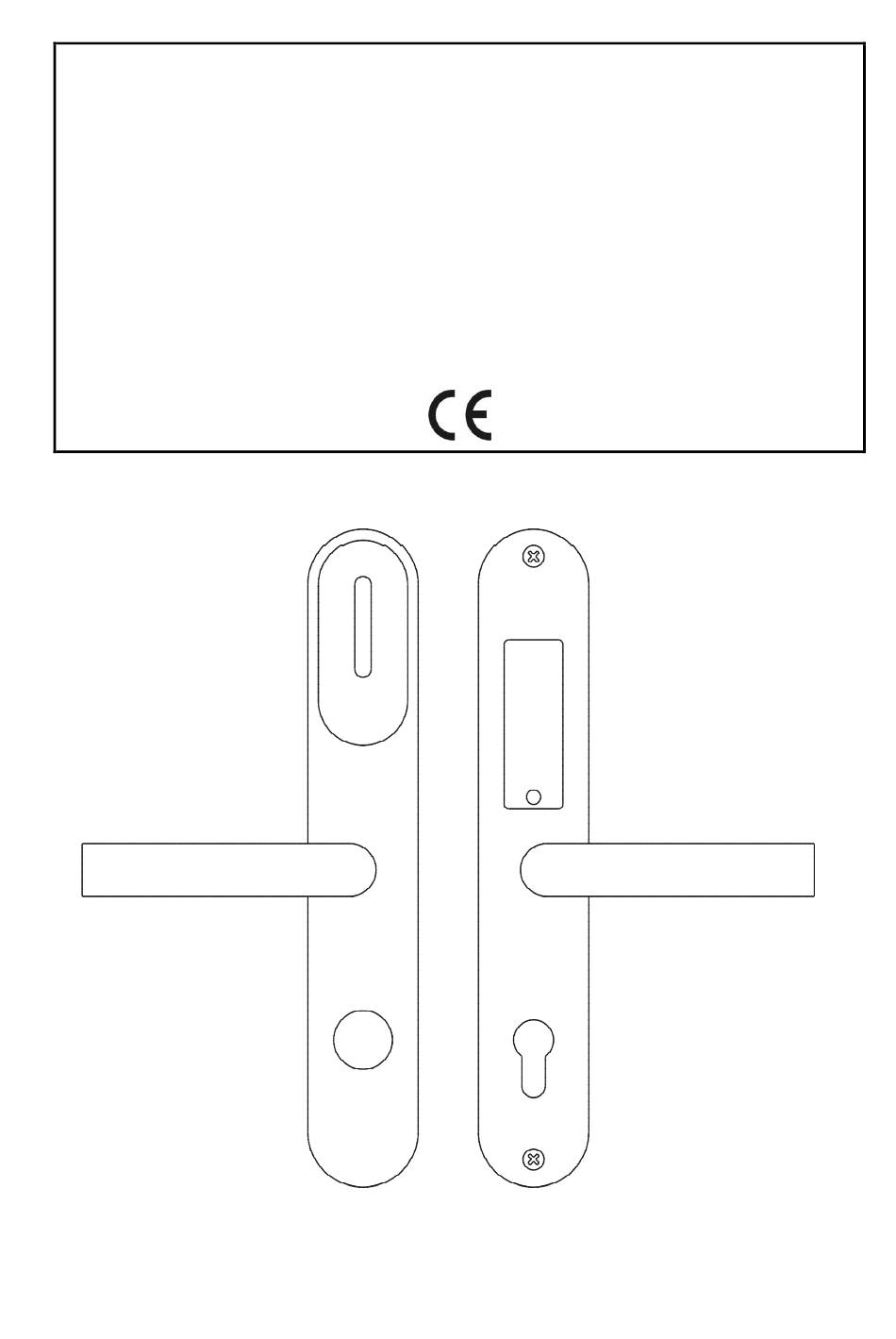

Mechanical construction External part of RWL-2-SL The external part of RWL-2-SL consists of escutcheon with handle and it is dedicated to installation at the entry to controlled room. The escutcheon includes card reader (A) and hole for door cylinder which can be used for emergency door opening with mechanical key. The electronic module which is located inside the escutcheon includes service contact (B) and programming contacts (C). -
Page 4: Functional Description
2021-12-20 Internal part of RWL-2-SL The internal part of RWL-2-SL consists of escutcheon with handle and it is dedicated to installation at the exit from controlled room. The internal escutcheon includes battery pack. In order to replace batteries remove hex screw and battery cover. Wires with plug (G) are connected to socket (E) at external escutcheon in order to supply it. -
Page 5: Card Number
MIFARE card. Card number The card number which RWL-2-SL lock reads from the card and returns to the access controller is called RCN ( Returned Card Number ). In general, the RCN can be composed of two sections: ·... -
Page 6: Power Supply
Power supply RWL-2-SL lock is supplied from 4 pcs of AAA batteries. In case of average 10 operations daily the alkaline batteries enable 1 year functioning. Low battery level is reported to VISO management software and additionally it is signalled locally by orange LED SYSTEM pulsing and acoustic signal generated prior to entering standby mode. - Page 7 Backup cards . When the option is set to [1]: Yes then lock operates with 50 users limit. Note: It is recommended to backup RWL-2-SL settings, save them to file and protect against loss and access of unauthorized persons.
- Page 8 3. Short RST pins for a moment preferably by placing and removing jumper – Orange LED SYSTEM shall pulsate. 4. In RogerVDM select Device/New and then select type of device (RWL-2-SL) and serial COM port with RUD-1 interface. 5. Select required settings.
- Page 9 Read users list from device Send to device Save users list to device RWL-2-SL configuration parameters in RogerVDM The table below includes RWL-2-SL configuration parameters which can be modified using RogerVDM software within low level configuration of device (tab: Configuration ). Parameter Function...
-
Page 10: Memory Reset
The parameter Application ID (AID) is located in card’s MAD sector and it specifies the sector where programmable card number (PCN) is stored if the Sector type (see above) is configured as MAD. Default value: 5156 (Roger AID). Block ID The parameter specifies the block number where programmable card number (PCN) is stored in a particular sector of card’s... -
Page 11: Lock Installation
RWL-2-SL Operating Manual.doc 2021-12-20 NSTALLATION The lock is designed for installation in door with 38 to 75mm thickness and with 72mm handle spacing. Prior to installation make sure that door cylinder is long enough. Lock installation · Make holes in door using drilling template. In case of non-rebated door it might be necessary to use metal plate. -
Page 12: Ordering Information
Weight of the equipment is specified in the document. Contact: Roger sp. z o.o. sp.k. 82-400 Sztum Gościszewo 59 Tel.: +48 55 272 0132 Fax: +48 55 272 0133 Tech.
