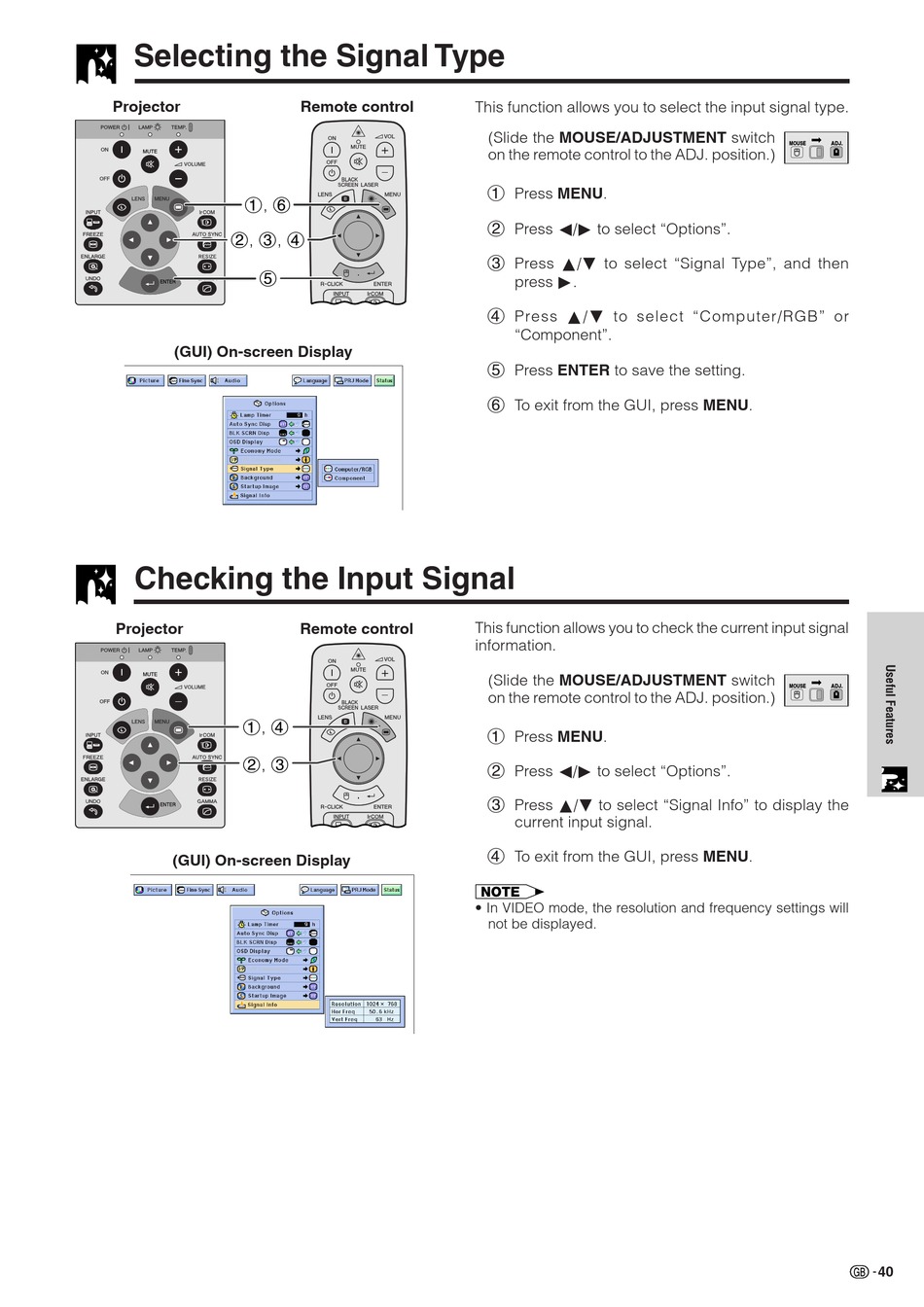

Selecting the Signal Type

Projector
1, 6
2, 3, 4
5
(GUI) On-screen Display

Checking the Input Signal

Projector
1, 4
2, 3
(GUI) On-screen Display
Remote control
Remote control
This function allows you to select the input signal type.
(Slide the MOUSE/ADJUSTMENT switch
on the remote control to the ADJ. position.)
1 Press MENU.
2 Press ß/© to select "Options".
3 Press ∂/ƒ to select "Signal Type", and then
press ©.
4 Press ∂/ƒ to select "Computer/RGB" or
"Component".
5 Press ENTER to save the setting.
6 To exit from the GUI, press MENU.
This function allows you to check the current input signal
information.
(Slide the MOUSE/ADJUSTMENT switch
on the remote control to the ADJ. position.)
1 Press MENU.
2 Press ß/© to select "Options".
3 Press ∂/ƒ to select "Signal Info" to display the
current input signal.
4 To exit from the GUI, press MENU.
• In VIDEO mode, the resolution and frequency settings will
not be displayed.
MOUSE ADJ.
MOUSE ADJ.
40
