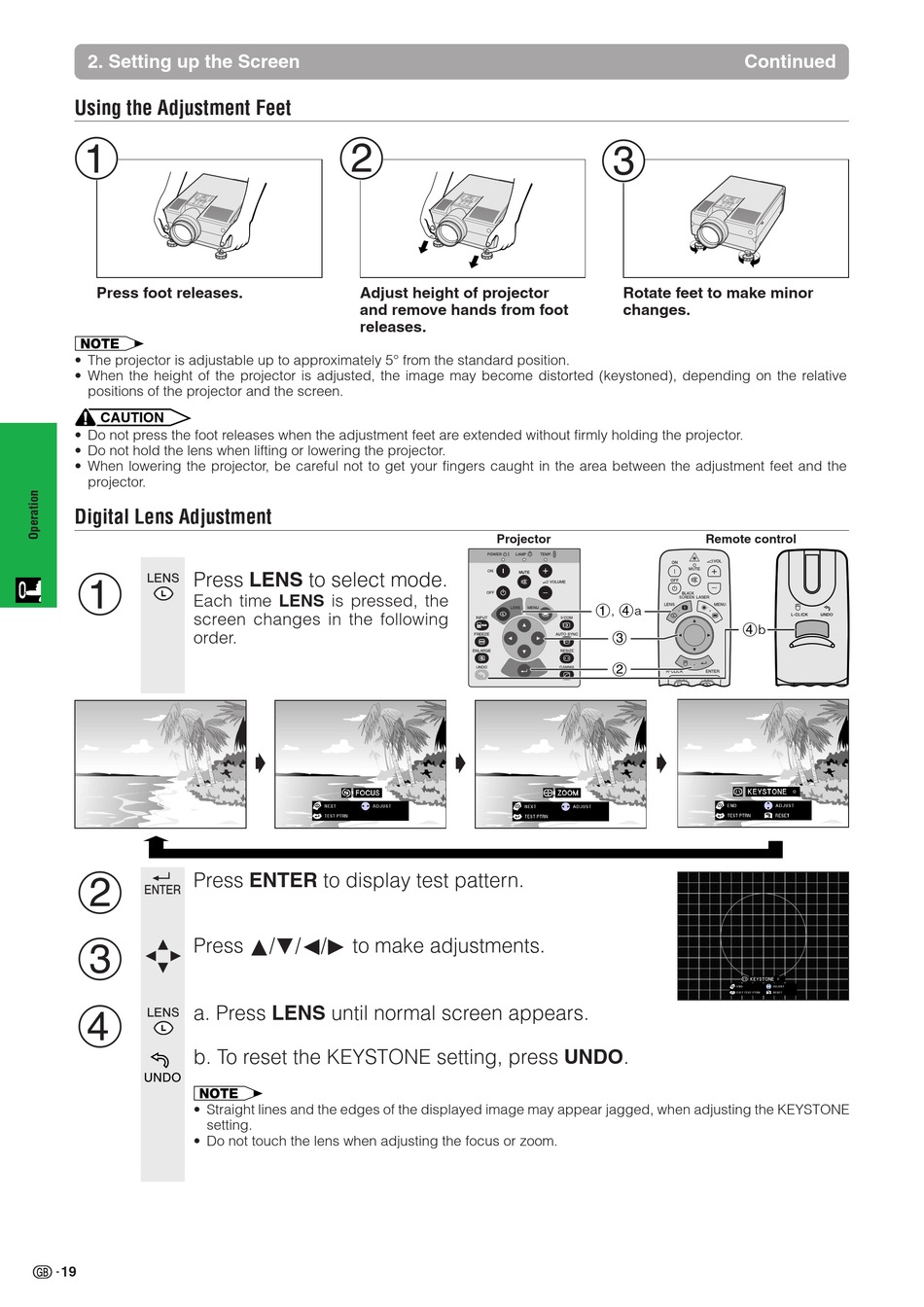

2. Setting up the Screen
Using the Adjustment Feet
1
Press foot releases.
• The projector is adjustable up to approximately 5° from the standard position.
• When the height of the projector is adjusted, the image may become distorted (keystoned), depending on the relative
positions of the projector and the screen.
CAUTION
• Do not press the foot releases when the adjustment feet are extended without firmly holding the projector.
• Do not hold the lens when lifting or lowering the projector.
• When lowering the projector, be careful not to get your fingers caught in the area between the adjustment feet and the
projector.
Digital Lens Adjustment
1 Press LENS to select mode.
Each time LENS is pressed, the
screen changes in the following
order.
2
Press ENTER to display test pattern.
3
Press ∂/ƒ/ß/© to make adjustments.
4 a. Press LENS until normal screen appears.
b. To reset the KEYSTONE setting, press UNDO.
• Straight lines and the edges of the displayed image may appear jagged, when adjusting the KEYSTONE
setting.
• Do not touch the lens when adjusting the focus or zoom.
19
2
Adjust height of projector
and remove hands from foot
releases.
g
3
Rotate feet to make minor
changes.
Projector
1, 4a
3
2
g
Continued
Remote control
4b
g
