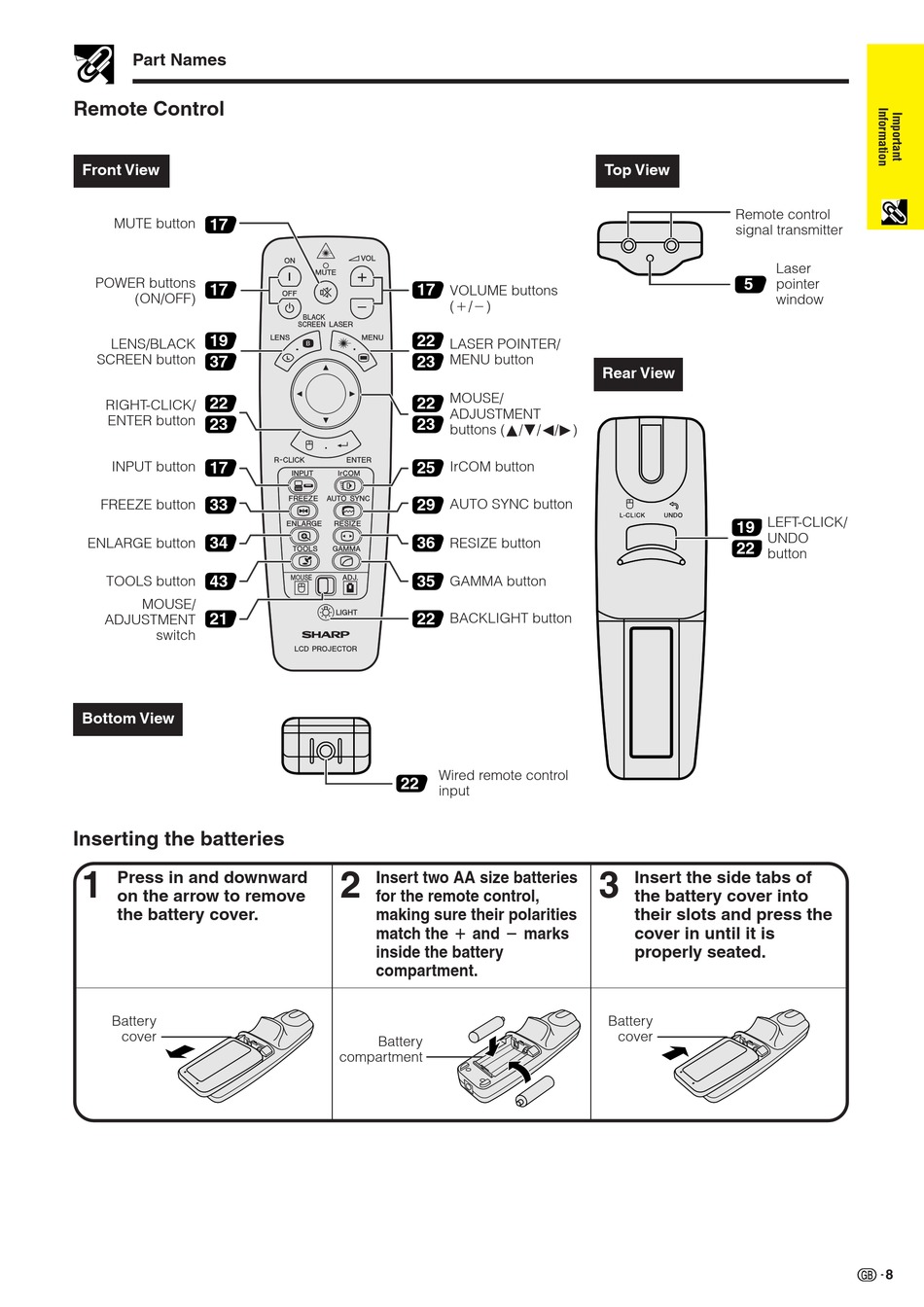

Part Names
Remote Control
Front View
MUTE button
17
POWER buttons
17
(ON/OFF)
19
LENS/BLACK
SCREEN button
37
22
RIGHT-CLICK/
ENTER button
23
INPUT button 17
33
FREEZE button
34
ENLARGE button
TOOLS button 43
MOUSE/
21
ADJUSTMENT
switch
Bottom View
Inserting the batteries
1 Press in and downward
on the arrow to remove
the battery cover.
Battery
cover
17
VOLUME buttons
( / )
22
LASER POINTER/
MENU button
23
MOUSE/
22
ADJUSTMENT
23
buttons (∂/ƒ/ß/©)
25 IrCOM button
29 AUTO SYNC button
36
RESIZE button
35 GAMMA button
22
BACKLIGHT button
Wired remote control
22
input
2 Insert two AA size batteries
for the remote control,
making sure their polarities
match the and
inside the battery
compartment.
Battery
compartment
Top View
Rear View
3 Insert the side tabs of
the battery cover into
their slots and press the
marks cover in until it is
properly seated.
Battery
cover
Remote control
signal transmitter
Laser
5
pointer
window
LEFT-CLICK/
19
UNDO
22
button
