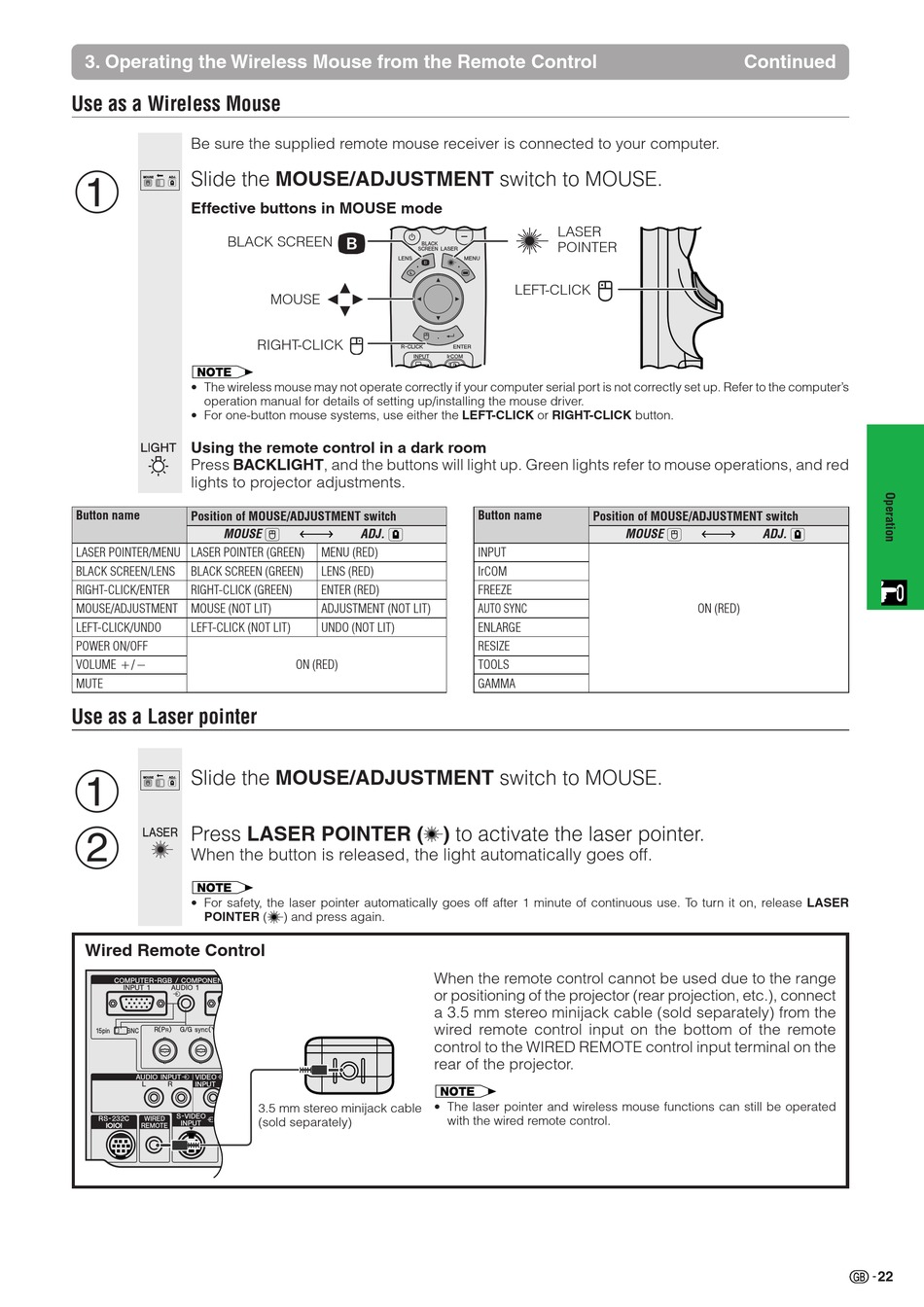

3. Operating the Wireless Mouse from the Remote Control
Use as a Wireless Mouse
Be sure the supplied remote mouse receiver is connected to your computer.
1
Slide the MOUSE/ADJUSTMENT switch to MOUSE.
MOUSE ADJ.
Effective buttons in MOUSE mode
BLACK SCREEN
• The wireless mouse may not operate correctly if your computer serial port is not correctly set up. Refer to the computer's
operation manual for details of setting up/installing the mouse driver.
• For one-button mouse systems, use either the LEFT-CLICK or RIGHT-CLICK button.
Using the remote control in a dark room
Press BACKLIGHT, and the buttons will light up. Green lights refer to mouse operations, and red
lights to projector adjustments.
Button name
Position of MOUSE/ADJUSTMENT switch
MOUSE
LASER POINTER/MENU LASER POINTER (GREEN)
BLACK SCREEN/LENS BLACK SCREEN (GREEN)
RIGHT-CLICK/ENTER RIGHT-CLICK (GREEN)
MOUSE/ADJUSTMENT MOUSE (NOT LIT)
LEFT-CLICK/UNDO LEFT-CLICK (NOT LIT)
POWER ON/OFF
VOLUME /
MUTE
Use as a Laser pointer
1 Slide the MOUSE/ADJUSTMENT switch to MOUSE.
MOUSE ADJ.
2 Press LASER POINTER ( ) to activate the laser pointer.
When the button is released, the light automatically goes off.
• For safety, the laser pointer automatically goes off after 1 minute of continuous use. To turn it on, release LASER
POINTER (
Wired Remote Control
MOUSE
RIGHT-CLICK
ADJ.
MENU (RED)
LENS (RED)
ENTER (RED)
ADJUSTMENT (NOT LIT)
UNDO (NOT LIT)
ON (RED)
) and press again.
3.5 mm stereo minijack cable
(sold separately)
LASER
POINTER
LEFT-CLICK
Button name
Position of MOUSE/ADJUSTMENT switch
INPUT
IrCOM
FREEZE
AUTO SYNC
ENLARGE
RESIZE
TOOLS
GAMMA
When the remote control cannot be used due to the range
or positioning of the projector (rear projection, etc.), connect
a 3.5 mm stereo minijack cable (sold separately) from the
wired remote control input on the bottom of the remote
control to the WIRED REMOTE control input terminal on the
rear of the projector.
• The laser pointer and wireless mouse functions can still be operated
with the wired remote control.
Continued
MOUSE ADJ.
ON (RED)
