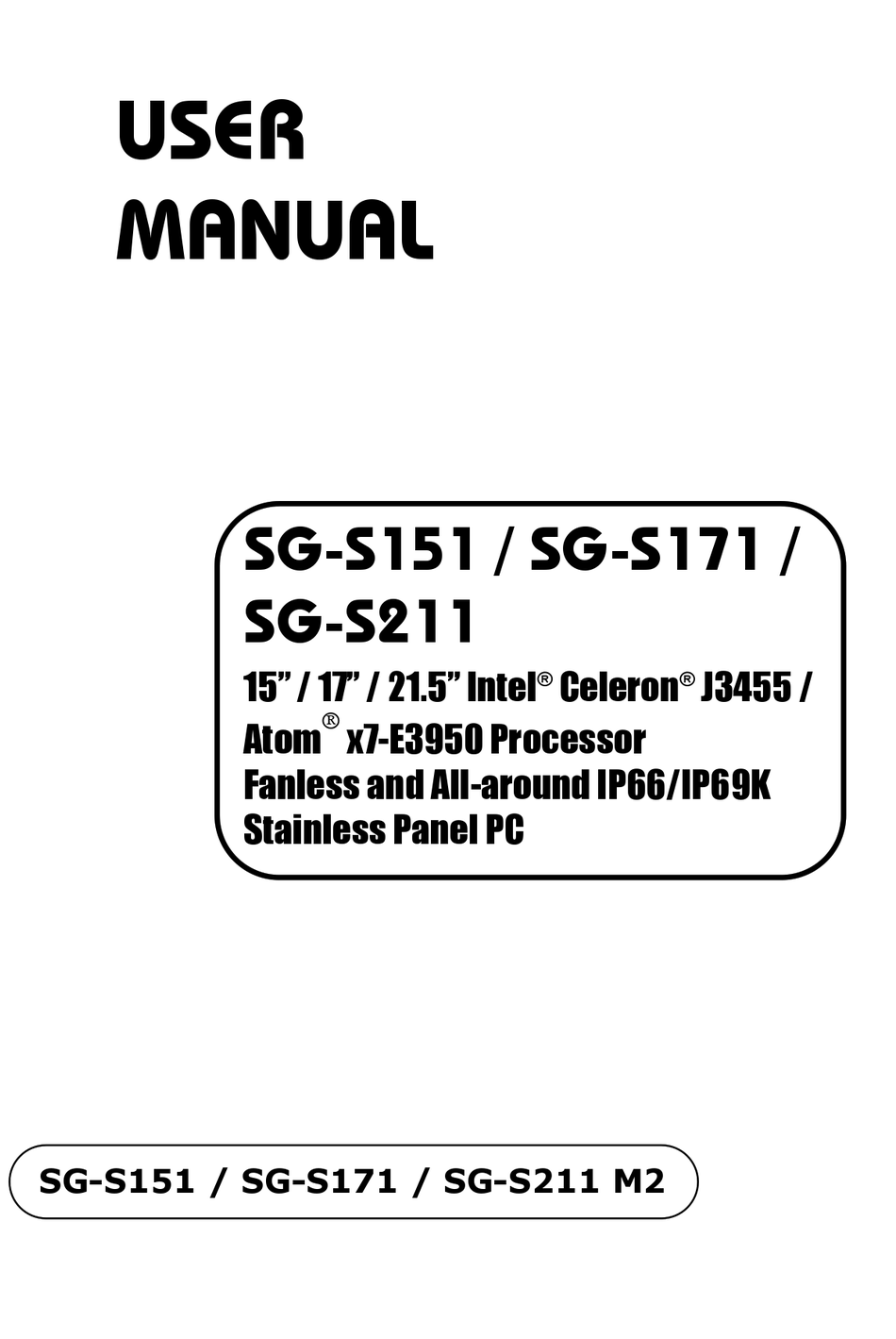

USER
MANUAL

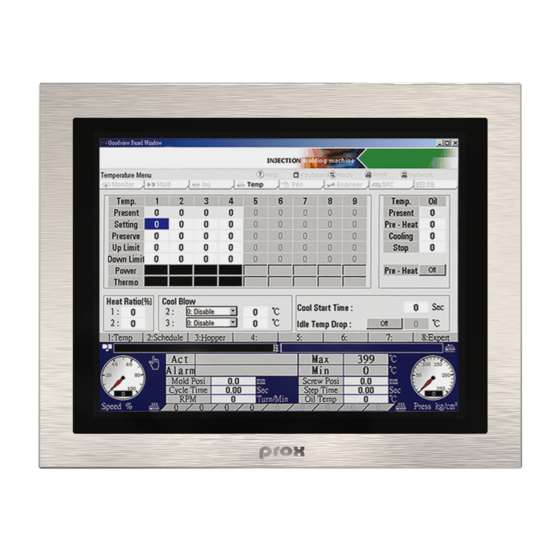

SG-S151 / SG-S171 / SG-S211 M2
SG-S151 / SG-S171 /
SG-S211
15" / 17" / 21.5" Intel
Atom
x7-E3950 Processor
Fanless and All-around IP66/IP69K
Stainless Panel PC
Celeron
J3455 /
®
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SG-S151 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for protech SG-S151

Summary of Contents for protech SG-S151

  • Page 1 USER MANUAL SG-S151 / SG-S171 / SG-S211 15” / 17” / 21.5” Intel Celeron J3455 / ® ®  Atom x7-E3950 Processor Fanless and All-around IP66/IP69K Stainless Panel PC SG-S151 / SG-S171 / SG-S211 M2...
  • Page 2 SG-S15 1 / SG-S171 / SG-S211 ® ® 15”/17”/21.5” Intel Celeron J3455 / ® Atom x7-E3950 Processor Fanless and All-around IP66/IP69K Stainless Panel PC COPYRIGHT NOTICE & TRADEMARK All trademarks and registered trademarks mentioned herein are the property of their respective owners. This manual is copyrighted in Feb.
  • Page 3 FCC NOTICE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 4: Table Of Contents

    About This Manual ..............1-2 Getting Started ..................2-1 Package List ................2-2 System Overview ..............2-3 SG-S151 System Specifications ..........2-9 SG-S171 System Specifications ..........2-11 SG-S211 System Specifications ..........2-13 Safety Precautions ..............2-15 System Configuration ................. 3-1 External I/O Ports Diagram ............
  • Page 5 3.5.7 Programmable GPIO Pin Header (JDIO1) ...... 3-14 3.5.8 I2C Wafer (JI2C1) ............3-15 3.5.9 MCU FW Rewrite Connector (JMCU1) ......3-15 3.5.10 DC Power Input Connector (PWR2) ........ 3-15 3.5.11 Sysetm Fan Connector (FAN1) ........3-16 3.5.12 MINI PCI Express Slot (M_PCIE1) ........3-17 3.5.13 LVDS Connector (LVDS1) ..........
  • Page 6 Installing Microsoft Hotfix kb3211320 and kb3213986 Driver ... 4-5 Installing Graphics Driver Utility ..........4-6 Installing LAN Driver Utility ............4-7 Installing Sound Driver Utility ............ 4-8 ® Installing Intel Serial I/O Driver Utility ........4-9 BIOS SETUP ..................5-1 Introduction ................
  • Page 7 Security ................... 5-32 Boot ..................5-34 Save & Exit ................5-36 Appendix A System Diagrams ............ A-1 SG-S151 System Exploded Diagram ............A-2 SG-S171 System Exploded Diagram ............A-4 SG-S211 System Exploded Diagram ............A-6 VESA Mount Installation Exploded Diagram ..........A-8 Stand Kit Installation Exploded Diagram ..........A-9 SG-S151 Packing Exploded Diagram ............A-10...

  • Page 8: Revision History

    Revision History The revision history of SG-S151/SG-S171/SG-S211 User Manual is described below: Version No. Revision History Date Added user manual information for 2020/02/04 SG-S171 and SG-S211. Initial Release 2019/07/01...

  • Page 9: Introduction

    Introduction This chapter provides the introduction for SG-S151 / SG-S171 / SG-S211 system as well as the framework of the user manual. The following topic is included: • About This Manual SG-S151/SG-S171/SG-S211 USER MANUAL Page: 1-1...

  • Page 10: About This Manual

    Chapter 1 Introduction 1.1 About This Manual Thank you for purchasing our SG-S151 / SG-S171 / SG-S211 system. The SG-S151 / SG-S171 / SG-S211 is an updated system designed to be comparable with the highest performance of IBM AT personal computers. The SG-S151 / SG-S171 / SG-S211 provides faster processing speed, greater expandability and can handle more tasks than before.

  • Page 11: Getting Started

    Getting Started This chapter provides the information for SG-S151 / SG-S171 / SG-S211 system. It describes how to set up the system quickly and outlines the system specifications. The following topics are included: • Package List • System Overview • System Specification •...

  • Page 12: Package List

    2.1 Package List If you discover any of the items listed below are damaged or lost, please contact your local distributor immediately. Item Q’ty SG-S151 / SG-S171 / SG-S211 Manual / Driver DVD Quick Guide M12 Power Supply Cable U Stand (optional)

  • Page 13: System Overview

    Chapter 2 Getting Started 2.2 System Overview 2.2 System Overview Unit: mm Unit: mm SG-S151 Front View Rear View Top View Bottom View Antenna Antenna Hole Hole Left Side View Right Side View SG-S151/SG-S171/SG-S211 USER MANUAL Page: 2-3...
  • Page 14 Chapter 2 Getting Started Quarter View SG-S151/SG-S171/SG-S211 USER MANUAL Page: 2-4...
  • Page 15 Chapter 2 Getting Started SG-S171 Unit: mm Front View Rear View 17.5 M4 screw (Depth: 8mm) Top View Bottom View Antenna Antenna Hole Hole Left Side View Right Side View SG-S151/SG-S171/SG-S211 USER MANUAL Page: 2-5...
  • Page 16 Chapter 2 Getting Started Quarter View SG-S151/SG-S171/SG-S211 USER MANUAL Page: 2-6...
  • Page 17 Chapter 2 Getting Started SG-S211 Unit: mm Front View Rear View M4 screw (Depth: 8mm) Top View Antenna Antenna Hole Hole Bottom View SG-S151/SG-S171/SG-S211 USER MANUAL Page: 2-7...
  • Page 18 Chapter 2 Getting Started Quarter View SG-S151/SG-S171/SG-S211 USER MANUAL Page: 2-8...

  • Page 19: Sg-S151 System Specifications

    Chapter 2 Getting Started 2.3 SG-S151 System Specifications System ® ®  Intel Celeron J3455 CPU Type ® ®  Intel Atom x7 E3950  1 x DDR3L 1600/1867MHz SO-DIMM socket Memory Support (up to 8GB) (non-ECC) ®  Windows...
  • Page 20  SSD: 0°C ~ 50°C (32°F ~ 122°F) (with airflow)  Wide Temperature SSD: -20°C ~ 50°C (-4°F ~ 122°F) SSD (for x7-E3950 only) Storage Temperature  -20°C ~ 80°C (-4°F ~ 176°F) Humidity  20%~ 90% SG-S151/SG-S171/SG-S211 USER MANUAL Page: 2-10...

  • Page 21: Sg-S171 System Specifications

     1 x full-sized Mini PCIe slot (Mini PCIe and USB signals) Display  17” TFT LCD (LED) XGA (resolution 1280 x 1024), 350 nits  17” Projected capacitive touchscreen (USB interface) Touchscreen  17” 5-wire resistive touchscreen (USB interface) SG-S151/SG-S171/SG-S211 USER MANUAL Page: 2-11...
  • Page 22  SSD: 0°C ~ 50°C (32°F ~ 122°F) (with airflow)  Wide Temperature SSD: -20°C ~ 50°C (-4°F ~ 122°F) SSD (for x7-E3950 only) Storage Temperature  -20°C ~ 80°C (-4°F ~ 176°F) Humidity  20%~ 90% SG-S151/SG-S171/SG-S211 USER MANUAL Page: 2-12...

  • Page 23: Sg-S211 System Specifications

     1 x full-sized Mini PCIe slot (Mini PCIe and USB signals) Display  21.5” TFT LCD (LED) FHD (resolution 1920 x 1080), 350 nits  Projected capacitive touchscreen (USB interface) Touchscreen  5-wire resistive touchscreen (USB interface) SG-S151/SG-S171/SG-S211 USER MANUAL Page: 2-13...
  • Page 24 Chapter 2 Getting Started Environment Operating Temperature  HDD: 0°C ~ 40°C (32°F ~ 104°F) (with airflow)  SSD: 0°C ~ 50°C (32°F ~ 122°F) Storage Temperature  -20°C ~ 80°C (-4°F ~ 176°F) Humidity  20%~ 90% SG-S151/SG-S171/SG-S211 USER MANUAL Page: 2-14...

  • Page 25: Safety Precautions

    Avoid direct sunlight exposure for a long period of time (for example, in a closed car in summer time. Also avoid the system from any heating device.). Or do not use SG-S151 / SG-S171 / SG-S211 when it has been left outdoors in a cold winter day.

  • Page 26: System Configuration

    • External I/O Ports Diagram • Connector & Jumper Quick Reference Table • System Main Board Component Locations • How to Set Jumpers • Setting Main Board Connectors and Jumpers • External M12 waterproof Connectors SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-1...

  • Page 27: External I/O Ports Diagram

    Chapter 3 System Configuration 3.1 External I/O Ports Diagram 3.1.1 Rear I/O Ports Diagram DC IN USB Ports Power VENT LAN2 LAN1 Button VENT DC IN SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-2...

  • Page 28: Jumper & Connector Quick Reference Table

    DC Power Input Connector PWR2 Mini PCI Express Slot M_PCIE1 LVDS Connector LVDS1 Front Panel Connector JFP1 HD Audio Connector AUDIO1 Panel Inverter Connector JINV1 SATA 3.0 Connector SATA1 SATA Power Connector SATA_PWR1 BIOS Reset Connector SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-3...

  • Page 29: Component Locations Of System Main Board

    HDMI1 USB2 USB1 JP_COM3 JP_COM4 COM4 JLPC1 JI2C1 JMCU1 COM3 JDIO1 COM2 SATA_PWR1 M_SATA1 COM1 SO_DIMM1 JFP1 M_PCIE1 AUDIO1 PWR2 LVDS1 JBAT1 USB3 FAN1 JINV1 JP_VDD1 SATA1 Figure 3-1 Main Board Component Location (Top View) SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-4...
  • Page 30 Do not touch the main board components. CAUTION: As the IP66 guarantee is covered in the system warranty terms and condition, please DO NOT dismantle the system by yourself. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-5...

  • Page 31: Bottom View Of System Main Board

    Chapter 3 System Configuration 3.3.2 Bottom View of System Main Board Figure 3-2 Main Board Component Location (Rear View) SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-6...

  • Page 32: How To Set Jumpers

    2 to create one setting and shorting. You can also select to connect pins 2 and 3 to create another setting. The format of the jumper picture will be illustrated throughout this manual. The figure below shows different types of jumpers and jumper settings. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-7...
  • Page 33 Chapter 3 System Configuration Jumper diagrams Jumper settings SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-8...

  • Page 34: Setting Main Board Connectors And Jumpers

    3.5 Setting Main Board Connectors and Jumpers 3.5.1 COM3 and COM4 PIN9 Definition Selection Guide JP_COM3, JP_COM4: COM3 and COM4 Port pin9 RI/5V/12V Selection SELECTION JUMPER SETTING JUMPER ILLUSTRATION (Default Setting) JP_COM3 JP_COM4 +12V JP_COM3 JP_COM4 JP_COM4 JP_COM3 SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-9...

  • Page 35: Com Connectors (Com1, Com2)

    COM2_DCD COM2_RX COM2_TX COM2_DTR COM2_DSR COM2_RTS COM2_CTS COM2_RI Notes: COM2 is selectable as RS232, RS422, RS485 by BIOS setting. Default setting is RS232. Please see Chapter 5 “Advanced – Onboard Device Configuration” for selection details. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-10...

  • Page 36: Lan1, Lan2 Ports (Lan1, Lan2)

    Description: LAN1, LAN2 Port, LAN RJ-45 Port (Rear I/O) Green/Orange Yelow Green/Orange Yelow LAN1 / LAN2 LAN1 Pin Assignment: ASSIGNMENT LAN1_MDIP0 LAN1_MDIN0 LAN1_MDIP1 LAN1_MDIP2 LAN1_MDIN2 LAN1_MDIN1 LAN1_MDIP3 LAN1_MDIN3 LAN2 Pin Assignment: ASSIGNMENT LAN2_MDIP0 LAN2_MDIN0 LAN2_MDIP1 LAN2_MDIP2 LAN2_MDIN2 LAN2_MDIN1 LAN2_MDIP3 LAN2_MDIN3 SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-11...
  • Page 37 LAN LED Indicator Left Side LED Green Color 10/100Mbps LAN Speed Indicator Orange Color Giga LAN Speed Indicator No LAN Switch/HUB connect Right Side LED Yellow Color Blinking LAN Message Active No LAN Message Active SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-12...

  • Page 38: Dual Usb 3.0 Connectors (Usb1)

    USB3_TXP1 VCC5_USB1 3.5.5 USB 3.0 Connectors (USB2) Connector Location: USB2 Description: USB 3.0 Connectors USB 3.0 (USB2) signals: ASSIGNMENT ASSIGNMENT USB3_RXN4 USB3_RXP4 USB2_P4_DP USB3_TXN4 USB2_P4_DN USB3_TXP4 VCC5_USB2 USB3_RXN3 USB3_RXP3 USB2 USB2_P3_DP USB3_TXN3 USB2_P3_DN USB3_TXP3 VCC5_USB2 SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-13...

  • Page 39: Usb 2.0 Connector (Usb3)

    GPI/GPO 7 JDIO1 Notes: Users can set the GPI/GPO configuration via Protech’s API/Utility. Default setting is GPI every time when system AC power is re-applied from power failure state. Configuration can be still kept even in S5 state unless system AC power is lost.

  • Page 40: I2C Wafer (Ji2C1)

    3.5.9 MCU FW Rewrite Connector (JMCU1) Connector Location: JMCU1 Description: MCU FW Rewrite Connector ASSIGNMENT JMCU1 MCU_5VSB MCU_SPD MCU_SPC 3.5.10 DC Power Input Connector (PWR2) Connector Location: PWR2 Description: DC Power Input Connector PIN ASSIGNMENT PIN ASSIGNMENT VCC12 VCC12 PWR2 SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-15...

  • Page 41: Sysetm Fan Connector (Fan1)

    PIN ASSIGNMENT VCC12 SYSFANIN SYSFANOUT FAN1 Notes: Fan speed mode can be set by BIOS or API. Default BIOS setting is “Auto Duty-Cycle Mode”. Please see Chapter 5 or check API document for more details. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-16...

  • Page 42: Mini Pci Express Slot (M_Pcie1)

    Mini PCI Express is the successor of the Mini PCI card and provides an increased data throughput. The cards have a detached network interface and are equipped with one lane. They are used in particular in embedded designs or compact box PCs. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-17...

  • Page 43: Lvds Connector (Lvds1)

    LVDS Connector (LVDS1) Connector Location: LVDS1 Description: LVDS Connector LVDS1 ASSIGNMENT ASSIGNMENT LVDS_VCC LVDS_CLKB_DN LVDS_CLKB_DP LVDS_B2_DN LVDS_B2_DP LVDS_B1_DN LVDS_B1_DP LVDS_B3_DP LVDS_B3_DN LVDS_B0_DP LVDS_B0_DN LVDS_CLKA_DP LVDS_CLKA_DN LVDS_A2_DP LVDS_A2_DN LVDS_A1_DP LVDS_A1_DN LVDS_A0_DP LVDS_A0_DN LVDS_A3_DP LVDS_A3_DN LVDS_VCC LVDS_VCC SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-18...

  • Page 44: Slide Switch For Lvds Resolution Selection (Sw1)

    Slide Switch Location: SW1 Description: Slide Switch for LVDS Resolution/Channel/Color Bit Selection SELECTION SETTING 800 x 600 1CH/18bit 1024 x 768 1CH/18bit (Default Setting for SG-S151) 1024 x 768 1CH/24bit 1280 x 768 1CH/18bit 1200 x 800 1CH/18bit SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-19...
  • Page 45 Chapter 3 System Configuration 1280 x 960 1CH/24bit 1280 x 1024 2CH/24bit (Default Setting for SG-S171) 1366 x 768 1CH/18bit 1366 x 768 1CH/24bit 1440 x 900 2CH/24bit 1400 x 1050 2CH/24bit SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-20...
  • Page 46 Chapter 3 System Configuration 1600 x 900 2CH/24bit 1680 x 1050 2CH/24bit 1600 x 1200 2CH/24bit 1920 x 1080 2CH/24bit (Default Setting for SG-S211) 1920 x 1200 2CH/24bit SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-21...

  • Page 47: Front Panel Connector (Jfp1)

    POWER BTN 3.5.16 HD Audio Connector (AUDIO1) Connector Location: AUDIO1 Description: HD Audio Connector for Line In / Line Out / Mic In ASSIGNMENT ASSIGNMENT LINE-OUT-R LINE-OUT-L HD_GND HD_GND HD_LINE-IN-R HD_LINE-IN-L HD_GND HD_GND HD_MIC1-R HD_MIC1-L AUDIO1 SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-22...

  • Page 48: Panel Inverter Connector (Jinv1)

    Serial ATA (SATA) 3.0 Connector (SATA1) Connector Location: SATA1 Description: Serial ATA (SATA) 3.0 Connector ASSIGNMENT SATA_TXP0 SATA_TXN0 SATA_RXN0 SATA1 SATA1 SATA_RXP0 3.5.19 SATA Power Connector (SATA_PWR1) Connector Location: SATA_PWR1 Description: Serial ATA Power Connector ASSIGNMENT VCC5 SATA_PWR1 SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-23...

  • Page 49: Bios Reset Connector (Jp9)

    Chapter 3 System Configuration 3.5.20 BIOS Reset Connector (JP9) Connector Location: JP9 Description: This connector is only for Protech's engineers. (Purpose: BIOS reset). Please do not use this connector; otherwise, the system might be crashed. 3.5.21 LVDS Backlight Control Selection (JP7) Jumper Location: JP7 Description: Jumper for selecting PIN5 (LVDS_BKLTEN) voltage of JINV1.

  • Page 50: Lvds Vcc Voltage Selection (Jp_Vdd1)

    (LVDS_VCC) voltage of LVDS1. SELECTION JUMPER SETTING JUMPER ILLUSTRATION 3.3V (Default Setting for SG-S151) JP_VDD1 (Default Setting for SG-S171 and SG-S211) JP_VDD1 Note: Please refer to PANEL INVERTER CONNECTOR for more information about pin definition of JINV1. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-25...

  • Page 51: Clear Cmos Data Selection (Jp4)

    Step 4. Power on the PC and the PC will then auto-reboot for once in order to set SoC’s register. Step 5. Done! SELECTION JUMPER SETTING JUMPER ILLUSTRATION Open Normal (Default Setting) Clear CMOS* Note: Please make sure the main power is off before clearing CMOS. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-26...

  • Page 52: External M12 Waterproof Connectors

    Description: External USB 2.0 connectors Pin Assignment: ASSIGNMENT USB0_VCC5 USB0_P1_DN USB0_P2_DP USB0_GND USB1_VCC5 USB1_P1_DN USB1_P2_DP USB 2.0 USB1_GND 3.6.2 Power Button Location: Power Button Description: Power Button ASSIGNMENT Power BTN Power LED + Power Button SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-27...

  • Page 53: Lan1, Lan2 Ports

    Port Location: LAN1, LAN2 Description: LAN1, LAN2 Port LAN1 Pin Assignment: ASSIGNMENT LAN1_MDIP0 LAN1_MDIN0 LAN1_MDIP1 LAN1_MDIP2 LAN1_MDIN2 LAN1 / LAN2 LAN1_MDIN1 LAN1_MDIP3 LAN1_MDIN3 LAN2 Pin Assignment: ASSIGNMENT LAN2_MDIP0 LAN2_MDIN0 LAN2_MDIP1 LAN2_MDIP2 LAN2_MDIN2 LAN2_MDIN1 LAN2_MDIP3 LAN2_MDIN3 SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-28...

  • Page 54: Com Connector

    RS-232 RS-422 RS-485 (Default Setting) COM2_DCD# COM2_RX COM2_TX COM2_DTR COM2 COM2_DSR COM2_RTS COM2_CTS COM2_RI 3.6.5 DC Power Input Connector Connector Location: DC In Description: DC Power Input Connector ASSIGNMENT PWR_VCC12 PWR_GND Power BTN DC In SG-S151/SG-S171/SG-S211 USER MANUAL Page: 3-29...

  • Page 55: Software Utilities

    Trusted Execution Engine Driver Utility • Installing Microsoft Hotfix kb3211320 and kb3213986 Driver Utility • Installing Graphics Driver Utility • Installing LAN Driver Utility • Installing Sound Driver Utility ® • Installing Intel Serial I/O Driver Utility SG-S151/SG-S171/SG-S211 USER MANUAL Page: 4-1...

  • Page 56: Introduction

    Chapter 4 Software Utilities 4.1 Introduction Enclosed with SG-S151 / SG-S171 / SG-S211 Series package is our driver utilities contained in a DVD-ROM disk. Refer to the following table for driver locations: Filename (Assume that Purpose DVD- ROM drive is D :)

  • Page 57: Installing Intel ® Chipset Software Installation Utility

    Click SetupChipset.exe file for driver installation. Follow the on-screen instructions to install the driver. Once the installation is completed, shut down the system and restart SG-S151 / SG-S171 / SG-S211 for the changes to take effect. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 4-3...

  • Page 58: Installing Intel ® Trusted Execution Engine Installation Utility

    Click the SetupTXE.exe file for driver installation. Follow the on-screen instructions to complete the installation. Once the installation is completed, shut down the system and restart SG-S151 / SG-S171 / SG-S211 for the changes to take effect. SG-S151/SG-S171/SG-S211 USER MANUAL...

  • Page 59: Installing Microsoft Hotfix Kb3211320 And Kb3213986 Driver

    To install the utility, simply follow the steps below: Connect the USB DVD-ROM device to SG-S151 / SG-S171 / SG-S211 and insert the driver disk. Enter the Hotfix folder where the driver is located.

  • Page 60: Installing Graphics Driver Utility

    Click the Setup.exe file for driver installation. Follow the on-screen instructions to complete the installation. Once the installation is completed, shut down the system and restart SG-S151 / SG-S171 / SG-S211 for the changes to take effect. SG-S151/SG-S171/SG-S211 USER MANUAL...

  • Page 61: Installing Lan Driver Utility

    Follow the on-screen instructions to complete the installation. Once the installation is completed, shut down the system and restart SG-S151 / SG-S171 / SG-S211 for the changes to take effect. For more details on the installation procedure, refer to the Readme.txt file that you can find on LAN Driver Utility.

  • Page 62: Installing Sound Driver Utility

    Click the Setup.exe for driver installation. Follow the on-screen instructions to complete the installation. Once the installation is completed, shut down the system and restart SG-S151 / SG-S171 / SG-S211 for the changes to take effect. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 4-8...

  • Page 63: Installing Intel ® Serial I/O Driver Utility

    Click the SetupSerialIO.exe file for driver installation. Follow the on-screen instructions to complete the installation. Once the installation is completed, shut down the system and restart SG-S151 / SG-S171 / SG-S211 for the changes to take effect. SG-S151/SG-S171/SG-S211 USER MANUAL...

  • Page 64: Bios Setup

    The BIOS Setup Utilities consist of the following menu items: Main Menu • Advanced Menu • Chipset Menu • Security Menu • Boot Menu • Save & Exit Menu • SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-1...

  • Page 65: Introduction

    Chapter 5 BIOS Setup 5.1 Introduction The SG-S151 / SG-S171 / SG-S211 System uses an AMI (American Aptio BIOS that is stored in the Serial Megatrends Incorporated) Peripheral Interface Flash Memory (SPI Flash) and can be updated. The SPI Flash contains the built-in BIOS setup program, Power-On Self-Test (POST), PCI auto-configuration utility, LAN EEPROM information, and Plug and Play support.
  • Page 66 After the system is powered on, users can access the BIOS setup menu by pressing <Del> or <Esc> immediately while the POST message is running before the operating system is loading. All the menu settings are described in details in this chapter. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-3...

  • Page 67: Accessing Setup Utility

    Self-Test (POST) routines and the POST message will be displayed: Figure 5-2. POST Screen with AMI Logo Press <Del> or <Esc> to access the Setup Utility program and the Main menu of the Aptio Setup Utility will appear on the screen as below: SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-4...
  • Page 68 US English. You may use <↑> or <↓> key to select among the items and press <Enter> to confirm and enter the sub-menu. The following table provides the list of the navigation keys that you can use while operating the BIOS setup menu. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-5...
  • Page 69 <F2> Load the previous configuration values. <F3> Load the default configuration values. <F4> Save the current values and exit the BIOS setup menu. <Esc> Close the sub-menu. Trigger the confirmation to exit BIOS setup menu. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-6...

  • Page 70: Main

    Displays the date of current BIOS version. Time Access Level No changeable options Displays the current access level. BXT SOC No changeable options Displays the SOC stepping. MRC Version No changeable options Displays the MRC version. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-7...
  • Page 71 The “Day” is automatically changed. Sets the system time. The format is [Hour: Minute: Second]. Users can directly enter System Time Hour, minute, second values or use <+> or <-> arrow keys to increase/decrease it. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-8...

  • Page 72: Advanced

    F81964 Watchdog Sub-Menu Watchdog timer parameters. S5 RTC Wake Settings Sub-Menu RTC wake parameters. CPU Configuration Sub-Menu CPU configuration parameters. F81964 Super IO Sub-Menu System Super I/O chip parameters Configuration USB Configuration Sub-Menu USB configuration parameters. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-9...

  • Page 73: Advanced - Acpi Settings

    - Disabled Hibernate (OS/S4 Sleep State). This Enable Hibernation (S4) Enabled (default) option may be not effective with some - Disabled Enables or Disables System ability to Enable Sleep (S3) Enabled (default) Sleep (OS/S3 Sleep State). SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-10...

  • Page 74: Advanced - Onboard Device Configuration

    Advanced > Onboard Device Configuration Menu Path The Onboard Device Configuration allows users to select COM2 Mode. Onboard Device Configuration Screen BIOS Setting Options Description/Purpose - RS-422 COM2 Mode Selection - RS-232 (default) Selects COM2 mode. - RS-485 SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-11...

  • Page 75: Advanced - Hardware Monitor

    Detects and displays the voltage level VCC12V No changeable options of VCC12V. Detects and displays the voltage level VCC3V No changeable options of VCC3V in supply. Detects and displays the voltage level VSB3V No changeable options of VSB3V. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-12...

  • Page 76: Advanced - F81964 Watchdog Configuration

    BIOS Setting Options Description/Purpose - Enabled Enables/Disables F81964 Watchdog Enable Watchdog - Disabled (default) timer settings. Watchdog Timer Numeric Sets the timeout for Watchdog timer. Count (from 10 to 255) Watchdog Timer = 1sec * Count SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-13...

  • Page 77: Advanced - S5 Rtc Wake Settings

    • Fixed Time: The system will wake - Disabled (default) Wake system from S5 - Fixed Time on the time (hr::min::sec) specified. - Dynamic Time • Dynamic Time: The system will wake on the current time + increased minute(s). SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-14...

  • Page 78: S5 Rtc Wake Settings [Fixed Time]

    (Numeric) from 0 to 23 power-on event. Sets a minute for a scheduled Wake up minute (Numeric) from 0 to 59 power-on event. Sets a second for a scheduled Wake up second (Numeric) from 0 to 59 power-on event. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-15...

  • Page 79: S5 Rtc Wake Settings [Dynamic Time]

    S5 RTC Wake Setting Screen (Dynamic Time) BIOS Setting Options Description/Purpose Sets a period of time (in minutes) to Wake up minute increase (Numeric) from 1 to 5 wake up the system after it enters S5 state. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-16...

  • Page 80: Advanced - Cpu Configuration

    CPU power management options. When enabled, a VMM can utilize Intel Virtualization - Disabled the additional hardware capabilities Technology - Enabled (default) provided by Vanderpool Technology. - Disabled (default) VT-d Enables/Disables CPU VT-d. - Enabled SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-17...

  • Page 81: Socket 0 Cpu Information

    No changeable options Displays L1 Data Cache Size. L1 Code Cache No changeable options Displays L1 Code Cache Size. L2 Cache No changeable options Displays L2 Cache Size. L3 Cache No changeable options Displays L3 Cache Size. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-18...

  • Page 82: Cpu Power Management Configuration

    Menu Path Advanced > CPU Configuration > CPU Power Management Configuration CPU Power Management Configuration Screen BIOS Setting Options Description/Purpose Enables/Disables Intel Speed Step - Disabled EIST feature for dynamic scaling processor - Enabled (default) frequency. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-19...

  • Page 83: Advanced - F81964 Super Io Configuration

    Menu Path Advanced > F81964 Super IO Configuration F81964 Super IO Configuration Screen BIOS Setting Options Description/Purpose Displays the super I/O chip Super IO Chip (F81964) No changeable options model. Serial Port Sub-Menu COM2 parameters. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-20...
  • Page 84 No changeable options setting. -Auto (default) Allows users to change -IO=2F8h; IRQ=3 Device's Resource settings. -IO=3F8h; IRQ=3,4,5,7,9,10,11,12; Change Settings New settings will be reflected -IO=2F8h; IRQ=3,4,5,7,9,10,11,12; on this Setup Page after -IO=3E8h; IRQ=3,4,5,7,9,10,11,12; System restarts. -IO=2E8h; IRQ=3,4,5,7,9,10,11,12; SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-21...

  • Page 85: Advanced - Usb Configuration

    AUTO enumerates devices according -Floppy to their media format. Optical drives MASS STORAGE -Forced FDD are emulated as 'CD-ROM', drives with DEVICES: [drive(s)] -Hard Disk no media will be emulated according to -CD-ROM a drive type. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-22...

  • Page 86: Chipset

    This menu allows users to configure advanced Chipset settings such as North Bridge and South Bridge configuration parameters. Chipset Screen BIOS Setting Options Description/Purpose North Bridge Sub-Menu North Bridge Parameters. South Bridge Sub-Menu South Bridge Parameters. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-23...

  • Page 87: Chipset - North Bridge

    "8192 MB (LPDDR3)". Memory Speed No changeable options Displays the memory speed. Displays the current amount and type of Memory Slot0 No changeable options memory on each memory slot, e.g. "8192 MB (LPDDR3)". SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-24...

  • Page 88: Chipset - South Bridge

    Chipset – South Bridge Menu Path Chipset > South Bridge South Bridge Screen BIOS Setting Options Description/Purpose PCI Express Configuration Sub-Menu PCI Express Configuration Settings. SATA Drives Sub-Menu SATA Device Configuration Settings. Miscellaneous Configuration Sub-Menu Miscellaneous Configuration Settings. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-25...

  • Page 89: Chipset - South Bridge - Pci Express Configuration

    (I210 LAN) (I210 LAN) parameters. PCI Express Root Port 2 PCI Express Root Port 2 Sub-Menu (I210 LAN) (I210 LAN) parameters. PCI Express Root Port 3 PCI Express Root Port 3 Sub-Menu (Mini-PCIe) (Mini-PCIe) parameters. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-26...
  • Page 90 - Auto (default) • Enabled: Enables PCI Express Root Port 1 (I210 LAN). • Disabled: Disables PCI Express Root Port 1 (I210 LAN). - Auto (default) PCIe Speed - Gen1 Configures PCIe speed. - Gen2 SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-27...
  • Page 91 - Auto (default) • Enabled: Enables PCI Express Root Port 2 (I210 LAN). • Disabled: Disables PCI Express Root Port 2 (I210 LAN). - Auto (default) PCIe Speed - Gen1 Configures PCIe speed. - Gen2 SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-28...
  • Page 92 - Enabled (Mini-PCIe) • Enabled: Enables PCI Express Root - Auto (default) Port 3 (Mini-PCIe). • Disabled: Disables PCI Express Root Port 3 (Mini-PCIe). - Auto (default) PCIe Speed - Gen1 Configures PCIe speed. - Gen2 SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-29...

  • Page 93: Chipset - South Bridge - Sata Drives

    - Enabled (default) SATA Controller. Displays SATA drive branding SATA Port 0 No changeable options information if the device exists on port 0. - Disabled Port 0 Enables or Disables SATA Port 0. - Enabled (default) SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-30...

  • Page 94: Chipset - South Bridge - Miscellaneous Configuration

    - Disabled Win 8/8.1/10 doesn't support WOL from Wake On Lan - Enabled (default) hybrid shutdown state (S4). If users need WOL from classic shutdown state (S5), please turn off 'fast startup' feature in OS. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-31...

  • Page 95: Security

    Setup utility. Security Screen BIOS Setting Options Description/Purpose Setup Administrator Password can be 3-20 Specifies the administrator password. Password alphanumeric characters. Password can be 3-20 User Password Specifies the user password. alphanumeric characters. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-32...
  • Page 96 <Enter>, and the password dialog entry box appears. Select the configured Administrator Password or User Password that you want to delete. Leave the dialog box blank and press <Enter>. Press <Enter> again when the password confirmation box appears. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-33...

  • Page 97: Boot

    • On: Enables the NumLock function Bootup - On (default) automatically after the system is NumLock State - Off powered on. • Off: Disables the NumLock function after the system is powered on. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-34...
  • Page 98 Allows users to change the boot order from the available device(s). Boot Option - [Drive(s)] Note that in the menu displayed, you will #1~#n - Disabled only see the device with the highest priority for a specific boot device type. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-35...

  • Page 99: Save & Exit

    Discard Changes and Reset to discard any changes you have made and restore the factory BIOS defaults. Load User Defaults You may simply press F3 at any time to load the Optimized Values which resets all BIOS settings to the factory defaults. Save & Exit Screen SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-36...
  • Page 100 Saves the changes done so far as User No changeable options Defaults Defaults. Restore User Restores the User Defaults to all the setup No changeable options Defaults options. Boot Override - [Drive(s)] Forces to boot from selected [drive(s)]. SG-S151/SG-S171/SG-S211 USER MANUAL Page: 5-37...

  • Page 102: Appendix A System Diagrams

    Appendix A System Diagrams This appendix includes the exploded diagrams of the system and the parts list as well as the part numbers of the SG-S151 / SG-S171 / SG-S211 system. • SG-S151 System Exploded Diagram • SG-S171 System Exploded Diagram •...
  • Page 103 Appendix A System Diagrams SG-S151 System Exploded Diagram Component Name P/N No. Q’ty SG-S151 AL Heat Sink 986 21-002-10090001 (300x190x3mm) Metal (Bracket) SG-S151 Front Cover Bracket 20-106-07001467 SG-S151 LCD Bracket 20-106-03001467 SG-S151 Rear Cover Bracket 20-106-07002467 SG-S151 HDD Bracket 20-106-03002467...
  • Page 104 Slip Nuts (M6x1.0P,H=6mm) 23-142-60601271 15" 5-Wire Resistive Touch Panel 52-380-00052417 15" Projected Capacitive Touch Panel 52-380-00150517 LCD Panel 52-351-03016802 Touch Control Board (available for -Wire 52-370-01040504 Resistive Touch Panel) BE-0986RB-M4N / BE-0986 Main Board BE-0986RB-G1N / BE-0986RB-J0N SG-S151/SG-S171/SG-S211 USER MANUAL Page: A-3...
  • Page 105 Appendix A System Diagrams SG-S171 System Exploded Diagram Component Name P/N No. Q’ty SG-S151 AL Heat Sink 986 21-002-10090001 (300x190x3mm) Metal (Bracket) SG-S171 Front Cover Bracket 20-106-07002486 SG-S171 LCD Bracket 80-106-03001486 SG-S171 Rear Cover Bracket 20-106-07001486 SG-S151 HDD Bracket 20-106-03002467...
  • Page 106 17" 5-Wire Resistive Touch Panel 52-380-04211114 17'' P-CAP Touch Panel 52-380-04381714 17" TFT LCD Panel(LED 52-351-04017002 Backlight),350nits, SXGA (1280x1024) Touch Control Board (available for -Wire 52-370-01405104 Resistive Touch Panel) BE-0986RB-G1N / BE-0986 Main Board BE-0986RB-J0N SG-S151/SG-S171/SG-S211 USER MANUAL Page: A-5...

  • Page 107: Sg-S211 System Exploded Diagram

    Appendix A System Diagrams SG-S211 System Exploded Diagram 20 26 Component Name P/N No. Q’ty SG-S151 AL Heat Sink 986 21-002-10090001 (300x190x3mm) Metal (Bracket) SG-S211 Front Cover Bracket 20-106-07001479 SG-S211 LCD Bracket 80-106-03001479 SG-S211 Rear Cover Bracket 20-106-07002479 SG-S151 HDD Bracket...
  • Page 108 Adjustable Hand Levers 20-035-35001000 Truss Head Screw (SUS304) #3 / 22-240-60008011 M6x1.0Px8mm Slip Nuts (M6x1.0P,H=6mm) 23-142-60601271 21.5" 5-Wire Resistive Touch Panel 21.5'' Capacitive Touch Panel 52-380-13795701 21.5" TFT LCD Panel(LED 52-351-13215202 Backlight),350nits(1920x1080) BE-0986 Main Board BE-0986RB-J0N SG-S151/SG-S171/SG-S211 USER MANUAL Page: A-7...

  • Page 109: Vesa Mount Installation Exploded Diagram

    Appendix A System Diagrams VESA Mount Installation Exploded Diagram Wall SG-S151/SG-S171/SG-S211 USER MANUAL Page: A-8...

  • Page 110: Stand Kit Installation Exploded Diagram

    Step 2. Fasten the two handles into the side holes of the Stand Kit to secure the system and complete. Stand Kit Stand Installation Accessories Handle x 2 Stand Kit x 1 + Screw x 4 SG-S151/SG-S171/SG-S211 USER MANUAL Page: A-9...

  • Page 111: Sg-S151 Packing Exploded Diagram

    Appendix A System Diagrams SG-S151 Packing Exploded Diagram Component Name P/N No. Q’ty SP-7755 Power Cable ( L=1800mm) 27-019-42636111 Mylar 335x260x0.125mm 30-056-02100008 PE Bag 480X460 (42X56CMx0.07) 32-10020010000 MH-5100-VR Plastic Box Outer Carton 34-001-01401378 (543x413x243mm) Card Board (400x300) 34-004-01301008 Silica Gel1gm...

  • Page 112: Sg-S171 Packing Exploded Diagram

    PE Bag 870x670x0.07mm 34-010-00210003 MM-7017R Basic Style Outer Carton 94-001-01401258 (532x487x203mm) Card Board (400x300) 34-004-01301008 SILICA GEL 1gm 34-005-00010007 DVD-R (w/Protech logo) For OBM 52-601-02000005 PT-1920 Carton Boxes (340x278x60mm) 94-003-01301318 SG-S171 PPC EPE (475x185x192mm) 94-016-00304486 Electroforming Paster ("Prox" Logo L) 34-017-02201000 SG-S171...

  • Page 113: Sg-S211 Packing Exploded Diagram

    PE Bag 870x670x0.07mm 34-010-00210003 SG-S211 Outer Carton 94-001-01401479 (680x490x200mm) Card Board (400x300) 34-004-01301008 SILICA GEL 1gm 34-005-00010007 DVD-R (w/Protech logo) For OBM 52-601-02000005 PT-1920 Carton Boxes (340x278x60mm) 94-003-01301318 SG-S211 PPC EPE (475x185x192mm) 94-016-00304479 Electroforming Paster ("Prox" Logo L) 34-017-02201000 SG-S211...

  • Page 114: Appendix B Technical Summary

    This appendix will give you a brief introduction of the allocation maps for the system resources. The following topics are included: • BE-0986 Block Diagram • Interrupt Map • I/O Map • Memory Map • Configuring WatchDog Timer • Flash BIOS Update SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-1...

  • Page 115: Be-0986 Block Diagram

    Appendix B Technical Summary BE-0986 Block Diagram SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-2...

  • Page 116: Interrupt Map

    IRQ 78 Microsoft ACPI-Compliant System IRQ 79 Microsoft ACPI-Compliant System IRQ 80 Microsoft ACPI-Compliant System IRQ 81 Microsoft ACPI-Compliant System IRQ 82 Microsoft ACPI-Compliant System IRQ 83 Microsoft ACPI-Compliant System IRQ 84 Microsoft ACPI-Compliant System SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-3...
  • Page 117 IRQ 113 Microsoft ACPI-Compliant System IRQ 114 Microsoft ACPI-Compliant System IRQ 115 Microsoft ACPI-Compliant System IRQ 116 Microsoft ACPI-Compliant System IRQ 117 Microsoft ACPI-Compliant System IRQ 118 Microsoft ACPI-Compliant System IRQ 119 Microsoft ACPI-Compliant System SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-4...
  • Page 118 IRQ 148 Microsoft ACPI-Compliant System IRQ 149 Microsoft ACPI-Compliant System IRQ 150 Microsoft ACPI-Compliant System IRQ 151 Microsoft ACPI-Compliant System IRQ 152 Microsoft ACPI-Compliant System IRQ 153 Microsoft ACPI-Compliant System IRQ 154 Microsoft ACPI-Compliant System SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-5...
  • Page 119 IRQ 183 Microsoft ACPI-Compliant System IRQ 184 Microsoft ACPI-Compliant System IRQ 185 Microsoft ACPI-Compliant System IRQ 186 Microsoft ACPI-Compliant System IRQ 187 Microsoft ACPI-Compliant System IRQ 188 Microsoft ACPI-Compliant System IRQ 189 Microsoft ACPI-Compliant System SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-6...
  • Page 120 IRQ 269 Microsoft ACPI-Compliant System IRQ 270 Microsoft ACPI-Compliant System IRQ 271 Microsoft ACPI-Compliant System IRQ 272 Microsoft ACPI-Compliant System IRQ 273 Microsoft ACPI-Compliant System IRQ 274 Microsoft ACPI-Compliant System IRQ 275 Microsoft ACPI-Compliant System SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-7...
  • Page 121 IRQ 304 Microsoft ACPI-Compliant System IRQ 305 Microsoft ACPI-Compliant System IRQ 306 Microsoft ACPI-Compliant System IRQ 307 Microsoft ACPI-Compliant System IRQ 308 Microsoft ACPI-Compliant System IRQ 309 Microsoft ACPI-Compliant System IRQ 310 Microsoft ACPI-Compliant System SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-8...
  • Page 122 IRQ 339 Microsoft ACPI-Compliant System IRQ 340 Microsoft ACPI-Compliant System IRQ 341 Microsoft ACPI-Compliant System IRQ 342 Microsoft ACPI-Compliant System IRQ 343 Microsoft ACPI-Compliant System IRQ 344 Microsoft ACPI-Compliant System IRQ 345 Microsoft ACPI-Compliant System SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-9...
  • Page 123 IRQ 374 Microsoft ACPI-Compliant System IRQ 375 Microsoft ACPI-Compliant System IRQ 376 Microsoft ACPI-Compliant System IRQ 377 Microsoft ACPI-Compliant System IRQ 378 Microsoft ACPI-Compliant System IRQ 379 Microsoft ACPI-Compliant System IRQ 380 Microsoft ACPI-Compliant System SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-10...
  • Page 124 IRQ 409 Microsoft ACPI-Compliant System IRQ 410 Microsoft ACPI-Compliant System IRQ 411 Microsoft ACPI-Compliant System IRQ 412 Microsoft ACPI-Compliant System IRQ 413 Microsoft ACPI-Compliant System IRQ 414 Microsoft ACPI-Compliant System IRQ 415 Microsoft ACPI-Compliant System SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-11...
  • Page 125 IRQ 444 Microsoft ACPI-Compliant System IRQ 445 Microsoft ACPI-Compliant System IRQ 446 Microsoft ACPI-Compliant System IRQ 447 Microsoft ACPI-Compliant System IRQ 448 Microsoft ACPI-Compliant System IRQ 449 Microsoft ACPI-Compliant System IRQ 450 Microsoft ACPI-Compliant System SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-12...
  • Page 126 IRQ 479 Microsoft ACPI-Compliant System IRQ 480 Microsoft ACPI-Compliant System IRQ 481 Microsoft ACPI-Compliant System IRQ 482 Microsoft ACPI-Compliant System IRQ 483 Microsoft ACPI-Compliant System IRQ 484 Microsoft ACPI-Compliant System IRQ 485 Microsoft ACPI-Compliant System SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-13...
  • Page 127 Intel(R) I210 Gigabit Network Connection #2 IRQ 4294967282 Intel(R) I210 Gigabit Network Connection #2 IRQ 4294967283 Intel(R) I210 Gigabit Network Connection IRQ 4294967284 Intel(R) I210 Gigabit Network Connection IRQ 4294967285 Intel(R) I210 Gigabit Network Connection SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-14...
  • Page 128 Standard SATA AHCI Controller IRQ 4294967293 Intel(R) Celeron(R)/Pentium(R) Processor PCI Express Root Port - 5AD9 IRQ 4294967294 Intel(R) Celeron(R)/Pentium(R) Processor PCI Express Root Port - 5AD8 Note: These resource information were gathered using Windows 10. SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-15...

  • Page 129: I/O Map

    Programmable interrupt controller 0x000000AC-0x000000AD Programmable interrupt controller 0x000000B0-0x000000B1 Programmable interrupt controller 0x000000B2-0x000000B3 Motherboard resources 0x000000B4-0x000000B5 Programmable interrupt controller 0x000000B8-0x000000B9 Programmable interrupt controller 0x000000BC-0x000000BD Programmable interrupt controller 0x000002F8-0x000002FF Communications Port (COM2) 0x00000400-0x0000047F Motherboard resources 0x000004D0-0x000004D1 Programmable interrupt controller SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-16...
  • Page 130 Intel(R) Celeron(R)/Pentium(R) Processor 0x0000E000-0x0000EFFF PCI Express Root Port - 5AD8 Intel(R) HD Graphics 0x0000F000-0x0000F03F Intel(R) Celeron(R)/Pentium(R) Processor 0x0000F040-0x0000F05F SMBUS - 5AD4 0x0000F060-0x0000F07F Standard SATA AHCI Controller 0x0000F080-0x0000F083 Standard SATA AHCI Controller 0x0000F090-0x0000F097 Standard SATA AHCI Controller SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-17...

  • Page 131: Memory Map

    PCI Express Root Port - 5AD8 0x80000000-0xCFFFFFFF PCI Express Root Complex 0x80000000-0xCFFFFFFF Intel(R) HD Graphics Intel(R) Trusted Execution Engine 0x91217000-0x91217FFF Interface 0x90000000-0x90FFFFFF Intel(R) HD Graphics 0x91210000-0x9121FFFF Standard SATA AHCI Controller 0x91214000-0x913140FF Standard SATA AHCI Controller SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-18...
  • Page 132 Appendix B Technical Summary Memory Map Assignment 0x91213000-0x913137FF Standard SATA AHCI Controller 0x7B800001-0x7BFFFFFF PCI Express Root Complex 0x7C000001-0x7FFFFFFF PCI Express Root Complex SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-19...

  • Page 133: Configuring Watchdog Timer

    To exit the Extended Function Mode, writing 0xAA to the EFER is required. Once the chip exits the Extended Function Mode, it is in the normal running mode and is ready to enter the configuration mode. SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-20...
  • Page 134 ;---------------------------------Enable Watch dog feature ------------------------------ ; ---------------- Set timeout interval as 30seconds and start counting -------------- ;------------------------------- Enable Watch PME-------------------------------------------- ;-------------------------- Set second as counting unit -------------------------------------- ;-------------------------- Start the watchdog timer -------------------------------------- ;---------------------------------Exit the extended function mode ------------------------- SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-21...

  • Page 135: Flash Bios Update

    (3) The system will go into the BIOS setup menu. (4) Select [Boot] menu and set USB bootable device as the 1st boot device. (5) Press <F4> key to save the configuration and exit the BIOS setup menu. SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-22...
  • Page 136 /?” to view the definition of each control option. The recommended options for BIOS ROM update include the following parameters: Program main BIOS image. /B: Program Boot Block. /N: Program NVRAM. /X: Don’t check ROM ID. SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-23...
  • Page 137 After the BIOS update procedure is completed, the following messages will display: Restart the system and boot up with the new BIOS configurations. The BIOS Update is completed after the system is restarted. SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-24...
  • Page 138 Appendix B Technical Summary Reboot the system and verify if the BIOS version shown on the initialization screen has been updated. SG-S151/SG-S171/SG-S211 USER MANUAL Page: B-25...

This manual is also suitable for:

Sg-s171Sg-s211

Table of Contents
