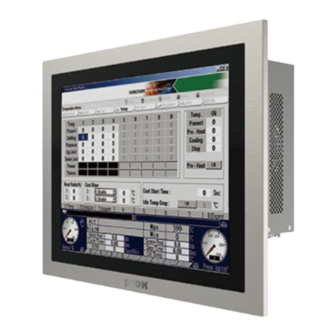

protech SP-S154 User Manual

Intel® 7th gen. coretm i7/i5/i3 processor high performance and low power panel pc
Hide thumbs Also See for SP-S154:
Table of Contents

Advertisement

Quick Links

Download this manual
USER
MANUAL
SP-SXX4 M3
SP-S154 / SP-S174
SP-S214
Intel
7th Gen. Core
®
Processor High Performance
and Low Power Panel PC
i7/i5/i3
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-S154 and is the answer not in the manual?

Questions and answers

Related Manuals for protech SP-S154

Summary of Contents for protech SP-S154

  • Page 1 USER MANUAL SP-S154 / SP-S174 SP-S214 Intel 7th Gen. Core i7/i5/i3 ® Processor High Performance and Low Power Panel PC SP-SXX4 M3...
  • Page 2 SP-S154 / SP-S174 / SP-S214 High Performance Panel PC COPYRIGHT NOTICE & TRADEMARK All trademarks and registered trademarks mentioned herein are the property of their respective owners. This manual is copyrighted in Mar. 2021. You may not reproduce or transmit in any form or by any means, electronic, or mechanical, including photocopying and recording.
  • Page 3 FCC NOTICE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 4: Table Of Contents

    Safety Precautions ..............2-18 System Configuration ................. 3-1 External I/O Ports Diagram ............3-2 3.1.1 SP-S154 / SP-S174 / SP-S214 Rear I/O Ports Diagram ..3-2 Jumper & Connector Quick Reference Table ......3-3 Component Locations of System Main Board......3-5 3.3.1 Top View of System Main Board BM-2502 ......
  • Page 5 3.5.5 LAN and USB 3.0 Ports ............ 3-16 3.5.6 LAN2 Port Enable Selection ..........3-18 3.5.7 4 x 1 USB 2.0 Connectors ..........3-19 3.5.8 Internal USB 2.0 Connector ..........3-20 3.5.9 Dual DVI-D Ports (DVI1) ........... 3-21 3.5.10 DisplayPort Connector (Optional) ........3-23 3.5.11 HD Audio Connector ............
  • Page 6 3.7.1 VDD Selection ..............3-41 3.7.2 Backlight Voltage Selection ..........3-42 3.7.3 PWM Voltage Selection ............ 3-43 3.7.4 LVDS (Low Voltage Differential Signaling) Resolution Selection ................3-44 Software Utilities ................. 4-1 Introduction................. 4-2 ® Installing Intel Chipset Software Installation Utility ....4-3 4.2.1 Introduction .................
  • Page 7 5.4.3 Advanced – ACPI Settings ..........5-12 5.4.4 Advanced – PCH-FW Settings ......... 5-13 5.4.5 Advanced – F81866 Super IO Configuration ....5-14 5.4.5.1 F81866 Super IO Configuration - Serial Port 1 Configuration…..............5-15 5.4.5.2 F81866 Super IO Configuration - Serial Port 2 Configuration…..............
  • Page 8 Appendix A System Diagrams ............ A-1 SP-S154 System Exploded Diagram (Resistance) ........A-2 SP-S154 Touch Panel & LCD Display Exploded Diagram (Resistance) .. A-3 SP-S154 Box PC Exploded Diagram (Resistance) ........A-5 SP-S154 HDD Module Exploded Diagram (Resistance) ......A-7 SP-S154 HDD Tray Exploded Diagram (Resistance) .........
  • Page 9 .......................... A-25 SP-S174 Box PC Exploded Diagram (Capacitance) ........ A-27 SP-S174 HDD Module Exploded Diagram (Capacitance) ....... A-29 SP-S174 HDD Tray Exploded Diagram (Capacitance) ......A-30 SP-S174 Packing Exploded Diagram ............A-31 SP-S214 System Exploded Diagram ............A-32 SP-S214 Touch Panel & LCD Display Exploded Diagram ....... A-33 SP-S214 LCD Panel Exploded Diagram (1) ..........

  • Page 10: Revision History

    Revision History The revision history of SP-S154 / SP-S174 / SP-S214 User Manual is described below: Version No. Revision History Page No. Date • Revised the Top View diagram of System Main Board BM-2502. 2021/03 • Revised the Jumper Settings of BM-2502RB-**N.

  • Page 11: Introduction

    Introduction This chapter provides the introduction for the SP-S154 / SP-S174 / SP-S214 system as well as the framework of the user manual. The following topic is included: • About This Manual SP-SXX4 SERIES USER MANUAL Page: 1-1...

  • Page 12: About This Manual

    Chapter 1 Introduction About This Manual Thank you for purchasing our SP-S154 / SP-S174 / SP-S214 system. The SP-S154 / SP-S174 / SP-S214 is an updated system designed to be comparable with the highest performance of IBM AT personal computers. The SP-S154 / SP-S174 / SP-S214 provides faster processing speed, greater expandability and can handle more tasks than before.

  • Page 13: Getting Started

    Getting Started This chapter provides the information for the SP-S154 / SP-S174 / SP-S214 system. It describes how to set up the system quickly and outlines the system specifications. The following topics are included: • Package List • System Overview •...

  • Page 14: Package List

    Chapter 2 Getting Started Package List If you discover any of the items listed below are damaged or lost, please contact your local distributor immediately. SP-S154 Item Q’ty SP-S154 Manual / Driver DVD Quick Guide SATA Cable SP-S174 Item Q’ty...

  • Page 15: System Overview

    Chapter 2 Getting Started System Overview SP-S154 Unit: mm Front View Rear View 100 (VESA) 75 (VESA) 42.50 SP-SXX4 SERIES USER MANUAL Page: 2-3...
  • Page 16 Chapter 2 Getting Started Top View 6.50 Bottom View SP-SXX4 SERIES USER MANUAL Page: 2-4...
  • Page 17 Chapter 2 Getting Started Left Side View Right Side View 97.55 10.20 SP-SXX4 SERIES USER MANUAL Page: 2-5...
  • Page 18 Chapter 2 Getting Started SP-S174 Front View Rear View 100(VESA) 75(VESA) 42.50 SP-SXX4 SERIES USER MANUAL Page: 2-6...
  • Page 19 Chapter 2 Getting Started Top View 6.50 Bottom View SP-SXX4 SERIES USER MANUAL Page: 2-7...
  • Page 20 Chapter 2 Getting Started Left Side View Right Side View 102.55 10.20 SP-SXX4 SERIES USER MANUAL Page: 2-8...
  • Page 21 Chapter 2 Getting Started SP-S214 Front View Rear View 100(VESA) 75(VESA) 42.5 SP-SXX4 SERIES USER MANUAL Page: 2-9...
  • Page 22 Chapter 2 Getting Started Top View 527.80 Bottom View SP-SXX4 SERIES USER MANUAL Page: 2-10...
  • Page 23 Chapter 2 Getting Started Left Side View Right Side View 107.15 44.6 14.8 SP-SXX4 SERIES USER MANUAL Page: 2-11...

  • Page 24: System Specifications

    Chapter 2 Getting Started System Specifications SP-S154 System Core™ i7-7700T, Quad Core, 2.9GHz, 8M cache Core™ i5-7500T, Quad Core, 2.7GHz, 6M cache CPU Support Core™ i3-7101TE, Dual Core, 3.4GHz, 3M cache ® Celeron G3930TE, Dual Core, 2.7GHz, 2M cache ®...
  • Page 25 Chapter 2 Getting Started 1 x 2-pin connector for remote power button Parallel Port 1 x Parallel Port (SPP/EPP/ECP) Display 15” TFT LCD(LED) resolution XGA (4:3) 1024x768 Touchscreen 15” P-CAP touch panel / 15” resistive touch panel Environment HDD: 0°C~45°C (32°F~113°F) Operating Temp.
  • Page 26 Chapter 2 Getting Started SP-S174 System Core™ i7-7700T, Quad Core, 2.9GHz, 8M cache Core™ i5-7500T, Quad Core, 2.7GHz, 6M cache CPU Support Core™ i3-7101TE, Dual Core, 3.4GHz, 3M cache ® Celeron G3930TE, Dual Core, 2.7GHz, 2M cache ® Chipset Intel Q170/H110 Memory Support 2 x DDR4 2133MHz SO-DIMM sockets (up to 32GB)
  • Page 27 Chapter 2 Getting Started Display 17” TFT LCD(LED) resolution SXGA (5:4) 1280x1024 Touchscreen 17” P-CAP touch panel / 17” resistive touch panel Environment HDD: 0°C~45°C (32°F~113°F) Operating Temp. SSD: 0°C~50°C (32°F~122°F) Storage Temp. -20°C~80°C (-4°F~176°F) Humidity 20%~90% (no condensation) SP-SXX4 SERIES USER MANUAL Page: 2-15...
  • Page 28 Chapter 2 Getting Started SP-S214 System Core™ i7-7700T, Quad Core, 2.9GHz, 8M cache Core™ i5-7500T, Quad Core, 2.7GHz, 6M cache CPU Support Core™ i3-7101TE, Dual Core, 3.4GHz, 3M cache ® Celeron G3930TE, Dual Core, 2.7GHz, 2M cache ® Chipset Intel Q170/H110 Memory Support 2 x DDR4 2133MHz SO-DIMM sockets (up to 32GB)
  • Page 29 Chapter 2 Getting Started Display 21.5” TFT LCD(LED) resolution FHD (16:9) 1920x1080 Touchscreen 21.5” P-CAP touch panel Environment HDD: 0°C~45°C (32°F~113°F) Operating Temp. SSD: 0°C~50°C (32°F~122°F) Storage Temp. -20°C~80°C(-4°F~176°F) Humidity 20%~90% (no condensation) SP-SXX4 SERIES USER MANUAL Page: 2-17...

  • Page 30: Safety Precautions

    Avoid direct sunlight exposure for a long period of time (for example, in a closed car in summer time. Also avoid the system from any heating device.). Or do not use SP-S154 / SP-S174 / SP-S214 when it has been left outdoors in a cold winter day.

  • Page 31: System Configuration

    System Configuration This chapter contains helpful information about the jumper & connector settings, and component locations for the main board and touch control board. The following topics are included: • Connector & Jumper Quick Reference Table • System Main Board Component Locations •...

  • Page 32: External I/O Ports Diagram

    Chapter 3 System Configuration External I/O Ports Diagram 3.1.1 SP-S154 / SP-S174 / SP-S214 Rear I/O Ports Diagram Remote COM2 LAN1 Line In Switch COM3 LAN2 USB 2.0 COM4 COM1 USB3.0 Line Out LPT Power Button DVI-D Mic In SP-SXX4 SERIES USER MANUAL...

  • Page 33: Jumper & Connector Quick Reference Table

    Chapter 3 System Configuration Jumper & Connector Quick Reference Table JUMPER Description NAME Clear CMOS Data Selection JCMOS1 COM1 Pin9 RI/5V/12V Selection JP_COM1 COM2 Pin9 RI/5V/12V Selection JP_COM2 COM4 Pin9 RI/5V/12V Selection JP_COM4 LAN2 Port Enable Selection JP_LAN2 VCCIO Voltage Selection AT / ATX Mode Selection JP2 &...
  • Page 34 Chapter 3 System Configuration CONNECTOR Description NAME HD Audio Connector AUDIO1 (Optional) Printer Port (LPT) LPT1 Connector Front Panel Connector CPU Fan Connector CPU_FAN1 System Fan Connector SYS_FAN1 Half-Sized Mini PCI Express Slots M_PCIE1 PCI Express Slots (PCIe (x16)) PCI_E1 SATA 3.0 Connectors SATA1, SATA2 ATX Power Input Connectors...

  • Page 35: Component Locations Of System Main Board

    Chapter 3 System Configuration Component Locations of System Main Board 3.3.1 Top View of System Main Board BM-2502 SYS Fan ATX PWR2 Display port PCIe(x16) INTEL LGA1151 ATX PWR1 mini PCIe CPU Fan 2 x SATA SO-DIMM mini PCIe SP-SXX4 SERIES USER MANUAL Page: 3-5...

  • Page 36: Jumper Settings Of Bm-2502Rb-**N

    Chapter 3 System Configuration 3.3.2 Jumper Settings of BM-2502RB-**N COM1 Pin9 Voltage LAN2 Enable/Disable COM2 Pin9 Voltage Selection Selection COM1 RS-232/422/485 Selection SPI Override Selection Protection Selection Enable (default) (default) (default) Enable Disable AUDIO1 (default) DVI1 LAN1_USB1 USB1 JD09M1 RS422 RS485 RS232 (default)

  • Page 37: Bottom View Of Bm-2502Rb-**N

    Chapter 3 System Configuration 3.3.3 Bottom View of BM-2502RB-**N Figure 3-2 BM-2502 Component Location (Bottom View) SP-SXX4 SERIES USER MANUAL Page: 3-7...

  • Page 38: How To Set Jumpers

    Chapter 3 System Configuration How to Set Jumpers You can configure your board by setting the jumpers. A jumper consists of two or three metal pins with a plastic base mounted on the card. By using a small plastic "cap", also known as the jumper cap (with a metal contact inside), you are able to connect the pins.
  • Page 39 Chapter 3 System Configuration Jumper diagrams Jumper settings SP-SXX4 SERIES USER MANUAL Page: 3-9...

  • Page 40: Setting Main Board Connectors And Jumpers

    Chapter 3 System Configuration Setting Main Board Connectors and Jumpers 3.5.1 COM1, COM2, COM4 Port Pin9 Definition Selection Guide Jumper Location: JP_COM1 & JP_COM2 & JP_COM4 Description: COM1, COM2 and COM4 Port pin9 RI/+5V/+12V Selection JUMPER ILLUSTRATION JUMPER SELECTION SETTING JP_COM1 JP_COM2 JP_COM4...

  • Page 41: Com Ports

    Chapter 3 System Configuration 3.5.2 COM Ports COM1(RS-232/422/485) Connector Pin Assignment: ASSIGNMENT RS-232 RS-422 RS-485 DCD# RS-485- RS-485+ DTR# COM1 DSR# RTS# CTS# Notes: COM1 is selectable as RS-232, RS-422, RS-485 by JP6. Default setting is RS-232. Please see “COM1 RS-232/422/485 Selection” section for details.
  • Page 42 Chapter 3 System Configuration COM3(RS-232), COM4(RS-232) Connector Pin Assignment: ASSIGNMENT ASSIGNMENT DCD# DSR# RTS# CTS# DTR# COM3/ COM4 Note: COM4 Pin 9 is selectable for RI, +5V or +12V by jumper setting. Default setting is RI. Please see “COM1, COM2, COM4 Port Pin9 Definition Selection Guide” section for selection details.
  • Page 43 Chapter 3 System Configuration (Optional) COM5(RS-232), COM6 (RS-232) Connector Pin Assignment: ASSIGNMENT ASSIGNMENT DCD# DSR# RTS# CTS# COM5/ DTR# COM6 (optional) (Optional) COM5(RS-232),COM6 (RS-232) Connector Pin Header Pin Assignment: ASSIGNMENT ASSIGNMENT DCD# DSR# RTS# CTS# DTR# COM5/ COM6 Pin Header (optional) SP-SXX4 SERIES USER MANUAL Page: 3-13...

  • Page 44: Com1 Rs-232/422/485 Selection

    Chapter 3 System Configuration 3.5.3 COM1 RS-232/422/485 Selection Jumper Location: JP6 Description: COM1 RS-232/422/485 Selection SELECTION JUMPER SETTINGS JUMPER ILLUSTRATION Open RS-232 (Default Setting) 1-2, RS-422 3-4, 9-10 1-2, RS-485 5-6, SP-SXX4 SERIES USER MANUAL Page: 3-14...

  • Page 45: Com1 Rs-485 Auto Flow Selection

    Chapter 3 System Configuration 3.5.4 COM1 RS-485 Auto Flow Selection Jumper Location: JP11 Description: COM1 RS-485 Auto Flow Selection SELECTION JUMPER SETTINGS JUMPER ILLUSTRATION Disable JP11 Enable (Default Setting) JP11 SP-SXX4 SERIES USER MANUAL Page: 3-15...

  • Page 46: Lan And Usb 3.0 Ports

    Chapter 3 System Configuration 3.5.5 LAN and USB 3.0 Ports Port Name: LAN1_USB1 (rear I/O) Description: LAN1 & Dual USB 3.0 Ports LAN1 signals: ASSIGNMENT ASSIGNMENT Green/Orange Yellow MDI_0P MDI_2N MDI_0N MDI_1N MDI_1P MDI_3P MDI_2P MDI_3N LAN LED Indicator: Left Side LED Green Color On 10/100Mbps LAN Speed Indicator Orange Color On...
  • Page 47 Chapter 3 System Configuration Port Name: LAN2_USB2 (rear I/O) Description: LAN2 Port & Dual USB3.0 Ports LAN2 signals: ASSIGNMENT ASSIGNMENT MDI_0P MDI_2N Green/Orange Yellow MDI_0N MDI_1N MDI_1P MDI_3P MDI_2P MDI_3N LAN LED Indicator: Left Side LED Green Color On 10/100Mbps LAN Speed Indicator Orange Color On Giga LAN Speed Indicator No LAN switch/hub connected...

  • Page 48: Lan2 Port Enable Selection

    Chapter 3 System Configuration 3.5.6 LAN2 Port Enable Selection Jumper Location: JP_LAN2 Description: LAN2 Port Enable Selection SELECTION JUMPER SETTINGS JUMPER ILLUSTRATION Enable (Default Setting) JP_LAN2 Disable JP_LAN2 SP-SXX4 SERIES USER MANUAL Page: 3-18...

  • Page 49: X 1 Usb 2.0 Connectors

    Chapter 3 System Configuration 3.5.7 4 x 1 USB 2.0 Connectors Port Name: USB1 (rear I/O) Description: USB 2.0 Connectors x 4 USB1 USB 2.0 signals: ASSIGNMENT ASSIGNMENT ASSIGNMENT ASSIGNMENT USB2_P5_DP_L USB2_P5_DN_L VCC5 USB2_P6_DP_L USB2_P6_DN_L VCC5 USB2_P7_DP_L USB2_P7_DN_L VCC5 USB2_P8_DP_L USB2_P8_DN_L VCC5 SP-SXX4 SERIES USER MANUAL...

  • Page 50: Internal Usb 2.0 Connector

    Chapter 3 System Configuration 3.5.8 Internal USB 2.0 Connector Connector Location: USB2 Description: Internal USB 2.0 Connector USB 2.0 connector signals: ASSIGNMENT VCC5 USB2_P9_DN_L USB2_P9_DP_L USB2 SP-SXX4 SERIES USER MANUAL Page: 3-20...

  • Page 51: Dual Dvi-D Ports (Dvi1)

    Chapter 3 System Configuration 3.5.9 Dual DVI-D Ports (DVI1) Port Name: DVI1 (rear I/O) Description: 2 x DVI (Digital Visual Interface) Integrated Connectors (Supports only DVI-D signals) DVI1 DVI1 connector signals (A): ASSIGNMENT ASSIGNMENT DP_Data2- DP_Data2+ +5V Power Ground Ground HOT Plug Detect DP_Data0- DP_Ctrl_Clock...
  • Page 52 Chapter 3 System Configuration DVI1 connector signals (B): ASSIGNMENT ASSIGNMENT DP_Data2- DP_Data2+ +5V Power Ground Ground HOT Plug Detect DP_Data0- DP_Ctrl_Clock DP_Data0+ DP_Ctrl_ Data Ground CRT_VSYNC DP_Data1- DP_Data1+ Ground Ground DP_Clock+ DP_Clock- SP-SXX4 SERIES USER MANUAL Page: 3-22...

  • Page 53: Displayport Connector (Optional)

    Chapter 3 System Configuration 3.5.10 DisplayPort Connector (Optional) Connector Location: DP1 Description: DisplayPort Connector DP1 (optional) ASSIGNMENT ASSIGNMENT DP_C_DATA0+ DP_C_DATA0- DP_C_DATA1+ DP_C_DATA1- DP_C_DATA2+ DP_C_DATA2- DP_C_DATA3+ DP_C_DATA3- DP_C_AUX_ENJ DP_C_AUX+ DP_C_HPD DP_C_AUX- DP_VCC3_3 DP_VCC5 DP_VCC3_3 SP-SXX4 SERIES USER MANUAL Page: 3-23...

  • Page 54: Hd Audio Connector

    Chapter 3 System Configuration 3.5.11 HD Audio Connector Connector Location: AUDIO1 Description: HD Audio Connector for Line In/Line Out/Mic In. Line In: ASSIGNMENT 44 43 42 35 34 33 32 25 24 23 22 HD_LINE-IN-L 5 4 1 3 2 Line In HD_LINE-IN-R Line Out...

  • Page 55: Printer Port Connector (Optional)

    Chapter 3 System Configuration 3.5.12 Printer Port Connector (Optional) Connector Location: LPT1 Description: Printer Port Connector LPT1 (optional) Printer Port (LPT1) signals: ASSIGNMENT ASSIGNMENT STRB# ERR# INIT SLIN ACK# BUSY SLCT SP-SXX4 SERIES USER MANUAL Page: 3-25...

  • Page 56: Front Panel Connector

    Chapter 3 System Configuration 3.5.13 Front Panel Connector Connector Name: FP1 Description: Front Panel Connector ASSIGNMENT ASSIGNMENT HDD+ PWR+ HDD- PWR- Power Button Reset Button SP-SXX4 SERIES USER MANUAL Page: 3-26...

  • Page 57: Cpu Fan Connector

    Chapter 3 System Configuration 3.5.14 CPU Fan Connector Connector Location: CPU_FAN1 Description: CPU Fan Connector CPU Fan Connector (CPU_FAN1) signals: ASSIGNMENT VCC12 CPU_FAN1 Notes: 1. CPU Fan speed mode can be set by BIOS. 2. Default BIOS setting is “Auto Duty-Cycle Mode”. Please see Chapter 5 for more details.
  • Page 58 Chapter 3 System Configuration 3.5.16 Half-Sized Mini PCI Express Slot (M_PCIE1) Connector Location: M_PCIE1 Description: Half-Sized Mini-PCI Express Slot Mini-PCI Express Slot 1 (M_PCIE1) signals: 16 18 ASSIGNMENT ASSIGNMENT WAKEJ VCC_3_3_SB VCC1_5 M_PCIE1/ CLKREQJ CLK_DN CLK_DP PLTRSTJ_BUF PCIE_RXN VCC3_3_SB PCIE_RXP VCC1_5 SMB_CLK PCIE_TXN...

  • Page 59: Pci Express Slots

    Chapter 3 System Configuration 3.5.17 PCI Express Slots Connector Location: PCI_E1 (PCIE x16) Description: PCI Express Slots PCI_E1 ASSIGNMENT ASSIGNMENT ASSIGNMENT ASSIGNMENT + 12V + 12V + 12V PRSNT#1 + 12V + 12V SMB_DATA SMB_CLK + 3.3V + 3.3V_AXU + 3.3V + 3.3V WAKE# PERST#...
  • Page 60 Chapter 3 System Configuration ASSIGNMENT ASSIGNMENT ASSIGNMENT ASSIGNMENT PRSNT#2 HSIN7 HSOP8 HSON8 RSVD HSIP8 HSIN8 HSOP9 HSON9 HSIP9 HSIN9 HSOP10 HSON10 HSIP10 HSIN10 HSOP11 HSON11 HSIP11 HSIN11 HSOP12 HSON12 HSIP12 HSIN12 HSOP13 HSON13 HSIP13 HSIN13 HSOP14 HSIN14 HSIP14 HSIN14 HSIP15 HSIN15 PRSNT#2 HSIP15...

  • Page 61: Sata 3.0 Connectors

    Chapter 3 System Configuration 3.5.18 SATA 3.0 Connectors Connector Location: SATA1 Description: Serial ATA (SATA) 6GB/s Connector SATA1 Serial ATA 6GB/s Connector (SATA1) signals: ASSIGNMENT TXPC TXNC RXNC RXPC Connector Location: SATA2 Description: Serial ATA (SATA) 6GB/s Connector SATA2 Serial ATA 6GB/s Connector (SATA2) signals: ASSIGNMENT TXPC TXNC...

  • Page 62: Atx Power Connectors

    Chapter 3 System Configuration 3.5.19 ATX Power Connectors Connector Location: ATX_PWR1 Description: ATX Power Connector ATX_PWR1 ATX Power Connector signals: ASSIGNMENT ASSIGNMENT +3.3V +3.3V +3.3V PSON PWROK 5VSB +12V +12V +3.3V ATX_PWR1 Connector Location: ATX_PWR2 Description: DC Power Input Connector ATX_PWR2 DC Power Input Connector signals: ASSIGNMENT ASSIGNMENT...

  • Page 63: At / Atx Mode Selection

    Chapter 3 System Configuration 3.5.20 AT / ATX Mode Selection Jumper Location: JP2 Description: AT / ATX Mode Selection SELECTION JUMPTER SETTING JUMPER ILLUSTRATION (Default Setting) Jumper Location: JP3 Description: AT / ATX Mode Selection SELECTION JUMPTER SETTING JUMPER ILLUSTRATION Close Open (Default Setting)

  • Page 64: Spi Connector

    Chapter 3 System Configuration 3.5.21 SPI Connector Connector Location: JP7 Description: SPI (Serial Peripheral Interface Bus) Connector ASSIGNMENT ASSIGNMENT 3.3V MISO MOSI 3.5.22 SPI Override Protection Selection Jumper Location: JP9 Description: SPI Override Protection Selection SELECTION JUMPER SETTING JUMPER ILLUSTRATION Open Enable (Default Setting)

  • Page 65: Case Open Detection Connector

    Chapter 3 System Configuration 3.5.23 Case Open Detection Connector Connector Location: JP10 Description: Case Open Detection Connector ASSIGNMENT Caseopen+ Caseopen- JP10 3.5.24 Intruder Detection Selection Jumper Location: JP4 Description: Intruder Detection Selection SELECTION JUMPER SETTING JUMPER ILLUSTRATION Close Enable (Default Setting) Disable Open SP-SXX4 SERIES USER MANUAL...

  • Page 66: Low Pin Count (Lpc) Connector

    Chapter 3 System Configuration 3.5.25 Low Pin Count (LPC) Connector Connector Location: JP12 Description: Low Pin Count (LPC) Connector ASSIGNMENT ASSIGNMENT FRAME# PLTRST# LPC_AD0 LPC_AD3 LPC_AD2 3.3V LPC_AD1 JP12 3.5.26 Clear RTC Data Selection Jumper Location: JRTC1 Description: Clear RTC Data Selection SELECTION JUMPER SETTINGS JUMPER ILLUSTRATION...

  • Page 67: Vccio Voltage Selection

    Chapter 3 System Configuration 3.5.27 VCCIO Voltage Selection Jumper Location: JP1 Description: VCCIO Voltage Selection SELECTION JUMPER SETTING JUMPER ILLUSTRATION 0.95V (Default Setting) 1.0V SP-SXX4 SERIES USER MANUAL Page: 3-37...

  • Page 68: Bios Recovery Mode Selection

    Chapter 3 System Configuration 3.5.28 BIOS Recovery Mode Selection Jumper Location: JP5 Description: BIOS Recovery Mode Selection SELECTION JUMPER SETTING JUMPER ILLUSTRATION Normal (Default Setting) Configure Recovery Open SP-SXX4 SERIES USER MANUAL Page: 3-38...

  • Page 69: Clear Cmos Data Selection

    Chapter 3 System Configuration 3.5.29 Clear CMOS Data Selection Jumper Location: JCMOS1 Description: Clear CMOS Data Selection Step 1. Remove the main power of the PC. Step 2. Close JCMOS1 (pins 1-2) for 6 seconds by a cap. Step 3. Remove the cap which is just used on JCMOS1 (1-2), so that JCMOS1 returns to “OPEN”.

  • Page 70: Component Locations Of System Daughter Board

    Chapter 3 System Configuration Component Locations of System Daughter Board 3.6.1 Top View of System Daughter Board BR-8080 JVDS1 JSW1 Chipset JINV1 JSW3 Chipset J_SMB1 JPWR_4P1 JSW2 SP-SXX4 SERIES USER MANUAL Page: 3-40...

  • Page 71: Setting Daughter Board Jumpers

    Chapter 3 System Configuration Setting Daughter Board Jumpers 3.7.1 VDD Selection Jumper Location: JP1 Description: VDD Selection SELECTION JUMPER SETTINGS JUMPER ILLUSTRATION SP-S154 (3.3V) SP-S174 (5V) SP-S214 (5V) SP-SXX4 SERIES USER MANUAL Page: 3-41...

  • Page 72: Backlight Voltage Selection

    Chapter 3 System Configuration 3.7.2 Backlight Voltage Selection Jumper Location: JP2 Description: Backlight Voltage Selection SELECTION JUMPER SETTING JUMPER ILLUSTRATION SP-S154 (3.3V) SP-S174 (3.3V) SP-S214 (5V) SP-SXX4 SERIES USER MANUAL Page: 3-42...

  • Page 73: Pwm Voltage Selection

    Chapter 3 System Configuration 3.7.3 PWM Voltage Selection Jumper Location: JP3 Description: PWM Voltage Selection SELECTION JUMPER SETTING JUMPER ILLUSTRATION SP-S154 (3.3V) SP-S174 (5V) SP-S214 (3.3V) SP-SXX4 SERIES USER MANUAL Page: 3-43...

  • Page 74: Lvds (Low Voltage Differential Signaling) Resolution

    LVDS (Low Voltage Differential Signaling) Resolution Selection Jumper Location: JP4~JP7 Description: LVDS (Low Voltage Differential Signaling) Resolution Selection SELECTION JUMPER SETTING JUMPER ILLUSTRATION JP4(2-3) SP-S154 JP5(1-2) (1024x768) / JP6(2-3) 1CH,24bit JP7(2-3) JP4 / JP6 / JP7 JP4(2-3) JP4 / JP7...
  • Page 75 Chapter 3 System Configuration SELECTION JUMPER SETTING JUMPER ILLUSTRATION JP4(2-3) SP-S214 JP5(1-2) (1980x1080) / JP6(1-2) 2CH, 24bit JP7(1-2) JP5 / JP6 / JP7 SP-SXX4 SERIES USER MANUAL Page: 3-45...

  • Page 76: Software Utilities

    Software Utilities This chapter provides the detailed information that guides users to install driver utilities for the system. The following topics are included: ® • Installing Intel Chipset Software Installation Utility • Installing Graphics Driver Utility • Installing LAN Driver Utility ®...

  • Page 77: Introduction

    Chapter 4 Software Utilities Introduction Enclosed with the SP-S154/ SP-S174 / SP-S214 Series package is our driver utilities contained in a DVD-ROM disk. Refer to the following table for driver locations: Filename (Assume that Purpose DVD- ROM drive is D:) Win8.1...

  • Page 78: Installing Intel ® Chipset Software Installation Utility

    Click SetupChipset.exe file for driver installation. Follow the on-screen instructions to install the driver. Once the installation is completed, shut down the system and restart SP-S154 / SP-S174 / SP-S214 for the changes to take effect. SP-SXX4 SERIES USER MANUAL...

  • Page 79: Installing Graphics Driver Utility

    Click the Setup.exe file for driver installation. Follow the on-screen instructions to complete the installation. Once the installation is completed, shut down the system and restart SP-S154 / SP-S174 / SP-S214 for the changes to take effect. Page: 4-4 SP-SXX4 SERIES USER MANUAL...
  • Page 80 Kaby Lake_Graphics ( Win10 only) To install the GRAPHICS driver utility, follow the steps below: Connect the USB DVD-ROM device to SP-S154 / SP-S174 / SP-S214 and insert the driver disk. Enter the Kaby Lake_Graphics folder where the driver is located.

  • Page 81: Installing Lan Driver Utility

    Follow the on-screen instructions to complete the installation. Once the installation is completed, shut down the system and restart SP-S154 / SP-S174 / SP-S214 for the changes to take effect. For more details on the installation procedure, refer to the README.txt file that you can find on LAN Driver Utility.

  • Page 82: Installing Intel ® Management Engine Interface Driver

    Chapter 4 Software Utilities ® Installing Intel Management Engine Interface Driver Utility ® For Windows 7 only. Pre-install Microsoft's Kernel-Mode Driver ® Framework (KMDF) version 1.11 before you install the Intel Management Engine Components Installer (ME) in order to avoid errors in Device Manager.
  • Page 83 Click SetupME.exe file for ME driver installation. Follow the on-screen instructions to complete the installation. Once the installation is completed, shut down the system and restart SP-S154 / SP-S174 / SP-S214 for the changes to take effect. Page: 4-8 SP-SXX4 SERIES USER MANUAL...

  • Page 84: Installing Sound Driver Utility

    Click the 0005-Win7_Win8_Win81_Win10_R279.exe file for driver installation. Follow the on-screen instructions to complete the installation. Once the installation is completed, shut down the system and restart SP-S154 / SP-S174 / SP-S214 for the changes to take effect. SP-SXX4 SERIES USER MANUAL Page: 4-9...

  • Page 85: Installing Intel ® Usb 3.0 Extensible Host Controller

    Click the Setup.exe file for driver installation. Follow the on-screen instructions to complete the installation. Once the installation is completed, shut down the system and restart SP-S154 / SP-S174 / SP-S214 for the changes to take effect. Page: 4-10 SP-SXX4 SERIES USER MANUAL...

  • Page 86: Installing Egalaxtouch Driver Utility

    Click the setup.exe file for driver installation. Follow the on-screen instructions to complete the installation. Once the installation is completed, shut down the system and restart SP-S154 / SP-S174 / SP-S214 for the changes to take effect. SP-SXX4 SERIES USER MANUAL...

  • Page 87: Installing Intel ® Rapid Storage Technology Installation

    Click the SetupRST.exe file for driver installation. Follow the on-screen instructions to complete the installation. Once the installation is completed, shut down the system and restart SP-S154 / SP-S174 / SP-S214 for the changes to take effect. Page: 4-12 SP-SXX4 SERIES USER MANUAL...

  • Page 88: Bios Setup

    BIOS SETUP This chapter guides users how to configure the basic system configurations via the BIOS Setup Utilities. The information of the system configuration is saved in BIOS NVRAM so that the Setup information is retained when the system is powered off. The BIOS Setup Utilities consist of the following menu items: Main Menu •...

  • Page 89: Introduction

    Chapter 5 BIOS Setup Introduction The board uses an AMI Aptio BIOS (American Megatrends Incorporated) that is stored in the Serial Peripheral Interface Flash Memory (SPI Flash) and can be updated. The SPI Flash contains the built-in BIOS setup program, Power-On Self-Test (POST), PCI auto-configuration utility, LAN EEPROM information, and Plug and Play support.
  • Page 90 Chapter 5 BIOS Setup EFI BIOS provides an user interface that allows you to modify hardware configuration, e.g. change the system date and time, enable/disable a system component, determine bootable device priority, set up personal password, etc., which is convenient for engineers to perform modifications and customize the computer system and allows technicians to troubleshoot the occurred errors when the hardware is faulty.

  • Page 91: Accessing Setup Utility

    Chapter 5 BIOS Setup Accessing Setup Utility After the system is powered on, BIOS will enter the Power-On Self-Test (POST) routines and the POST message will be displayed: Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc. BIOS Date: 03/20/2019 15:49:52 Ver: S2X40PQ1 Press <CTRL + P>...
  • Page 92 Chapter 5 BIOS Setup BIOS Setup Menu Initialization Screen You may move the cursor by <↑> and <↓> keys to highlight the individual menu items. As you highlight each item, a brief description of the highlighted selection will appear on the right side of the screen. The language of the BIOS setup menu interface and help messages are shown in US English.
  • Page 93 Chapter 5 BIOS Setup BIOS Setup Description Navigation Key Select a different menu screen (move the <←> and <→> cursor from the selected menu to the left or right). Select a different item (move the cursor from <↑> and <↓> the selected item upwards or downwards) <Enter>...

  • Page 94: Main

    Chapter 5 BIOS Setup Main Menu Path Main The Main menu allows you to view the BIOS Information, change the system date and time, and view the user access privilege level. Use tab to switch between date elements. Use <↑> or <↓> arrow keys to highlight the item and enter the value you want in each item.
  • Page 95 Chapter 5 BIOS Setup BIOS Setting Options Description/Purpose to increase/decrease it. The “Day” is automatically changed. Sets the system time. The format is [Hour: Minute: Second]. Users can directly enter System Time hour, minute, second values or use <+> or <-> arrow keys to increase/decrease it.

  • Page 96: Advanced

    Chapter 5 BIOS Setup Advanced Menu Path Advanced This menu provides advanced configurations such as CPU Configuration, SATA Configuration, PCH-FW Configuration, ACPI Settings, F81866 Super I/O Configuration, Hardware Monitor, F81866 Watchdog, Network Stack Configuration and USB Configuration. Advanced Menu Screen BIOS Setting Options Description/Purpose...

  • Page 97: Advanced - Cpu Configuration

    Chapter 5 BIOS Setup 5.4.1 Advanced – CPU Configuration Menu Path Advanced > CPU Configuration The CPU Configuration provides advanced CPU settings and some information about CPU. CPU Configuration Screen BIOS Setting Options Description/Purpose Type No changeable options Display the CPU Type. No changeable options Display the CPU ID.

  • Page 98: Advanced - Sata Monitor

    Chapter 5 BIOS Setup 5.4.2 Advanced – SATA Monitor Menu Path Advanced > SATA Monitor The SATA Configuration allows users to enable / disable the SATA controller as well as the operational mode after the SATA controller is enabled. The following screen indicates the functions available when the SATA hard drive is set to work in AHCI mode.

  • Page 99: Advanced - Acpi Settings

    Chapter 5 BIOS Setup 5.4.3 Advanced – ACPI Settings Menu Path Advanced > ACPI Settings The ACPI Settings allows users to configure relevant ACPI (Advanced Configuration and Power Management Interface) settings such as Enable/Disable Hibernation, ACPI sleep state, Lock Legacy Resources and S3 Video Repost. ACPI Configuration Screen BIOS Setting Options...

  • Page 100: Advanced - Pch-Fw Settings

    Chapter 5 BIOS Setup 5.4.4 Advanced – PCH-FW Settings Menu Path Advanced > PCH-FW Settings The PCH-FW allows users to view the information about ME (Management Engine) firmware information, such as ME firmware version, firmware mode and firmware SKU. PCH-EW Configuration Screen BIOS Setting Options Description/Purpose...

  • Page 101: Advanced - F81866 Super Io Configuration

    Chapter 5 BIOS Setup 5.4.5 Advanced – F81866 Super IO Configuration Menu Path Advanced > F81866 Super IO Configuration The F81866 Super IO Configuration allows users to configure the serial ports 1-6. F81866 Watchdog Configuration Screen BIOS Setting Options Description/Purpose Super IO Chip (F81866) No changeable options Displays the super I/O chip model.

  • Page 102: F81866 Super Io Configuration - Serial Port

    Chapter 5 BIOS Setup 5.4.5.1 F81866 Super IO Configuration - Serial Port 1 Configuration Menu Path Advanced > F81866 Super IO Configuration > Serial Port 1 Configuration Serial Port 1 Configuration Screen BIOS Setting Options Description/Purpose - Disabled Use This Device Enables or Disables Serial Port 1.

  • Page 103: F81866 Super Io Configuration - Serial Port

    Chapter 5 BIOS Setup 5.4.5.2 F81866 Super IO Configuration - Serial Port 2 Configuration Menu Path Advanced > F81866 Super IO Configuration > Serial Port 2 Configuration Serial Port 2 Configuration Screen BIOS Setting Options Description/Purpose - Disabled Use This Device Enables or Disables Serial Port 2.

  • Page 104: F81866 Super Io Configuration - Serial Port

    Chapter 5 BIOS Setup 5.4.5.3 F81866 Super IO Configuration - Serial Port 3 Configuration Menu Path Advanced > F81866 Super IO Configuration > Serial Port 3 Configuration Serial Port 3 Configuration Screen BIOS Setting Options Description/Purpose - Disabled Use This Device Enables or Disables Serial Port 3.

  • Page 105: F81866 Super Io Configuration - Serial Port

    Chapter 5 BIOS Setup 5.4.5.4 F81866 Super IO Configuration - Serial Port 4 Configuration Menu Path Advanced > F81866 Super IO Configuration > Serial Port 4 Configuration Serial Port 4 Configuration Screen BIOS Setting Options Description/Purpose - Disabled Use This Device Enables or Disables Serial Port 4.

  • Page 106: F81866 Super Io Configuration - Serial Port

    Chapter 5 BIOS Setup 5.4.5.5 F81866 Super IO Configuration - Serial Port 5 Configuration Menu Path Advanced > F81866 Super IO Configuration > Serial Port 5 Configuration Serial Port 5 Configuration Screen BIOS Setting Options Description/Purpose - Disabled Use This Device Enables or Disables Serial Port 5.

  • Page 107: F81866 Super Io Configuration - Serial Port

    Chapter 5 BIOS Setup 5.4.5.6 F81866 Super IO Configuration - Serial Port 6 Configuration Menu Path Advanced > F81866 Super IO Configuration > Serial Port 6 Configuration Serial Port 6 Configuration Screen BIOS Setting Options Description/Purpose - Disabled Use This Device Enables or Disables Serial Port 6.

  • Page 108: F81866 Super Io Configuration - Parallel Port

    Chapter 5 BIOS Setup 5.4.5.7 F81866 Super IO Configuration - Parallel Port Configuration Menu Path Advanced > F81866 Super IO Configuration > Parallel Port Configuration Parallel Port Configuration Screen BIOS Setting Options Description/Purpose - Disabled Enables or Disables parallel Use This Device - Enabled port.

  • Page 109: Advanced - Hardware Monitor

    Chapter 5 BIOS Setup 5.4.6 Advanced – Hardware Monitor Menu Path Advanced > Hardware Monitor The Hardware Monitor allows users to monitor the health and status of the system such as Smart Fan Mode Configuration, CPU temperature, system temperature and voltage levels in supply.

  • Page 110: Hardware Monitor - Smart Fan Mode Configuration

    Chapter 5 BIOS Setup 5.4.7 Hardware Monitor – Smart Fan Mode Configuration Menu Path Advanced > Hardware Monitor > Smart Fan Mode Configuration Smart Fan Mode Configuration Screen BIOS Setting Options Description/Purpose CPU Fan Smart Fan - Manual Duty Mode Smart Fan Mode select for CPU Fan.

  • Page 111: Advanced - F81866 Watchdog Configuration

    Chapter 5 BIOS Setup 5.4.8 Advanced – F81866 Watchdog Configuration Menu Path Advanced > F81866 Watchdog If the system hangs or fails to respond, enable the F81866 watchdog function to trigger a system reset via the 255-level watchdog timer. F81866 Watchdog Configuration Screen BIOS Setting Options Description/Purpose...

  • Page 112: Advanced - Network Stack Configuration

    Chapter 5 BIOS Setup 5.4.9 Advanced – Network Stack Configuration Menu Path Advanced > Network Stack Configuration The Network Stack Configuration allows users to enable/disable Network Stack, IPv4 / IPv6 PXE (Pre-Boot Execution) support and configure PXE boot wait time and the Media detect count.
  • Page 113 Chapter 5 BIOS Setup BIOS Setting Options Description/Purpose be created. Wait time to press ESC key to abort the PXE boot wait time Numeric (from 0 to 5) PXE boot. Number of times that the media presence Media detect count Numeric (from 1 to 50) will be checked.

  • Page 114: Advanced - Usb Configuration

    Chapter 5 BIOS Setup 5.4.10 Advanced – USB Configuration Menu Path Advanced > USB Configuration The USB Configuration allows users to configure advanced USB settings such as USB mass storage driver support. USB Configuration Screen BIOS Setting Options Description/Purpose USB Mass Storage - Disabled Enables or Disables USB Mass Storage Driver Support...

  • Page 115: Chipset

    Chapter 5 BIOS Setup Chipset Menu Path Chipset This menu allows users to configure advanced Chipset settings such as System Agent (SA) and PCH-IO configuration parameters. Chipset Screen BIOS Setting Options Description/Purpose System Agent (SA) Parameters Sub-Menu System Agent (SA) Parameters. PCH-IO Configuration Sub-Menu PCH Parameters.

  • Page 116: Chipset - System Agent (Sa) Configuration

    Chapter 5 BIOS Setup 5.5.1 Chipset – System Agent (SA) Configuration Menu Path Chipset > System Agent (SA) Configuration System Agent (SA) Configuration Screen BIOS Setting Options Description/Purpose SA PCIe Code Version No changeable options Display the SA PCIe Code Version. VT-d No changeable options VT-d capability.

  • Page 117: System Agent (Sa) Configuration -Memory Configuration

    Chapter 5 BIOS Setup 5.5.2 System Agent (SA) Configuration –Memory Configuration Menu Path Chupset > System Agent (SA) Configuration > Memory Configuration Memory Configuration Screen BIOS Setting Options Description/Purpose Memory RC Version No changeable options Display the Memory RC Version. Memory Frequency No changeable options Display the Frequency of Memory.

  • Page 118: System Agent (Sa) Configuration - Graphics

    Chapter 5 BIOS Setup 5.5.3 System Agent (SA) Configuration – Graphics Configuration Menu Path Chupset > System Agent (SA) Configuration > Graphics Configuration Graphics Configuration Screen BIOS Setting Options Description/Purpose - Auto Select which of IGFX/PEG Graphics Primary Display - IGFX device should be Primary Displa.
  • Page 119 Chapter 5 BIOS Setup Graphics Configuration – LCD Control Menu Path Chupset > System Agent (SA) Configuration > Graphics Configuration > LCD Control LCD Control Screen BIOS Setting Options Description/Purpose - VBIOS default Primary IGFX Boot - DVI-D 1 Select Primary Display Device Display - DVI-D 2 - DisplayPort...
  • Page 120 Chapter 5 BIOS Setup 5.5.4 System Agent (SA) Configuration – PEG Port Configuration Menu Path Chupset > System Agent (SA) Configuration > PEG Port Configuration PEG Port Configuration Screen BIOS Setting Options Description/Purpose PCI-E1 No changeable options PCI-E1 Link and Speed information. - Disabled Enable Root Port - Enabled...

  • Page 121: Chipset - Pch-Io Configuration

    Chapter 5 BIOS Setup 5.5.5 Chipset – PCH-IO Configuration Menu Path Chipset > PCH-IO Configuration The PCH-IO Configuration allows users to configure computer's I/O functions. PCH-IO Configuration Screen BIOS Setting Options Description/Purpose No changeable Name Display the Intel PCH Name. options No changeable PCH SKU...

  • Page 122: Pch-Io Configuration - Pci Express Configuration

    Chapter 5 BIOS Setup 5.5.6 PCH-IO Configuration – PCI Express Configuration Menu Path Chupset > PCH-IO Configuration > PCI Express Configuration PCI Express Configuration Screen BIOS Setting Options Description/Purpose PCIE Port assigned to No changeable options Display the LAN assigned PCIE Port. Mini PCI Express Port Sub-menu Mini PCI Express Port Settings.
  • Page 123 Chapter 5 BIOS Setup PCH-IO Configuration – Mini PCI Express Port Configuration Menu Path Chupset > PCH-IO Configuration > Mini PCI Express Port Configuration Mini PCI Express Configuration Screen BIOS Setting Options Description/Purpose - Disabled Mini PCI Express Port Control the PCI Express Root Port. - Enabled - Disabled - L0s...
  • Page 124 Chapter 5 BIOS Setup BIOS Setting Options Description/Purpose - Gen3 Detect Non-Compliance PCI Express Detect Non-Compliance - Disabled Device. If enable, it will take more Device - Enabled time at POST time. SP-SXX4 SERIES USER MANUAL Page: 5-37...

  • Page 125: Security

    Chapter 5 BIOS Setup Security Menu Path Security From the Security menu, you are allowed to create, change or clear the administrator password. You will be asked to enter the configured administrator password before you can access the Setup Utility. By setting an administrator password, you will prevent other users from changing your BIOS settings.
  • Page 126 Chapter 5 BIOS Setup Create an Administrator or User Password Select the Administrator Password / User Password option from the Security menu and press <Enter>, and the password dialog entry box appears. Enter the password you want to create. A password can be 3-20 alphanumeric characters. After you have configured the password, press <Enter>...

  • Page 127: Boot

    Chapter 5 BIOS Setup Boot Menu Path Boot This menu provides control items for setting system boot configuration and boot priorities. Boot Screen BIOS Setting Options Description/Purpose Setup Prompt Number of seconds to wait for setup Numeric (from 1 to 65535) Timeout activation key.
  • Page 128 Chapter 5 BIOS Setup BIOS Setting Options Description/Purpose Enables or Disables Quiet Boot options. - Disabled When this option is set to “Disabled”, Quiet Boot - Enabled BIOS will display normal POST messages. Enables or Disables Fast Boot option. - Disabled It allows users to reduce the system Fast Boot - Enabled...

  • Page 129: Boot - Csm Configuration

    Chapter 5 BIOS Setup 5.7.1 Boot – CSM Configuration Menu Path Chipset > CSM Configuration CSM Configuration Screen BIOS Setting Options Description/Purpose - Disabled CSM Support Enable or Disable CSM Support. - Enabled CSM16 Module No changeable options Display the CSM 16 Module version. - UEFI and Legacy This option controls Legacy/UEFI ROMs Boot option filter...

  • Page 130: Save & Exit

    Chapter 5 BIOS Setup Save & Exit Menu Path Save & Exit The Save & Exit allows users to save or discard changed BIOS settings as well as load factory default settings. Save Changed BIOS Settings To save and validate the changed BIOS settings, select Save Changes from the Save &...
  • Page 131 Chapter 5 BIOS Setup BIOS Setting Options Description/Purpose Save Changes Exits the system and saves the changes in No changeable options and Exit NVRAM. Discard Changes Exits the system without saving any No changeable options and Exit changes configured in BIOS settings. Save Changes Saves the changes in NVRAM and resets No changeable options...

  • Page 132: Appendix A System Diagrams

    Appendix A System Diagrams This appendix includes the exploded diagrams of the system and the parts list as well as the part numbers of the SP-S154 / SP-S174 / SP-S214 system. SP-S154 (Resistance / Capacitance ) • System Exploded Diagram Touch Panel &...

  • Page 133: Sp-S154 System Exploded Diagram (Resistance

    Appendix A System Diagrams SP-S154 System Exploded Diagram (Resistance) Component Name P/N No. Q’ty 7145_Panel_SUS_EXP See Page A-3 & A-4 Box_PC_BM-2502_ASM See Page A-5 & A-6 SP-7145 Wall Oring 30-013-01300411 Truss Head Screw #2 / M4x0.7Px4mm 22-232-40004011 DSMS Adhesive Tape...

  • Page 134: Sp-S154 Touch Panel & Lcd Display Exploded Diagram (Resistance

    Appendix A System Diagrams SP-S154 Touch Panel & LCD Display Exploded Diagram (Resistance) Component Name P/N No. Q’ty SP-7145 SUS Panel Cover 20-004-07001411 SP-7145 Thin Gap SGCC Cover Kit 20-004-21001411 SP-7145 LCD Cover Kit (w/Paint)(Silver 20-004-03061411 Gray) SP-7145 LCD Link Holder...
  • Page 135 Appendix A System Diagrams Component Name P/N No. Q’ty SP-7145 Thin Gap LCD Poron 30-013-24200411 V(233x8x1mm) SP-7145 Double Coated Tape A 34-026-06201411 (358.49x14.5x0.8mm) SP-7145 Double Coated Tape B 34-026-06202411 (252.83x20x0.8mm) BR-8080RB-S0N Fillister Head Screw #2 / M3x0.5Px5mm 22-272-30049015 Flat Head Screw #2 /ψ 5/M3x0.5Px5mm 22-212-30005311 SP-SXX4 SERIES USER MANUAL Page: A-4...

  • Page 136: Sp-S154 Box Pc Exploded Diagram (Resistance

    Appendix A System Diagrams SP-S154 Box PC Exploded Diagram (Resistance) Component Name P/N No. Q’ty SP-S214 BR Base BM2502 20-132-03061454 (w/Paint)(Silver-Gray) SP-S214 BR Rear Cover BM2502 20-104-03062454 (w/Paint)(Silver-Gray) BM-2502_PCB_ASSY_ASM BM-2502 ATX 250W AC Power Supply 52-001-00925001 SP-S214 BR I/O Cover BM2502...
  • Page 137 Appendix A System Diagrams Component Name P/N No. Q’ty SP-Sxx4 Power Switch Cable 27-019-46308071 L=380mm+50mm HEX CU BOSS UNC 22-692-40048051 No.4-40,L=4.8,H=7mm Pan Head Screw UNC-No.6-32,L=5mm 22-622-60005011 Flat Head Screw #2/ψ 5 / M3x0.5Px5mm 22-212-30005311 HDD_Module_Bracket_EXP See Page A-7 Touch control board for 5-wire,USB 52-370-01040504 interface Fillister Head Screw #2 / M3x0.5Px5mm...

  • Page 138: Sp-S154 Hdd Module Exploded Diagram (Resistance

    Appendix A System Diagrams SP-S154 HDD Module Exploded Diagram (Resistance) Component Name P/N No. Q’ty HDD_Module_Assy-2_EXP See Page A-8 SHOCK-ABSORB Washer 83-680-63580963 Fillister Head Screw M3x0.5Px4.8mm 82-272-30005013 SP-S214 HDD Support Bracket 20-106-03002454 SP-SXX4 SERIES USER MANUAL Page: A-7...

  • Page 139: Sp-S154 Hdd Tray Exploded Diagram (Resistance

    Appendix A System Diagrams SP-S154 HDD Tray Exploded Diagram (Resistance) Component Name P/N No. Q’ty SP-S214 HDD Cable Holder ASSY 20-129-03001454 SP-7625 SATA HDD & Power Cable 27-012-32805081 L=150mm+250mm Fillister Head Screw #2 / M3x0.5Px5mm 22-272-30049015 2.5” HDD / SSD Flat Head Screw #2/ψ...

  • Page 140: Sp-S154 System Exploded Diagram (Capacitance

    Appendix A System Diagrams SP-S154 System Exploded Diagram (Capacitance) Component Name P/N No. Q’ty 7145_Panel_SUS_EXP See Page A-10 & A-11 Box_PC_BM-2502_ASM See Page A-12 & A-13 SP-7145 Wall Oring 30-013-01300411 Truss Head Screw #2 / M4x0.7Px4mm 22-232-40004011 DSMS Adhesive Tape...

  • Page 141: Sp-S154 Touch Panel & Lcd Display Exploded Diagram (Capacitance)

    Appendix A System Diagrams SP-S154 Touch Panel & LCD Display Exploded Diagram (Capacitance) 01 09 12 13 Component Name P/N No. Q’ty SP-7145 SUS Panel Cover 20-004-07001411 SP-7145 Thin Gap SGCC Cover Kit 20-004-21001411 SP-7145 LCD Cover Kit (w/Paint)(Silver 20-004-03061411...
  • Page 142 Appendix A System Diagrams Component Name P/N No. Q’ty (326x8x1mm) SP-7145 Thin Gap LCD Poron 30-013-24200411 V(233x8x1mm) SP-7145 Double Tap H (358x4.5x1.1mm) 34-026-06203411 SP-7145 Double Tape 34-026-06204411 (263.5x4.5x1.1mm) Touch Control Board for P-CAP,USB & 52-370-01623007 RS-232 Interface BR-8080RB-S0N Fillister Head Screw #2 / M3x0.5Px5mm 22-272-30049015 Flat Head Screw #2 /ψ...

  • Page 143: Sp-S154 Box Pc Exploded Diagram (Capacitance

    Appendix A System Diagrams SP-S154 Box PC Exploded Diagram (Capacitance) Component Name P/N No. Q’ty SP-S214 BR Base BM2502 20-132-03061454 (w/Paint)(Silver-Gray) SP-S214 BR Rear Cover BM2502 20-104-03062454 (w/Paint)(Silver-Gray) BM-2502_PCB_ASSY_ASM BM-2502 ATX 250W AC Power Supply 52-001-00925001 SP-S214 BR I/O Cover BM2502...
  • Page 144 Appendix A System Diagrams Component Name P/N No. Q’ty SP-SXX4 Power Switch Cable 27-019-46308071 L=380mm+50mm HEX CU BOSS UNC No.4-40, L=4.8, 22-692-40048051 H=7mm Pan Head Screw UNC-No.6-32,L=5mm 22-622-60005011 Flat Head Screw #2/ψ 5 / M3x0.5Px5mm 22-212-30005311 HDD_Module_Bracket_EXP See Page A-14 SP-SXX4 SERIES USER MANUAL Page: A-13...

  • Page 145: Sp-S154 Hdd Module Exploded Diagram (Capacitance

    Appendix A System Diagrams SP-S154 HDD Module Exploded Diagram (Capacitance) Component Name P/N No. Q’ty HDD_Module_Assy-2_EXP See Page A-15 PT-1920 SHOCK-ABSORB Washer 83-680-63580963 Fillister Head Screw M3x0.5Px4.8mm 82-272-30005013 SP-S214 HDD Support Bracket 20-106-03002454 SP-SXX4 SERIES USER MANUAL Page: A-14...

  • Page 146: Sp-S154 Hdd Tray Exploded Diagram (Capacitance

    Appendix A System Diagrams SP-S154 HDD Tray Exploded Diagram (Capacitance) Component Name P/N No. Q’ty SP-S214 HDD Cable Holder ASSY 20-129-03001454 SP-7625 SATA HDD & Power Cable 27-012-32805081 L=150mm+250mm Fillister Head Screw #2 / M3x0.5Px5mm 22-272-30049015 2.5” HDD / SSD Flat Head Screw #2/ψ...

  • Page 147: Sp-S154 Packing Exploded Diagram

    Appendix A System Diagrams SP-S154 Packing Exploded Diagram Component Name P/N No. Q’ty SP-S154 System SP-S154 EPE Right (475x185x186mm) 94-016-00301464 EPE Left (475x185x186mm) 94-016-00302464 PE Bag 480X460 (42X56cmX0.07) 32-10020010000 SILICA GEL 1gm 34-005-00010007 PS-650X Carton Boxes 34-003-01301086 (332x150x45mm) MM-7017R Basic Style Outer Carton...

  • Page 148: Sp-S174 System Exploded Diagram (Resistance

    Appendix A System Diagrams SP-S174 System Exploded Diagram (Resistance) Component Name P/N No. Q’ty 7145_Panel_Module_EXP See Page A-18 & A-19 Box_PC_BM-2502_ASM See Page A-20 & A-21 SP-7147 Wall Oring 30-013-01300412 Truss Head Screw #2 / M4x0.7Px4mm 22-232-40004011 DSMS Adhesive Tape 94-026-06501000 SP-SXX4 SERIES USER MANUAL Page: A-17...

  • Page 149: Sp-S174 Touch Panel & Lcd Display Exploded Diagram (Resistance)

    Appendix A System Diagrams SP-S174 Touch Panel & LCD Display Exploded Diagram (Resistance) Component Name P/N No. Q’ty SP-7147 Thin Gap SUS Cover 20-004-07001412 SP-7147 Thin Gap SGCC Cover 20-004-21001412 SP-7147 LCD Cover Kit (w/Paint) (Silver 20-004-03062412 Gray) SP-7147 LCD Link Holder 20-029-03001412 SP-7147 ABON Touch Board Cover Kit 20-004-03061412...
  • Page 150 Appendix A System Diagrams Component Name P/N No. Q’ty (358x8x1mm) ST-2017 Thin Gap LCD PORON-V 30-013-24200366 (274x8x1mm) SP-7147 ABON A-15170-1452 EPDM-H 34-026-06201412 (386.92x30x0.8mm) SP-7147 ABON A-15170-1452 EPDM-V 34-026-06202412 (271.24x18x0.8mm) BR-8080RB-00N Fillister Head Screw #2 / M3x0.5Px5mm 22-272-30049015 Flat Head Screw #2/ψ 5/ M3x0.5Px5mm 22-212-30005311 SP-SXX4 SERIES USER MANUAL Page: A-19...

  • Page 151: Sp-S174 Box Pc Exploded Diagram (Resistance

    Appendix A System Diagrams SP-S174 Box PC Exploded Diagram (Resistance) Component Name P/N No. Q’ty SP-S214 BR Base BM2502 20-132-03061454 (w/Paint)(Silver-Gray) SP-S214 BR Rear Cover BM2502 20-104-03062454 (w/Paint)(Silver-Gray) BM-2502_PCB_ASSY_ASM BM-2502 ATX 250W AC Power Supply 52-001-00925001 SP-S214 BR I/O Cover BM2502 20-104-03061454 (w/Paint) (Silver-Gray) Round Head With Spring Washer Screw...
  • Page 152 Appendix A System Diagrams Component Name P/N No. Q’ty SP-S154/S174/S214 System Fan 21-004-05050186 (50x50x20mm) L=450mm Flat Head Screw T4.7x11mm 22-112-47011011 SP-Sxx4 Power Switch Cable 27-019-46308071 L=380mm+50mm HEX CU BOSS UNC No.4-40, L=4.8, 22-692-40048051 H=7mm Pan Head Screw UNC-No.6-32, L=5mm 22-622-60005011 Flat Head Screw #2/ψ...

  • Page 153: Sp-S174 Hdd Module Exploded Diagram (Resistance

    Appendix A System Diagrams SP-S174 HDD Module Exploded Diagram (Resistance) Component Name P/N No. Q’ty HDD_Module_Assy-2_EXP See Page A-23 PT-1920 SHOCK-ABSORB Washer 83-680-63580963 Fillister Head Screw M3x0.5Px4.8mm 82-272-30005013 HDD Support Bracket 20-106-03002454 SP-SXX4 SERIES USER MANUAL Page: A-22...

  • Page 154: Sp-S174 Hdd Tray Exploded Diagram (Resistance

    Appendix A System Diagrams SP-S174 HDD Tray Exploded Diagram (Resistance) Component Name P/N No. Q’ty SP-S214 HDD Cable Holder ASSY 20-129-03001454 SP-7625 SATA HDD & Power Cable 27-012-32805081 L=150mm+250mm Fillister Head Screw #2 / M3x0.5Px5mm 22-272-30049015 2.5” HDD / SSD Flat Head Screw #2/ψ...

  • Page 155: Sp-S174 System Exploded Diagram (Capacitance

    Appendix A System Diagrams SP-S174 System Exploded Diagram (Capacitance) Component Name P/N No. Q’ty SP-7147_Panel_Module_EXP See Page A-25 & A-26 Box_PC_BM-2502_ASM See Page A-27 & A-28 SP-7147 Wall Oring 30-013-01300412 Truss Head Screw #2 / M4x0.7Px4mm 22-232-40004011 DSMS Adhesive Tape 94-026-06501000 SP-SXX4 SERIES USER MANUAL Page: A-24...

  • Page 156: Sp-S174 Touch Panel & Lcd Display Exploded Diagram (Capacitance)

    Appendix A System Diagrams SP-S174 Touch Panel & LCD Display Exploded Diagram (Capacitance) Component Name P/N No. Q’ty SP-7147 Thin Gap SUS Cover 20-004-07001412 SP-7147 Thin Gap SGCC Cover 20-004-21001412 SP-7147 LCD Cover Kit (w/Paint) (Silver 20-004-03062412 Gray) SP-7147 LCD Link Holder 20-029-03001412 SP-7147 ABON Touch Board Cover Kit 20-004-03061412...
  • Page 157 Appendix A System Diagrams Component Name P/N No. Q’ty (358x8x1mm) ST-2017 Thin Gap LCD PORON-V 30-013-24200366 (274x8x1mm) SP-7147 ABON TP A-68170-0401 34-026-06203412 EPDM-H (387x7.5x1.1mm) SP-7147 ABON TP A-68170-0401 34-026-06204412 EPDM-V A (304x15x1.1mm) SP-7147 ABON TP A-68170-0401 34-026-06205412 EPDM-V B (304x5x1.1mm) Touch Control Board for P-CAP, 52-370-02318007 USB&RS232 Interface...

  • Page 158: Sp-S174 Box Pc Exploded Diagram (Capacitance

    SP-S214 BR I/O Cover BM2502 20-104-03061454 (w/Paint) (Silver-Gray) Round Head With Spring Washer Screw 22-232-30060211 M3x0.5Px6mm SP-SXX4 PLPT1 Cable(25p to 26p) 27-004-46310031 L=455mm SP-SXX4 COM CableABLE(9M to 10F) 27-024-46307031 L=350mm SP-S154/S174/S214 System Fan 21-004-05050186 (50x50x20mm) L=450mm SP-SXX4 SERIES USER MANUAL Page: A-27...
  • Page 159 Appendix A System Diagrams Component Name P/N No. Q’ty Flat Head Screw T4.7x11mm 22-112-47011011 SP-SXX4 Power Switch Cable 27-019-46308071 L=380mm+50mm HEX CU BOSS UNC No.4-40, L=4.8, 22-692-40048051 H=7mm Pan Head Screw UNC-No.6-32,L=5mm 22-622-60005011 Flat Head Screw #2 /ψ 5 / 22-212-30005311 M3x0.5Px5mm HDD_Module_Bracket_EXP...

  • Page 160: Sp-S174 Hdd Module Exploded Diagram (Capacitance

    Appendix A System Diagrams SP-S174 HDD Module Exploded Diagram (Capacitance) Component Name P/N No. Q’ty HDD_Module_Assy-2_EXP See Page A-30 PT-1920 SHOCK-ABSORB Washer 83-680-63580963 Fillister Head Screw M3x0.5Px4.8mm 82-272-30005013 HDD Support Bracket 20-106-03002454 SP-SXX4 SERIES USER MANUAL Page: A-29...

  • Page 161: Sp-S174 Hdd Tray Exploded Diagram (Capacitance

    Appendix A System Diagrams SP-S174 HDD Tray Exploded Diagram (Capacitance) Component Name P/N No. Q’ty SP-S214 HDD Cable Holder ASSY 20-129-03001454 SP-7625 SATA HDD & Power Cable 27-012-32805081 L=150mm+250mm Fillister Head Screw #2 / M3x0.5Px5mm 22-272-30049015 2.5” HDD / SSD Flat Head Screw #2/ψ...

  • Page 162: Sp-S174 Packing Exploded Diagram

    Appendix A System Diagrams SP-S174 Packing Exploded Diagram Component Name P/N No. Q’ty SP-S174 System SP-S174 EPE Right (475x185x186mm) 94-016-00301464 EPE Left (475x185x186mm) 94-016-00302464 PE Bag 870x670x0.07mm 34-010-00210003 SILICA GEL 1gm 34-005-00010007 Carton Boxes (332x150x45mm) 34-003-01301086 MM-7017R Basic Style Outer Carton 94-001-01401258 (532x487x203mm) PS-8710A Mylar FOR 17"...

  • Page 163: Sp-S214 System Exploded Diagram

    Appendix A System Diagrams SP-S214 System Exploded Diagram Component Name P/N No. Q’ty 22-232-40004011 Truss Head Screw #2 / M4x0.7Px4mm 90-013-06100454 Wall Oring See Page A-36 BOX_PC_BM-2502_ASM Panel_LCD_Module_Kit See Page A-33 DSMS Adhesive Tape 94-026-06501000 SP-SXX4 SERIES USER MANUAL Page: A-32...

  • Page 164: Sp-S214 Touch Panel & Lcd Display Exploded Diagram

    Appendix A System Diagrams SP-S214 Touch Panel & LCD Display Exploded Diagram Component Name P/N No. Q’ty SP-S214 SUS Front Cover ASSY 20-104-07001454 52-380-13216717 21.5'' Capacitive Multi-Touch Panel 20-129-21001454 SP-S214 Touch Panel Holder Flat Head Screw #2/ψ 5 / M3x0.5Px5mm 22-212-30005311 LCD_Module_Kit_EXP See Page A-34...

  • Page 165: Sp-S214 Lcd Panel Exploded Diagram (1

    Appendix A System Diagrams SP-S214 LCD Panel Exploded Diagram (1) Component Name P/N No. Q’ty SP-S214 LCD Cover (w/Paint) 20-104-03063454 (Silver-Gray) G215HAN01_2_LCD_ASM_EXP See Page A-35 Round Head With Spring Washer Screw 22-232-30060211 M3x0.5Px6mm SP-S214 Driver Board Steady 20-106-03001454 Flat Head Screw #2 /ψ 5 / 22-212-30005311 M3x0.5Px5mm SP-SXX4 SERIES USER MANUAL...

  • Page 166: Sp-S214 Lcd Panel Exploded Diagram (2

    Appendix A System Diagrams SP-S214 LCD Panel Exploded Diagram (2) Component Name P/N No. Q’ty 21.5" TFT LCD Panel (LED Backlight), 52-351-13215202 350nits(1920x1080) SP-S214 LCD Holder LR 20-129-03004454 SP-S214 LCD Holder HT 20-129-03003454 SP-S214 LCD Holder HB 20-129-03002454 SP-S214 Thin Gap LCD PORON H 30-013-24200454 (488x8x1mm) SP-S214 Thin Gap LCD PORON V...

  • Page 167: Sp-S214 Box Pc Exploded Diagram

    Appendix A System Diagrams SP-S214 Box PC Exploded Diagram Component Name P/N No. Q’ty SP-S214 BR Base BM2502 (w/Paint) 20-132-03061454 (Silver-Gray) SP-S214 BR Rear Cover BM2502 20-104-03062454 (w/Paint)(Silver-Gray) BM-2502_PCB_ASSY_ASM BM-2502 ATX 250W AC Power Supply 52-001-00925001 SP-S214 BR I/O Cover BM2502 20-104-03061454 (w/Paint) (Silver-Gray) Round Head With Spring Washer Screw...
  • Page 168 Appendix A System Diagrams Component Name P/N No. Q’ty SP-S154/S174/S214 System Fan 21-004-05050186 (50x50x20mm) L=450mm Flat Head Screw T4.7x11mm 22-112-47011011 SP-SXX4 Power Switch Cable 27-019-46308071 L=380mm+50mm HEX CU BOSS UNC No.4-40, L=4.8, 22-692-40048051 H=7mm Pan Head Screw UNC-No.6-32,L=5mm 22-622-60005011 Flat Head Screw #2 /ψ 5 / 22-212-30005311 M3x0.5Px5mm...

  • Page 169: Sp-S214 Hdd Module Exploded Diagram

    Appendix A System Diagrams SP-S214 HDD Module Exploded Diagram Component Name P/N No. Q’ty HDD_Module_Assy-2_EXP See Page A-39 PT-1920 SHOCK-ABSORB Washer 83-680-63580963 Fillister Head Screw M3x0.5Px4.8mm 82-272-30005013 HDD Support Bracket 20-106-03002454 SP-SXX4 SERIES USER MANUAL Page: A-38...

  • Page 170: Sp-S214 Hdd Tray Exploded Diagram

    Appendix A System Diagrams SP-S214 HDD Tray Exploded Diagram Component Name P/N No. Q’ty SP-S214 HDD Cable Holder ASSY 20-129-03001454 SP-7625 SATA HDD & Power Cable 27-012-32805081 L=150mm+250mm Fillister Head Screw #2 / M3x0.5Px5mm 22-272-30049015 2.5” HDD / SSD Flat Head Screw #2/ψ 5 / M3x0.5Px5mm 22-212-30005311 SP-S214 HDD Tray (w/Paint) 20-154-03061454...

  • Page 171: Sp-S214 Packing Exploded Diagram

    Appendix A System Diagrams SP-S214 Packing Exploded Diagram Component Name P/N No. Q’ty SP-S214 System SP-S214 SP-S214 EPE (455x215x182mm) 94-016-00301454 PE Bag 870x670x0.07mm 34-010-00210003 SILICA GEL 1gm 34-005-00010007 Carton Boxes (332x150x45mm) 34-003-01301086 Outer Carton (668x468x233mm) 94-001-01401454 KT-7290 21.5" Mylar for Touch Panel 90-056-25100447 (525x316x0.125mm) Cardboard (580x370mm)

  • Page 172: Appendix B Technical Summary

    Appendix B Technical Summary This appendix will give you a brief introduction of the allocation maps for the system resources. The following topics are included: • System Block Diagram • Interrupt Map • I/O Map • Memory Map • Configuring WatchDog Timer •...

  • Page 173: Main Board Block Diagram

    Appendix B Technical Summary Main Board Block Diagram SP-SXX4 SERIES USER MANUAL Page: B-2...

  • Page 174: Interrupt Map

    Appendix B Technical Summary Interrupt Map ASSIGNMENT IRQ 0 System timer IRQ 3 Communications Port (COM2) IRQ 4 Communications Port (COM1) IRQ 6 Communications Port (COM5) IRQ 7 Communications Port (COM3) IRQ 8 System CMOS/real time clock IRQ 10 Communications Port (COM4) IRQ 11 Communications Port (COM6) Intel(R) 100 Series/C230 Series Chipset Family...
  • Page 175 Appendix B Technical Summary ASSIGNMENT IRQ 75 Microsoft ACPI-Compliant System IRQ 76 Microsoft ACPI-Compliant System IRQ 77 Microsoft ACPI-Compliant System IRQ 78 Microsoft ACPI-Compliant System IRQ 79 Microsoft ACPI-Compliant System IRQ 80 Microsoft ACPI-Compliant System IRQ 81 Microsoft ACPI-Compliant System IRQ 82 Microsoft ACPI-Compliant System IRQ 83...
  • Page 176 Appendix B Technical Summary ASSIGNMENT IRQ 114 Microsoft ACPI-Compliant System IRQ 115 Microsoft ACPI-Compliant System IRQ 116 Microsoft ACPI-Compliant System IRQ 117 Microsoft ACPI-Compliant System IRQ 118 Microsoft ACPI-Compliant System IRQ 119 Microsoft ACPI-Compliant System IRQ 120 Microsoft ACPI-Compliant System IRQ 121 Microsoft ACPI-Compliant System IRQ 122...
  • Page 177 Appendix B Technical Summary ASSIGNMENT IRQ 153 Microsoft ACPI-Compliant System IRQ 154 Microsoft ACPI-Compliant System IRQ 155 Microsoft ACPI-Compliant System IRQ 156 Microsoft ACPI-Compliant System IRQ 157 Microsoft ACPI-Compliant System IRQ 158 Microsoft ACPI-Compliant System IRQ 159 Microsoft ACPI-Compliant System IRQ 160 Microsoft ACPI-Compliant System IRQ 161...
  • Page 178 Appendix B Technical Summary ASSIGNMENT IRQ 192 Microsoft ACPI-Compliant System IRQ 193 Microsoft ACPI-Compliant System IRQ 194 Microsoft ACPI-Compliant System IRQ 195 Microsoft ACPI-Compliant System IRQ 196 Microsoft ACPI-Compliant System IRQ 197 Microsoft ACPI-Compliant System IRQ 198 Microsoft ACPI-Compliant System IRQ 199 Microsoft ACPI-Compliant System IRQ 200...
  • Page 179 Appendix B Technical Summary ASSIGNMENT IRQ 282 Microsoft ACPI-Compliant System IRQ 283 Microsoft ACPI-Compliant System IRQ 284 Microsoft ACPI-Compliant System IRQ 285 Microsoft ACPI-Compliant System IRQ 286 Microsoft ACPI-Compliant System IRQ 287 Microsoft ACPI-Compliant System IRQ 288 Microsoft ACPI-Compliant System IRQ 289 Microsoft ACPI-Compliant System IRQ 290...
  • Page 180 Appendix B Technical Summary ASSIGNMENT IRQ 321 Microsoft ACPI-Compliant System IRQ 322 Microsoft ACPI-Compliant System IRQ 323 Microsoft ACPI-Compliant System IRQ 324 Microsoft ACPI-Compliant System IRQ 325 Microsoft ACPI-Compliant System IRQ 326 Microsoft ACPI-Compliant System IRQ 327 Microsoft ACPI-Compliant System IRQ 328 Microsoft ACPI-Compliant System IRQ 329...
  • Page 181 Appendix B Technical Summary ASSIGNMENT IRQ 360 Microsoft ACPI-Compliant System IRQ 361 Microsoft ACPI-Compliant System IRQ 362 Microsoft ACPI-Compliant System IRQ 363 Microsoft ACPI-Compliant System IRQ 364 Microsoft ACPI-Compliant System IRQ 365 Microsoft ACPI-Compliant System IRQ 366 Microsoft ACPI-Compliant System IRQ 367 Microsoft ACPI-Compliant System IRQ 368...
  • Page 182 Appendix B Technical Summary ASSIGNMENT IRQ 399 Microsoft ACPI-Compliant System IRQ 400 Microsoft ACPI-Compliant System IRQ 401 Microsoft ACPI-Compliant System IRQ 402 Microsoft ACPI-Compliant System IRQ 403 Microsoft ACPI-Compliant System IRQ 404 Microsoft ACPI-Compliant System IRQ 405 Microsoft ACPI-Compliant System IRQ 406 Microsoft ACPI-Compliant System IRQ 407...
  • Page 183 Appendix B Technical Summary ASSIGNMENT IRQ 438 Microsoft ACPI-Compliant System IRQ 439 Microsoft ACPI-Compliant System IRQ 440 Microsoft ACPI-Compliant System IRQ 441 Microsoft ACPI-Compliant System IRQ 442 Microsoft ACPI-Compliant System IRQ 443 Microsoft ACPI-Compliant System IRQ 444 Microsoft ACPI-Compliant System IRQ 445 Microsoft ACPI-Compliant System IRQ 446...
  • Page 184 Appendix B Technical Summary ASSIGNMENT IRQ 477 Microsoft ACPI-Compliant System IRQ 478 Microsoft ACPI-Compliant System IRQ 479 Microsoft ACPI-Compliant System IRQ 480 Microsoft ACPI-Compliant System IRQ 481 Microsoft ACPI-Compliant System IRQ 482 Microsoft ACPI-Compliant System IRQ 483 Microsoft ACPI-Compliant System IRQ 484 Microsoft ACPI-Compliant System IRQ 485...
  • Page 185 Appendix B Technical Summary ASSIGNMENT IRQ 4294967287 Intel(R) I210 Gigabit Network Connection IRQ 4294967288 Intel(R) I210 Gigabit Network Connection IRQ 4294967289 Intel(R) I210 Gigabit Network Connection Intel(R) USB 3.0 eXtensible Host Controller - 1.0 IRQ 4294967290 (Microsoft) IRQ 4294967291 Intel(R) HD Graphics 630 IRQ 4294967292 Intel(R) Ethernet Connection (2) I219-LM Intel(R) 100 Series/C230 Chipset Family SATA AHCI...

  • Page 186: I/O Map

    Appendix B Technical Summary I/O MAP ASSIGNMENT 0x00000000-0x00000CF7 PCI Express Root Complex 0x00000020-0x00000021 Programmable interrupt controller 0x00000024-0x00000025 Programmable interrupt controller 0x00000028-0x00000029 Programmable interrupt controller 0x0000002C-0x0000002D Programmable interrupt controller 0x0000002E-0x0000002F Motherboard resources 0x00000030-0x00000031 Programmable interrupt controller 0x00000034-0x00000035 Programmable interrupt controller 0x00000038-0x00000039 Programmable interrupt controller 0x0000003C-0x0000003D Programmable interrupt controller...
  • Page 187 Appendix B Technical Summary ASSIGNMENT 0x000003C0-0x000003DF Intel(R) HD Graphics 630 0x000003E8-0x000003EF Communications Port (COM3) 0x000003F8-0x000003FF Communications Port (COM1) 0x000004D0-0x000004D1 Programmable interrupt controller 0x00000680-0x0000069F Motherboard resources 0x00000800-0x0000087F Motherboard resources 0x00000A00-0x00000A0F Motherboard resources 0x00000A10-0x00000A1F Motherboard resources 0x00000A20-0x00000A2F Motherboard resources 0x00000D00-0x0000FFFF PCI Express Root Complex 0x0000164E-0x0000164F Motherboard resources 0x00001800-0x000018FE...

  • Page 188: Memory Map

    Appendix B Technical Summary Memory Map MEMORY MAP ASSIGNMENT 0xFED10000-0xFED17FFF Motherboard resources 0xFED18000-0xFED18FFF Motherboard resources 0xFED19000-0xFED19FFF Motherboard resources 0xE0000000-0xEFFFFFFF Motherboard resources 0xFED20000-0xFED3FFFF Motherboard resources 0xFED90000-0xFED93FFF Motherboard resources 0xFED45000-0xFED8FFFF Motherboard resources 0xFF000000-0xFFFFFFFF Motherboard resources 0xFF000000-0xFFFFFFFF Legacy device 0xFEE00000-0xFEEFFFFF Motherboard resources 0xDFFE0000-0xDFFFFFFF Motherboard resources 0xFDAF0000-0xFDAFFFFF Motherboard resources...

  • Page 189: Dma Map

    Appendix B Technical Summary MEMORY MAP ASSIGNMENT 0xFE410000-0xFE7FFFFF Motherboard resources Intel(R) I210 Gigabit Network 0xDF080000-0xDF083FFF Connection Intel(R) 100 Series/C230 Series Chipset 0xDF144000-0xDF147FFF Family PMC - A121 0x90000000-0xDFFFFFFF PCI Express Root Complex Intel(R) Active Management Technology 0xDF14D000-0xDF14DFFF - SOL (COM7) 0xFE40F000-0xFE40FFFF Intel(R) Management Engine Interface Intel(R) USB 3.0 eXtensible Host 0xDF130000-0xDF13FFFF...

  • Page 190: Configuring Watchdog Timer

    Appendix B Technical Summary Configuring WatchDog Timer The I/O port address of the watchdog timer is 2E (hex) and 2F (hex). 2E (hex) is the address port. 2F (hex) is the data port. User must first assign the address of register by writing address value into address port 2E (hex), then write/read data to/from the assigned register through data port 2F (hex).
  • Page 191 Appendix B Technical Summary Code example for watch dog timer Enable watchdog timer and set timeout interval to 30 seconds. ; ------------------------- Enter to extended function mode ------------------------------- dx, 2eh dx, al dx, al ; ----------------------- Select Logical Device 7 of watchdog timer --------------------- dx, al dx, al ;---------------------------- Enable Watch dog feature -------------------------------------...
  • Page 192 Appendix B Technical Summary dx, al ;------------------- Set second as counting unit and start counting -------------------- 0F5h dx, al 0F7h dx, al ;---------------------------- Exit the extended function mode ------------------------------ 0AAh dx, al SP-SXX4 SERIES USER MANUAL Page: B-21...

  • Page 193: Flash Bios Update

    Appendix B Technical Summary Flash BIOS Update I. Prerequisites Prepare a USB storage device which can save the required files for BIOS update. Download and save the BIOS file (e.g. S2140PX1.bin) to the storage device. Copy AMI flash utility – AFUEFIx64.exe (v5.09.01) into the storage device.
  • Page 194 Appendix B Technical Summary (5) Press <ESC> or <DEL> to enter into BIOS setup menu again. (6) Select [Boot] menu and set [UEFI: Built-in EFI Shell] to be the 1 boot device. (7) Press <F4> key to save configuration and restart the system to boot into EFI Shell environment.
  • Page 195 Appendix B Technical Summary II.AFUEFIx64 command for system BIOS update AFUEFIx64.efi is the AMI firmware update utility; the command line is shown as below: AFUEFIx64 <ROM File Name> [option1] [option2]…. Users can type “AFUEFIx64 /?” to see the definition of each control option.
  • Page 196 Appendix B Technical Summary fs0:\afuefix64> afuefix64 S2X40PQ1.bin /p /b /n /x +-------------------------------------------------------------------- ---+ AMI Firmware Update Utility v5.09.01.1317 | Copyright (C) 2016 American Megatrends Inc. All Rights Reserved. +-------------------------------------------------------------------- ---+ Reading flash ....done - ME Data Size Checking - OK - FFS checksums ..
