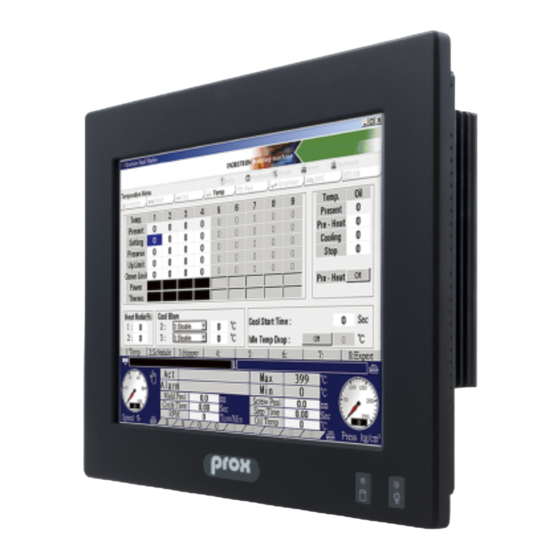

10.4”/15” high performance panel pc
Hide thumbs Also See for SP-6150:
Table of Contents

Advertisement

Quick Links

Download this manual
USER
MANUAL
SP-6150/SP-6155 M2
SP-6150/6155
10.4" / 15" Fanless Panel PC
Powered by Intel
Pentium
/ Celeron
®
Processor
Atom
/
®
TM
CPU
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-6150 and is the answer not in the manual?

Questions and answers

Related Manuals for protech SP-6150

Summary of Contents for protech SP-6150

  • Page 1 USER MANUAL SP-6150/6155 10.4” / 15” Fanless Panel PC Powered by Intel Atom ® Pentium / Celeron ® ® Processor SP-6150/SP-6155 M2...
  • Page 2 SP-6150/SP-6155 10.4”/15” High Performance Panel PC COPYRIGHT NOTICE & TRADEMARK All trademarks and registered trademarks mentioned herein are the property of their respective owners. This manual is copyrighted in Nov. 2017. You may not reproduce or transmit in any form or by any means, electronic, or mechanical, including photocopying and recording.
  • Page 3 a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

  • Page 4: Table Of Contents

    Safety Precautions ..............2-11 System Configuration ................. 3-1 External I/O Ports Diagram ............3-2 SP-6150 / SP-6155 Rear I/O Ports Diagram ........3-2 JUMPER & CONNECTOR QUICK REFERENCE TABLE ..3-3 COMPONENT LOCATIONS OF SYSTEM MAIN BOARD ..3-5 3.3.1 Top View of System Main Board ........
  • Page 5 3.5.7 USB 3.0 Connectors ............3-16 3.5.8 Digital Input/Output Connector ........3-17 3.5.9 I2C Wafer ................. 3-18 3.5.10 I2C PIN2 Voltage Selection ..........3-19 3.5.11 DVI Port ................3-20 3.5.12 HDMI Port Connector ............3-21 3.5.13 HD Audio Connector ............3-22 3.5.14 Low Pin Count (LPC) Connector ........
  • Page 6 TOUCH CONTROL BOARD SR-6145 COMPONENT LOCATIONS ................3-41 3.7.1 Touch Control Board SR-6145 Top View ......3-41 SETTING TOUCH CONTROL BOARD SR-6145 CONNECTORS AND JUMPERS............... 3-42 3.8.1 Control Signal Connector ..........3-42 3.8.2 LVDS Panel Signal Connector (Connected To Motherboard) ..................
  • Page 7 Installing Graphics Driver Utility ..........4-6 Installing LAN Driver Utility ............4-7 Installing Sound Driver Utility ............ 4-8 ® Installing Intel Serial I/O Driver Utility ........4-9 BIOS SETUP ..................5-1 Introduction ................5-2 Accessing Setup Utility .............. 5-4 Main ................... 5-7 Advanced ..................
  • Page 8 SP-6150 / SP-6155 Heatsink Exploded Diagram ........A-12 SP-6150 / SP-6155 Mother Board Exploded Diagram ......A-13 SP-6150 / SP-6155 Front &Rear I/O Panel Exploded Diagram ....A-14 SP-6150 / SP-6155 HDD Tary Exploded Diagram ........A-15 SP-6150 / SP-6155 Packing Exploded Diagram ........A-16 Appendix B Technical Summary ..........
  • Page 9 Flash BIOS Update ..................B-25...

  • Page 10: Revision History

    Revision History The revision history of SP-6150 / SP-6155 User Manual is described below: Version No. Revision History Page No. Date Initial Release 2017/9  Modify LCD Specification for 2-10 SP-6150  Change rear I/O ports diagram 2017/10/05  Change SP-6155 LCD display exploded Diagram and component name for no.19 and no.20...

  • Page 11: Introduction

    Introduction This chapter provides the introduction for the SP-6150 / SP-6155 system as well as the framework of the user manual. The following topic is included: • About This Manual SP-6150/6155 SERIES USER MANUAL Page: 1-1...

  • Page 12: About This Manual

    Chapter 1 Introduction About This Manual Thank you for purchasing our SP-6150 / SP-6155 system. The SP-6150 / SP-6155 is an updated system designed to be comparable with the highest performance of IBM AT personal computers. The SP-6150 / SP-6155 provides faster processing speed, greater expandability and can handle more tasks than before.

  • Page 13: Getting Started

    Getting Started This chapter provides the information for the SP-6150 / SP-6155 system. It describes how to set up the system quickly and outlines the system specifications. The following topics are included: • Package List • System Overview • System Specification •...

  • Page 14: Package List

    If you discover any of the items listed below are damaged or lost, please contact your local distributor immediately. Item Q’ty SP-6150 / SP-6155 Manual / Driver DVD Quick Guide Terminal Block (2 pins) Wall Oring SP-6150/6155 SERIES USER MANUAL Page: 2-2...

  • Page 15: System Overview

    Chapter 2 Getting Started System Overview Unit: mm SP-6150 Front View Rear View 88.8 Top View 217.5 ANT2 ANT3 ANT4 ANT1 SIM1 SIM2 SP-6150/6155 SERIES USER MANUAL Page: 2-3...
  • Page 16 Chapter 2 Getting Started Bottom View Unit: mm Left Side View Right Side View SP-6150/6155 SERIES USER MANUAL Page: 2-4...
  • Page 17 Chapter 2 Getting Started Quarter View SP-6150/6155 SERIES USER MANUAL Page: 2-5...
  • Page 18 Chapter 2 Getting Started Unit: mm SP-6155 Front View Rear View C.L.100(VESA Top View 217.5 ANT2 ANT3 ANT4 SIM1 SIM2 SP-6150/6155 SERIES USER MANUAL Page: 2-6...
  • Page 19 Chapter 2 Getting Started Bottom View Unit: mm Left Side View Right Side View SP-6150/6155 SERIES USER MANUAL Page: 2-7...
  • Page 20 Chapter 2 Getting Started Quarter View SP-6150/6155 SERIES USER MANUAL Page: 2-8...

  • Page 21: System Specifications

     DC in 9~36V  Windows 10 loT Enterprise LTSB 2016 64bit / Ubuntu Operating System 16.04 LTS  SP-6150 : 3.4 kg / 277.6mm(W) x 228.8mm(H) x System Weight / 78mm(D) Dimension (W x H x D)  SP-6155 : 6.3 kg / 408mm(W) x 308mm(H) x 87.7mm(D) Certificate ...
  • Page 22 Chapter 2 Getting Started Dispaly  SP-6150 : 10.4 TFT LCD(LED) Resolution SVGA 800 x 600  SP-6155 : 15 TFT LCD(LED) Resolution XGA 1024 x768  5-wire resistive touch screen (USB interface) Touch Screen Environment  HDD: 0°C ~ 40°C (32°F ~ 104°F) ...

  • Page 23: Safety Precautions

    Avoid direct sunlight exposure for a long period of time (for example, in a closed car in summer time. Also avoid the system from any heating device.). Or do not use SP-6150 / SP-6155 when it has been left outdoors in a cold winter day.

  • Page 24: System Configuration

    • Connector & Jumper Quick Reference Table • System Main Board Component Locations • How to Set Jumpers • Setting Main Board Connectors and Jumpers • Touch Control Board Component Locations • Setting Touch Control Board Connectors and Jumpers SP-6150/6155 SERIES USER MANUAL Page: 3-1...

  • Page 25: External I/O Ports Diagram

    Chapter 3 Hardware Configuration External I/O Ports Diagram SP-6150 / SP-6155 Rear I/O Ports Diagram HDMI Connector LAN2 DC IN 9~36V DVI-D LAN1 Power DC IN 9~36V Button DVI-D HDMI LAN1 LAN2 RESET Line-out GND VCC COM2 COM1 Remote SW...

  • Page 26: Jumper & Connector Quick Reference Table

    Mainboard Top Side Connectors Power Button Connector J_PBTN1 Digital Input/ Output Connectors JDIO1 Mini PCI Express Slot M_PCIE1 LVDS Connector LVDS1 Panel Inverter Connector JINV1 Mini-Serial ATA (SATA) Slot M_SATA1 SATA 3.0 Connectors SATA1 SP-6150/6155 SERIES USER MANUAL Page: 3-3...
  • Page 27 Chapter 3 Hardware Configuration System CONNECTOR Description NAME HDD Power Connector SATA_PWR1 I2C Wafer JI2C1, JI2C2 Low Pin Count (LPC) Connector JLPC1 Power over Ethernet (PoE) Connector JPOE1 SP-6150/6155 SERIES USER MANUAL Page: 3-4...

  • Page 28: Component Locations Of System Main Board

    Make sure both the system and peripheral devices are turned OFF as sudden surge of power could damage sensitive components. Make sure SP-6150 / SP-6155 is properly grounded. CAUTION: Observe precautions while handling electrostatic sensitive components.
  • Page 29 CAUTION: Always touch the motherboard components by the edges. Never touch components such as a processor by its pins. Take special cares while you are holding electronic circuit boards by the edges only. Do not touch the mainboard components. SP-6150/6155 SERIES USER MANUAL Page: 3-6...

  • Page 30: Bottom View Of System Main Board

    Chapter 3 Hardware Configuration 3.3.2 Bottom View of System Main Board Figure 3-2 Main Board Component Location (Rear View) SP-6150/6155 SERIES USER MANUAL Page: 3-7...

  • Page 31: How To Set Jumpers

    2 to create one setting and shorting. You can also select to connect pins 2 and 3 to create another setting. The format of the jumper picture will be illustrated throughout this manual. The figure below shows different types of jumpers and jumper settings. SP-6150/6155 SERIES USER MANUAL Page: 3-8...
  • Page 32 Chapter 3 Hardware Configuration Jumper diagrams Jumper settings SP-6150/6155 SERIES USER MANUAL Page: 3-9...

  • Page 33: Setting Main Board Connectors And Jumpers

    COM1 and COM2 pin 9 are selectable for RI, +5V or +12V by jumper setting. Default setting is RI, please see “COM1 and COM2 PIN9 Definition Selection Guide” for selection details. COM1,COM2 is selectable as RS232, RS422, RS485 by BIOS. SP-6150/6155 SERIES USER MANUAL Page: 3-10...

  • Page 34: Com1 And Com2 Pin9 Definition Selection Guide

    COM1 and COM2 PIN9 Definition Selection Guide Jumper Name: JP_COM1, JP_COM2 Description: COM1 (JP_COM1) and COM2 pin9 (JP_COM2) RI/5V/12V Selection SELECTION JUMPER SETTING JUMPER ILLUSTRATION (Default Setting) JP_COM1 JP_COM2 +12V JP_COM1 JP_COM2 JP_COM1 JP_COM2 SP-6150/6155 SERIES USER MANUAL Page: 3-11...

  • Page 35: Power Input Connector

    Chapter 3 Hardware Configuration 3.5.3 Power Input Connector Connector Location: CN_POWER1 Description: Power Input Connector ASSIGNMENT WIDE_POWERIN CN_POWER1 3.5.4 Power Button Connector Connector Location: J_PBTN1 Description: Power Button Connector ASSIGNMENT PWRBTNJ J_PBTN1 SP-6150/6155 SERIES USER MANUAL Page: 3-12...

  • Page 36: Lan1, Lan2 Ports

    Description: LAN1, LAN2 Port, LAN RJ-45 Port (Rear I/O) LAN1 Pin Assignment: ASSIGNMENT LAN1_MDIP0 LAN1_MDIN0 LAN1_MDIP1 LAN1_MDIP2 LAN1_MDIN2 LAN1_MDIN1 LAN1_MDIP3 LAN1_MDIN3 LAN1 / LAN2 LAN2 Pin Assignment: ASSIGNMENT LAN2_MDIP0 LAN2_MDIN0 LAN2_MDIP1 LAN2_MDIP2 LAN2_MDIN2 LAN2_MDIN1 LAN2_MDIP3 LAN2_MDIN3 SP-6150/6155 SERIES USER MANUAL Page: 3-13...
  • Page 37 Left Side LED Green Color On7 10/100Mbps LAN Speed Indicator Orange Color On8 Giga LAN Speed Indicator No LAN Switch/HUB connect Right Side LED Yellow Color Blinking LAN Message Active No LAN Message Active SP-6150/6155 SERIES USER MANUAL Page: 3-14...

  • Page 38: Dual Usb 3.0 Connectors

    Chapter 3 Hardware Configuration 3.5.6 Dual USB 3.0 Connectors Connector Location: USB1 Description: Dual USB 3.0 Connectors USB 3.0 signals: ASSIGNMENT ASSIGNMENT VCC5_USB1 USB3_RXN1 USB2_P1_DN USB3_RXP1 USB2_P1_DP USB3_TXN1 USB3_TXP1 VCC5_USB1 USB3_RXN2 USB2_P2_DN USB3_RXP2 USB2_P2_DP USB1 USB3_TXN2 USB3_TXP2 SP-6150/6155 SERIES USER MANUAL Page: 3-15...

  • Page 39: Usb 3.0 Connectors

    Chapter 3 Hardware Configuration 3.5.7 USB 3.0 Connectors Connector Location: USB2 Description: USB 3.0 Connectors USB 3.0 (USB2) signals: ASSIGNMENT ASSIGNMENT VCC5_USB2 USB3_RXN3 USB2_P3_DN USB3_RXP3 USB2_P3_DP USB3_TXN3 USB2 USB3_TXP3 SP-6150/6155 SERIES USER MANUAL Page: 3-16...

  • Page 40: Digital Input/Output Connector

    Chapter 3 Hardware Configuration 3.5.8 Digital Input/Output Connector Connector Location: JDIO1 Description: Digital Input / Output Connector ASSIGNMENT ASSIGNMENT VCC5 DIN0 DOUT0 DIN1 DOUT1 DIN2 DOUT2 DIN3 DOUT3 JDIO1 SP-6150/6155 SERIES USER MANUAL Page: 3-17...

  • Page 41: I2C Wafer

    Chapter 3 Hardware Configuration 3.5.9 I2C Wafer Connector Location: JI2C1, JI2C2 Description: I2C Wafer JI2C1 Pin Assignment: ASSIGNMENT V3P3S/VCC5 I2C4_SCL_33 I2C4_SDA_33 JI2C2 Pin Assignment: ASSIGNMENT V3P3S/VCC5 I2C5_SCL_33 JI2C1/ I2C5_SDA_33 JI2C2 SP-6150/6155 SERIES USER MANUAL Page: 3-18...

  • Page 42: I2C Pin2 Voltage Selection

    JI2C2 pin2: 5V JP_I2C1 Note 1: Users can change the voltage setting according to the connected I2C device. Note 2: Please refer to I2C WAFER for more details about pin definition of JI2C1 and JI2C2. SP-6150/6155 SERIES USER MANUAL Page: 3-19...

  • Page 43: Dvi Port

    Chapter 3 Hardware Configuration 3.5.11 DVI Port Connector Location: DVI1 Description: DVI (Digital Visual Interface) Connector DVI1 ASSIGNMENT ASSIGNMENT DP0_DVI_N2 DP0_DVI_P2 VCC5_DVI CRT_CLK DP0_DVI_HPD_IN DP0_DVI_N0 DP0_DVI_SCL DP0_DVI_P0 DP0_DVI_SDA DP0_DVI_N1 DP0_DVI_P1 DP0_DVI_CLKP DP0_DVI_CLKN SP-6150/6155 SERIES USER MANUAL Page: 3-20...

  • Page 44: Hdmi Port Connector

    Chapter 3 Hardware Configuration 3.5.12 HDMI Port Connector Connector Location: HDMI1, HDMI2 Description: Display Port Connector HDMI1 HDMI Connector (HDMI1) signals: ASSIGNMENT ASSIGNMENT DP1_HDMI_P2 DP1_HDMI_N2 DP1_HDMI_P1 DP1_HDMI_N1 DP1_HDMI_P0- DP1_HDMI_N0 DP1_HDMI_CLKP DP1_HDMI_CLKN DP1_HDMI_SCL DP1_HDMI_SDA VCC5_HDMI DP1_HDMI_HPD_IN SP-6150/6155 SERIES USER MANUAL Page: 3-21...

  • Page 45: Hd Audio Connector

    Chapter 3 Hardware Configuration 3.5.13 HD Audio Connector Connector Location: AUDIO1 Description: HD Audio Connector for Line_out/Mic_in ASSIGNMENT HD_MIC1-L HD_GND HD_GND MIC1-JD HD_MIC1-R LINE-OUT-L HD_GND FRONT-JD LINE-OUT-R AUDIO1 SP-6150/6155 SERIES USER MANUAL Page: 3-22...

  • Page 46: Low Pin Count (Lpc) Connector

    LPC_AD3 LPC_AD2 V3P3A LPC_AD1 JLPC1 Power over Ethernet (PoE) Connector 3.5.15 Connector Location: JPOE1 Description: Power over Ethernet (PoE) Connector ASSIGNMENT ASSIGNMENT OUT2 POE_DATA OUT1 VOUT_54 POE_CLK VOUT_54 PoE_POWERIN VOUT_54 PoE_POWERIN PoE_POWERIN PoE_POWERIN JPOE1 SP-6150/6155 SERIES USER MANUAL Page: 3-23...

  • Page 47: Mini Pci Express Slot

    Mini PCI Express is the successor of the Mini PCI card and provides an increased data throughput. The cards have a detached network interface and are equipped with one lane. They are used in particular in embedded designs or compact box PCs. SP-6150/6155 SERIES USER MANUAL Page: 3-24...

  • Page 48: Lvds Connector

    LVDS Connector Connector Location: LVDS1 Description: LVDS Connector ASSIGNMENT ASSIGNMENT LVDS_VCC LVDS_CLKB_DN LVDS_CLKB_DP LVDS_B2_DN LVDS_B2_DP LVDS_B1_DN LVDS_B1_DP LVDS_B3_DP LVDS_B3_DN LVDS_B0_DP LVDS_B0_DN LVDS_CLKA_DP LVDS_CLKA_DN LVDS_A2_DP LVDS_A2_DN LVDS_A1_DP LVDS_A1_DN LVDS_A0_DP LVDS_A0_DN LVDS_A3_DP LVDS_A3_DN LVDS_VCC LVDS_VCC LVDS1 SP-6150/6155 SERIES USER MANUAL Page: 3-25...

  • Page 49: Panel Inverter Connector

    Chapter 3 Hardware Configuration 3.5.18 Panel Inverter Connector Connector Location: JINV1 Description: Panel Inverter Connector ASSIGNMENT ASSIGNMENT V5P0A V5P0A USB2_P5_DN V12P0_INV USB2_P5_DP V12P0_INV V12P0_INV LVDS_BKLTEN V12P0_INV USB2_P6_DN V12P0_INV USB2_P6_DP SATA_LED P_LED LVDS_BKLCTL VCC5 USB2_OC1 JINV1 SP-6150/6155 SERIES USER MANUAL Page: 3-26...

  • Page 50: Mini- Serial Ata (Sata) Slot

    Mini- Serial ATA (SATA) SLOT Connector Location: M_SATA1 Description: Mini-Serial ATA (SATA) Slot ASSIGNMENT ASSIGNMENT V3P3S_MSATA SIM2_PWR SIM2_DATA SIM2_CLK SIM2_RESET SIM2_VPP SIM2_SW2 SIM2_SW1 SATA_RXP1 V3P3S_MSATA SATA_RXN1 M_SATA1 SATA_TXN1 SATA_TXP1 USB2_P0_DN USB2_P0_DP V3P3S_MSATA V3P3S_MSATA V3P3S_MSATA SP-6150/6155 SERIES USER MANUAL Page: 3-27...

  • Page 51: Serial Ata (Sata) 3.0 Connector

    Serial ATA (SATA) 3.0 Connector 3.5.20 Connector Location: SATA1 Description: Serial ATA (SATA) 3.0 Connector ASSIGNMENT SATA_TXP0 SATA_TXN0 SATA_RXN0 SATA1 SATA_RXP0 HDD Power Connector 3.5.21 Connector Location: SATA_PWR1 Description: HDD Power Connector ASSIGNMENT VCC5 SATA_PWR1 SP-6150/6155 SERIES USER MANUAL Page: 3-28...

  • Page 52: At / Atx Mode Selection

    Description: AT / ATX Mode Selection SELECTION JUMPER SETTING JUMPER ILLUSTRATION Open (Default Setting) JP_ATX1 JP_ATX1 TPM Module Selection 3.5.23 Connector Location: JP_TPM1 Description: TPM Module Selection SELECTION JUMPER SETTING JUMPER ILLUSTRATION Normal (Default Setting) JP_TPM1 Enable JP_TPM1 SP-6150/6155 SERIES USER MANUAL Page: 3-29...

  • Page 53: Slide Switch For Lvds Resolution Selection

    Jumper Name: SW2 Description: Slide Switch for LVDS Resolution/Channel/Color Bit Selection SELECTION SETTING 800 x 600 1CH/18bit 1024 x 768 1CH/18bit 1024 x 768 1CH/24bit (SP-7155 Default Setting) 1280 x 768 1CH/18bit 1280 x 800 1CH/18bit SP-6150/6155 SERIES USER MANUAL Page: 3-30...
  • Page 54 Chapter 3 Hardware Configuration SELECTION SETTING 1280 x 960 1CH/24bit 1280 x 1024 2CH/24bit (SP-7157 Default Setting) 1366 x 768 1CH/18bit 1366 x 768 1CH/24bit 1440 x 900 2CH/24bit 1400 x 1050 2CH/24bit SP-6150/6155 SERIES USER MANUAL Page: 3-31...
  • Page 55 Chapter 3 Hardware Configuration SELECTION SETTING 1600 x 900 2CH/24bit 1680 x 1050 2CH/24bit 1600 x 1200 2CH/24bit 1920 x 1080 2CH/24bit 1920 x 1200 2CH/24bit SP-6150/6155 SERIES USER MANUAL Page: 3-32...

  • Page 56: Lvds Display Selection

    Chapter 3 Hardware Configuration LVDS Display Selection 3.5.25 Connector Location: JP_EDP1, JP7 Description: Display selection to LVDS by JP_EDP1 and JP7 SELECTION JUMPER SETTING JUMPER ILLUSTRATION LVDS JP_EDP1 (Default Setting) LVDS (Default Setting) SP-6150/6155 SERIES USER MANUAL Page: 3-33...

  • Page 57: Lvds Vcc Voltage Selection

    Description: Voltage selection jumper for selecting PIN1, PIN29, PIN30 (LVDS_VCC) voltage of LVDS1. SELECTION JUMPER SETTING JUMPER ILLUSTRATION 3.3V JP_VDD1 (Default Setting) JP_VDD1 Note: Please refer to PANEL INVERTER CONNECTOR for more information about pin definition of JINV1. SP-6150/6155 SERIES USER MANUAL Page: 3-34...

  • Page 58: Lvds Backlight Control Selection

    SELECTION JUMPER SETTING JUMPER ILLUSTRATION 3.3V (Default Setting) Note 1: Users can change the setting according to panel specification Note 2: Please refer to pin definitions of PANEL INVERTER CONNECTOR (JINV1) for more details. SP-6150/6155 SERIES USER MANUAL Page: 3-35...

  • Page 59: Lvds Backlight Control Selection

    On/Off Sequence by CPU. Set pins 3-5 and 4-6 as connected for controlling LVDS Panel On/Off Sequence by CH7511. SELECTION JUMPER SETTING JUMPER ILLUSTRATION (Default Setting) JP10 (Default Setting) JP10 CH7511 JP10 CH7511 JP10 SP-6150/6155 SERIES USER MANUAL Page: 3-36...

  • Page 60: Lvds Panel Inverter 12V Soft-Start Time Selection

    LVDS Panel Inverter 12V Soft-Start Time Selection 3.5.29 Connector Location: JP10 Description: LVDS Panel Inverter 12V Soft-Start Time Selection. SELECTION JUMPER SETTING JUMPER ILLUSTRATION Open (Default Setting) JP10 20ms JP10 Note: Users can change the setting according to panel specification SP-6150/6155 SERIES USER MANUAL Page: 3-37...

  • Page 61: Clear Cmos Data Selection

    Step4. Power on the PC and the PC will then auto-reboot for once in order to set SoC’s register. Step5. Done! SELECTION JUMPER SETTING JUMPER ILLUSTRATION Open Normal (Default Setting) Clear CMOS* Note: Please make sure the main power is off before clearing CMOS. SP-6150/6155 SERIES USER MANUAL Page: 3-38...

  • Page 62: Microsd Card Connector

    Chapter 3 Hardware Configuration 3.5.31 MicroSD Card Connector Connector Location: SDCARD1 (rear side of mainboard) Description: MicroSD (Secure Digital) Card Connector ASSIGNMENT DAT3 DAT0 DAT1 SDCARD1 DAT2 SP-6150/6155 SERIES USER MANUAL Page: 3-39...

  • Page 63: Sim Card Connectors

    Chapter 3 Hardware Configuration 3.5.32 SIM Card Connectors Connector Location: SIM1, SIM2 (rear side of mainboard) Description: SIM (Subscriber Identity Module) Card Connectors ASSIGNMENT DATA SIM1 / SIM2 SP-6150/6155 SERIES USER MANUAL Page: 3-40...

  • Page 64: Touch Control Board Sr-6145 Connector Quick Reference Table

    LVDS Panel Signal Connector LVDS_LCD1 (Connected To LCD Panel) 15" Panel LED Backlight Control JLED_DRV Connector Touch Panel Connector JTP1 LED1 Connector JLED1 TOUCH CONTROL BOARD SR-6145 COMPONENT LOCATIONS 3.7.1 Touch Control Board SR-6145 Top View SP-6150/6155 SERIES USER MANUAL Page: 3-41...

  • Page 65: Setting Touch Control Board Sr-6145 Connectors And Jumpers

    CONNECTORS AND JUMPERS 3.8.1 Control Signal Connector Connector Location: SGN_BRD1 Description: Control Signal Connector ASSIGNMENT ASSIGNMENT 5VSB 5VSB USB D+ +12V USB D- +12V +12V Backlight Enable +12V +12V HD_LED POWER LED LCD_PWM USB_OC SGN_BRD1 SP-6150/6155 SERIES USER MANUAL Page: 3-42...

  • Page 66: Lvds Panel Signal Connector (Connected To Motherboard)

    Connector Location: LVDS_MB1 Description: LVDS Panel Signal Connector ASSIGNMENT ASSIGNMENT LVDS_VCC LVDS1_CLK-(Even) LVDS1_CLK+(Even) LVDS1_D2-(Even) LVDS1_D2+(Even) LVDS1_D1-(Even) LVDS1_D1+(Even) LVDS1_D3+(Even) LVDS1_D3-(Even) LVDS1_D0+(Even) LVDS1_D0-(Even) LVDS0_CLK+(Odd) LVDS0_CLK-(Odd) LVDS0_D2+(Odd) LVDS0_D2-(Odd) LVDS0_D1+(Odd) LVDS0_D1-(Odd) LVDS0_D0+(Odd) LVDS0_D0-(Odd) LVDS_MB1 LVDS0_D3+(Odd) LVDS0_D3-(Odd) LVDS_VCC LVDS_VCC SP-6150/6155 SERIES USER MANUAL Page: 3-43...

  • Page 67: Lvds Panel Signal Connector (Connected To Lcd Panel)

    Connector Location: LVDS_LCD1 Description: LVDS Panel Signal Connector ASSIGNMENT ASSIGNMENT LVDS_VCC LVDS1_CLK-(Even) LVDS1_CLK+(Even) LVDS1_D2-(Even) LVDS1_D2+(Even) LVDS1_D1-(Even) LVDS1_D1+(Even) LVDS1_D3+(Even) LVDS1_D3-(Even) LVDS1_D0+(Even) LVDS1_D0-(Even) LVDS0_CLK+(Odd) LVDS0_CLK-(Odd) LVDS0_D2+(Odd) LVDS0_D2-(Odd) LVDS0_D1+(Odd) LVDS0_D1-(Odd) LVDS0_D0+(Odd) LVDS0_D0-(Odd) LVDS_LCD1 LVDS0_D3+(Odd) LVDS0_D3-(Odd) LVDS_VCC LVDS_VCC SP-6150/6155 SERIES USER MANUAL Page: 3-44...

  • Page 68: 15" Panel Led Backlight Control Connector

    Touch Panel Connector Connector Location: JTP1 Description: Touch Panel Connector ASSIGNMENT Low Right or Low Left Low Left or Low Right Sense signal Up Right or Up Left JTP1 Up Left or Up Right SP-6150/6155 SERIES USER MANUAL Page: 3-45...

  • Page 69: Led1 Connector

    Chapter 3 Hardware Configuration 3.8.6 LED1 Connector Connector Location: JLED1 Description: LED1 Connector ASSIGNMENT POWER LED HDD LED JLED1 SP-6150/6155 SERIES USER MANUAL Page: 3-46...

  • Page 70: Touch Panel Up Signal Setting

    Jumper Name: JP1 Description: Touch Panel Up Signal Setting JUMPTER SELECTION JUMPER ILLUSTRATION SETTING Open Normal (Default Setting) Connect Up Left Signal Connect Up Right Signal Connect Up Right Signal Connect Up Left Signal SP-6150/6155 SERIES USER MANUAL Page: 3-47...

  • Page 71: Touch Panel Low Signal Setting

    Jumper Name: JP2 Description: Touch Panel Low Signal Setting JUMPTER SELECTION JUMPER ILLUSTRATION SETTING Open Normal (Default Setting) Connect Low Left Signal Connect Low Right Signal Connect Low Right Signal Connect Low Left Signal SP-6150/6155 SERIES USER MANUAL Page: 3-48...

  • Page 72: Software Utilities

    Trusted Execution Engine Driver installation • Microsoft Hotfix kb3211320 and kb3213986 Driver installation • Installing Graphics Driver Utility • Installing LAN Driver Utility • Installing Sound Driver Utility ® • Installing Intel Serial I/O Driver Utility SP-6150/6155 SERIES USER MANUAL Page: 4-1...

  • Page 73: Introduction

    Chapter 4 Software Utilities Introduction Enclosed with the SP-6150 / SP-6155 Series package is our driver utilities contained in a DVD-ROM disk. Refer to the following table for driver locations: Filename (Assume that Purpose DVD- ROM drive is D:) Win10/64 bit For Aptio(EFI) BIOS update ...

  • Page 74: Installing Intel ® Chipset Software Installation Utility

    OS installation is finished. Please follow the steps below: Connect the USB DVD-ROM device to SP-6150 / SP-6155 and insert the driver disk. Enter the Main Chip folder where the Chipset driver is located Click SetupChipset.exe file for driver installation.

  • Page 75: Intel ® Trusted Execution Engine Driver Installation

    4.3.2 Installation Instructions for Windows 10 Insert the driver disk into a DVD ROM device. Under Windows system, go to the directory where the driver is located. Run the application with administrative privileges. Page: 4-4 SP-6150/6155 SERIES USER MANUAL...

  • Page 76: Microsoft Hotfix Kb3211320 And Kb3213986 Driver Installation

    To install the utility, simply follow the following steps: Insert the driver disk into a DVD ROM device. Under Windows system, go to the directory where the driver is located. Run the application with administrative privileges. SP-6150/6155 SERIES USER MANUAL Page: 4-5...

  • Page 77: Installing Graphics Driver Utility

    LVDS interfaces and make the system work simultaneously. To install the Graphics driver utility, follow the steps below: Connect the USB DVD-ROM device to SP-6150 / SP-6155 and insert the driver disk. Enter the Graphics folder where the driver is located Click the Setup.exe file for driver installation.

  • Page 78: Installing Lan Driver Utility

    Enhanced with LAN function, SP-6150 / SP-6155 supports various network adapters. To install the LAN Driver, follow the steps below: Connect the USB DVD-ROM device to SP-6150 / SP-6155 and insert the driver disk. Enter the LAN Chip folder where the driver is located Click Autorun.exe file for driver installation.

  • Page 79: Installing Sound Driver Utility

    ® Windows 10 series. To install the Sound Driver, follow the steps below: Connect the USB DVD-ROM device to SP-6150 / SP-6155 and insert the driver disk. Open the Sound Codec folder where the driver is located Click the Audio_0008-64bit_Win7_Win8_Win81_Win10_R281.exe file for driver installation.

  • Page 80: Installing Intel ® Serial I/O Driver Utility

    Installing Intel Serial I/O Driver Utility To install the Serial I/O Driver, follow the steps below: Connect the USB DVD-ROM device to SP-6150 / SP-6155 and insert the driver disk. Open the Serial I/O folder where the driver is located.

  • Page 81: Bios Setup

    The BIOS Setup Utilities consist of the following menu items: • Accessing Setup Utilities • Main Menu • Advanced Menu • Chipset Menu • Security Menu • Boot Menu • Save & Exit Menu SP-6150/6155 SERIES USER MANUAL Page: 5-1...

  • Page 82: Introduction

    Chapter 5 BIOS Setup Introduction The SP-6150 / SP-6155 System uses an AMI (American Megatrends Aptio BIOS that is stored in the Serial Peripheral Interface Incorporated) Flash Memory (SPI Flash) and can be updated. The SPI Flash contains the built-in BIOS setup program, Power-On Self-Test (POST), PCI auto-configuration utility, LAN EEPROM information, and Plug and Play support.
  • Page 83 BIOS setup menu by pressing <Del> or <Esc> immediately while the POST message is running before the operating system is loading. All the menu settings are described in details in this chapter. SP-6150/6155 SERIES USER MANUAL Page: 5-3...

  • Page 84: Accessing Setup Utility

    Self-Test (POST) routines and the POST message will be displayed: Figure 5-2. POST Screen with AMI Logo Press <Del> or <Esc> to access the Setup Utility program and the Main menu of the Aptio Setup Utility will appear on the screen as below: SP-6150/6155 SERIES USER MANUAL Page: 5-4...
  • Page 85 US English. You may use <↑> or <↓> key to select among the items and press <Enter> to confirm and enter the sub-menu. The following table provides the list of the navigation keys that you can use while operating the BIOS setup menu. SP-6150/6155 SERIES USER MANUAL Page: 5-5...
  • Page 86 The CMOS battery The battery may be losing power and users is bad or has been should replace the battery immediately. Also, recently replaced. this message is displayed once the new battery is replaced. SP-6150/6155 SERIES USER MANUAL Page: 5-6...

  • Page 87: Main

    No changeable options Displays the date that the current BIOS Time version is built. BXT SOC No changeable options Displays the SoC stepping. Displays the current TXE firmware TXE FW No changeable options version. SP-6150/6155 SERIES USER MANUAL Page: 5-7...
  • Page 88 The “Day” is automatically changed. Sets the system time. The format is [Hour: Minute: Second]. Users can directly enter System Time hour, minute, second values or use <+> or <-> arrow keys to increase/decrease it. SP-6150/6155 SERIES USER MANUAL Page: 5-8...

  • Page 89: Advanced

    Sub-Menu CPU Configuration Parameters. F81946 Super IO Sub-Menu F81946 Super IO Chip Parameters. Configuration Network Stack Sub-Menu Network Stack Settings Configuration USB Configuration Sub-Menu USB Configuration Parameters. Platform Trust Sub-Menu Platform Trust Technology Technology SP-6150/6155 SERIES USER MANUAL Page: 5-9...

  • Page 90: Advanced - Acpi Settings

    SUSPEND button is - Suspend Disabled pressed. If S3 (Suspend to RAM) is ACPI Sleep State - S3 (Suspend to RAM) selected, the system shuts down with the exception of a refresh current to the memory. SP-6150/6155 SERIES USER MANUAL Page: 5-10...

  • Page 91: Advanced - Hardware Monitor

    No changeable options Detects and displays 3V voltage. VSB3V No changeable options Detects and displays VSB3V voltage. VSB5V No changeable options Detects and displays VSB5V voltage. Detects and displays the battery VBAT No changeable options voltage. SP-6150/6155 SERIES USER MANUAL Page: 5-11...

  • Page 92: Advanced - F81946 Watchdog Configuration

    Selects 1s (second) or 60s (minute) as Watchdog Timer Unit - 60s the time unit of Watchdog timer. Watchdog Timer Numeric Sets the timeout for Watchdog timer. Count (from 1 to 255) (Max. value: 255 seconds or minutes) SP-6150/6155 SERIES USER MANUAL Page: 5-12...

  • Page 93: Advanced - Cpu Configuration

    Intel Virtualization - Disabled provided by Vanderpool Technology. Technology - Enabled Previously codenamed "Vanderpool", VT-x represents Intel’s technology for virtualization on the x86 platform. VT-d - Disabled Enable or Disable VT-d settings. - Enabled SP-6150/6155 SERIES USER MANUAL Page: 5-13...
  • Page 94 Intel HT Technology No changeable options processor. Reports if Intel VT-x Technology is supported by processor. Previously Intel VT-x Technology No changeable options codenamed "Vanderpool", VT-x represents Intel’s technology for virtualization on the x86 platform. SP-6150/6155 SERIES USER MANUAL Page: 5-14...
  • Page 95 Displays L1 Data Cache Size L1 Code Cache No changeable options Displays L1 Code Cache Size L2 Cache No changeable options Displays L2 Cache Size L3 Cache No changeable options Displays L3 Cache Size SP-6150/6155 SERIES USER MANUAL Page: 5-15...
  • Page 96 Advanced - CPU Configuration - CPU Power Management Menu Path Advanced > CPU Configuration> CPU Power Management CPU Power Management Screen BIOS Setting Options Description/Purpose - Disabled EIST Enables or Disables Intel SpeedStep. - Enabled SP-6150/6155 SERIES USER MANUAL Page: 5-16...

  • Page 97: Advanced - F81946 Super Io Configuration

    F81946 Super IO Configuration Screen BIOS Setting Options Description/Purpose Sets the parameters of Serial Port 1 Serial Port 1 Configuration Sub-menu (COMA). Sets the parameters of Serial Port 2 Serial Port 2 Configuration Sub-menu (COMB). SP-6150/6155 SERIES USER MANUAL Page: 5-17...
  • Page 98 Allows you to select specific - IO=3F8h; IRQ=3,4,5,6,7,10,11; Change Settings IO address and IRQ for Serial - IO=2F8h; IRQ=3,4,5,6,7,10,11; Port 1. - IO=3E8h; IRQ=3,4,5,6,7,10,11; - IO=2E8h; IRQ=3,4,5,6,7,10,11; - RS-232 Mode - RS-422 Selects COM mode. - RS-485 SP-6150/6155 SERIES USER MANUAL Page: 5-18...
  • Page 99 Allows you to select specific - IO=3F8h; IRQ=3,4,5,6,7,10,11; Change Settings IO address and IRQ for Serial - IO=2F8h; IRQ=3,4,5,6,7,10,11; Port 2. - IO=3E8h; IRQ=3,4,5,6,7,10,11; - IO=2E8h; IRQ=3,4,5,6,7,10,11; - RS-232 Mode - RS-422 Selects COM mode. - RS-485 SP-6150/6155 SERIES USER MANUAL Page: 5-19...

  • Page 100: Advanced - Network Stack Configuration

    Number of seconds to wait for PXE boot to PXE boot wait time (from 0 to 5) abort after the Esc key is pressed. Numeric Number of times that the media presence Media detect count (from 1 to 50) will be checked. SP-6150/6155 SERIES USER MANUAL Page: 5-20...

  • Page 101: Advanced - Usb Configuration

    The USB Configuration allows users to configure advanced USB settings such as USB mass storage driver support. USB Configuration Screen BIOS Setting Options Description/Purpose USB Mass Storage - Disabled Enables or Disables USB Mass Storage Driver Support - Enabled Driver Support. SP-6150/6155 SERIES USER MANUAL Page: 5-21...

  • Page 102: Advanced - Platform Trust Technology

    The Platform Trust Technology allows users to configure advanced TPM settings such as fTPM. Platform Trust Technology Screen BIOS Setting Options Description/Purpose Enables or Disables fTPM. - Disabled fTPM It must be disabled when discrete TPM is - Enabled used. SP-6150/6155 SERIES USER MANUAL Page: 5-22...

  • Page 103: Chipset

    This menu allows users to configure advanced Chipset settings such as North Bridge and South Bridge configuration parameters.. Chipset Screen BIOS Setting Options Description/Purpose North Bridge Sub-menu North Bridge Parameters. South Bridge Sub-menu South Bridge Parameters. SP-6150/6155 SERIES USER MANUAL Page: 5-23...

  • Page 104: Chipset -North Bridge

    Displays the current amount and type of Total Memory No changeable options memory on the system, e.g. "2048 MB". Displays the current size of SO-DIMM#1 SO-DIMM#1 No changeable options on the system, e.g. "2048 MB". SP-6150/6155 SERIES USER MANUAL Page: 5-24...

  • Page 105: Chipset -South Bridge

    Description/Purpose HD-Audio Configuration Sub-menu HD-Audio Configuration Settings LPSS Configuration Sub-menu LPSS Configuration Settings. PCI Express Configuration Sub-menu PCI Express Configuration Settings. SATA Drives Sub-menu SATA Device Configuration Settings. Miscellaneous Configurations Sub-menu Miscellaneous Configuration Settings. SP-6150/6155 SERIES USER MANUAL Page: 5-25...

  • Page 106: Chipset -South Bridge- Hd-Audio Configuration

    Chapter 5 BIOS Setup 5.5.2.1 Chipset –South Bridge- HD-Audio Configuration Menu Path Chipset > South Bridge > HD-Audio Configuration HD-Audio Configuration Screen BIOS Setting Options Description/Purpose - Disabled Enables or Disables HD-Audio HD-Audio Configuration - Enabled support. SP-6150/6155 SERIES USER MANUAL Page: 5-26...

  • Page 107: Chipset -South Bridge- Lpss Configuration

    - High Speed Mode - Disabled I2C2 Support Enables or Disables I2C2 Support. - Enabled - Standard Mode - Fast Mode Set I2C2 Speed Selects I2C2 Speed. - Fast Plus Mode - High Speed Mode SP-6150/6155 SERIES USER MANUAL Page: 5-27...

  • Page 108: Chipset -South Bridge- Pci Express Configuration

    PCI Express Root Port 0 (LAN 1) Sub-menu (LAN 1) parameters.. PCI Express Root Port 1 PCI Express Root Port 1 (LAN 2) Sub-menu (LAN 2) parameters. Mini-PCI Express Root Sub-menu Mini PCI Express Port 1 parameters. Port 1 SP-6150/6155 SERIES USER MANUAL Page: 5-28...
  • Page 109 PCI Express Root Port 0 - Enabled saving the most optimum power. (LAN 1) -Auto (default) • Enabled: Enables PCI Express Root Port 0 (LAN 1). • Disabled: Disables PCI Express Root Port 0 (LAN 1). SP-6150/6155 SERIES USER MANUAL Page: 5-29...
  • Page 110 PCI Express Root Port 1 - Enabled saving the most optimum power. (LAN 2) - Auto (default) • Enabled: Enables PCI Express Root Port 1 (LAN 2). • Disabled: Disables PCI Express Root Port 1 (LAN 2). SP-6150/6155 SERIES USER MANUAL Page: 5-30...
  • Page 111 - Disabled - L0s PCI Express Active State Power ASPM - L1 Management settings. - L0sL1 - Auto - Disabled - L1.1 L1 Substates PCI Express L1 Substates settings. - L1.2 - L1.1 & L1.2 SP-6150/6155 SERIES USER MANUAL Page: 5-31...
  • Page 112 Chapter 5 BIOS Setup BIOS Setting Options Description/Purpose - Disabled Enables or Disables PCI Express Hot Hot Plug - Enabled Plug. - Auto PCIe Speed - Gen1 Selects PCI Express Port Speed. - Gen2 SP-6150/6155 SERIES USER MANUAL Page: 5-32...

  • Page 113: Chipset -South Bridge- Sata Drives

    Enables or Disables SATA Port 1 - Enabled Displays the connected device on mSATA Port 1 No changeable options mSATA Port 1 - Disabled Port 1 Enables or Disables mSATA Port 1 - Enabled SP-6150/6155 SERIES USER MANUAL Page: 5-33...

  • Page 114: Chipset -South Bridge- Miscellaneous Configuration

    - S5 State as soon as power applied. • S5 State: System keeps in power-off state until power button is pressed. - Disabled Enables or Disables the Wake on Lan Wake On Lan - Enabled (WOL). SP-6150/6155 SERIES USER MANUAL Page: 5-34...

  • Page 115: Security

    Setup utility. Security Screen BIOS Setting Options Description/Purpose Setup Administrator Password can be 3-20 Specifies the administrator password. Password alphanumeric characters. Password can be 3-20 User Password Specifies the user password. alphanumeric characters. SP-6150/6155 SERIES USER MANUAL Page: 5-35...
  • Page 116 Security menu and press <Enter>, and the password dialog entry box appears. 2. Select the configured Administrator Password or User Password that you want to delete. Leave the dialog box blank and press <Enter>. 3. Press <Enter> again when the password confirmation box appears. SP-6150/6155 SERIES USER MANUAL Page: 5-36...

  • Page 117: Boot

    • On: Enables the NumLock function Bootup - On automatically after the system is NumLock State - Off powered on. • Off: Disables the NumLock function after the system is powered on. SP-6150/6155 SERIES USER MANUAL Page: 5-37...
  • Page 118 Allows users to change the boot order from the available device(s). Boot Option - [Drive(s)] Note that in the menu displayed, you will #1~#n - Disabled only see the device with the highest priority for a specific boot device type. SP-6150/6155 SERIES USER MANUAL Page: 5-38...

  • Page 119: Save & Exit

    Discard Changes and Reset to discard any changes you have made and restore the factory BIOS defaults. Load User Defaults You may simply press F3 at any time to load the Optimized Values which resets all BIOS settings to the factory defaults. Save & Exit Screen SP-6150/6155 SERIES USER MANUAL Page: 5-39...
  • Page 120 Saves the changes done so far as User No changeable options Defaults Defaults. Restore User Restores the User Defaults to all the BIOS No changeable options Defaults settings. Forces to boot the system from selected Boot Override - [Drive(s)] [drive(s)]. SP-6150/6155 SERIES USER MANUAL Page: 5-40...

  • Page 121: Appendix A System Diagrams

    • SP-6150 / SP-6155 Bottom Cover Exploded Diagram • SP-6150 / SP-6155 Heat Sink Exploded Diagram • SP-6150 / SP-6155 Front & Rear I/O Panels Installation Exploded Diagram • SP-6150 / SP-6155 Mother Board Exploded Diagram • SP-6150 / SP-6155 HDD Module Exploded Diagram •...
  • Page 122 Appendix A System Diagrams SP-6150 LCD Panel Exploded Diagram Q’ty Component Name P/N No. Round Washer Head Screw 22-242-30005311 M3x0.5Px5mm Panel 52-351-01104102 Flat Head Screw #2 / 22-215-30005311 M3x0.5Px4mm(Black) Flat Head Screw M3x0.5Px6mm (Black) 22-215-30060011 LED Housing (Black) 30-014-04100165 LED Holder...
  • Page 123 Appendix A System Diagrams SP-6150 Touch Panel Exploded Diagram Q’ty Component Name P/N No. Fillister Head Screw #2 / M3x0.5Px4mm 82-272-30004018 Touch Support LR 20-006-03001239 Touch Support TB 20-006-03002239 Poron Sponge (175x11.6x0.5mm) 90-013-24100000 Poron Sponge (233x11.6x0.5mm) 90-013-24200000 10.4" ELO Touch Panel, 5-Wire Resistive...

  • Page 124: Sp-6150 Front Panel Exploded Diagram

    Appendix A System Diagrams SP-6150 Front Panel Exploded Diagram Q’ty Component Name P/N No. Flat Head Screw M3x0.5Px6mm (Black) 22-215-30060011 CPT LCD Assembly Front Panel Assembly SP-6150/6155 SERIES USER MANUAL Page: A-4...

  • Page 125: Sp-6150 Touch Control Board Exploded Diagram

    Appendix A System Diagrams SP-6150 Touch Control Board Exploded Diagram Q’ty Component Name P/N No. Round Washer Head Screw 22-242-30005311 M3x0.5Px5mm PAC8100LF-D1-PCB SR-6145RA-D0N SP-6150 CPT LCD ASSM SP-6150/6155 SERIES USER MANUAL Page: A-5...

  • Page 126: Sp-6150 Box Exploded Diagram

    Appendix A System Diagrams SP-6150 Box Exploded Diagram Q’ty Component Name Part No. Outside Rubber 30-013-01100239 SE-8134 Flat Head Screw M3x0.5Px6mm (Black) 22-215-30060011 SP-6150/6155 SERIES USER MANUAL Page: A-6...

  • Page 127: Sp-6155 Touch Panel Exploded Diagram

    Appendix A System Diagrams SP-6155 Touch Panel Exploded Diagram Q’ty Component Name Part No. SP-6155_LCD_Module_Exp See page A-8 SE-8134-Explode See page A-11~A-15 Flat Head Screw #2/ψ 5/ M3x0.5Px5mm 22-215-30005011 (Black) SP-6150/6155 SERIES USER MANUAL Page: A-7...

  • Page 128: Sp-6155 Lcd Display Exploded Diagram

    15" TFT LCD Panel (LED 52-351-03006802 Backlight),450nits,HD (1024x768) SP-6205 Touch Panel EVA 2.5L 30-013-15100271 (323x6x2.5mm) SP-6205 Touch Panel EVA 2.5L 30-013-15200271 (236x6x2.5mm) SP-7145 Thin Gap LCD Poron H 30-013-24100411 (326x8x1mm) SP-7145 Thin Gap LCD Poron H 30-013-24200411 (233x8x1mm) Page: A-8 SP-6150/6155 SERIES USER MANUAL...
  • Page 129 PPC-7360 LED Label For Power 34-017-02103009 LED Label For HDD 34-017-02101009 Round Head With Spring Washer Screw 22-232-30060211 M3x0.5Px6mm SR-6145RA-D0N SP-6155 Daughter Board Fillister Head Screw #2 / M3x0.5Px5mm 22-272-30049015 Flat Head Screw #2/ψ 5/ M3x0.5Px5mm 22-215-30005011 (Black) SP-6150/6155 SERIES USER MANUAL Page: A-9...

  • Page 130: Sp-6155 Panel Mount Exploded Diagram

    Appendix A System Diagrams SP-6155 Panel Mount Exploded Diagram SP-6150/6155 SERIES USER MANUAL Page: A-10...

  • Page 131: Sp-6150 / Sp-6155 Button Cover Exploded Diagram

    Appendix A System Diagrams SP-6150 / SP-6155 Button Cover Exploded Diagram Q’ty Component Name P/N No. SP-6155/SE-8134 PPC Bottom 80-006-03061417 Bracket(w/Paint)(Black) Flat Head Screw #2/ M3x0.5Px5mm 22-215-30005011 (Black) Flat Head Screw #1/ M2x0.45Px4mm 22-215-25004011 SP-6150/6155 SERIES USER MANUAL Page: A-11...

  • Page 132: Sp-6150 / Sp-6155 Heatsink Exploded Diagram

    Appendix A System Diagrams SP-6150 / SP-6155 Heatsink Exploded Diagram Q’ty Component Name P/N No. Black SE-8134 Heatsink Main Case Silver HDD Support Side Braclet 20-006-03002401 E3950 81-002-24525001 CPU Conduction Block N3350 81-002-24525002 Choke Thermal Pads, 81-006-81515007 K=12,15x15x1.0mm (Gray) CPU Thermal Pads, K=12,13x13x1mm...

  • Page 133: Sp-6150 / Sp-6155 Mother Board Exploded Diagram

    Appendix A System Diagrams SP-6150 / SP-6155 Mother Board Exploded Diagram Q’ty Component Name P/N No. Black 81-002-11841003 Heat Sink Left Cover Silver 81-002-11841004 SB-8134 M/B PoE Board SR-8134RB-D0N HEX CU BOSS(NI) M3x0.5Px6L, 22-252-30025901 H=24.7mm Fillister Head Screw #1 / M2x0.4Px4mm 22-272-20004011 Flat Head Screw #2/ M3x0.5Px5mm...

  • Page 134: Sp-6150 / Sp-6155 Front &Rear I/O Panel Exploded Diagram

    Appendix A System Diagrams SP-6150 / SP-6155 Front & Rear I/O Panel Exploded Diagram 05 06 Q’ty Component Name P/N No. Blue 20-005-03066401 Front I/O Plate Silver 20-002-03065401 Blue 20-005-03061401 Back I/O Plate Silver 20-005-03062401 Blue 20-004-03063401 SIM / SD Cover...

  • Page 135: Sp-6150 / Sp-6155 Hdd Tary Exploded Diagram

    Appendix A System Diagrams SP-6150 / SP-6155 HDD Tary Exploded Diagram Q’ty Component Name P/N No. 2.5” HDD / SDD SE-8134 HDD Tray (w/Paint) 20-054-03061401 (Pantone 2188C) SE-8134 HDD Tray (w/Paint) 20-054-03062401 (Pantone 877C) SE-8134 HDD Cable Holder ASM 20-029-03001401...
  • Page 136 Appendix A System Diagrams SP-6150 / SP-6155 Packing Exploded Exploded Diagram SP-6150 Component Name P/N No. Q’ty SP-6150 mylar for display 30-056-16200009 Cardboard (280-224-2.2mm) 34-004-01801009 Silica Gel 1gm 34-005-00010007 PE Bag 32-10020010000 SP-6140 EPE RIGHT (325x180x112mm) 94-016-00301347 SP-6140 EPE LEFT(325x180x112mm)
  • Page 137 Appendix A System Diagrams SP-6150 / SP-6155 Packing Exploded Exploded Diagram SP-6155 Component Name P/N No. Q’ty SP-6145 EPE Left (378x242x160mm) 94-016-00301351 PS-6630 Outer Carton 94-001-01401220 (492x392x263mm) PS-650X Carton Boxes 34-003-01301086 (332x150x45mm) PE Bag (480x460) 32-100-20010000 Silica Gel 1gm 34-005-00010007...

  • Page 138: Appendix B Technical Summary

    This appendix will give you a brief introduction of the allocation maps for the system resources. The following topics are included: • System Block Diagram • Interrupt Map • I/O Map • Memory Map • Configuring WatchDog Timer • Flash BIOS Update Page: B-1 SP-6150/6155 SERIES USER MANUAL...

  • Page 139: System Block Diagram

    Address :40h SD CARD SDMMC SATA x1 SATA3.0 mSATA Slot SATA3.0 F81964D-I COM 1/2 USB2.0 LOW PIN COUNT RS-232 RS232/422/485 (Super IO) COM1/2 support 5V/12V USB3.0 USB 3.0 x3 USB2.0 USB 2.0 x2 USB2.0 SP-6150/6155 SERIES USER MANUAL Page: B-2...

  • Page 140: Interrupt Map

    IRQ 65 Microsoft ACPI-Compliant System IRQ 66 Microsoft ACPI-Compliant System IRQ 67 Microsoft ACPI-Compliant System IRQ 68 Microsoft ACPI-Compliant System IRQ 69 Microsoft ACPI-Compliant System IRQ 70 Microsoft ACPI-Compliant System IRQ 71 Microsoft ACPI-Compliant System SP-6150/6155 SERIES USER MANUAL Page: B-3...
  • Page 141 IRQ 96 Microsoft ACPI-Compliant System IRQ 97 Microsoft ACPI-Compliant System IRQ 98 Microsoft ACPI-Compliant System IRQ 99 Microsoft ACPI-Compliant System IRQ 100 Microsoft ACPI-Compliant System IRQ 101 Microsoft ACPI-Compliant System IRQ 102 Microsoft ACPI-Compliant System SP-6150/6155 SERIES USER MANUAL Page: B-4...
  • Page 142 IRQ 127 Microsoft ACPI-Compliant System IRQ 128 Microsoft ACPI-Compliant System IRQ 129 Microsoft ACPI-Compliant System IRQ 130 Microsoft ACPI-Compliant System IRQ 131 Microsoft ACPI-Compliant System IRQ 132 Microsoft ACPI-Compliant System IRQ 133 Microsoft ACPI-Compliant System SP-6150/6155 SERIES USER MANUAL Page: B-5...
  • Page 143 IRQ 158 Microsoft ACPI-Compliant System IRQ 159 Microsoft ACPI-Compliant System IRQ 160 Microsoft ACPI-Compliant System IRQ 161 Microsoft ACPI-Compliant System IRQ 162 Microsoft ACPI-Compliant System IRQ 163 Microsoft ACPI-Compliant System IRQ 164 Microsoft ACPI-Compliant System SP-6150/6155 SERIES USER MANUAL Page: B-6...
  • Page 144 IRQ 189 Microsoft ACPI-Compliant System IRQ 190 Microsoft ACPI-Compliant System IRQ 191 Microsoft ACPI-Compliant System IRQ 192 Microsoft ACPI-Compliant System IRQ 193 Microsoft ACPI-Compliant System IRQ 194 Microsoft ACPI-Compliant System IRQ 195 Microsoft ACPI-Compliant System SP-6150/6155 SERIES USER MANUAL Page: B-7...
  • Page 145 IRQ 271 Microsoft ACPI-Compliant System IRQ 272 Microsoft ACPI-Compliant System IRQ 273 Microsoft ACPI-Compliant System IRQ 274 Microsoft ACPI-Compliant System IRQ 275 Microsoft ACPI-Compliant System IRQ 276 Microsoft ACPI-Compliant System IRQ 277 Microsoft ACPI-Compliant System SP-6150/6155 SERIES USER MANUAL Page: B-8...
  • Page 146 IRQ 302 Microsoft ACPI-Compliant System IRQ 303 Microsoft ACPI-Compliant System IRQ 304 Microsoft ACPI-Compliant System IRQ 305 Microsoft ACPI-Compliant System IRQ 306 Microsoft ACPI-Compliant System IRQ 307 Microsoft ACPI-Compliant System IRQ 308 Microsoft ACPI-Compliant System SP-6150/6155 SERIES USER MANUAL Page: B-9...
  • Page 147 IRQ 333 Microsoft ACPI-Compliant System IRQ 334 Microsoft ACPI-Compliant System IRQ 335 Microsoft ACPI-Compliant System IRQ 336 Microsoft ACPI-Compliant System IRQ 337 Microsoft ACPI-Compliant System IRQ 338 Microsoft ACPI-Compliant System IRQ 339 Microsoft ACPI-Compliant System SP-6150/6155 SERIES USER MANUAL Page: B-10...
  • Page 148 IRQ 364 Microsoft ACPI-Compliant System IRQ 365 Microsoft ACPI-Compliant System IRQ 366 Microsoft ACPI-Compliant System IRQ 367 Microsoft ACPI-Compliant System IRQ 368 Microsoft ACPI-Compliant System IRQ 369 Microsoft ACPI-Compliant System IRQ 370 Microsoft ACPI-Compliant System SP-6150/6155 SERIES USER MANUAL Page: B-11...
  • Page 149 IRQ 395 Microsoft ACPI-Compliant System IRQ 396 Microsoft ACPI-Compliant System IRQ 397 Microsoft ACPI-Compliant System IRQ 398 Microsoft ACPI-Compliant System IRQ 399 Microsoft ACPI-Compliant System IRQ 400 Microsoft ACPI-Compliant System IRQ 401 Microsoft ACPI-Compliant System SP-6150/6155 SERIES USER MANUAL Page: B-12...
  • Page 150 IRQ 426 Microsoft ACPI-Compliant System IRQ 427 Microsoft ACPI-Compliant System IRQ 428 Microsoft ACPI-Compliant System IRQ 429 Microsoft ACPI-Compliant System IRQ 430 Microsoft ACPI-Compliant System IRQ 431 Microsoft ACPI-Compliant System IRQ 432 Microsoft ACPI-Compliant System SP-6150/6155 SERIES USER MANUAL Page: B-13...
  • Page 151 IRQ 457 Microsoft ACPI-Compliant System IRQ 458 Microsoft ACPI-Compliant System IRQ 459 Microsoft ACPI-Compliant System IRQ 460 Microsoft ACPI-Compliant System IRQ 461 Microsoft ACPI-Compliant System IRQ 462 Microsoft ACPI-Compliant System IRQ 463 Microsoft ACPI-Compliant System SP-6150/6155 SERIES USER MANUAL Page: B-14...
  • Page 152 IRQ 488 Microsoft ACPI-Compliant System IRQ 489 Microsoft ACPI-Compliant System IRQ 490 Microsoft ACPI-Compliant System IRQ 491 Microsoft ACPI-Compliant System IRQ 492 Microsoft ACPI-Compliant System IRQ 493 Microsoft ACPI-Compliant System IRQ 494 Microsoft ACPI-Compliant System SP-6150/6155 SERIES USER MANUAL Page: B-15...
  • Page 153 IRQ 4294967285 Intel(R) I210 Gigabit Network Connection IRQ 4294967286 Intel(R) I210 Gigabit Network Connection IRQ 4294967287 Intel(R) I210 Gigabit Network Connection IRQ 4294967288 Intel(R) I210 Gigabit Network Connection IRQ 4294967289 Intel(R) I210 Gigabit Network Connection SP-6150/6155 SERIES USER MANUAL Page: B-16...
  • Page 154 IRQ 4294967291 Intel(R) Trusted Execution Engine Interface IRQ 4294967292 Standard SATA AHCI Controller IRQ 4294967293 Intel(R) Celeron(R)/Pentium(R) Processor PCI Express Root Port - 5AD9 IRQ 4294967294 Intel(R) Celeron(R)/Pentium(R) Processor PCI Express Root Port - 5AD8 SP-6150/6155 SERIES USER MANUAL Page: B-17...

  • Page 155: I/O Map

    Motherboard resources 0x0000F040-0x0000F05F Intel(R) Celeron(R)/Pentium(R) Processor SMBUS - 5AD4 0x0000D000-0x0000DFFF Intel(R) Celeron(R)/Pentium(R) Processor PCI Express Root Port - 5AD9 0x000003F8-0x000003FF Communications Port (COM1) 0x000002F8-0x000002FF Communications Port (COM2) 0x0000F000-0x0000F03F Intel(R) HD Graphics 0x0000E000-0x0000EFFF Intel(R) Celeron(R)/Pentium(R) SP-6150/6155 SERIES USER MANUAL Page: B-18...
  • Page 156 Programmable interrupt controller 0x000000B8-0x000000B9 Programmable interrupt controller 0x000000BC-0x000000BD Programmable interrupt controller 0x000004D0-0x000004D1 Programmable interrupt controller 0x0000F090-0x0000F097 Standard SATA AHCI Controller 0x0000F080-0x0000F083 Standard SATA AHCI Controller 0x0000F060-0x0000F07F Standard SATA AHCI Controller 0x00000040-0x00000043 System timer 0x00000050-0x00000053 System timer SP-6150/6155 SERIES USER MANUAL Page: B-19...

  • Page 157: Memory Map

    5AD9 0x9131C000-0x9131CFFF Intel(R) Serial IO I2C Host Controller - 5AB4 0x9131B000-0x9131BFFF Intel(R) Serial IO I2C Host Controller - 5AB4 0xFED00000-0xFED003FF High precision event timer 0x91300000-0x9130FFFF Intel(R) USB 3.0 eXtensible Host Controller - 1.0 (Microsoft) SP-6150/6155 SERIES USER MANUAL Page: B-20...
  • Page 158 0xCFFFE000-0xCFFFEFFF Intel SD Host Controller 0x91314000-0x91315FFF Standard SATA AHCI Controller 0x9131E000-0x9131E0FF Standard SATA AHCI Controller 0x9131D000-0x9131D7FF Standard SATA AHCI Controller 0x91280000-0x912FFFFF Intel(R) I210 Gigabit Network Connection #2 0x9127C000-0x9127FFFF Intel(R) I210 Gigabit Network Connection #2 SP-6150/6155 SERIES USER MANUAL Page: B-21...

  • Page 159: Configuring Watchdog Timer

    To exit the Extended Function Mode, writing 0xAA to the EFER is required. Once the chip exits the Extended Function Mode, it is in the normal running mode and is ready to enter the configuration mode. SP-6150/6155 SERIES USER MANUAL Page: B-22...
  • Page 160 Enable watchdog timer and set timeout interval to 30 seconds. ; --------------------Enter to extended function mode------------------------- ; -----------------Select Logical Device 7 of watchdog timer---------------- ;-------------------------Enable Watch dog feature----------------------------- 030h ;------------------------------Enable Watch PME-------------------------------- 0FAh ; -------------------------Set timeout interval to 30----------------------------- 0F6h SP-6150/6155 SERIES USER MANUAL Page: B-23...
  • Page 161 Appendix B Technical Summary ;--------------Set second as counting unit and start counting --------------- 0F5h ;----------------------Exit the extended function mode--------------------- 0AAh SP-6150/6155 SERIES USER MANUAL Page: B-24...
  • Page 162 BIOS Setup. (3) Select [Boot] menu and set[UEFI: Built-in EFI Shell] as the boot device. (4) Press <F4> key to save configuration and restart the system to boot into EFI Shell environment. SP-6150/6155 SERIES USER MANUAL Page: B-25...
  • Page 163 BIOS ROM may be crashed and the system will be unable to boot up next time. After the BIOS update procedure is completed, the following messages will be shown: SP-6150/6155 SERIES USER MANUAL Page: B-26...
  • Page 164 5. Restart the system and boot up with the new BIOS configurations. 6. The BIOS Update is completed after the system is restarted. 7. Reboot the system and verify if the BIOS version shown on the initialization screen has been updated. SP-6150/6155 SERIES USER MANUAL Page: B-27...

This manual is also suitable for:

Sp-6155

Table of Contents
